PRICE FIRM NO TAX OR FEES
FULL Warranty! LIKE NEW for a Used Price! Buy with confidence! Just completely Cleaned, greased & looked over. Photos just taken. LIKE NEW machine. Delivery Available!

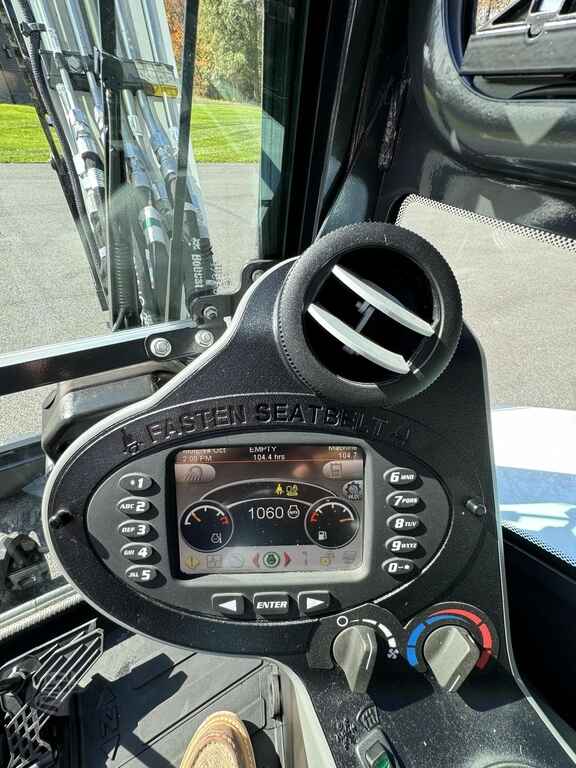

– ONLY 105 Hrs!
– ALL ORIGINAL PAINT!

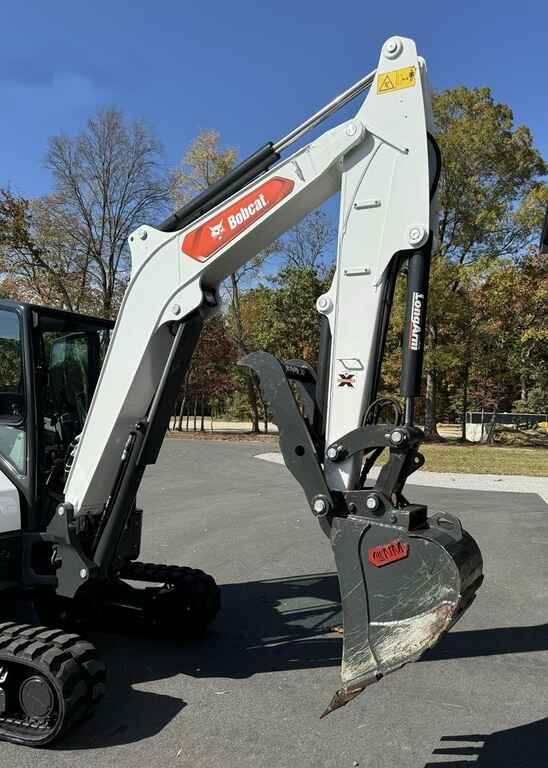

– LONG ARM
– Hydraulic Coupler

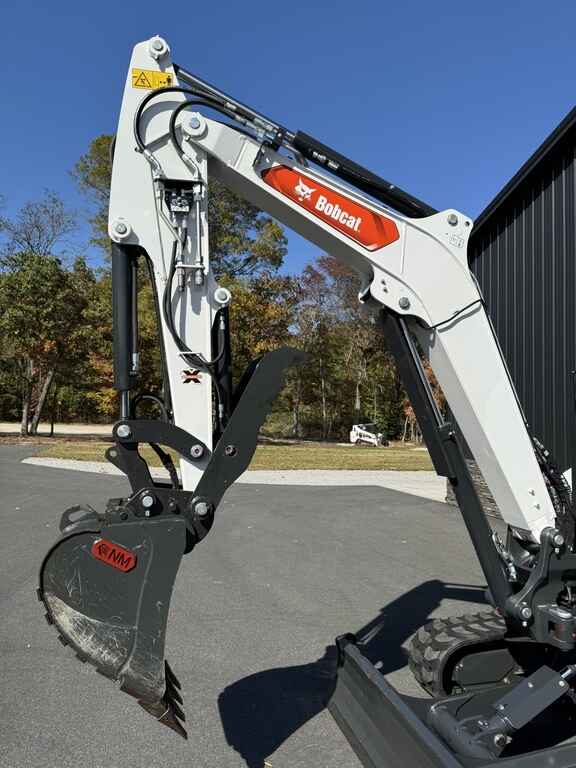

– 18” NM HD Tooth Bucket

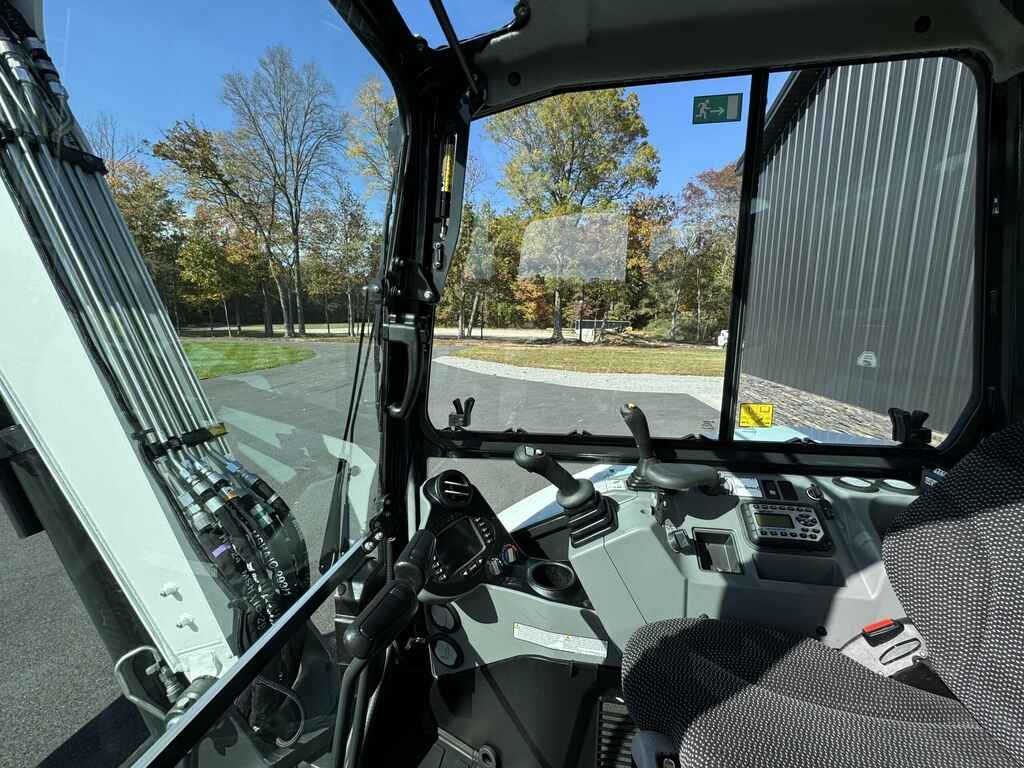

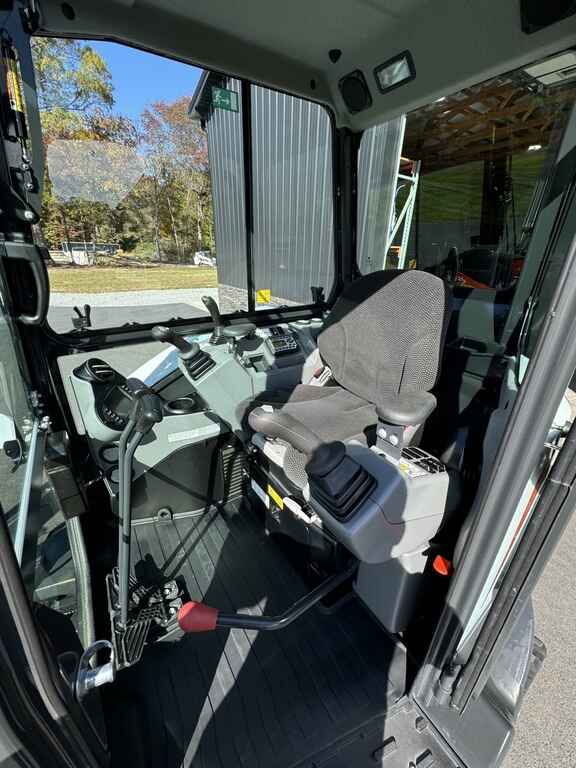

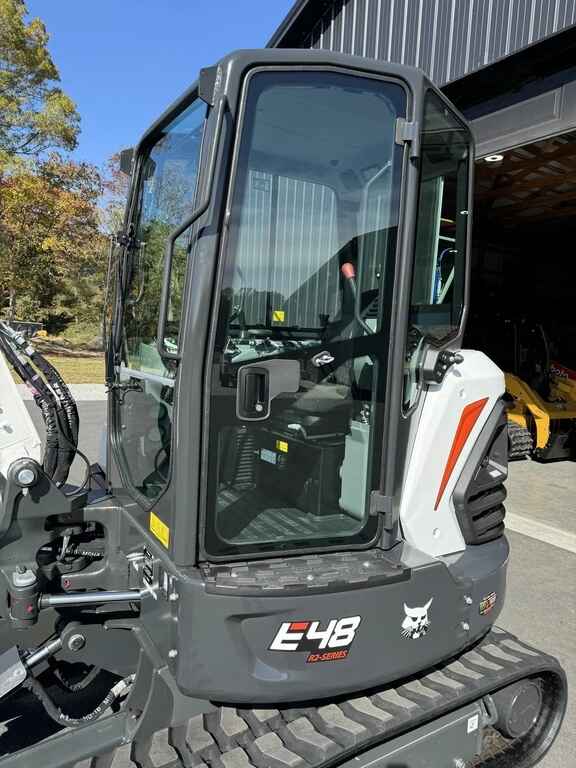

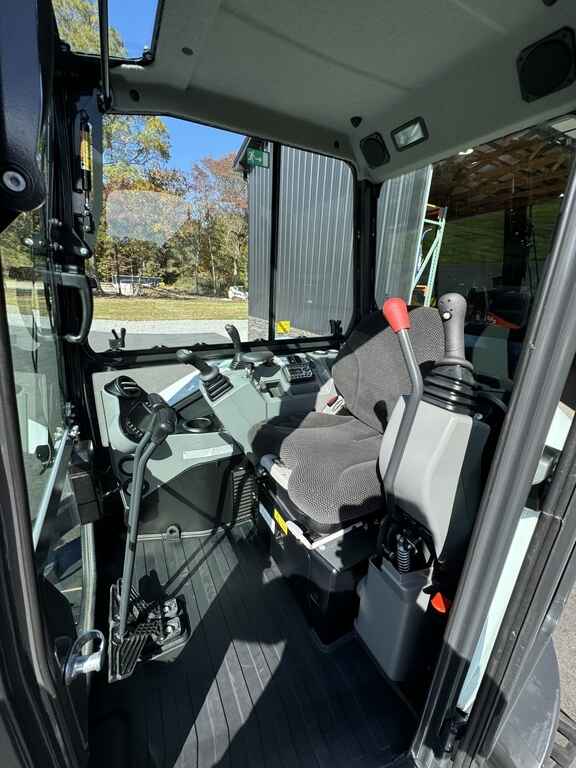

– COLD AC & HOT HEAT
– Radio

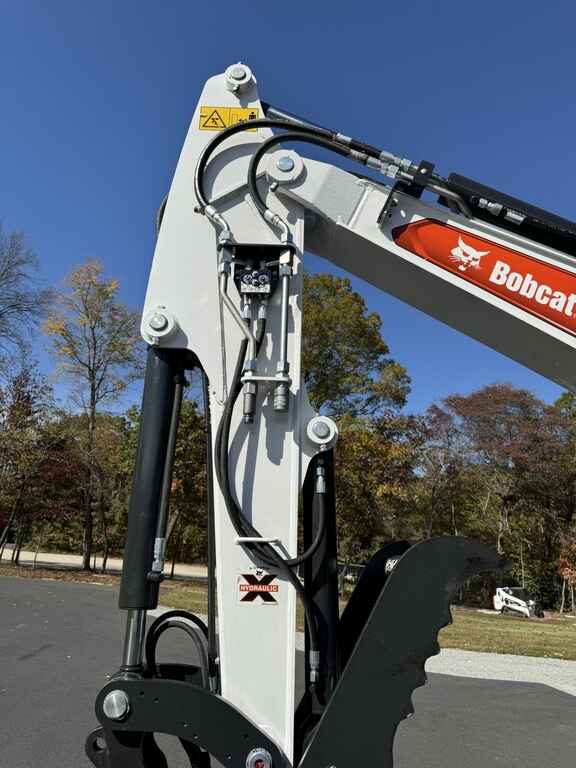

– Hydraulic Thumb
– 2 Speed
– 10k Lbs
– 42 Hp
MACHINE IS READY TO WORK

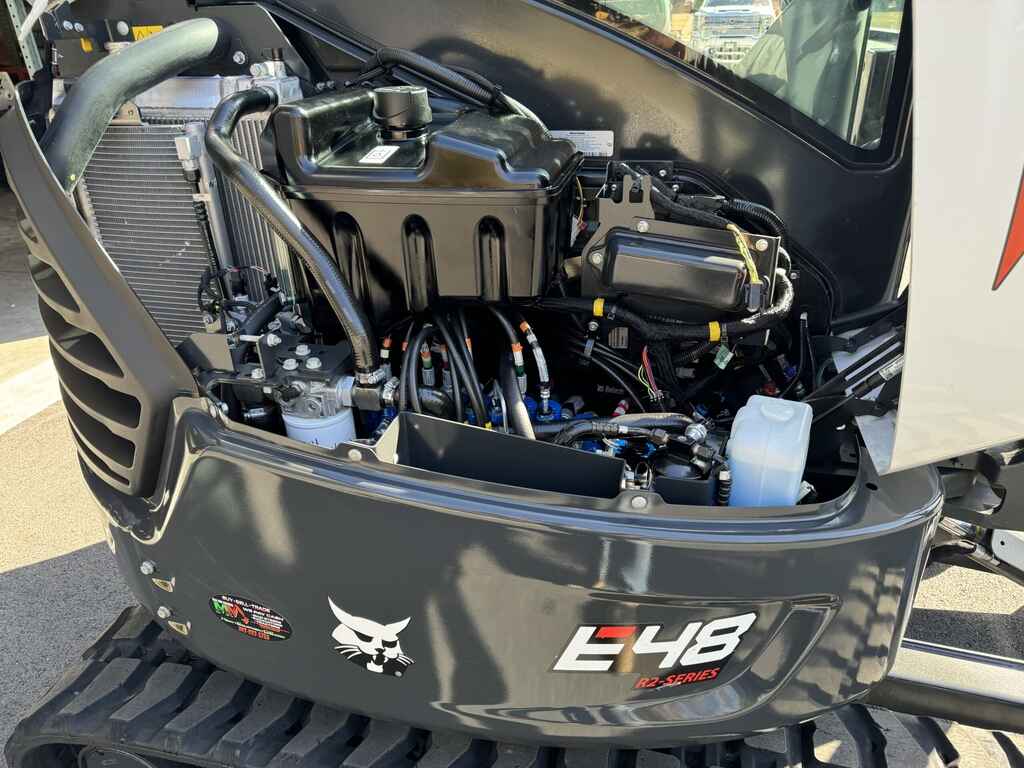

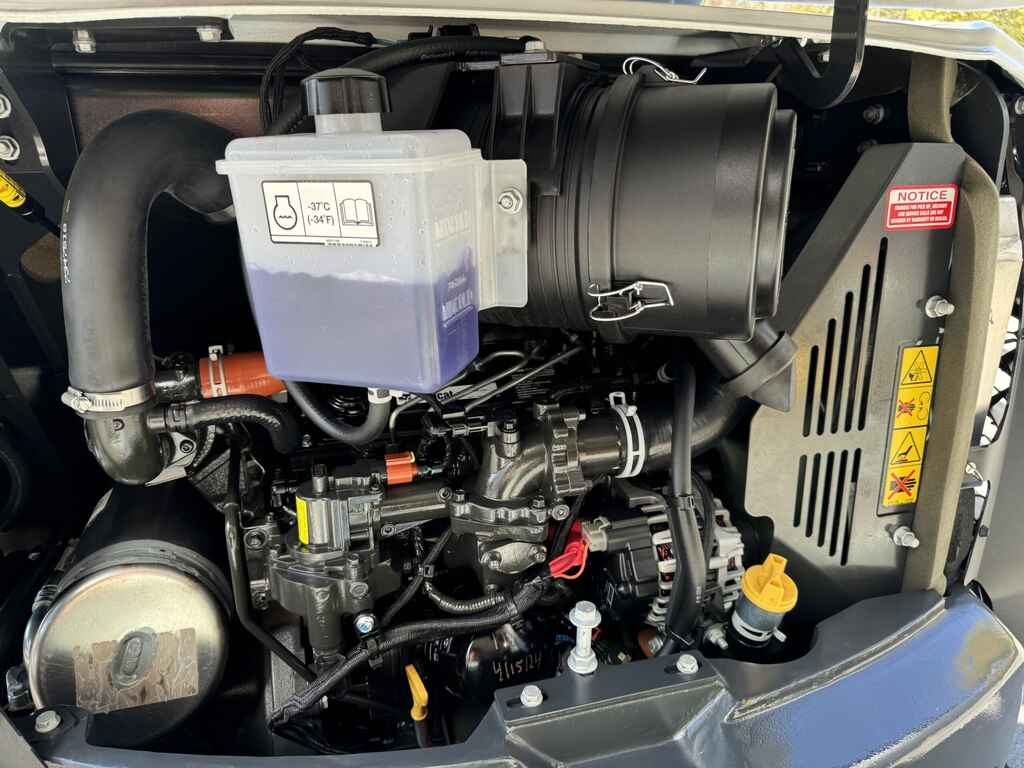

Engine
-
Emissions Tier (EPA): Tier 4
-
Engine Fuel: Diesel
-
Maximum Governed RPM: 2,200 rpm
-
Turbocharged Engine: Yes
-
Optional Turbocharged Engine: N/A
Performance
-
Operating Weight: 9,830 lb (4.5 t)
-
Travel Speed – High: 3.3 mph (5.3 km/h)
-
Travel Speed – Low: 1.6 mph (2.6 km/h)
-
Arm Digging Force: 5,820 lbf (25.9 kN)
-
Bucket Digging Force: 9,601 lbf (42.7 kN)
-
Rated Lift Capacity: 4,921 lb (2,230 kg)
-
Lift Radius: 118 in (3,000 mm)
-
Boom Swing – Left: 75°
-
Boom Swing – Right: 50°
-
Maximum Dig Depth: 124.5 in (3,160 mm)
-
Max Dump Height: 150.6 in (3,826 mm)
-
Maximum Reach at Ground Level: 207.1 in (5,264 mm)
Capacities
-
Fuel Tank: 19 gal (71.9 L)
-
Auxiliary Hydraulics Standard Flow: 20 gal/min (75.7 L/min)
-
Auxiliary Pressure: 3,045 psi (21,000 kPa)
Dimensions
-
Length: 200.5 in (5,097 mm)
-
Overall Length in Travel Position: 200.5 in (5,097 mm)
-
Width: 72.8 in (1,850 mm)
-
Height: 99.1 in (2,518 mm)
-
Height with Operator Cab: 99.1 in (2,518 mm)
Features
-
Air Conditioning: Optional
-

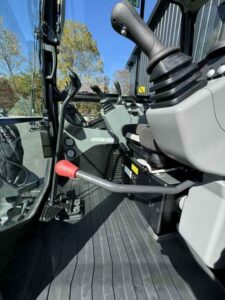

Cab Enclosure: Optional
-
Radio: Optional
-

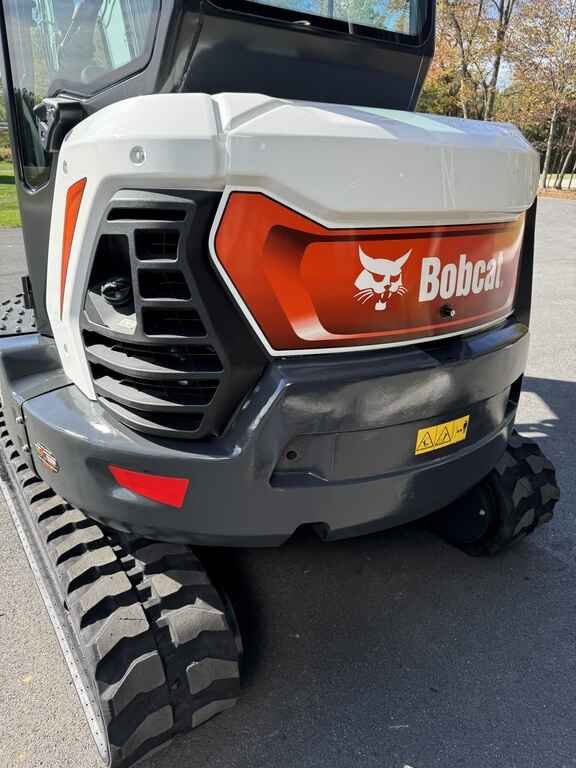

Tail Swing Type: Conventional
-
Engine Shutdown: Standard
-
Auxiliary Hydraulics: Standard
-
Quick Tach System: Standard
-

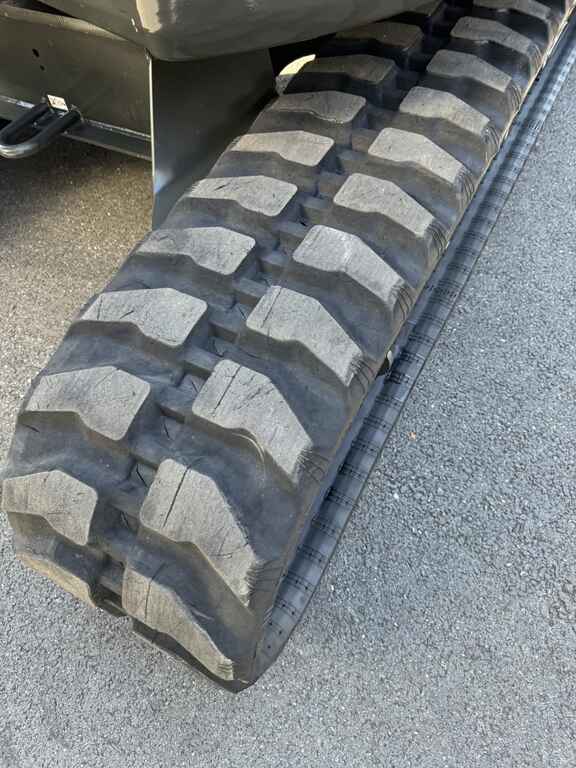

Rubber Track: Standard
-
Selectable Auxiliary Hydraulic Flow: Standard
-

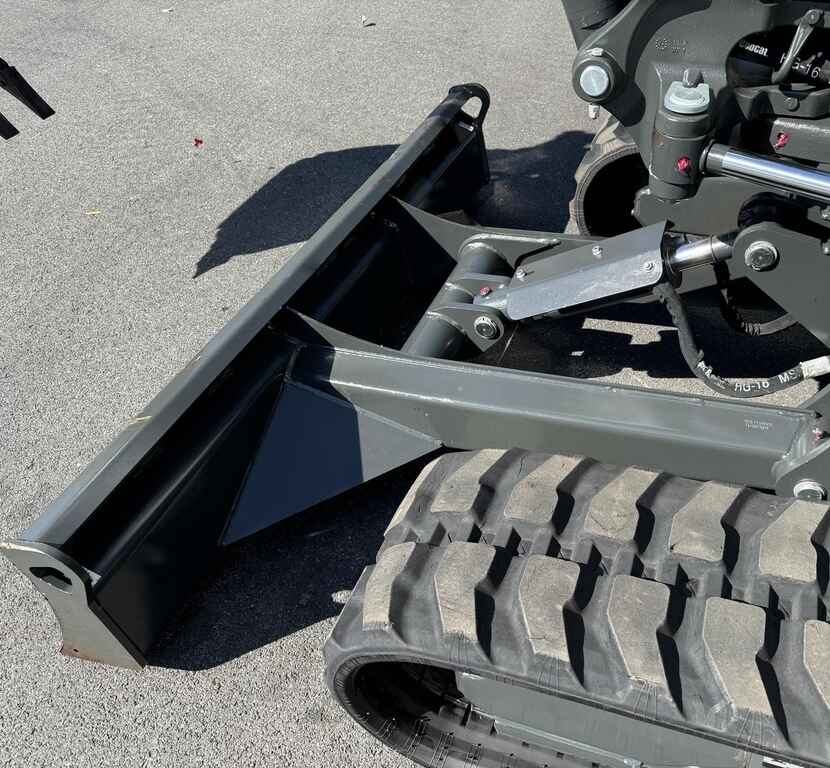

Angle Blade: Optional

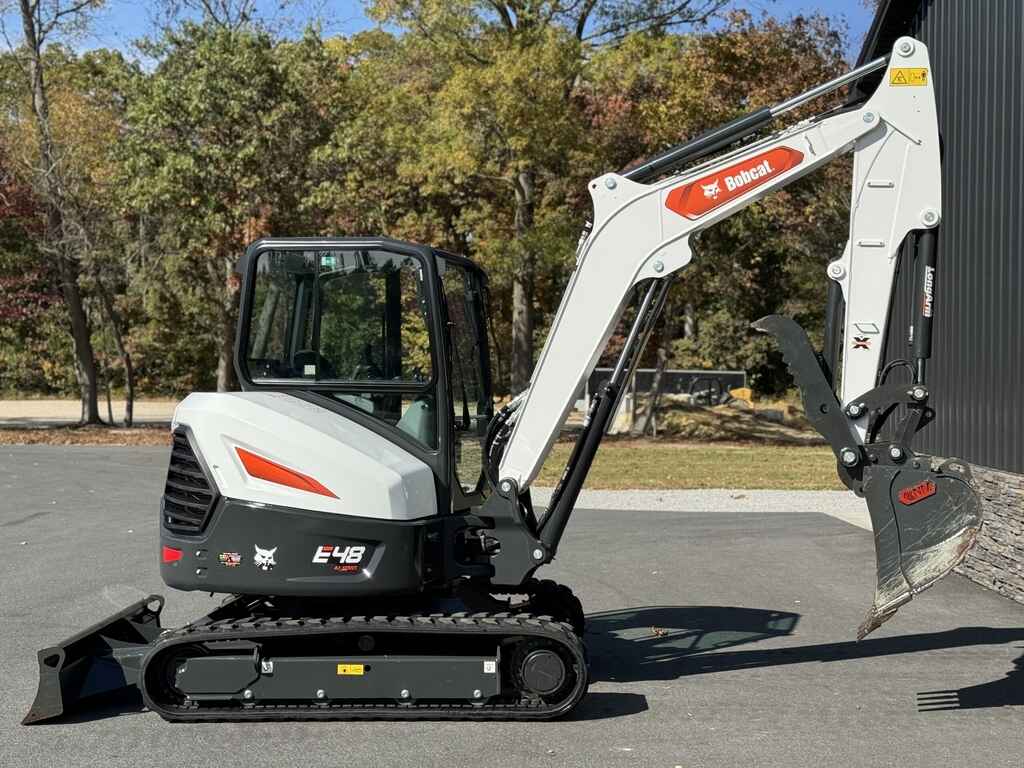

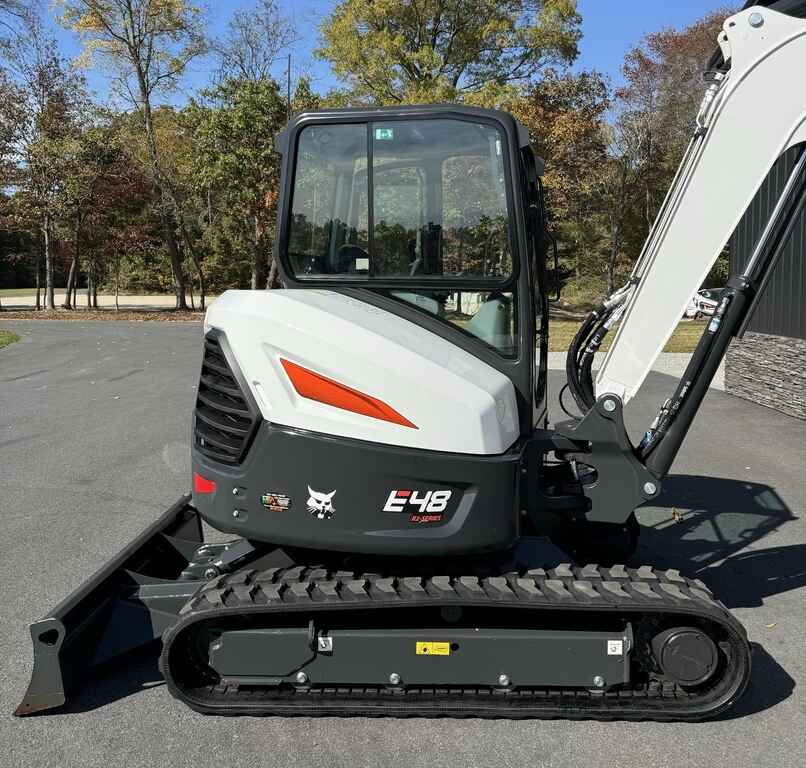

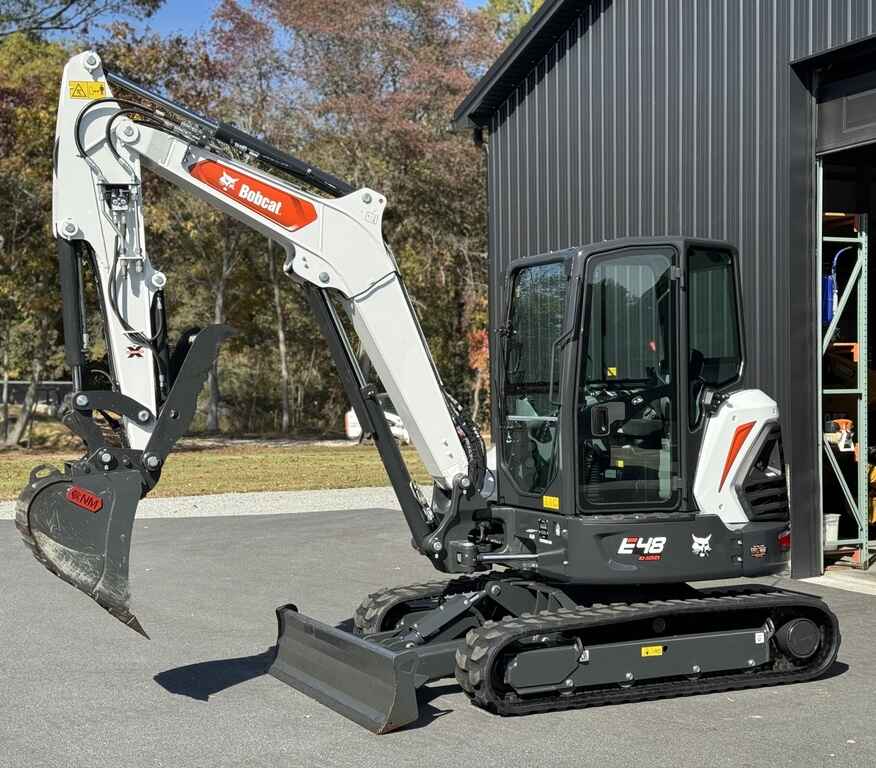

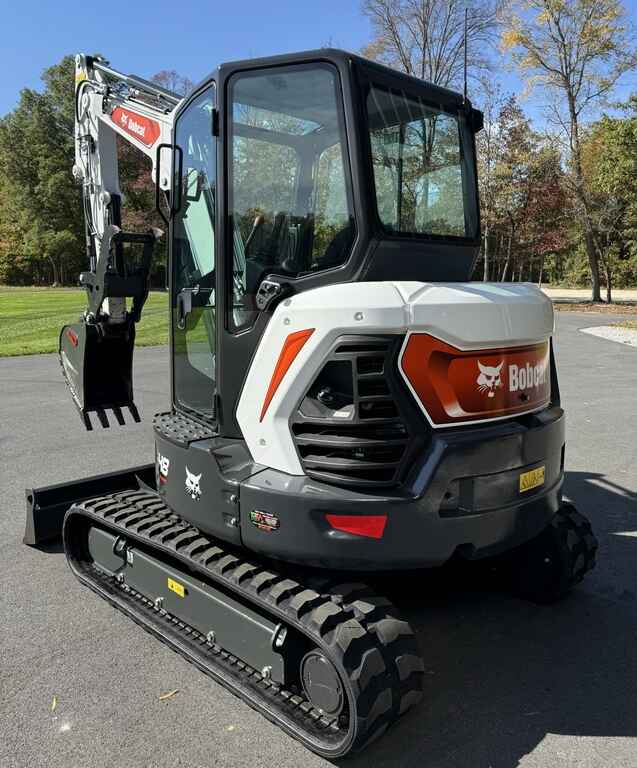

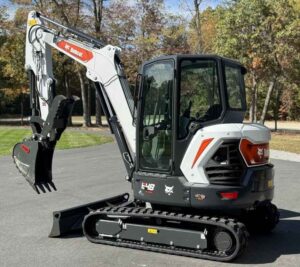

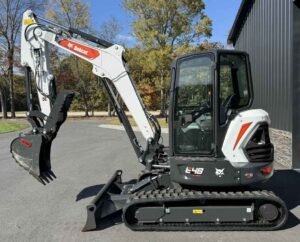

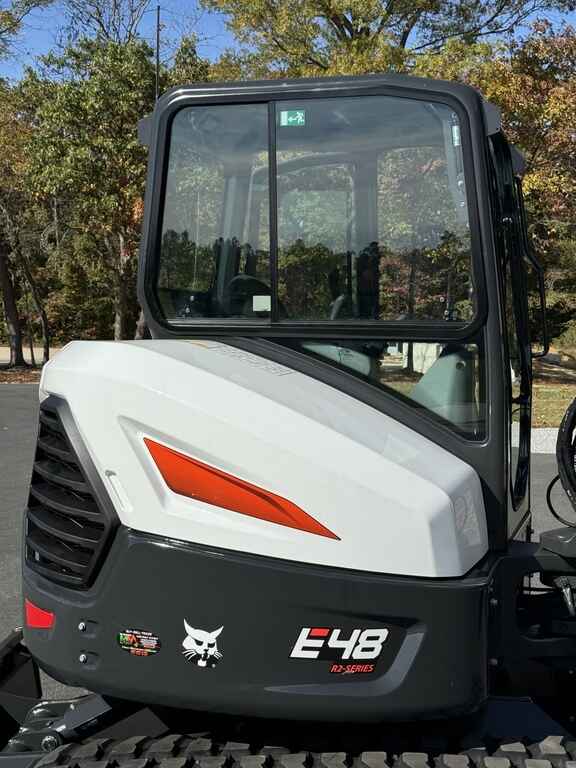

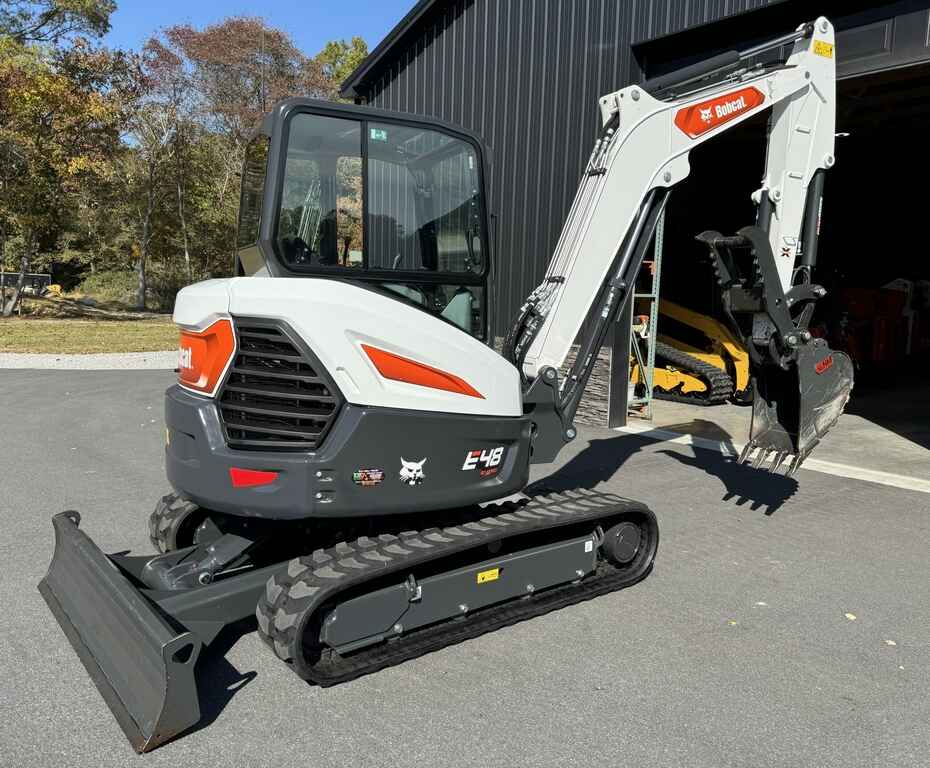

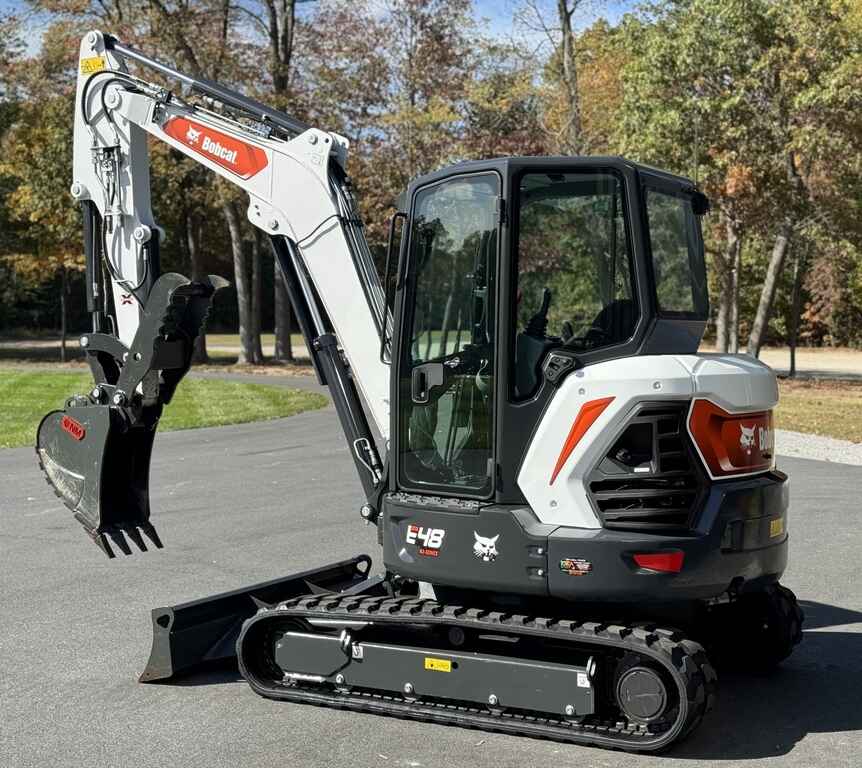

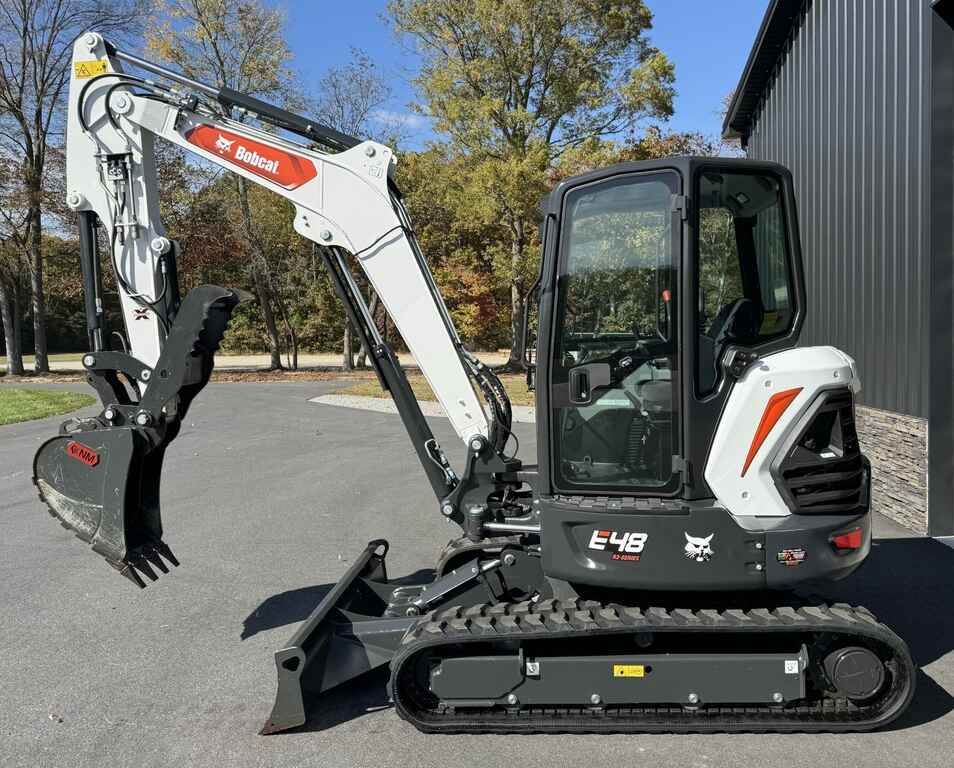

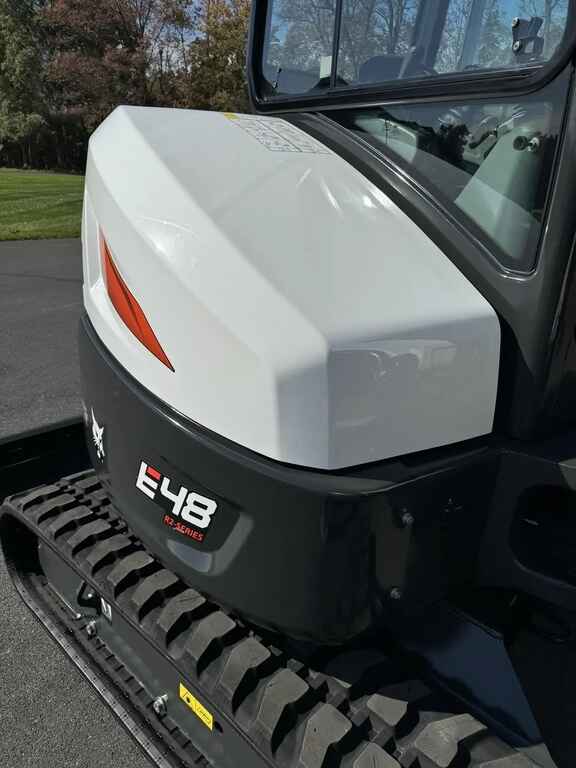

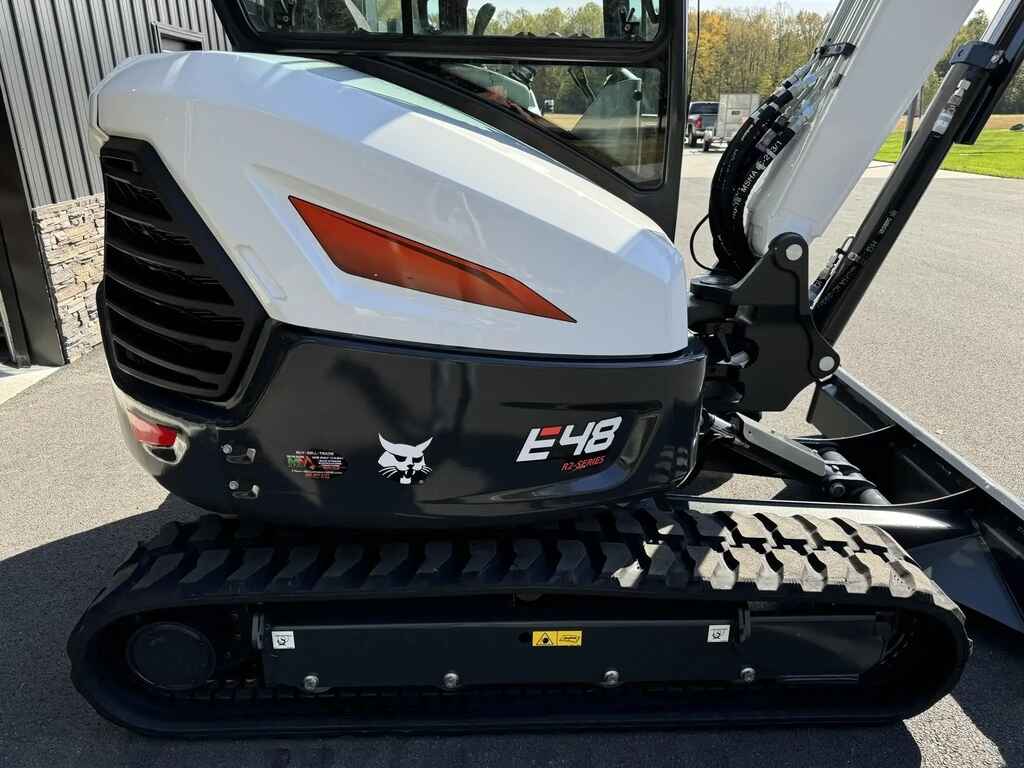

E48 Features & Benefits
-
A compact excavator offering strong lifting capacities and impressive digging forces with a conventional tail swing design.
-
The E48 provides enhanced comfort, increased fuel efficiency, and superior maneuverability for tight spaces.
