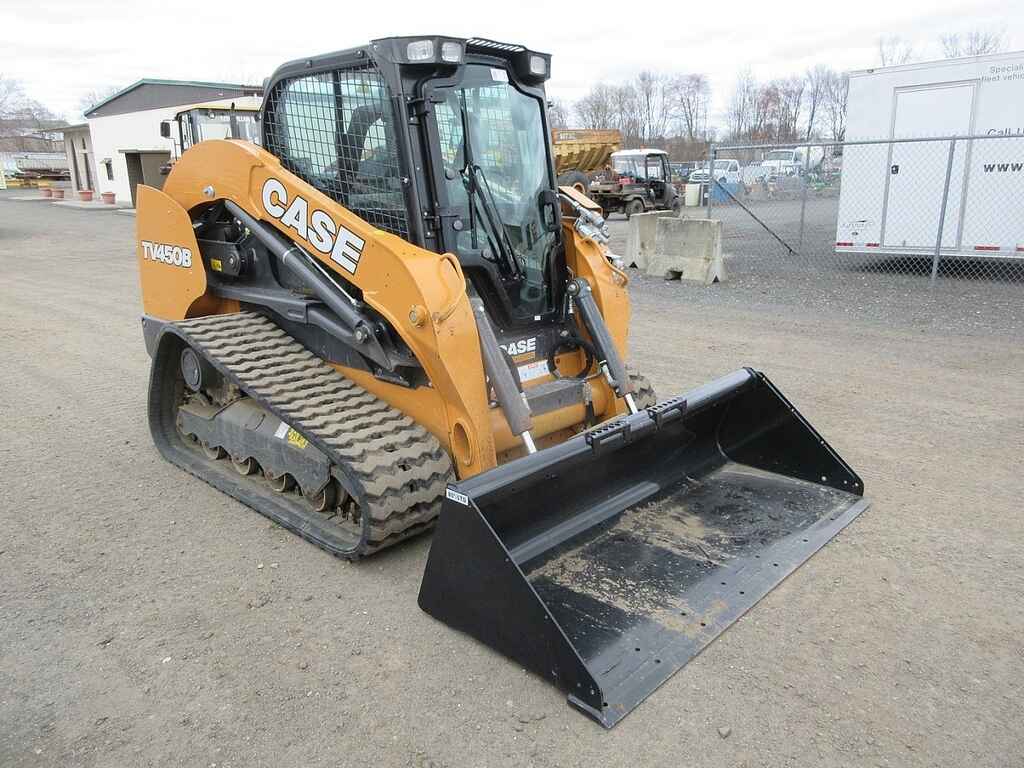

4 CYL TURBO DIESEL, CAB WITH HEAT, A/C, STEREO, 2 SPEED TRAVEL, KEYLESS START, HIGH FLOW AUX HYD, AUX ELECTRICAL CONNECTOR, HYD COUPLER, GP BUCKET, METER READS 851 HOURS, S/N NNM415291
Engine & Performance
-
Engine Model: FPT F5B FL413 D*C001
-
Emissions: Tier 4 Final certified with Selective Catalytic Reduction (SCR)
-
Displacement: 207 in³ (3.4 L), turbocharged
-
Horsepower:
-
Gross: 90 hp (67 kW)
-
Net: 84 hp (63 kW)
-
-
Torque: 282 lb-ft (383 Nm) @ 1,400 rpm
-
Cooling: Liquid-cooled
-
Fuel Tank Capacity: 25.5 gallons (96.5 L)
Hydraulics & Attachments
-
Standard Flow: 24.2 gpm (91.5 L/min) @ 3,450 psi (238 bar)
-
High-Flow Options:
-
High-Flow: 39.5 gpm (149 L/min) @ 3,450 psi
-
Enhanced High-Flow: 35.0 gpm (132.5 L/min) @ 4,000 psi
-
-
Auxiliary Hydraulics: ISO flat-face, connect-under-pressure with case drain
-

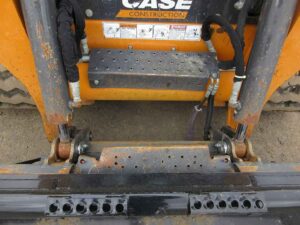

Loader Coupler: Manual attachment coupler
-
Lift Geometry: Vertical lift
Dimensions
-
Operating Weight: 10,610 lb (4,823 kg)
-
Overall Length: 120.2 in (3.05 m) without attachment
-
Overall Width: 76.5 in (1.94 m)
-
Height to Top of ROPS: 80.4 in (2.04 m)
-
Ground Clearance: 9.5 in (0.24 m)
-
Track Width: 17.7 in (450 mm)
-
Track Gauge: 58.6 in (1.49 m)
Performance & Load Capacity
-
Rated Operating Capacity:
-
35% of tipping load: 3,150 lb (1,432 kg)
-
50% of tipping load: 4,500 lb (2,045 kg)
-
-
Tipping Load: 9,000 lb (4,091 kg)
-
Bucket Breakout Force: 9,188 lb (41.8 kN)
-
Lift Cylinder Breakout Force: 7,773 lb (35.3 kN)
Cycle Times:
-
Raise: 5.1 sec
-
Lower: 3.5 sec
-
Dump: 2.7 sec
-
Rollback: 2.0 sec
Drivetrain & Controls
-
Drive System: 2-speed hydrostatic four-wheel drive
-
Travel Speeds:
-
Low: 5.5 mph (8.9 km/h)
-
High: 8.0 mph (12.9 km/h)
-
-
Parking Brake: Spring-applied, hydraulic release multiple disc
-
Control Options:
-

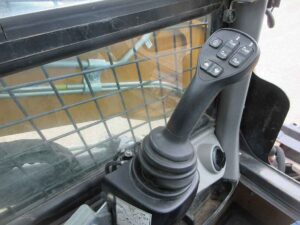

Electro-hydraulic controls with ISO and H-pattern selection
-
Mechanical hand and foot controls available
-
-
Operator Interface:
-
8-inch LCD multi-function display
-
Backup camera
-
Keyless start ignition
-
Bluetooth radio with USB port
-
Standard & Optional Features
Standard Features:
-
ROPS/FOPS Level 1 canopy with side screens
-
Suspension seat with retractable 3-point lap seat belt
-
Halogen lights (2 front, 2 side, 2 rear)
-
Proportional auxiliary hydraulic control on joystick
-
Electric parking brake control
-
Loader control lockout system
