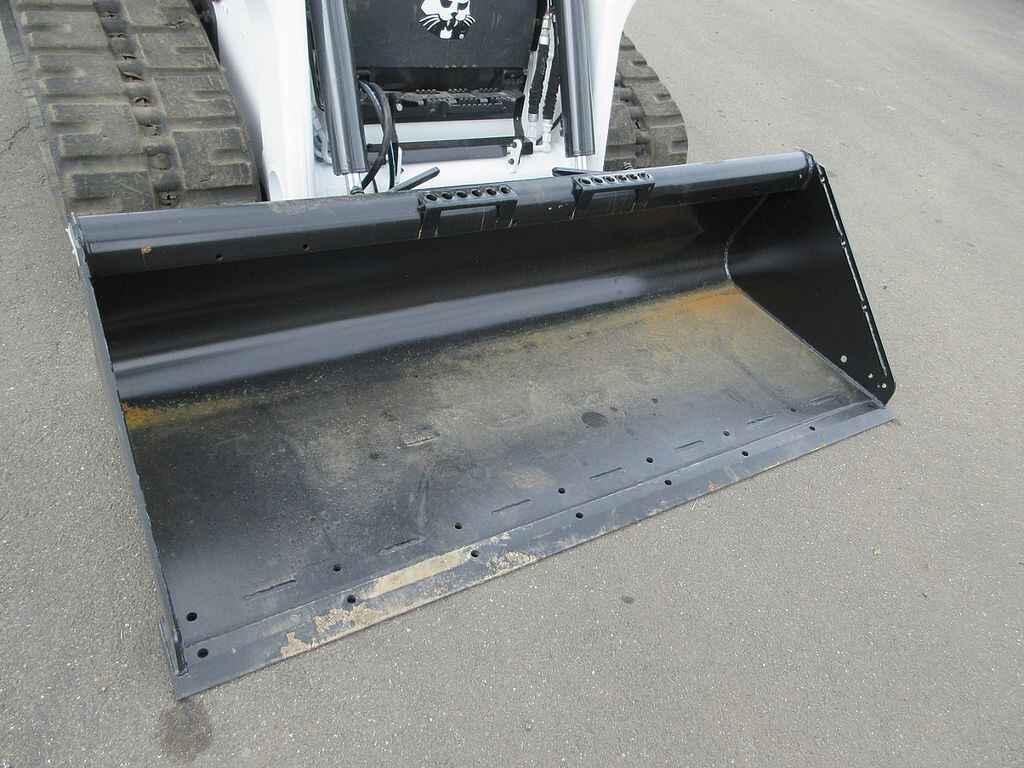

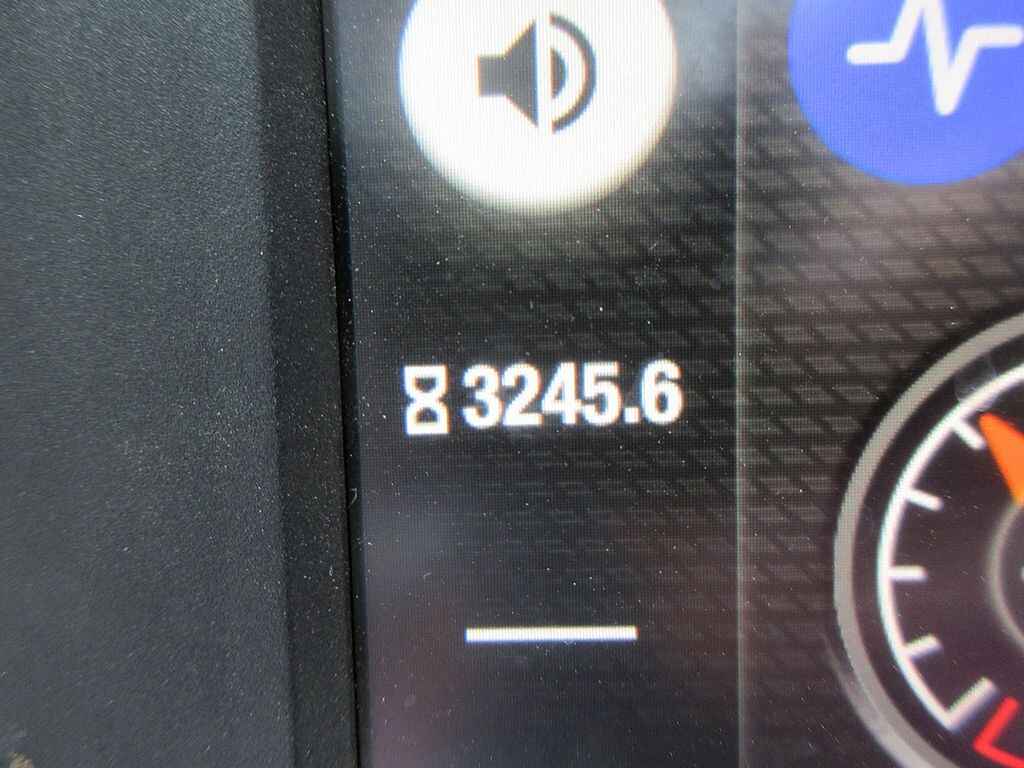

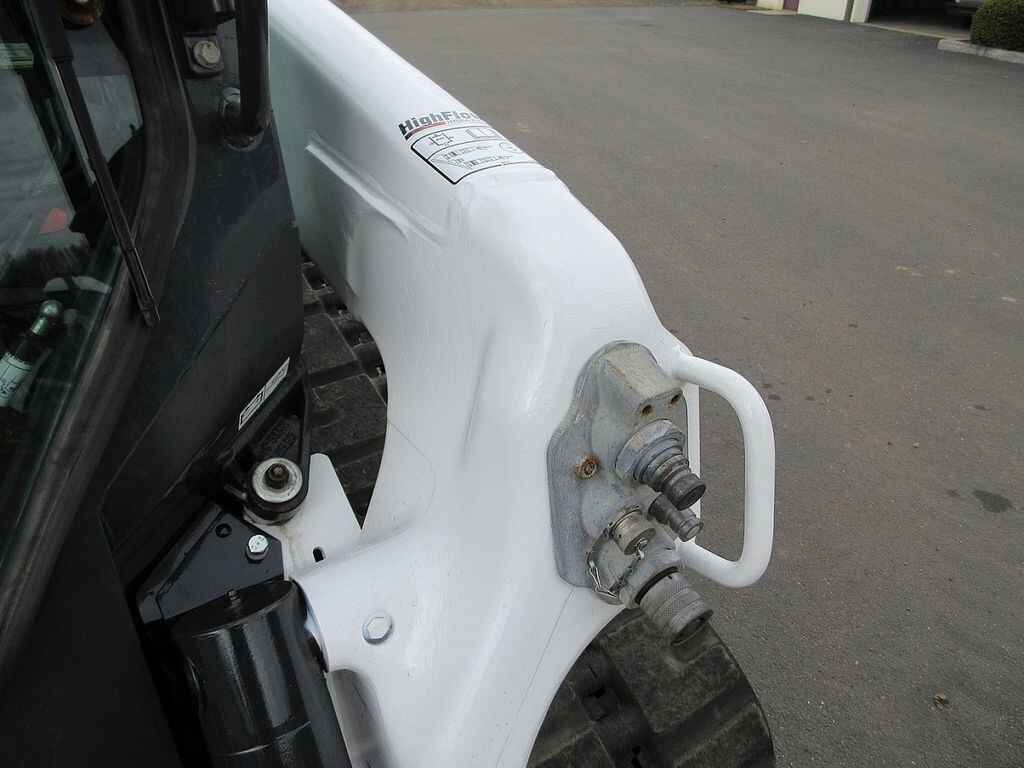

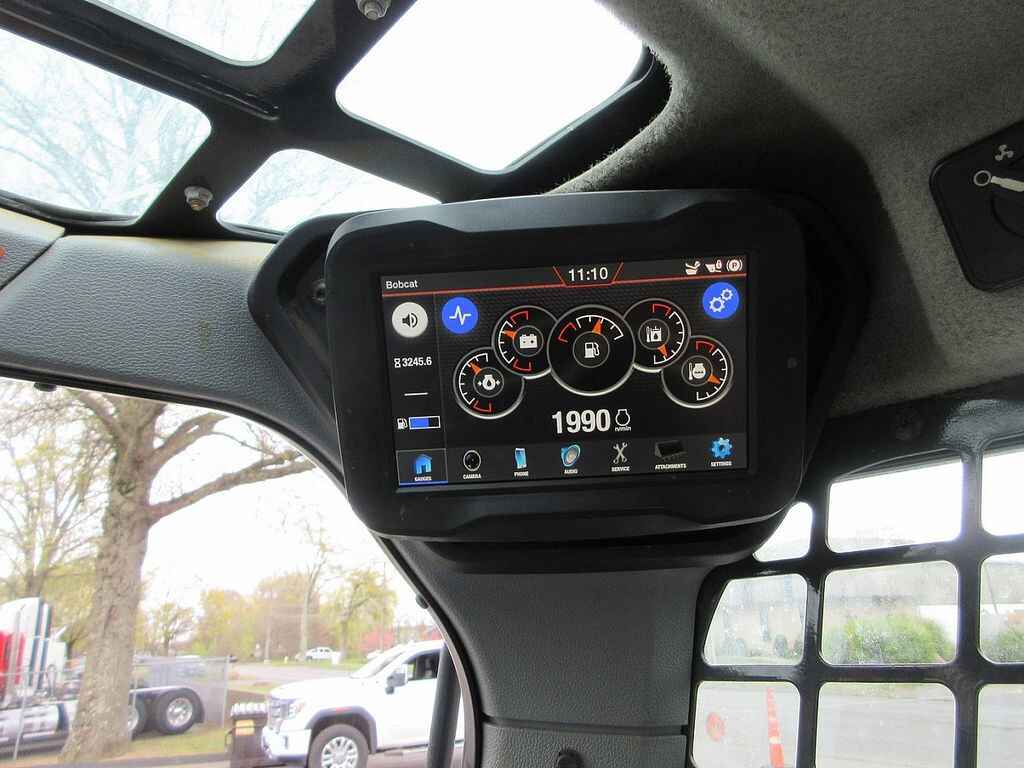

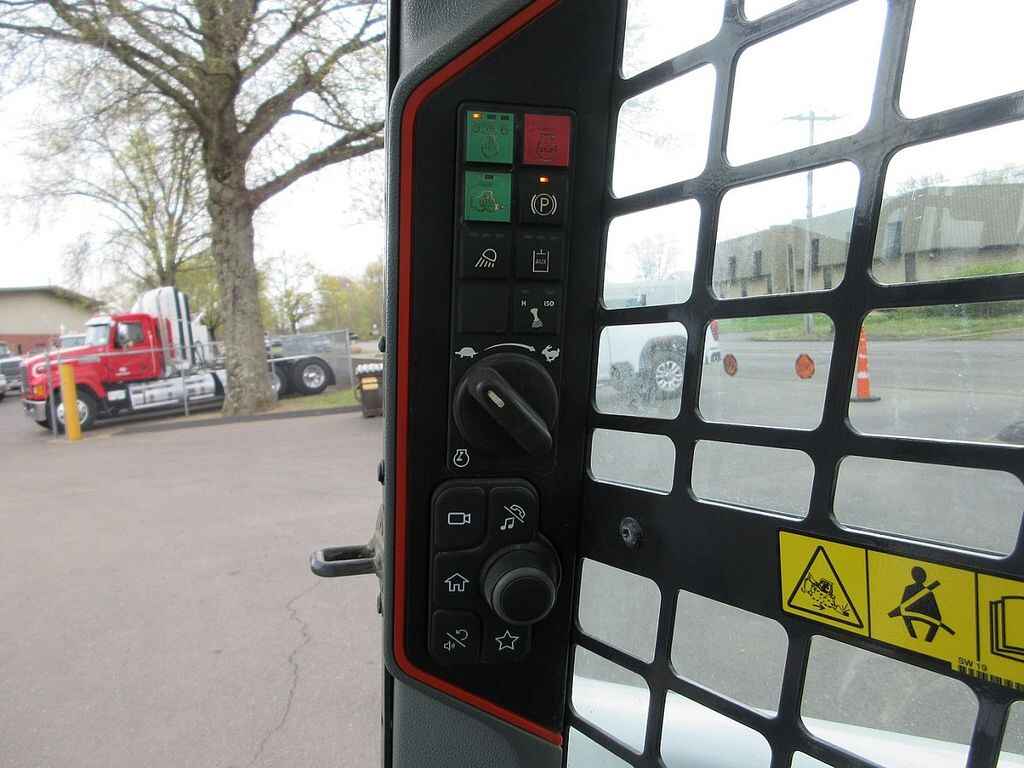

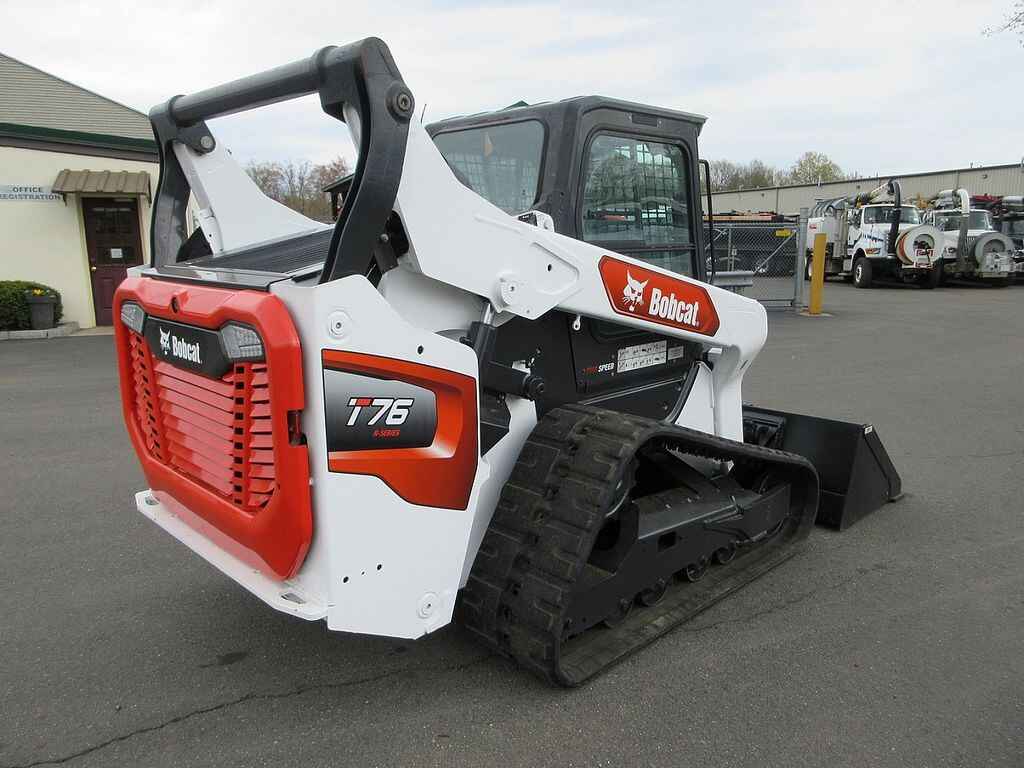

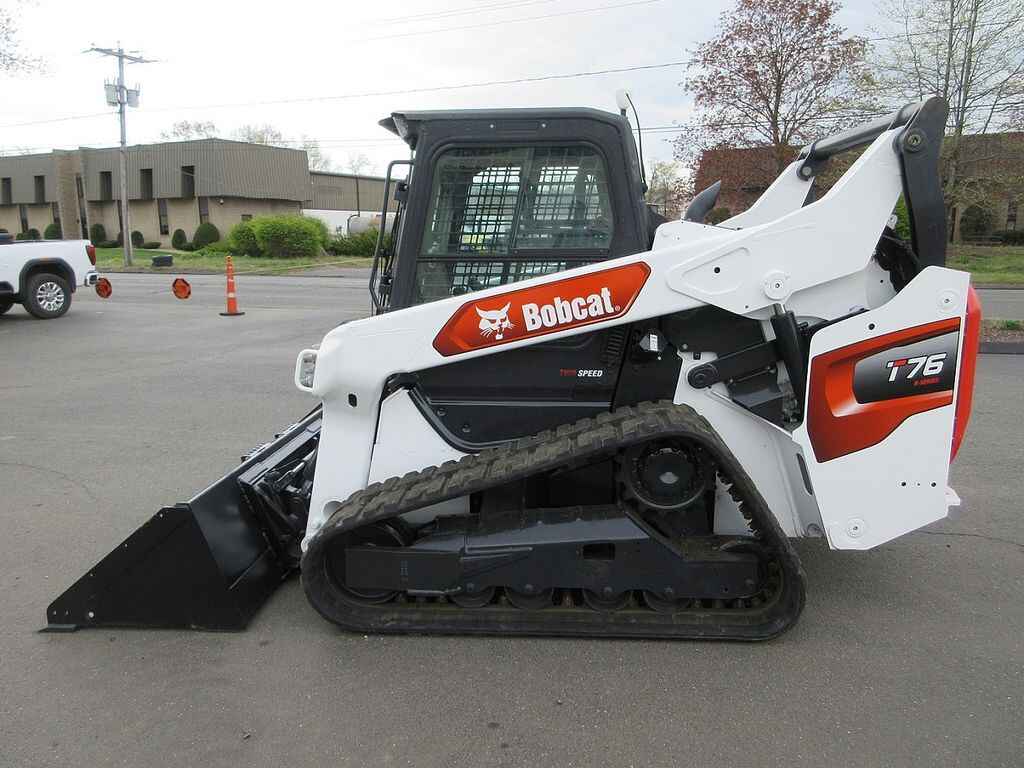

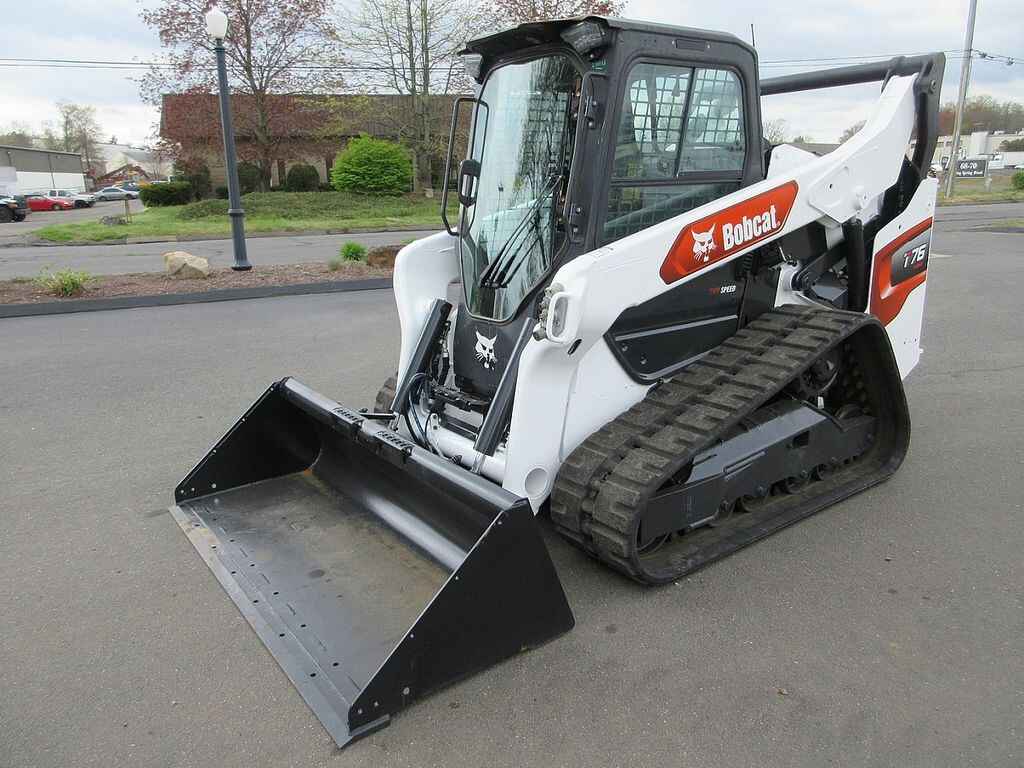

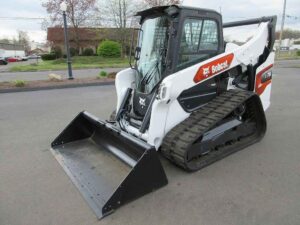

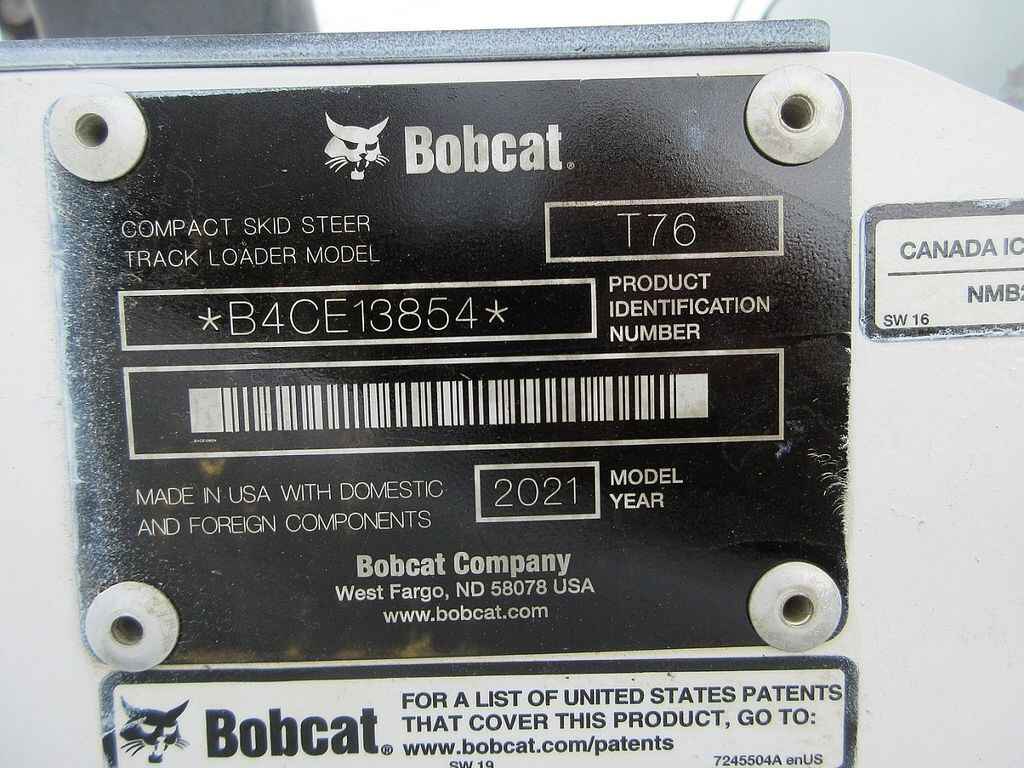

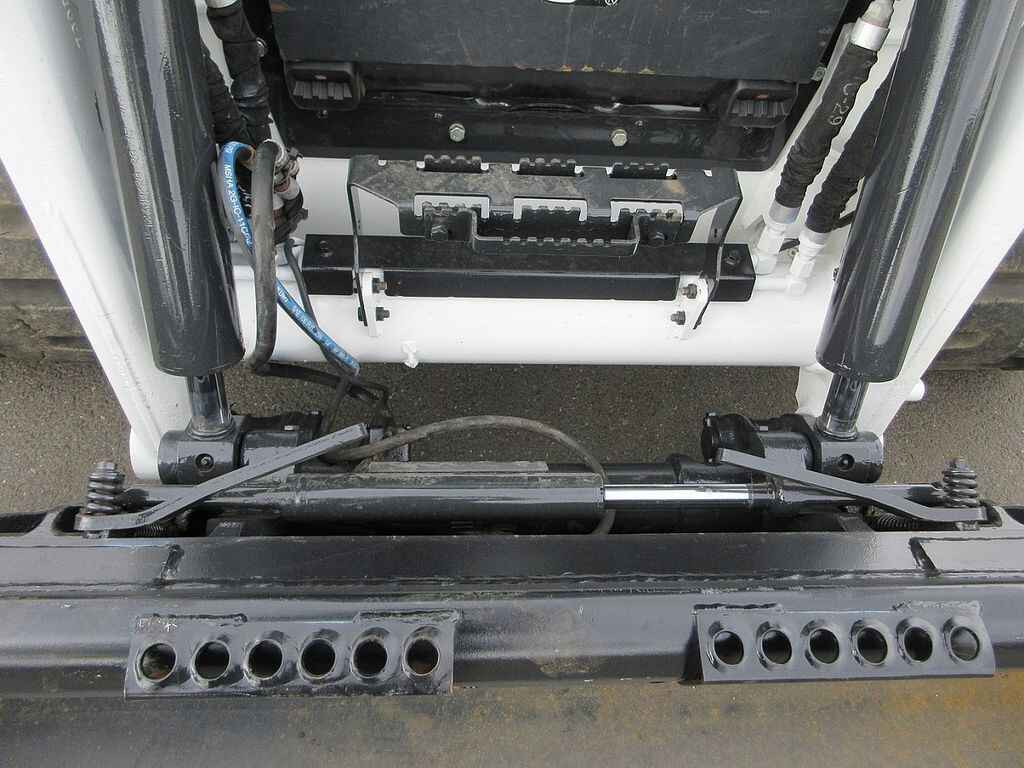

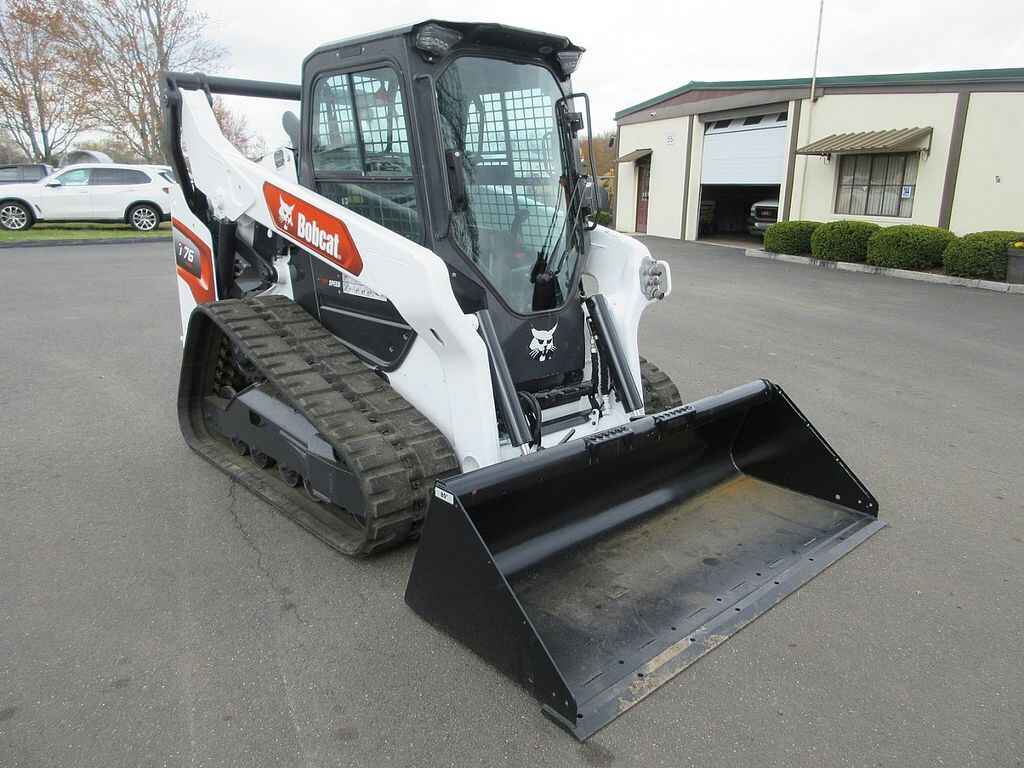

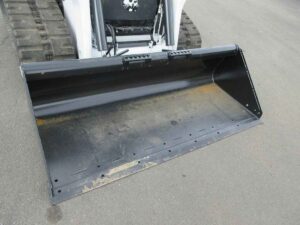

4 cyl Bobcat turbo diesel, cab with heat, A/C, stereo, 2 speed travel, keyless start, Selectable Joystick Controls, rearview camera, High Flow aux hyd, aux electrical connector, Power Bob-Tach, GP bucket, meter reads 3245 hours, S/N B4CE13854

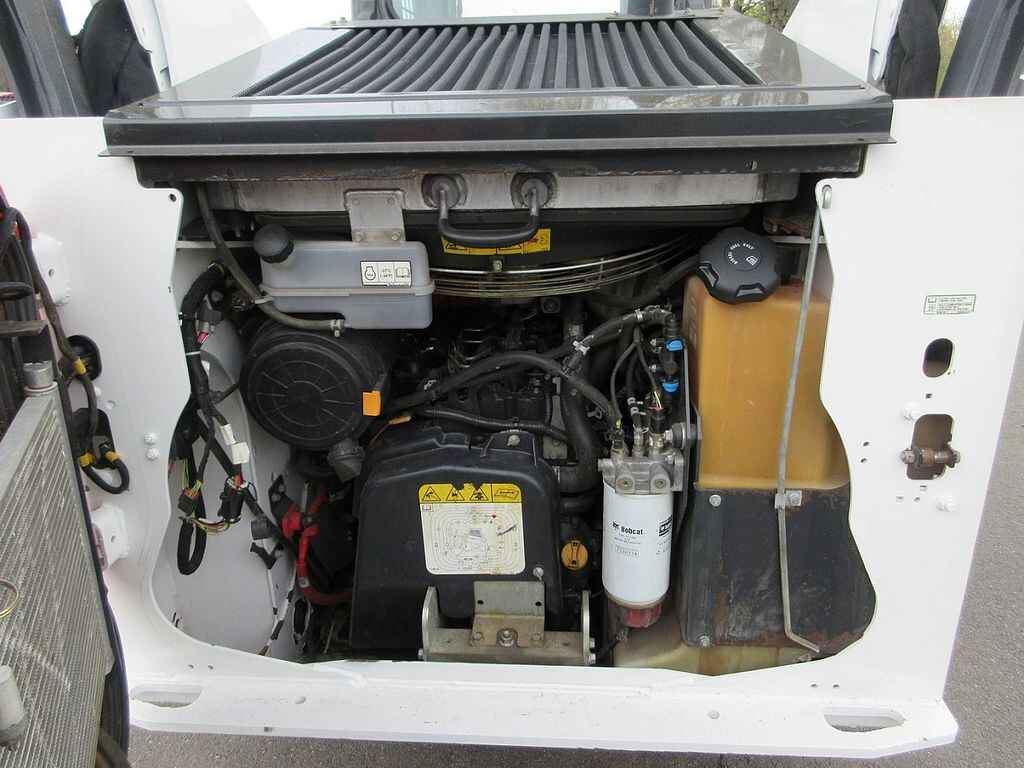

Engine
-
Engine Model: Bobcat 4-Cylinder Diesel
-
Gross Power: 99 hp (73.9 kW)
-
Net Power: 95 hp (70.8 kW)
-
Engine Displacement: 3.4 L (207 cu in)
-
Engine Type: 4-Cylinder, Diesel
-
Rated Engine Speed: 2,800 rpm
-
Fuel Tank Capacity: 24.5 gal (93 L)
-
Cooling System Capacity: 5.6 gal (21 L)
-
Hydraulic Tank Capacity: 19.3 gal (73 L)
Dimensions
-
Operating Weight: 9,680 lbs (4,390 kg)
-
Length (with bucket): 10.4 ft (3,150 mm)
-
Width (with bucket): 6.2 ft (1,890 mm)
-
Height to Top of Cab: 6.7 ft (2,048 mm)
-
Ground Clearance: 9.1 in (231 mm)
-
Wheelbase: 3.4 ft (1,045 mm)
-
Length Without Bucket: 8.5 ft (2,590 mm)
-
Height to Bucket Pin: 10.8 ft (3,290 mm)
-
Rear Overhang: 4.6 ft (1,402 mm)
Performance
-
Rated Operating Capacity (ROC): 3,500 lbs (1,588 kg)
-
Tipping Load: 7,000 lbs (3,175 kg)
-
Lift Height: 10.4 ft (3,164 mm)
-
Max Reach at Full Lift Height: 2.6 ft (788 mm)
-
Max Dump Height: 8.8 ft (2,680 mm)
-
Dump Angle: 40°
-
Bucket Rollback (at ground): 30°
-
Rollback at Maximum Lift Height: 101°
-
Travel Speed (Low): 4.9 mph (7.9 km/h)
-
Travel Speed (High): 7.4 mph (11.9 km/h)
-
Drawbar Pull: 7,500 lbs (3,402 kg)
-
Hydraulic Flow: 27.4 gal/min (104 L/min)
-
Hydraulic Pressure: 3,500 psi (24,130 kPa)
Hydraulic System
-
Auxiliary Hydraulic Flow (Standard): 27.4 gal/min (104 L/min)
-
Auxiliary Hydraulic Pressure: 3,500 psi (24,130 kPa)
-
Lift Cylinder Bore: 3 in (76 mm)
-
Tilt Cylinder Bore: 3 in (76 mm)

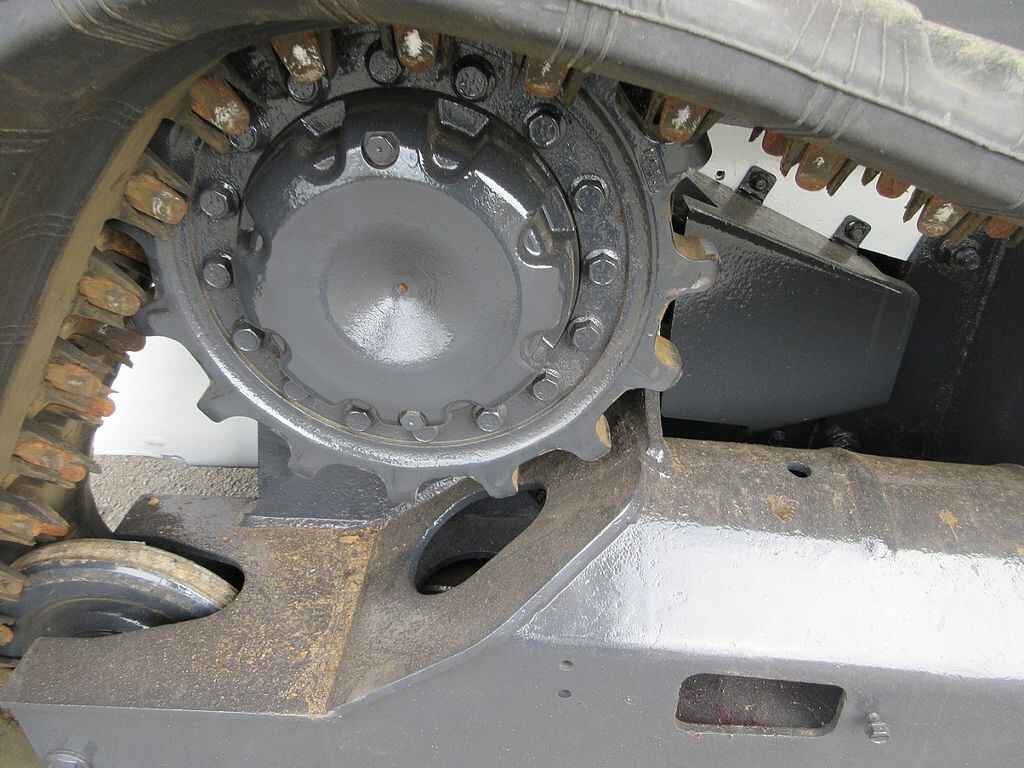

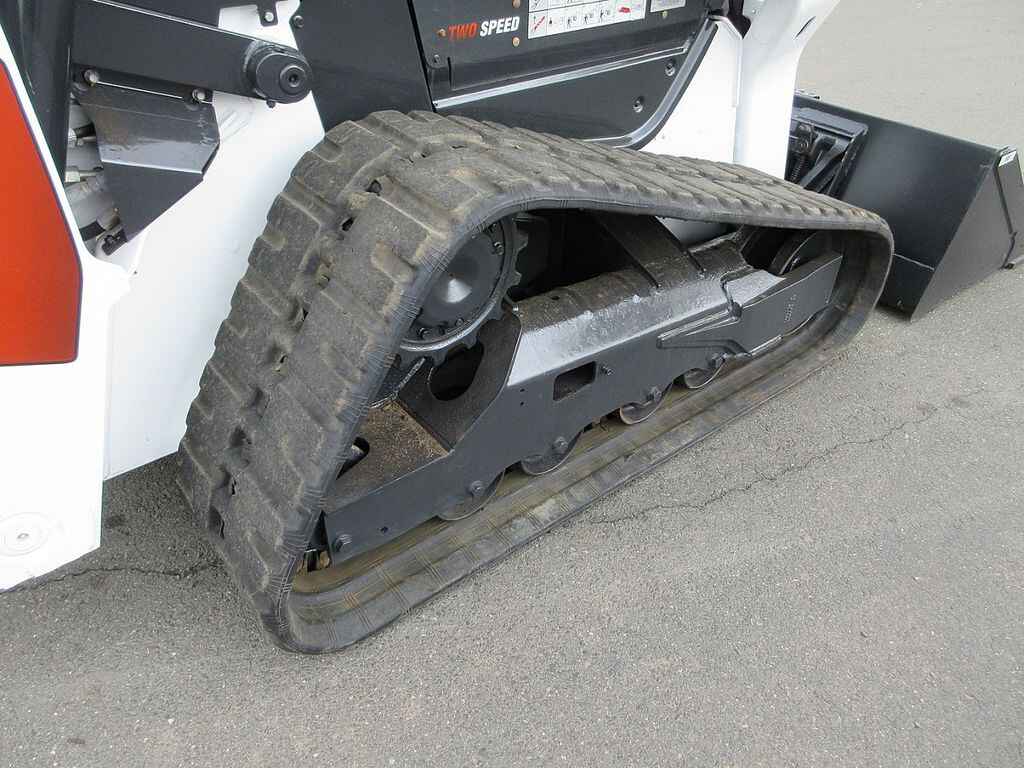

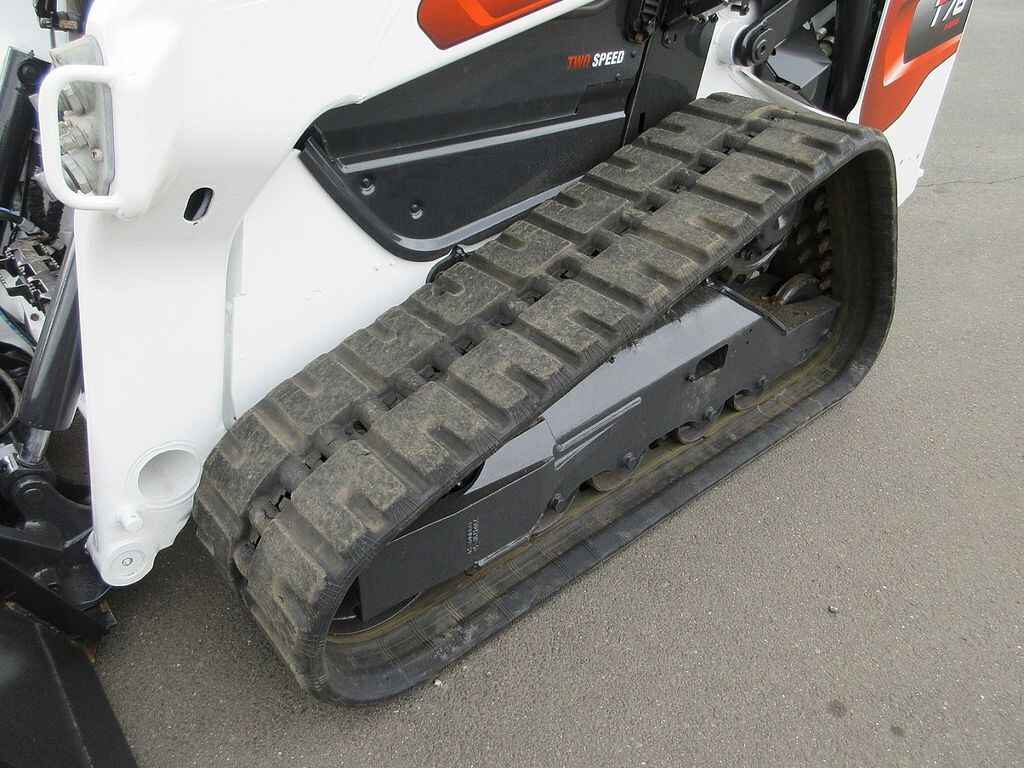

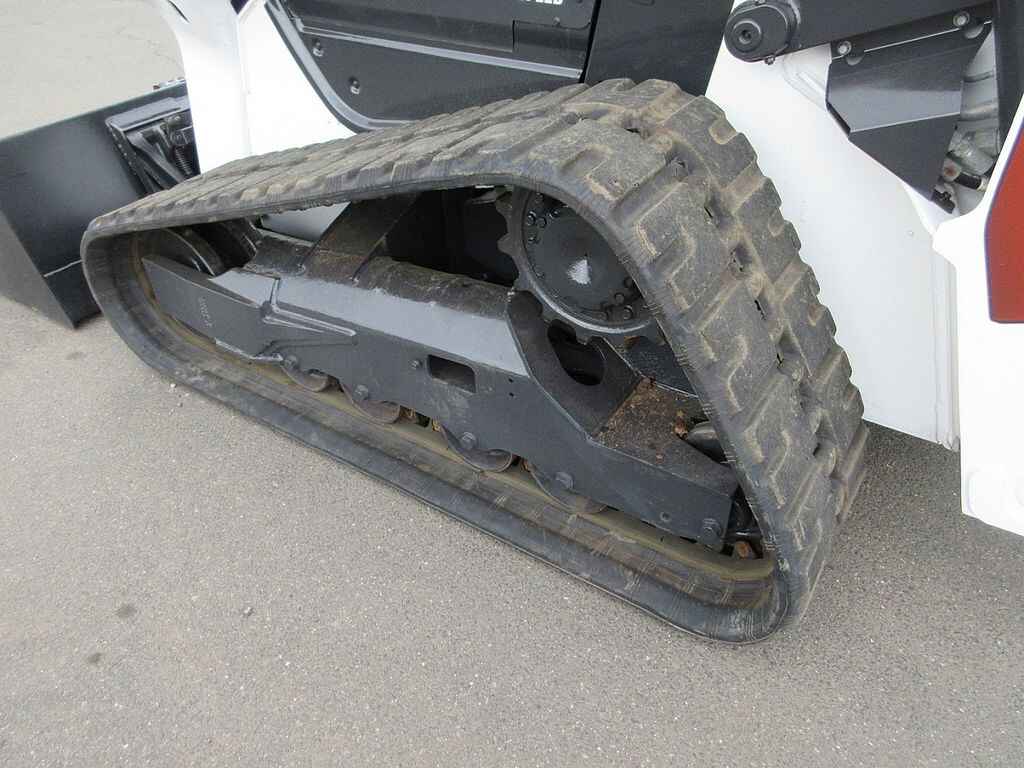

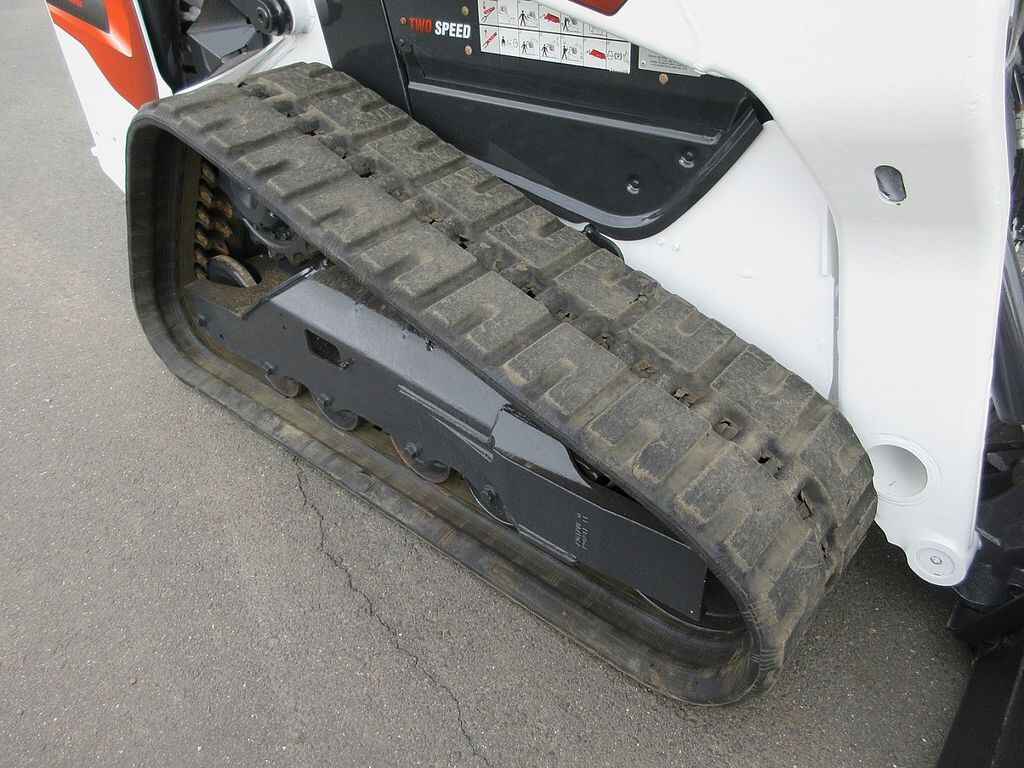

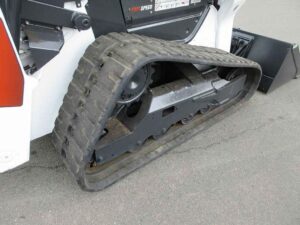

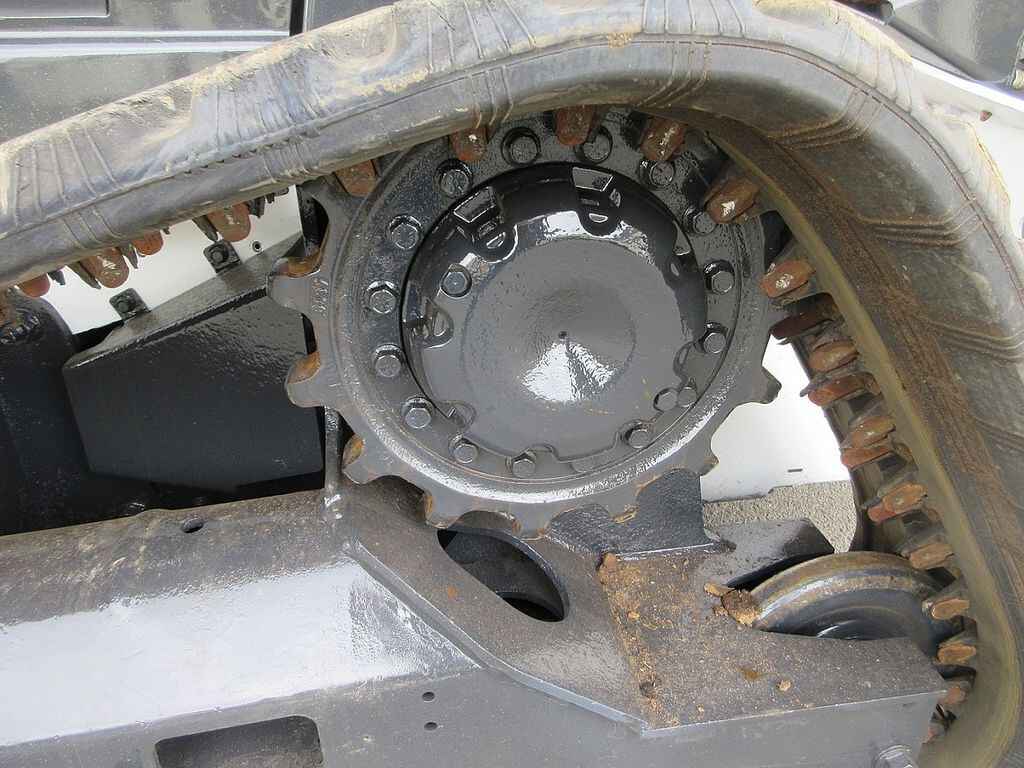

Undercarriage
-
Track Size: 15 in (381 mm)
-
Ground Pressure: 5.3 psi (36.5 kPa)
-
Track Width: 15 in (381 mm)
-
Ground Clearance: 9.1 in (231 mm)
Capacities
-
Fuel Tank Capacity: 24.5 gal (93 L)
-
Hydraulic Reservoir Capacity: 19.3 gal (73 L)
-
Hydraulic System Fluid Capacity: 27.4 gal (104 L)
-
Engine Oil Capacity: 7.4 qt (7 L)

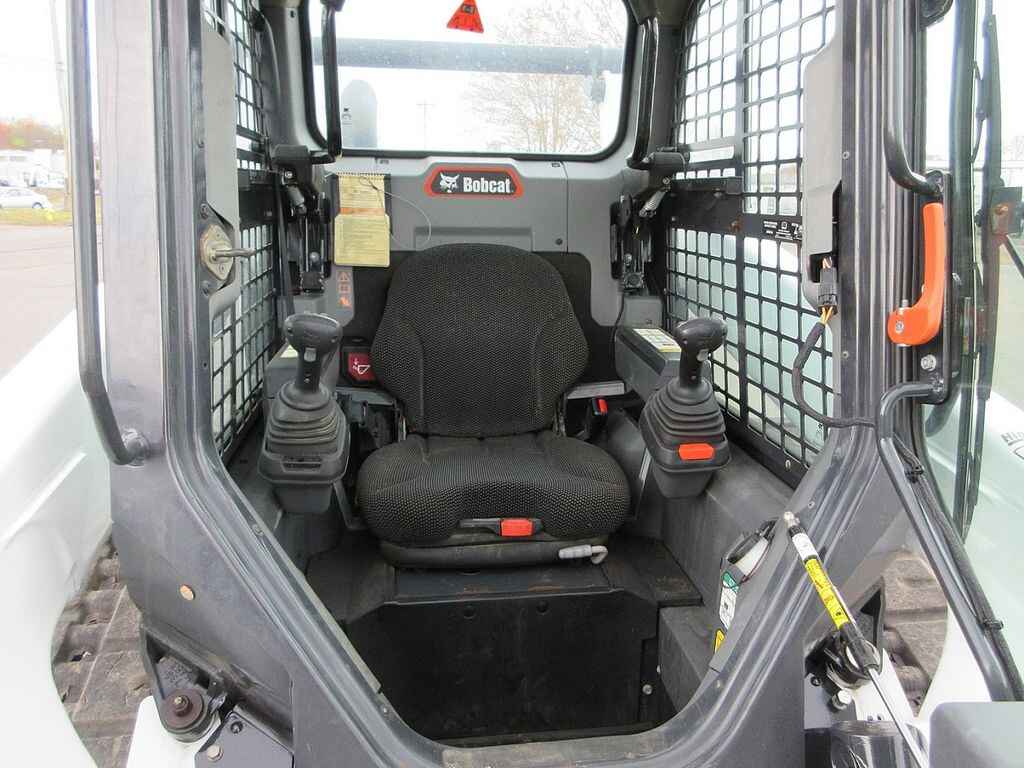

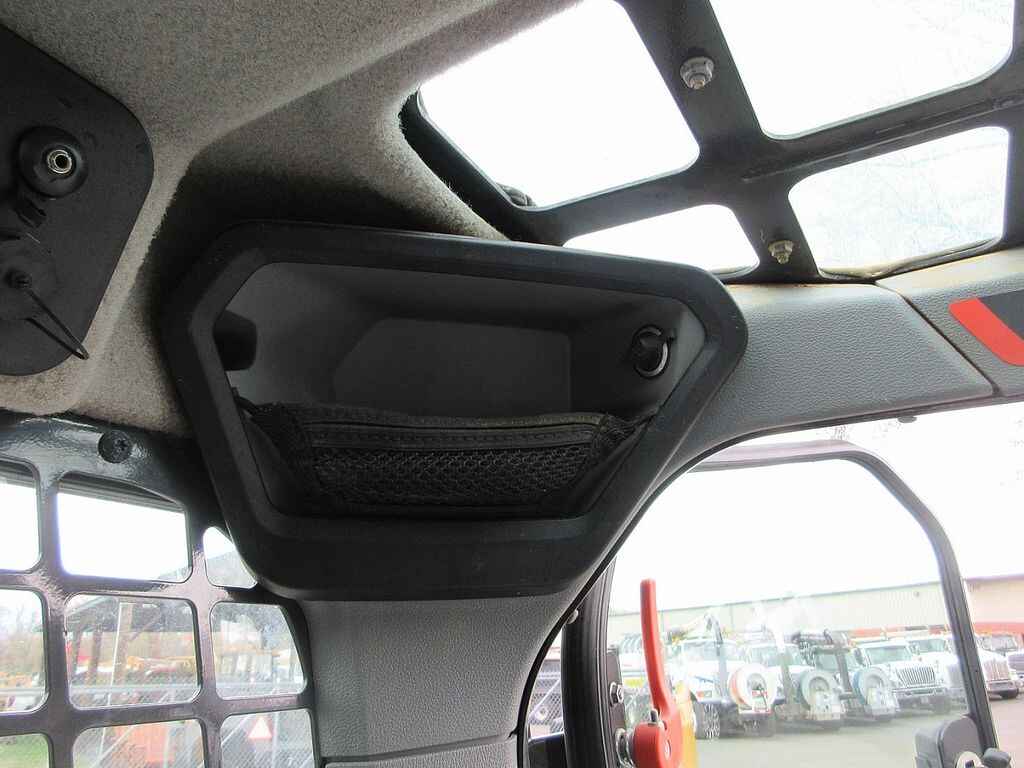

Cab Features
-
ROPS: ISO 3471:2008
-
FOPS: ISO 3449:2005 Level II
-
Operator Cab: Standard
-

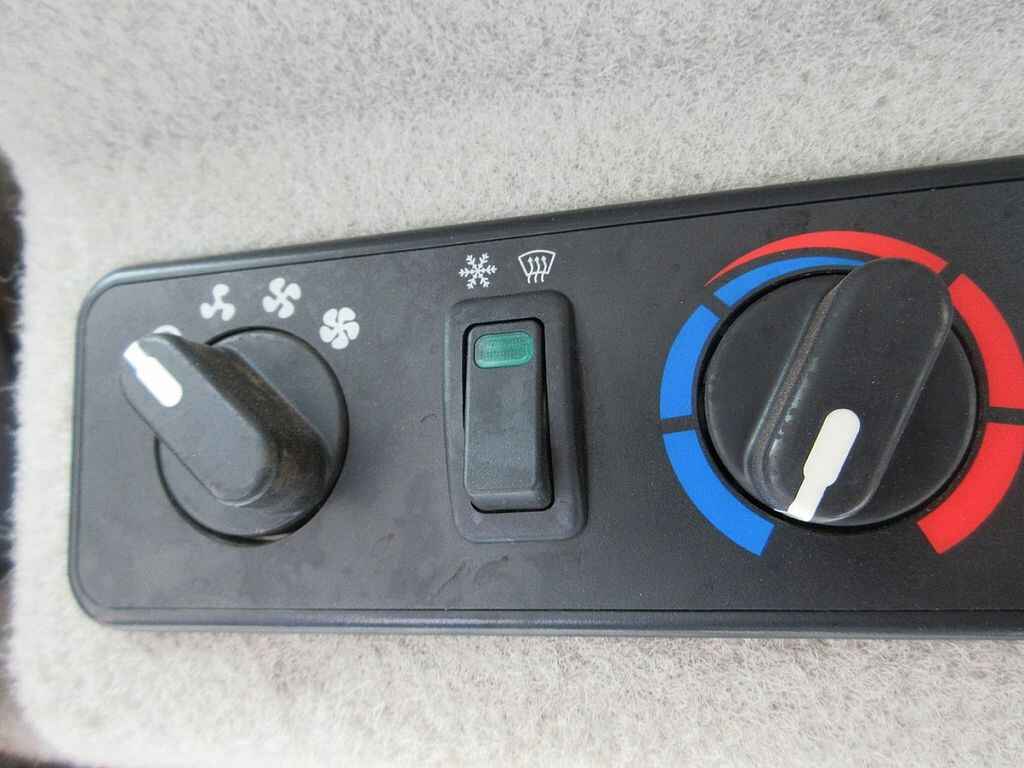

Heating System: Optional
-
Air Conditioning: Optional
-

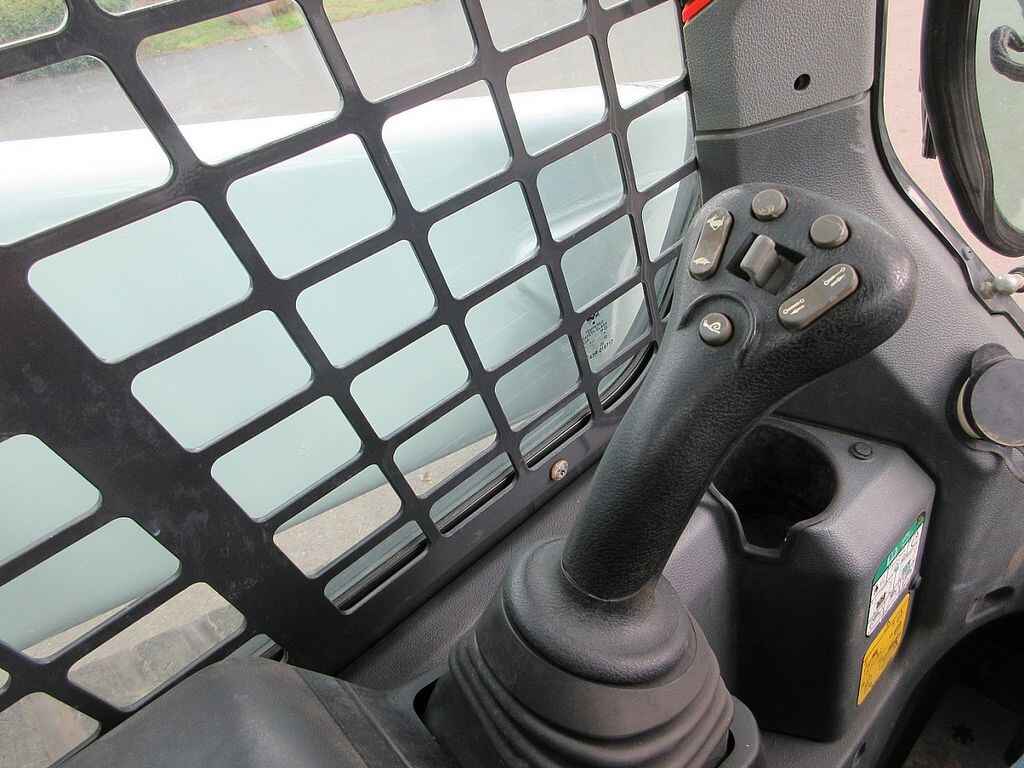

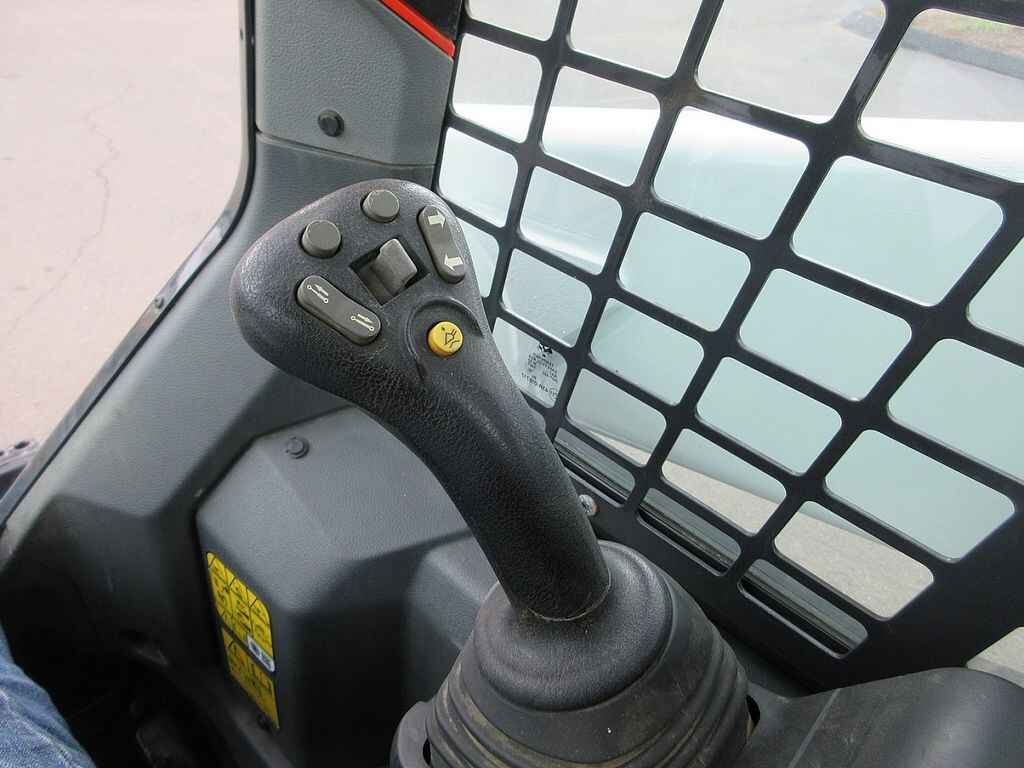

Joystick Controls: Standard
-
Seats: Adjustable
-
Cab Mounting: Isolated
Brakes and Safety
-
Brakes: Hydraulic wet disc brakes
-
Parking Brake: Automatic
-
Safety Features:
-
Backup alarm
-
Seat belt interlock
-
Roll-over protection (ROPS)
-
Additional Features
-
Lift Arm Path: Vertical
-
Auxiliary Hydraulics: Standard
-
Engine Shutdown: Optional
-
Machine Control System: Optional
