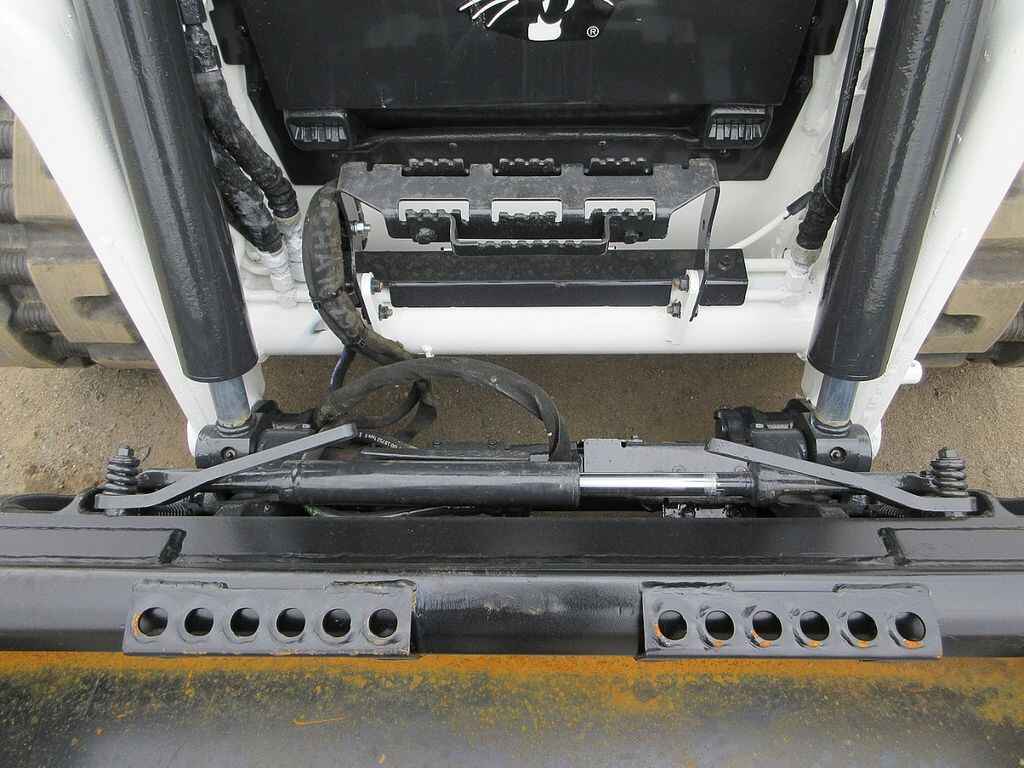

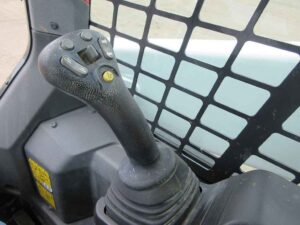

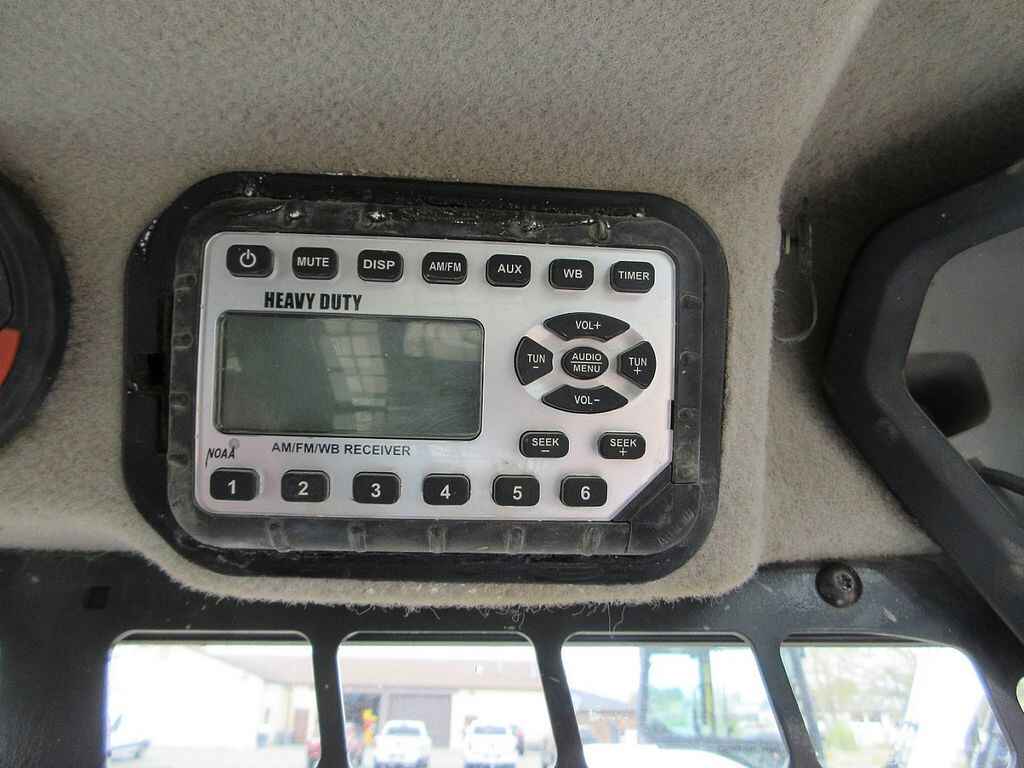

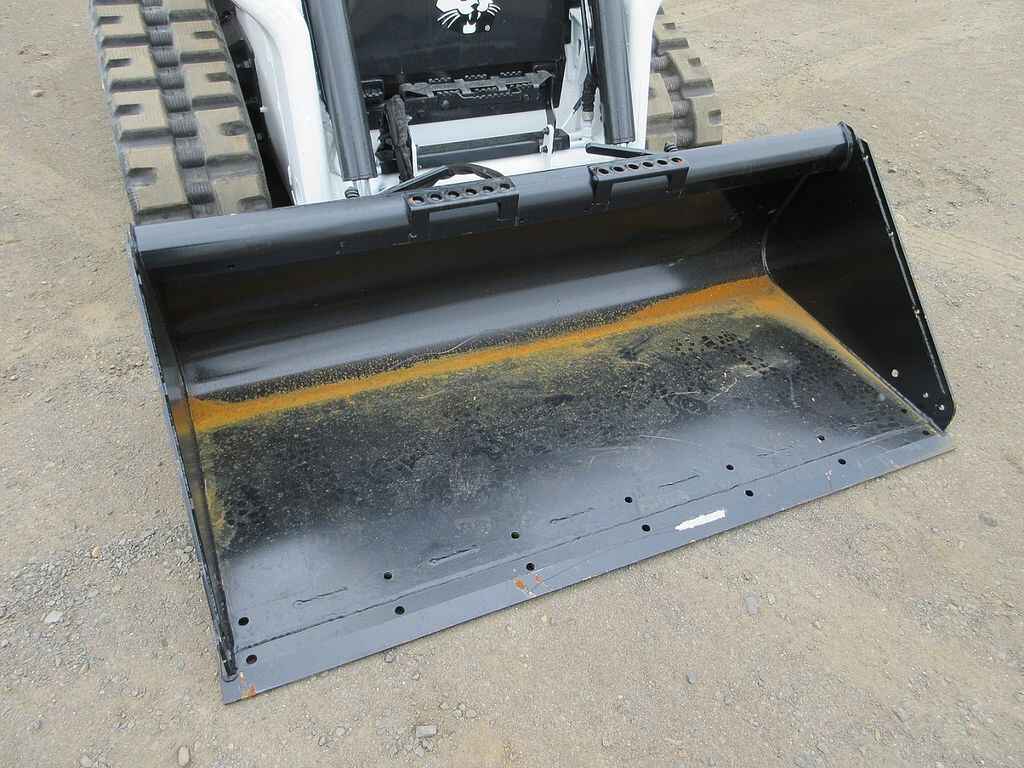

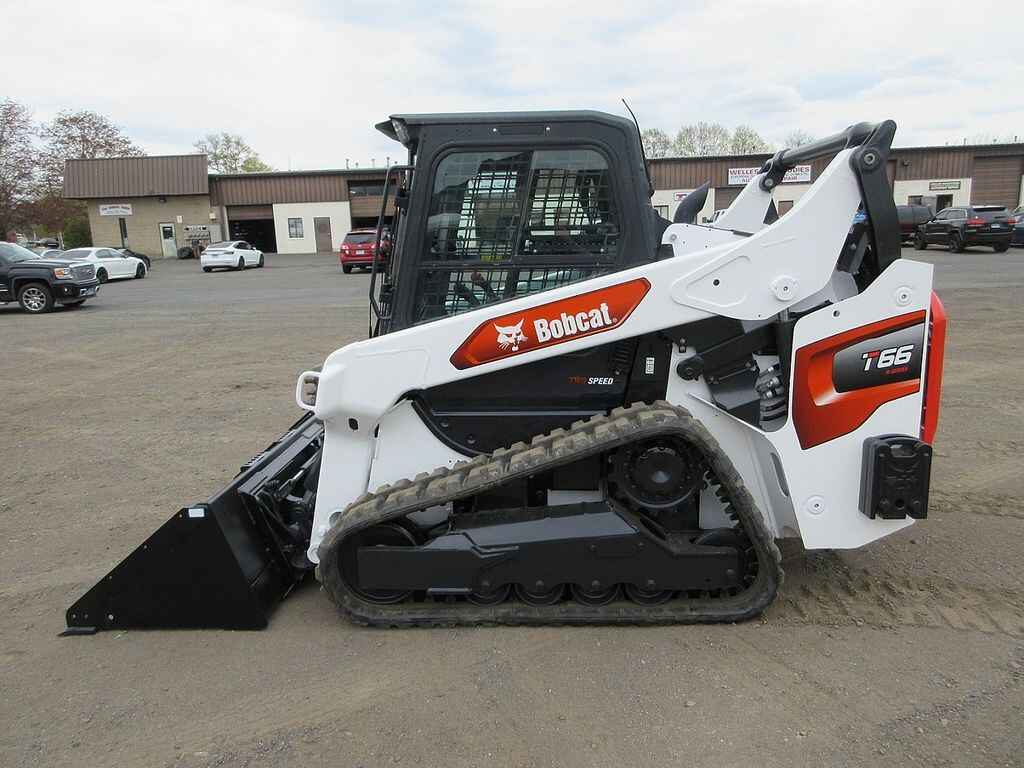

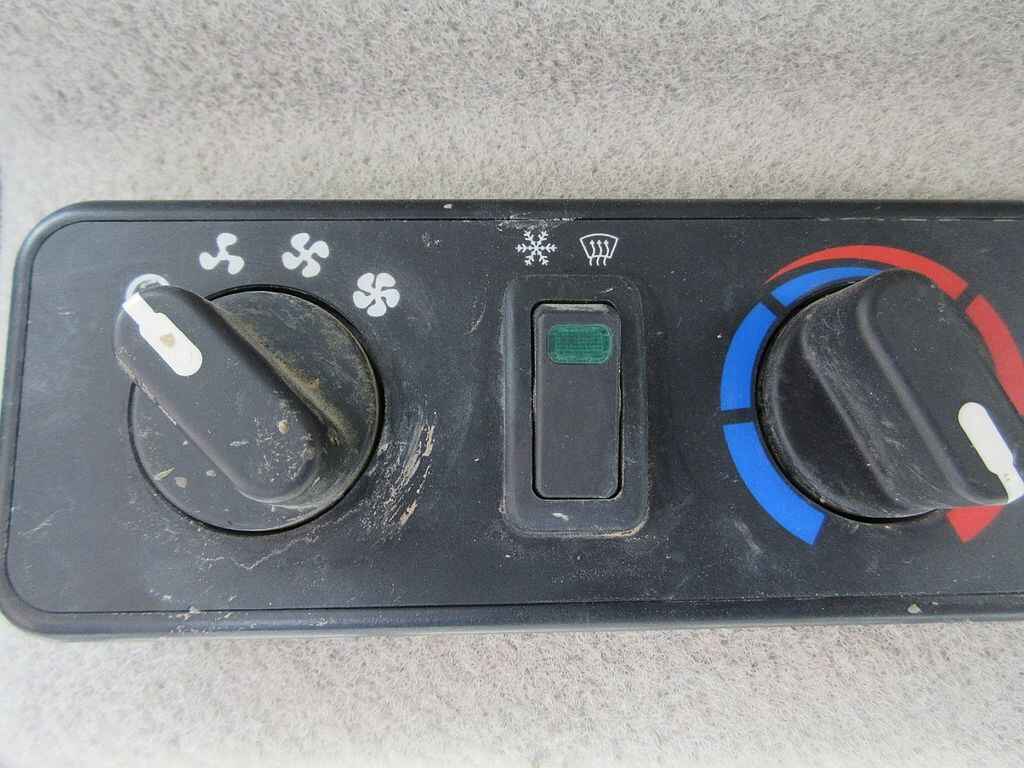

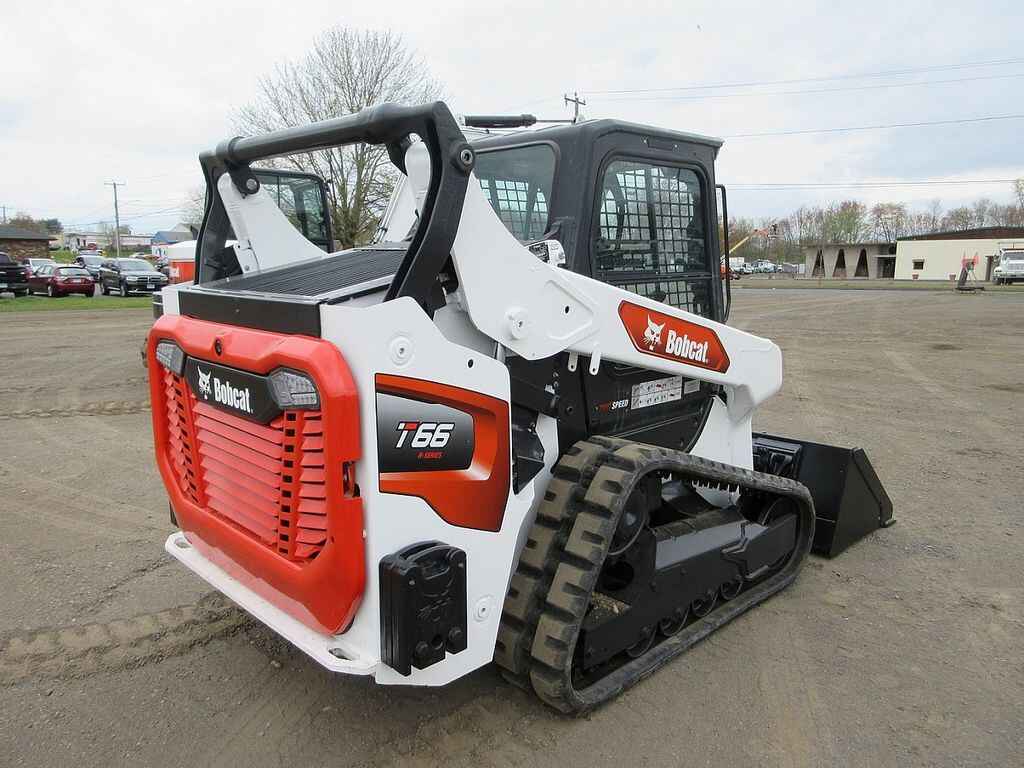

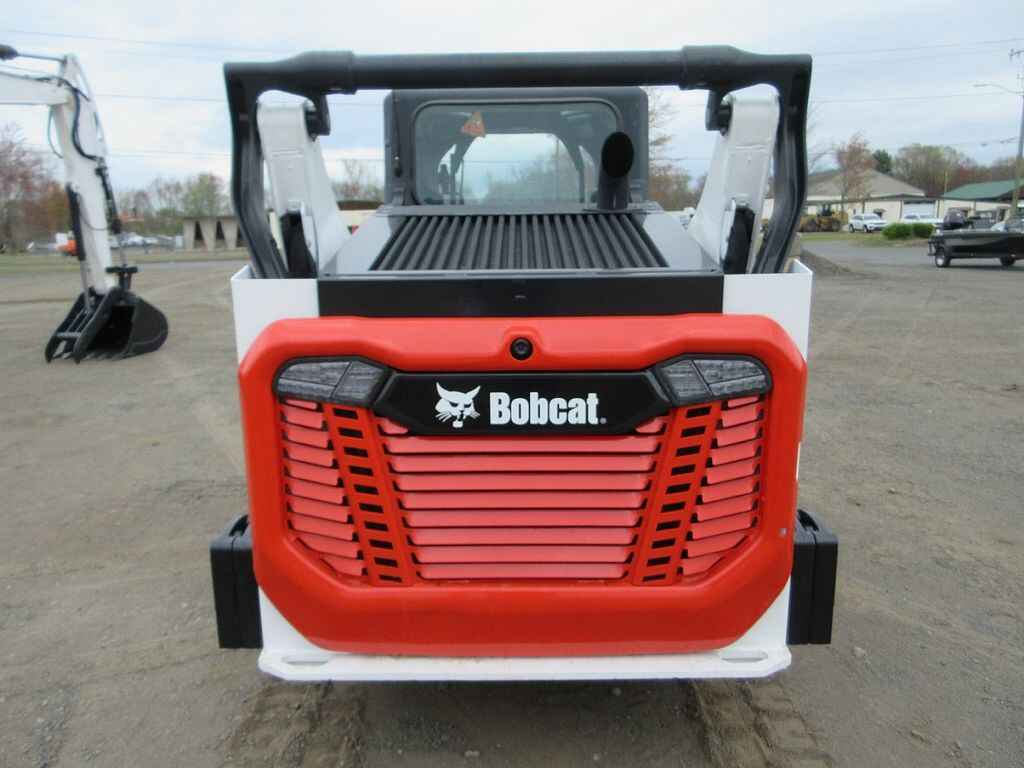

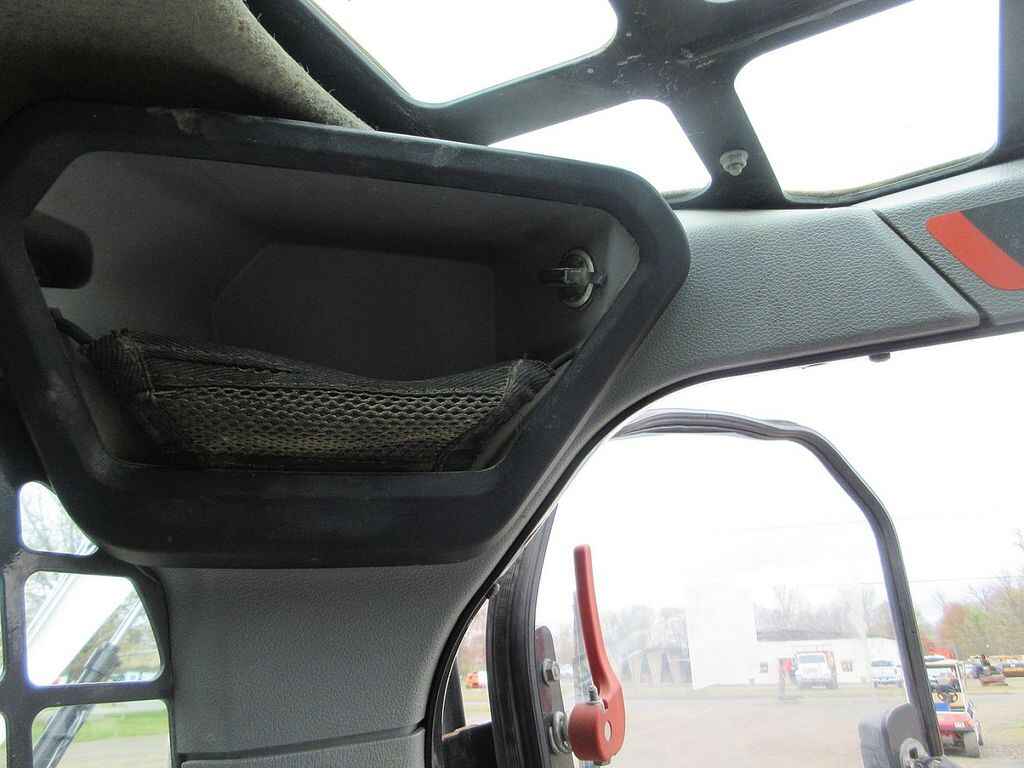

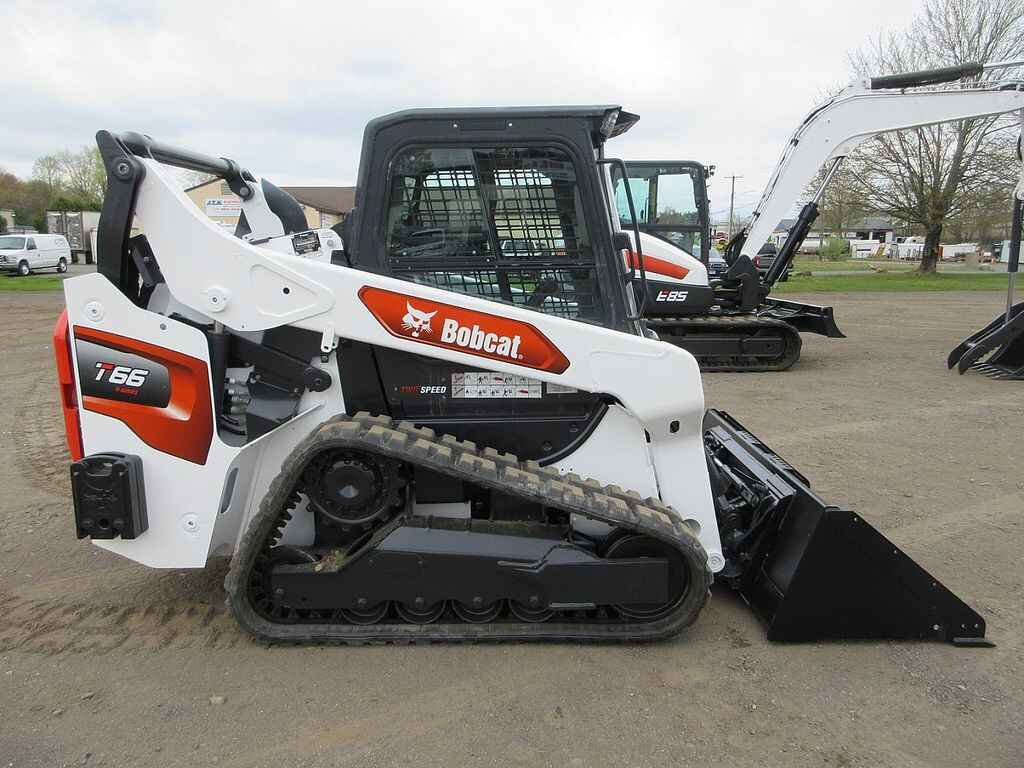

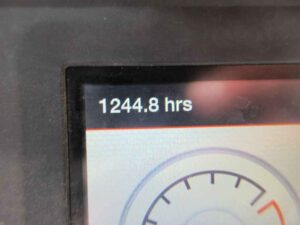

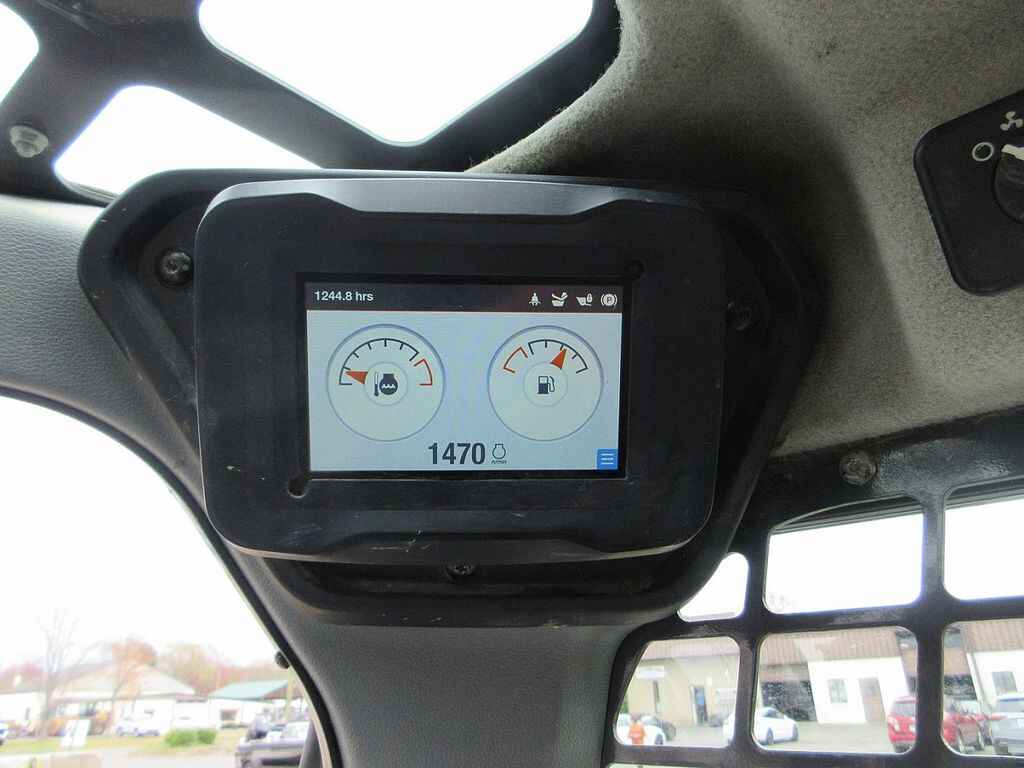

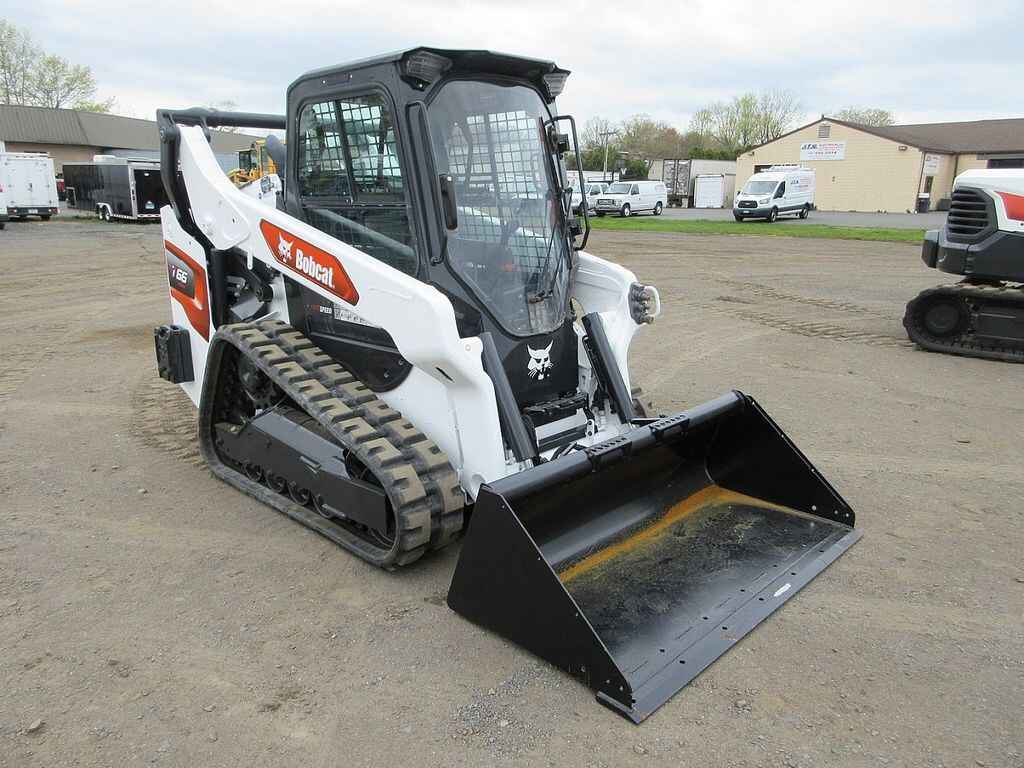

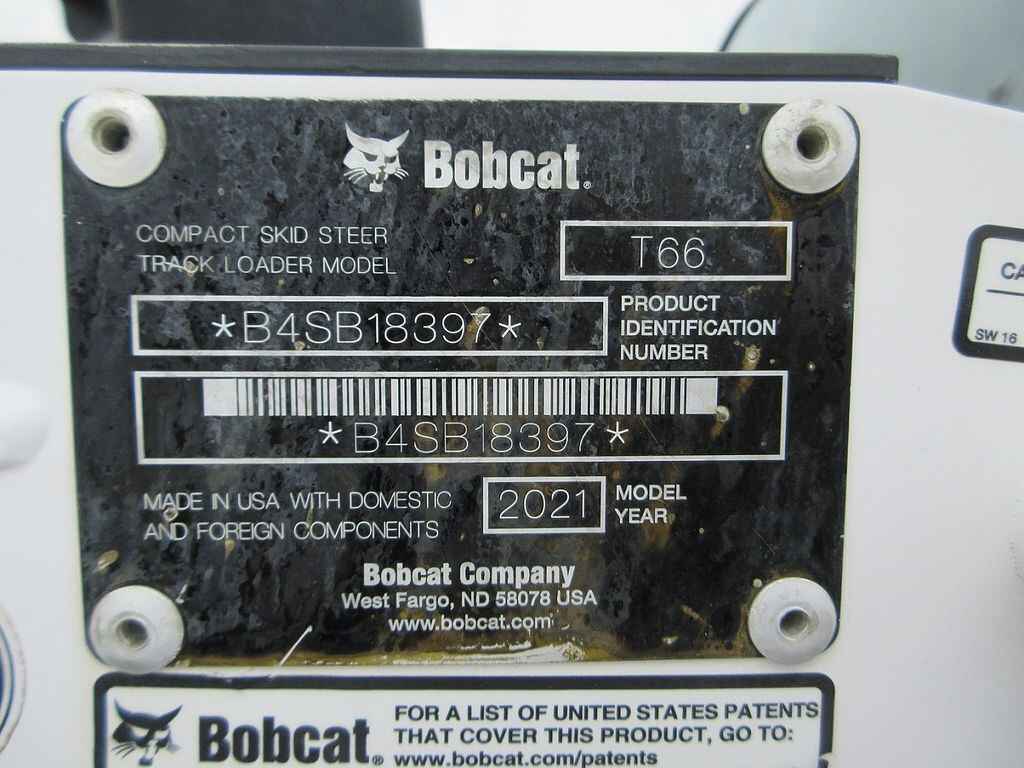

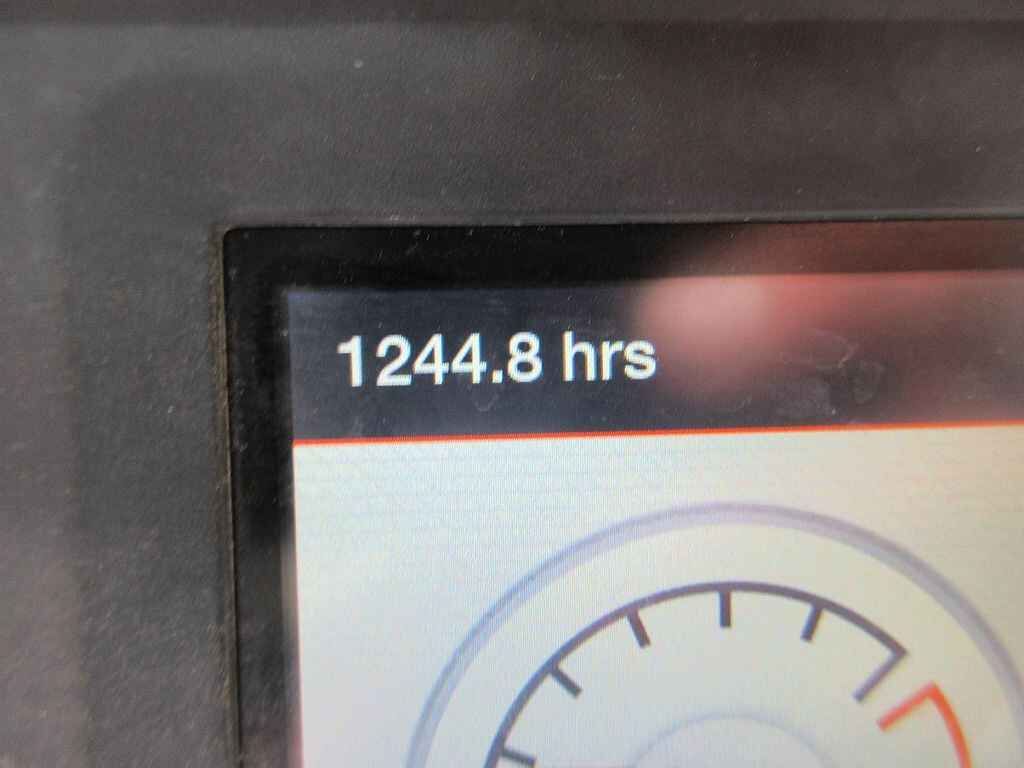

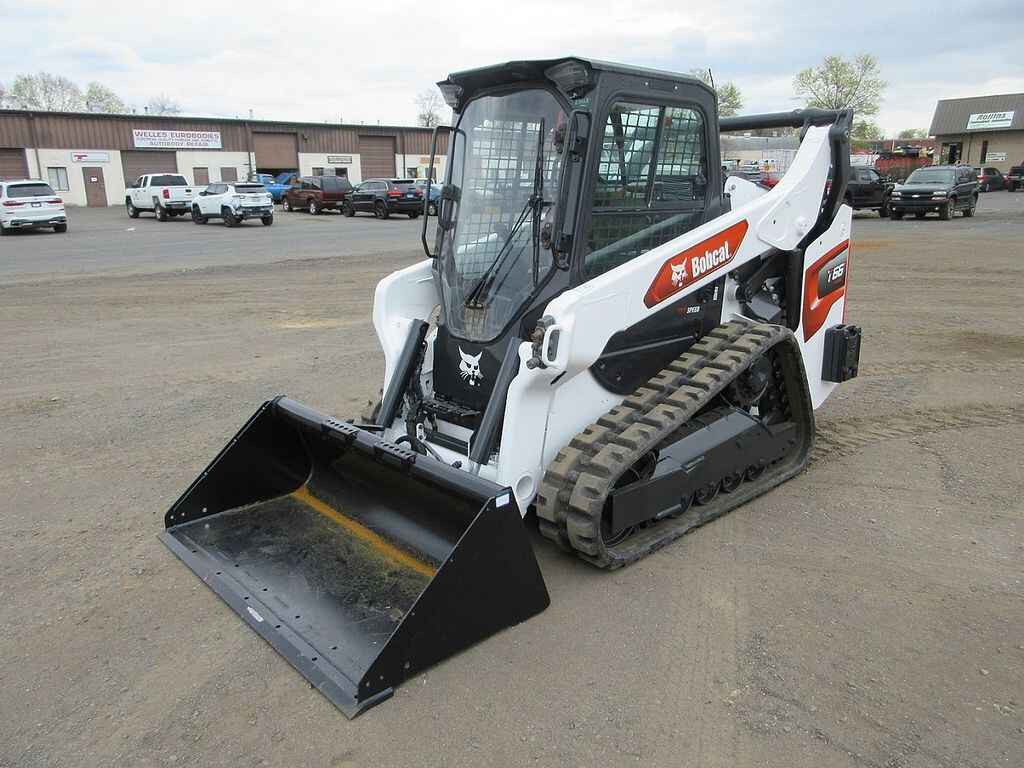

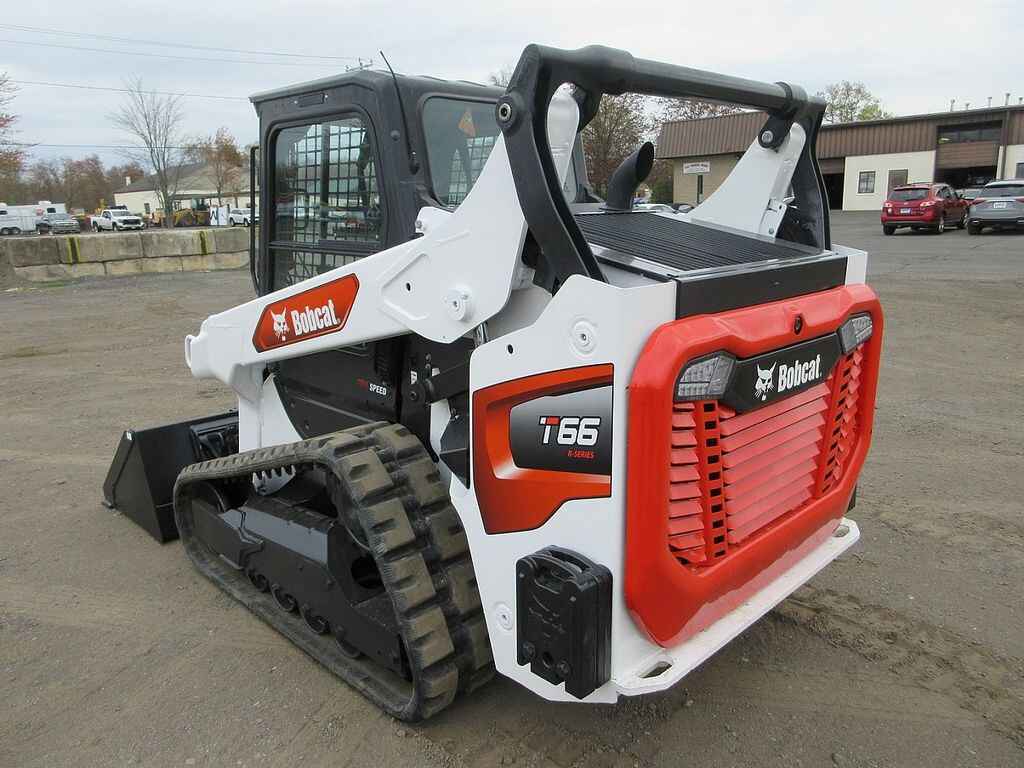

4 cyl Bobcat turbo diesel, cab with heat, A/C, stereo, 2 speed travel, keyless start, Selectable Joystick Controls, rearview camera, aux hyd, aux electrical connector, Power Bob-Tach, GP bucket, meter reads 1244 hours, S/N B4SB18397

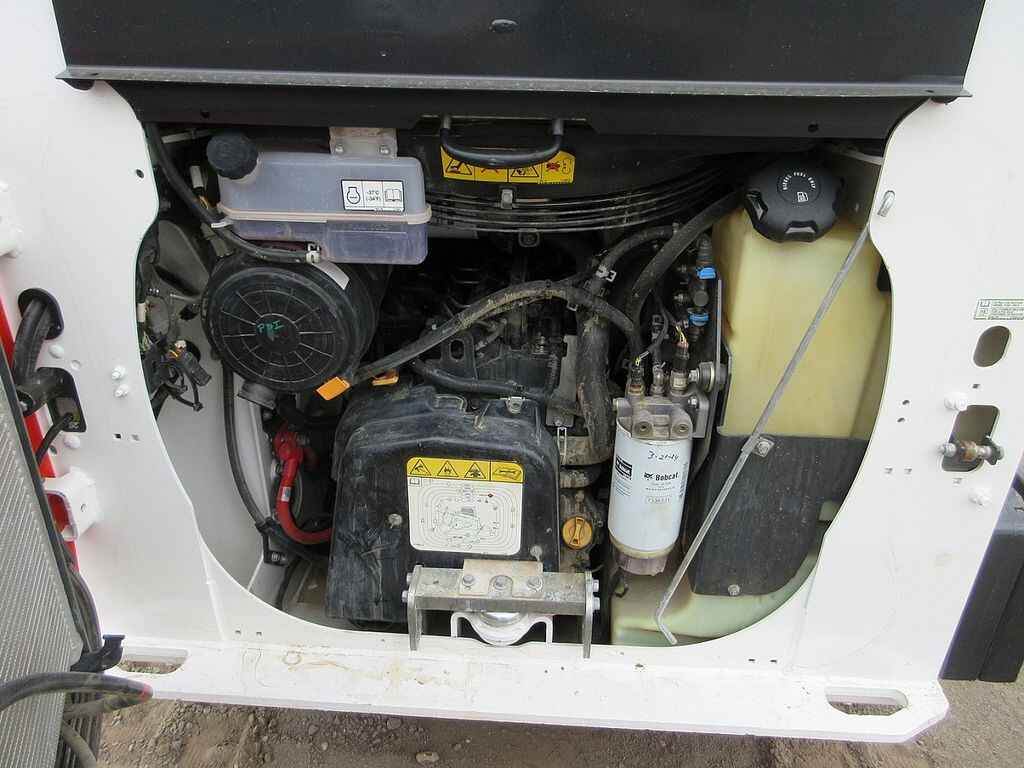

Engine
-
Engine Model: Bobcat 4-Cylinder Diesel
-
Gross Power: 74.3 hp (55.4 kW)
-
Net Power: 70 hp (52.2 kW)
-
Engine Displacement: 2.4 L (146 cu in)
-
Engine Type: 4-Cylinder, Diesel
-
Rated Engine Speed: 2,700 rpm
-
Fuel Tank Capacity: 23.8 gal (90 L)
-
Cooling System Capacity: 4.8 gal (18.1 L)
-
Hydraulic Tank Capacity: 15.3 gal (58 L)
Dimensions
-
Operating Weight: 7,950 lbs (3,607 kg)
-
Length (with bucket): 10.3 ft (3,140 mm)
-
Width (with bucket): 5.6 ft (1,708 mm)
-
Height to Top of Cab: 6.5 ft (1,981 mm)
-
Ground Clearance: 8.1 in (205 mm)
-
Wheelbase: 3.2 ft (975 mm)
-
Length Without Bucket: 8.5 ft (2,600 mm)
-
Height to Bucket Pin: 10.7 ft (3,267 mm)
-
Rear Overhang: 4.3 ft (1,307 mm)
Performance
-
Rated Operating Capacity (ROC): 2,250 lbs (1,020 kg)
-
Tipping Load: 4,500 lbs (2,040 kg)
-
Lift Height: 9.8 ft (2,987 mm)
-
Max Reach at Full Lift Height: 2.6 ft (803 mm)
-
Max Dump Height: 7.9 ft (2,402 mm)
-
Dump Angle: 40°
-
Bucket Rollback (at ground): 30°
-
Rollback at Maximum Lift Height: 101°
-
Travel Speed (Low): 4.6 mph (7.4 km/h)
-
Travel Speed (High): 7.2 mph (11.5 km/h)
-
Drawbar Pull: 5,965 lbs (2,705 kg)
-
Hydraulic Flow: 24.3 gal/min (92 L/min)
-
Hydraulic Pressure: 3,300 psi (22,950 kPa)
Hydraulic System
-

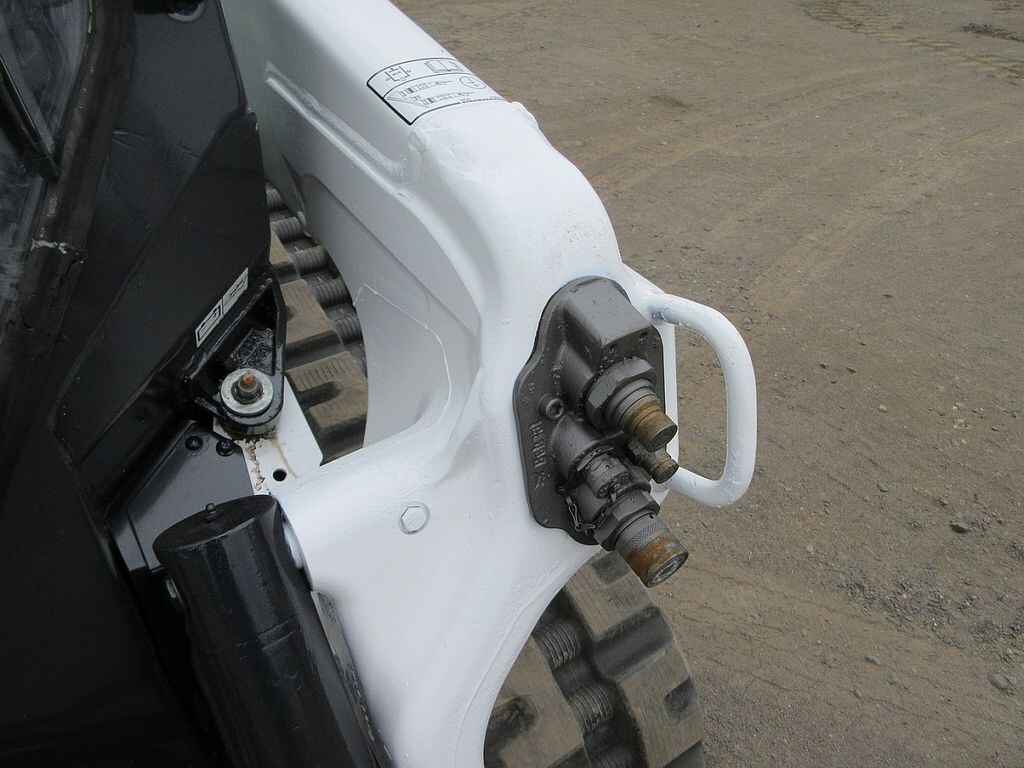

Auxiliary Hydraulic Flow (Standard): 24.3 gal/min (92 L/min)
-
Auxiliary Hydraulic Pressure: 3,300 psi (22,950 kPa)
-
Lift Cylinder Bore: 2.5 in (64 mm)
-
Tilt Cylinder Bore: 2.5 in (64 mm)

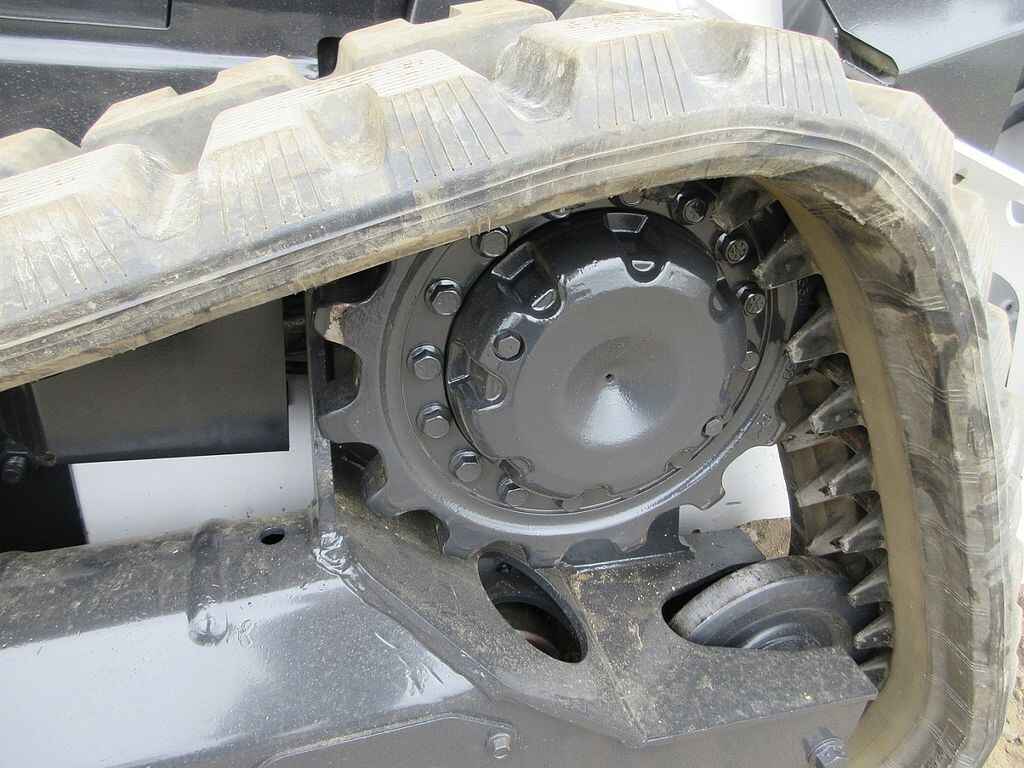

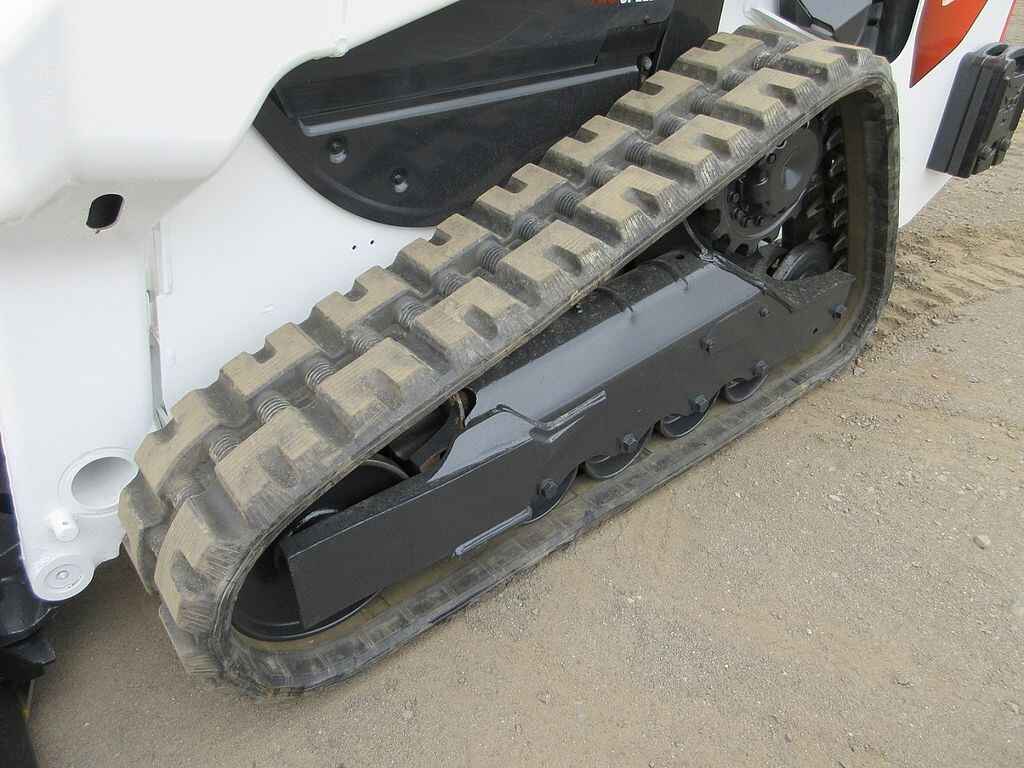

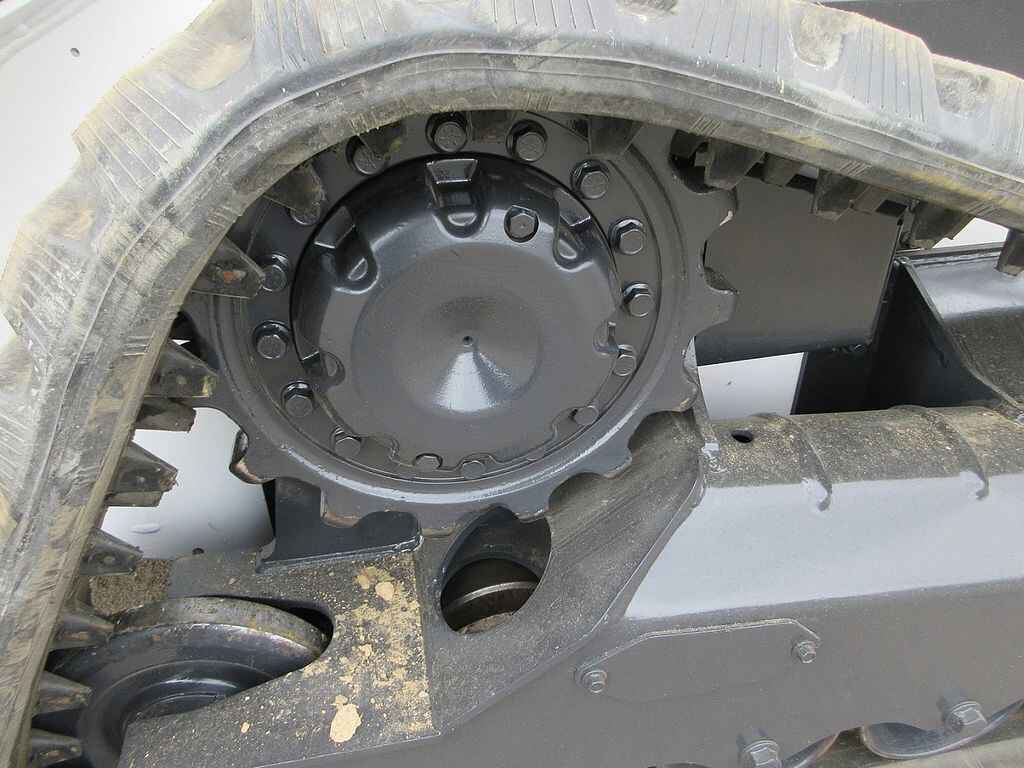

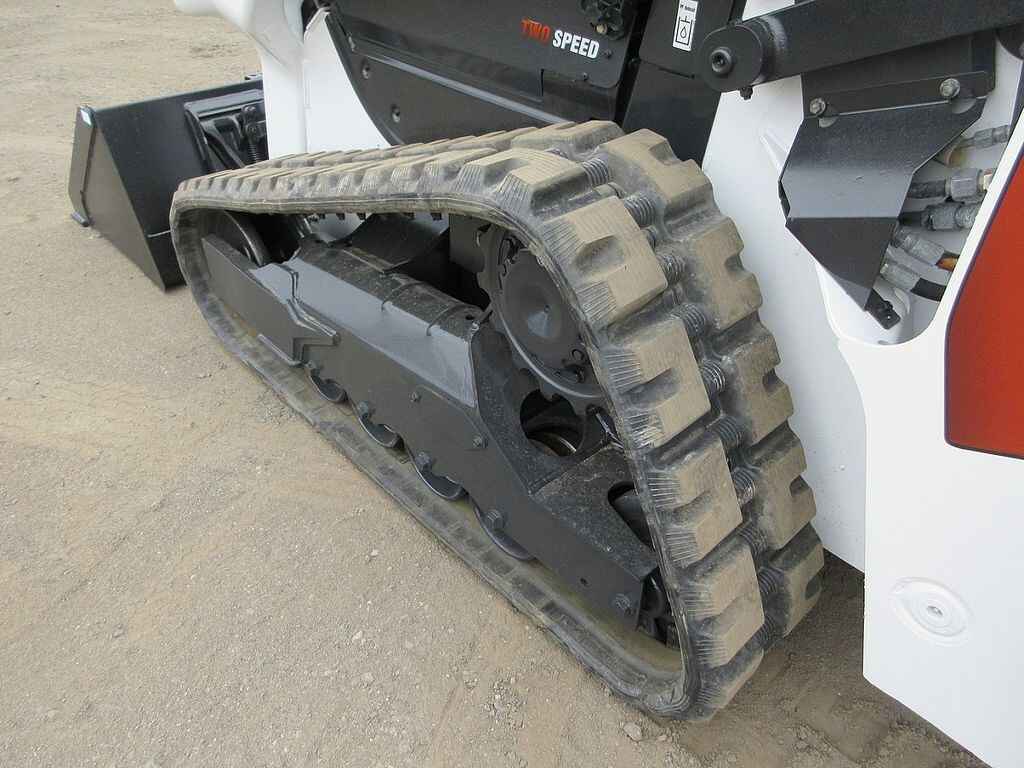

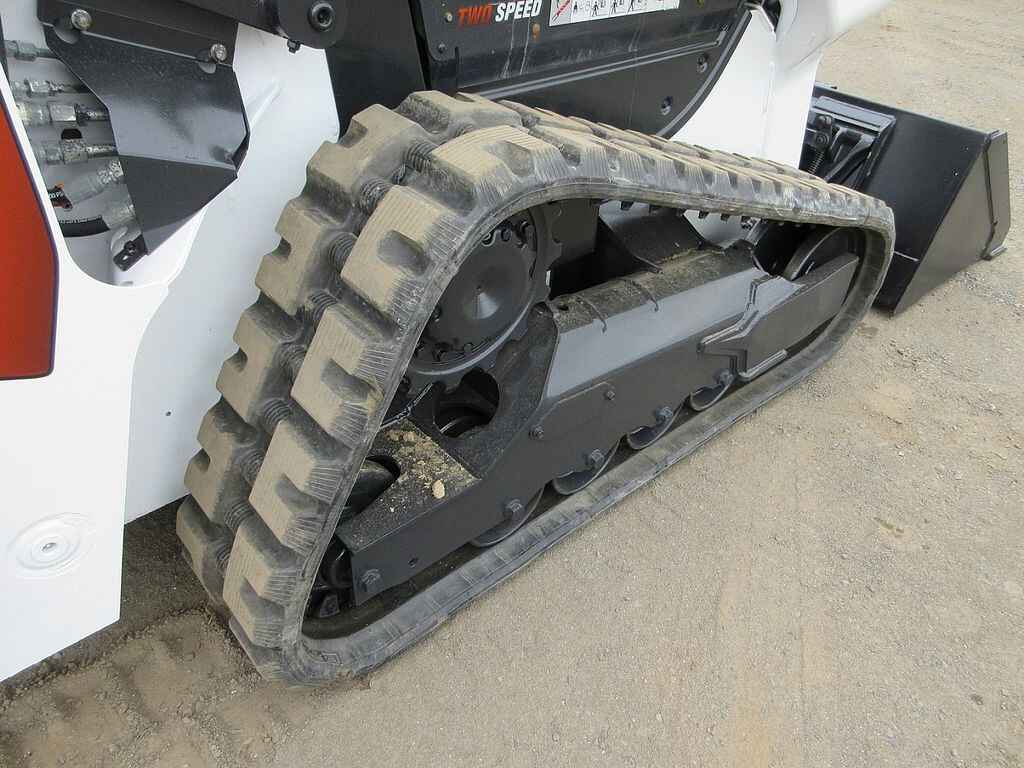

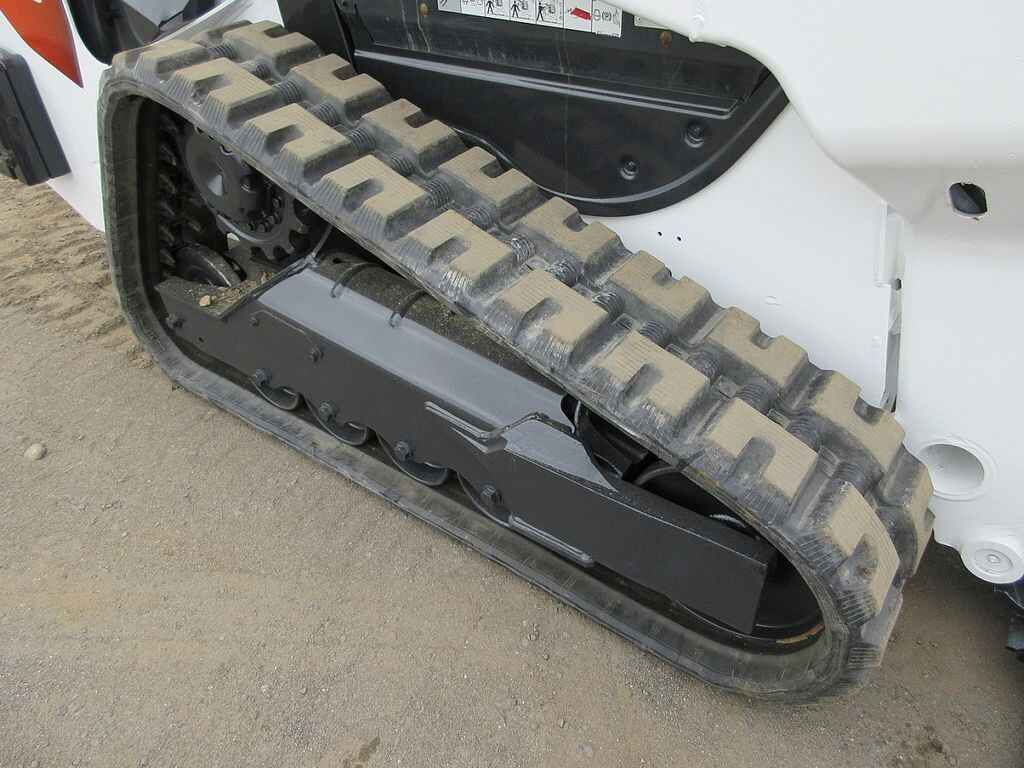

Undercarriage
-
Track Size: 12 in (305 mm)
-
Ground Pressure: 5.7 psi (39.3 kPa)
-
Track Width: 12 in (305 mm)
-
Ground Clearance: 8.1 in (205 mm)
Capacities
-
Fuel Tank Capacity: 23.8 gal (90 L)
-
Hydraulic Reservoir Capacity: 15.3 gal (58 L)
-
Hydraulic System Fluid Capacity: 24.3 gal (92 L)
-
Engine Oil Capacity: 6.5 qt (6.1 L)

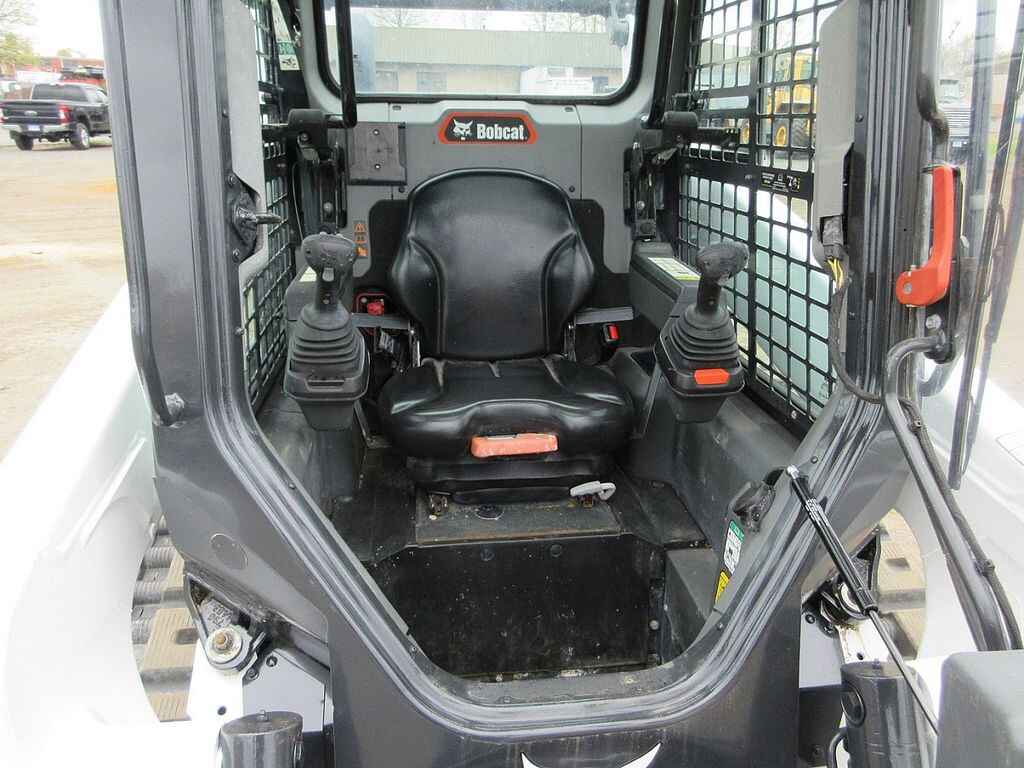

Cab Features
-
ROPS: ISO 3471:2008
-
FOPS: ISO 3449:2005 Level II
-
Operator Cab: Standard
-
Heating System: Optional
-
Air Conditioning: Optional
-

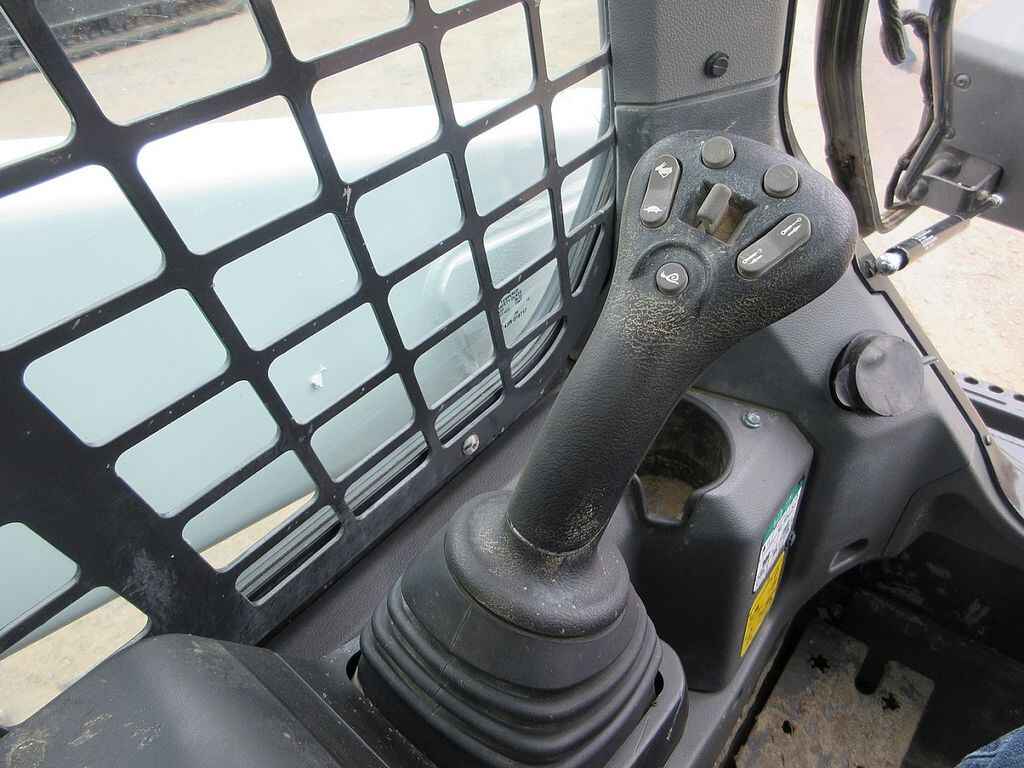

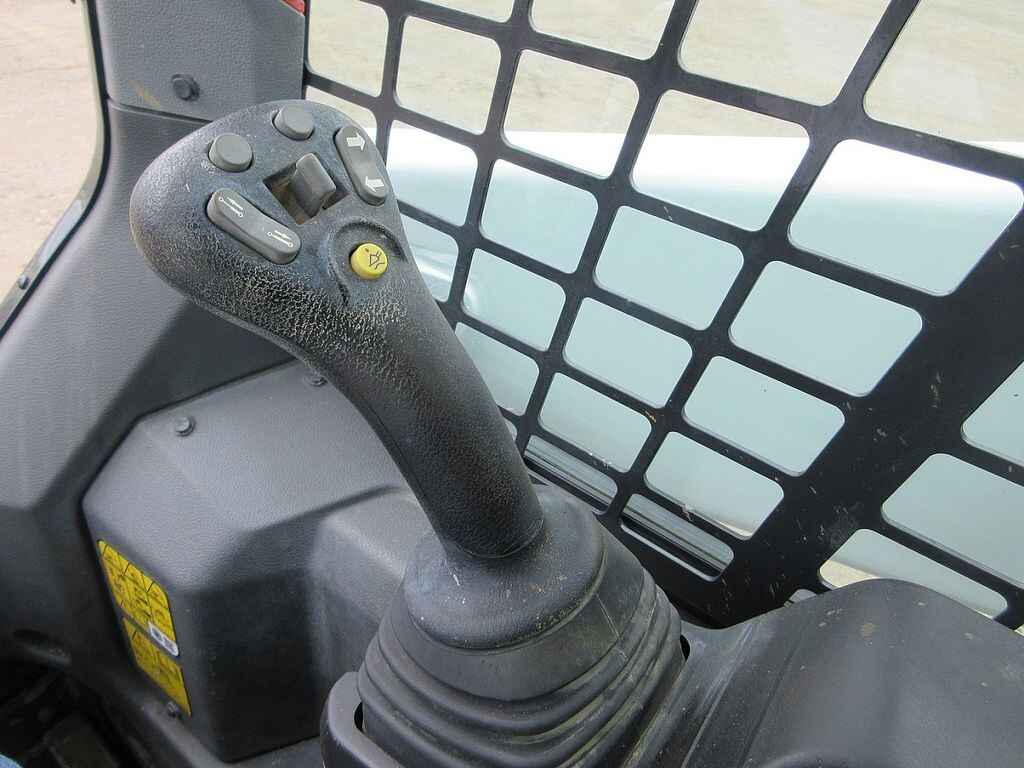

Joystick Controls: Standard
-
Seats: Adjustable
-
Cab Mounting: Isolated
Brakes and Safety
-
Brakes: Hydraulic wet disc brakes
-
Parking Brake: Automatic
-
Safety Features:
-
Backup alarm
-
Seat belt interlock
-
Roll-over protection (ROPS)
-
Additional Features
-
Lift Arm Path: Vertical
-
Auxiliary Hydraulics: Standard
-
Engine Shutdown: Optional
-
Machine Control System: Optional
