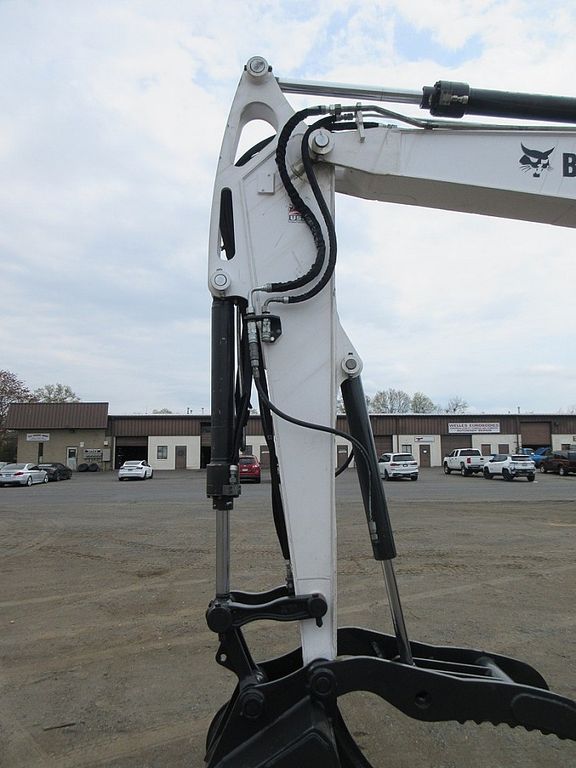

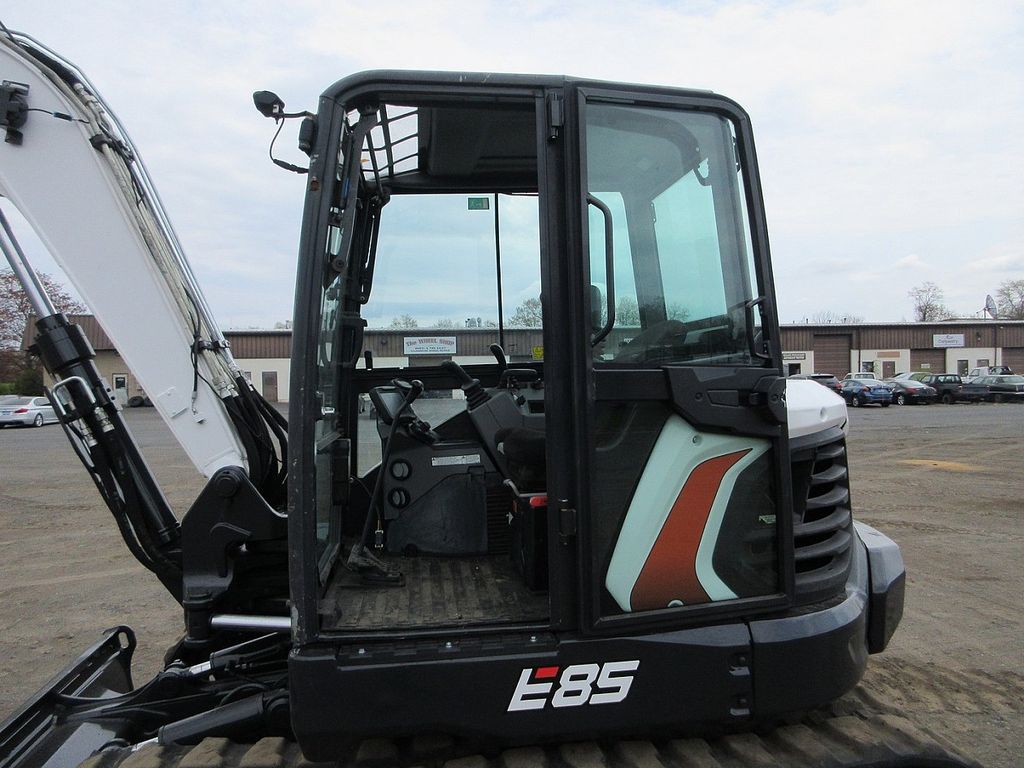

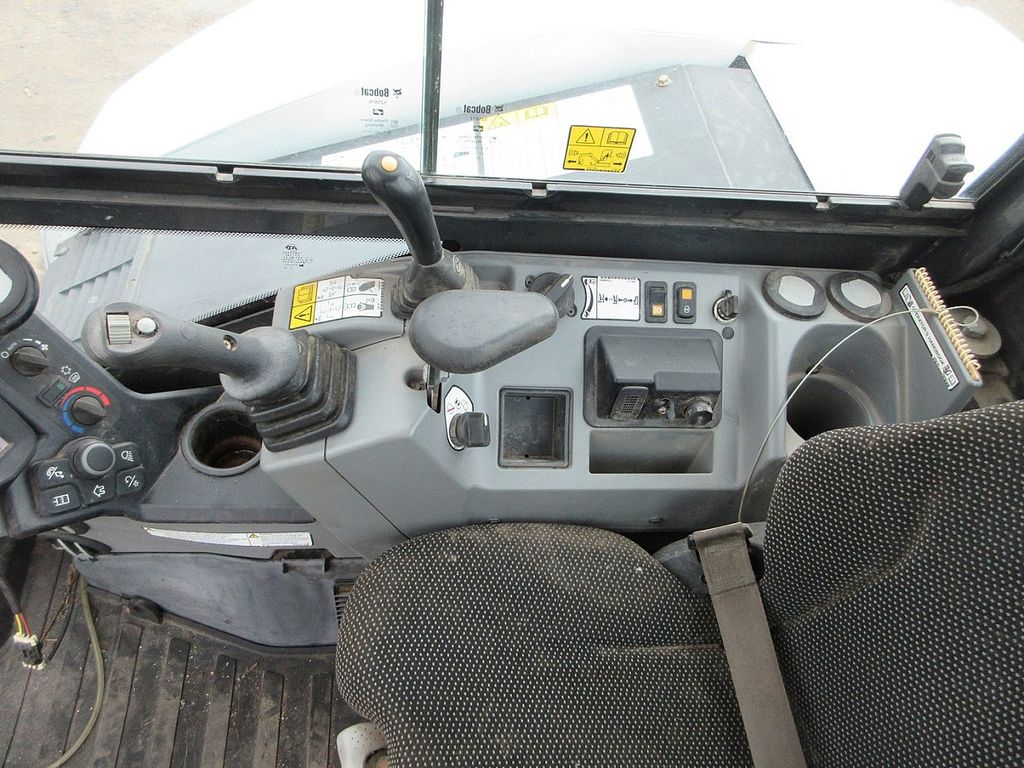

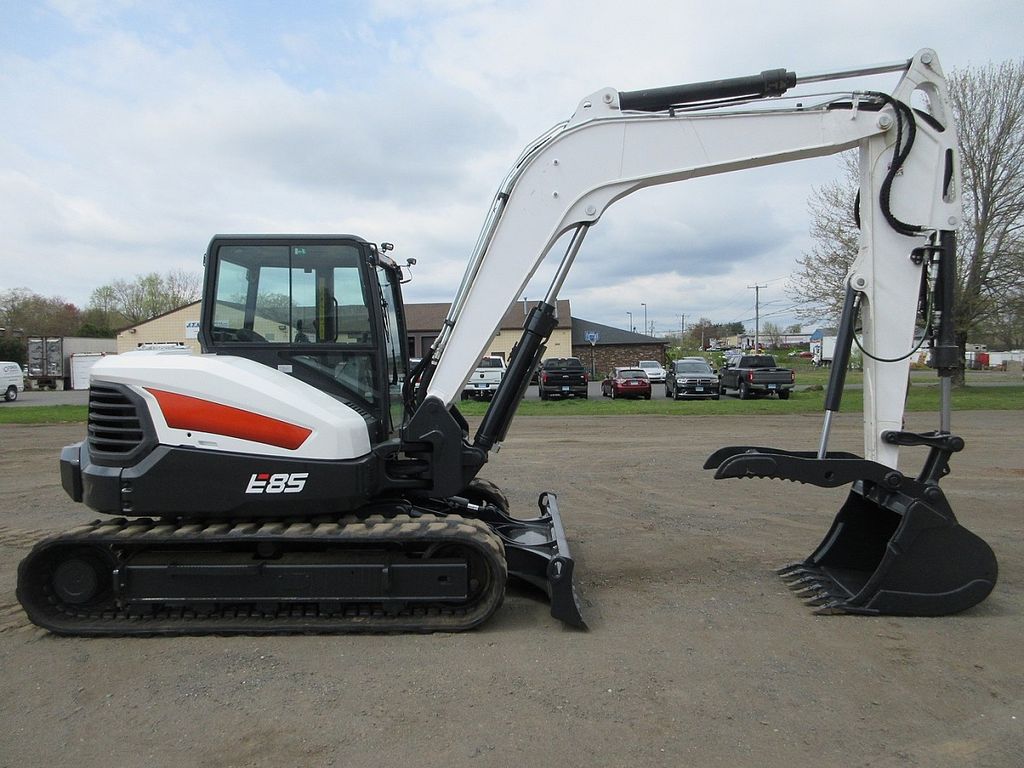

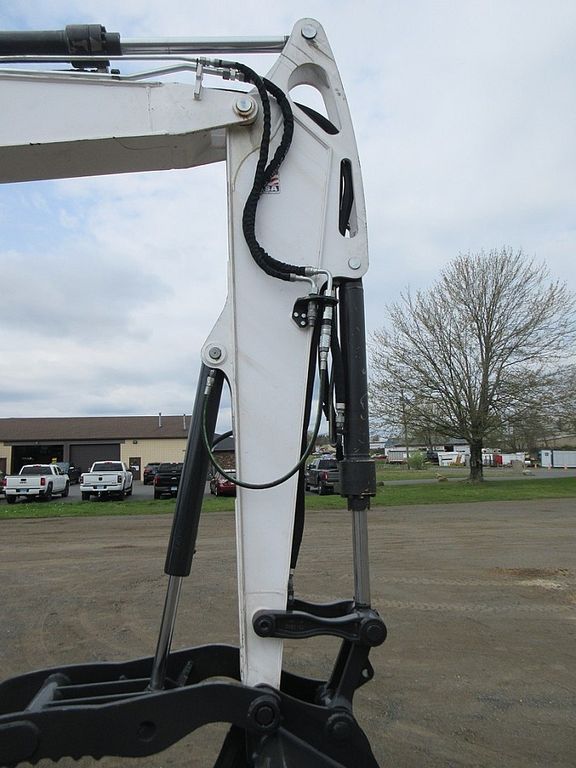

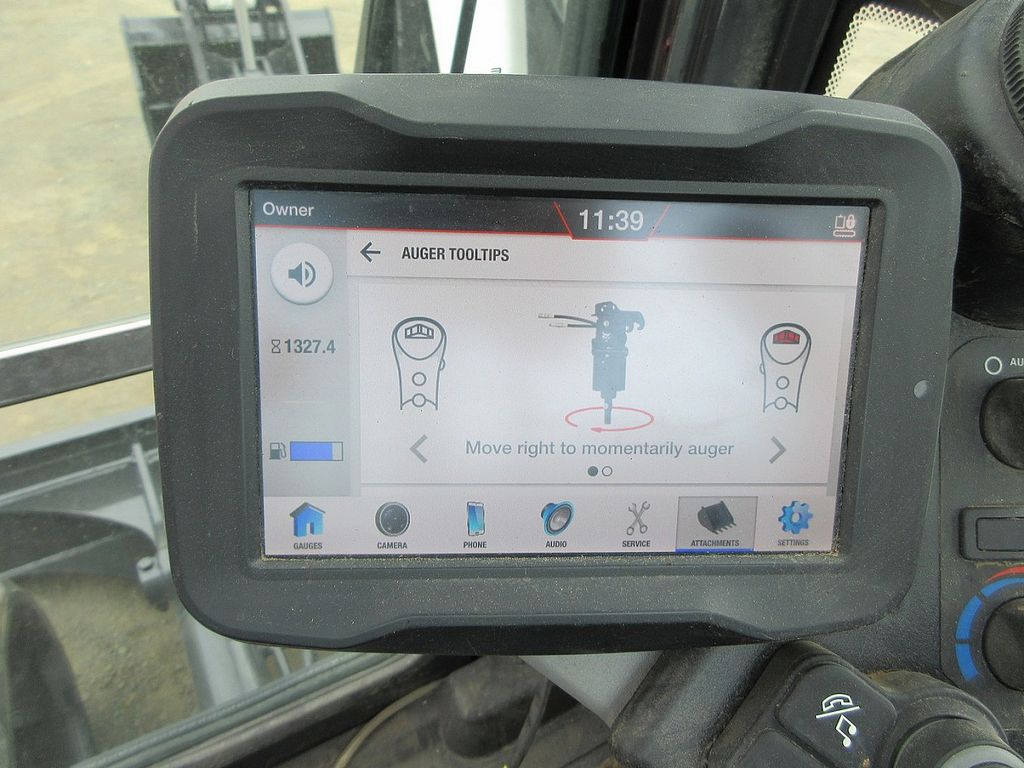

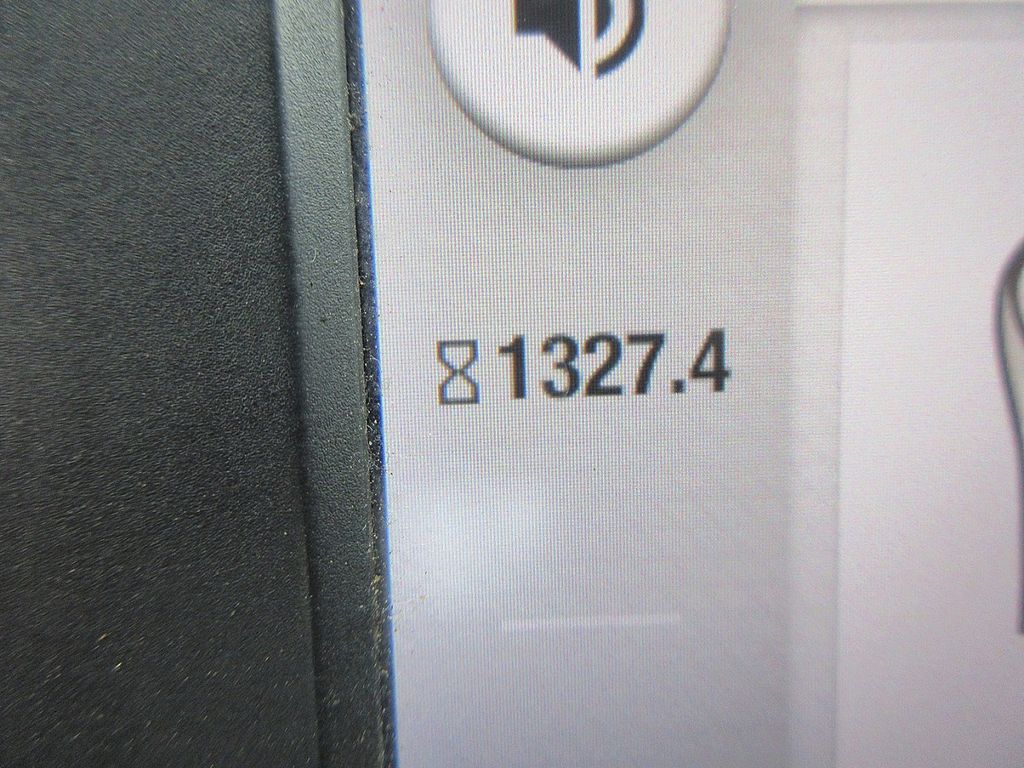

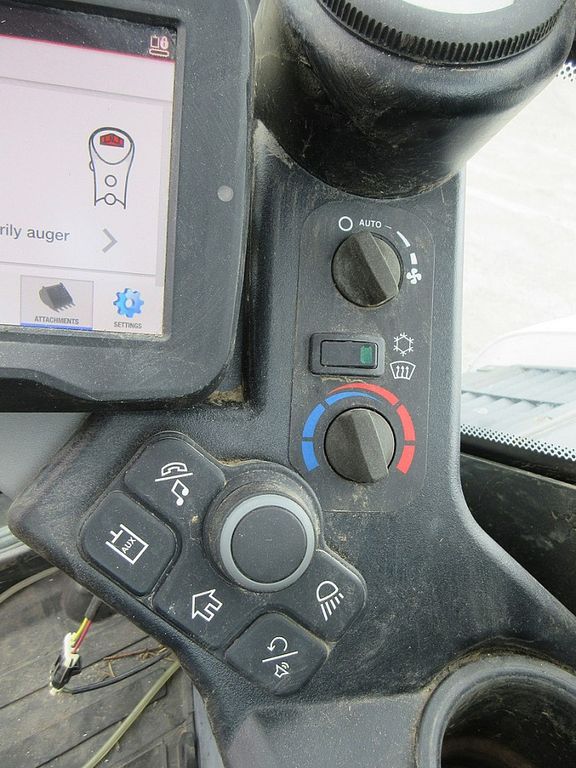

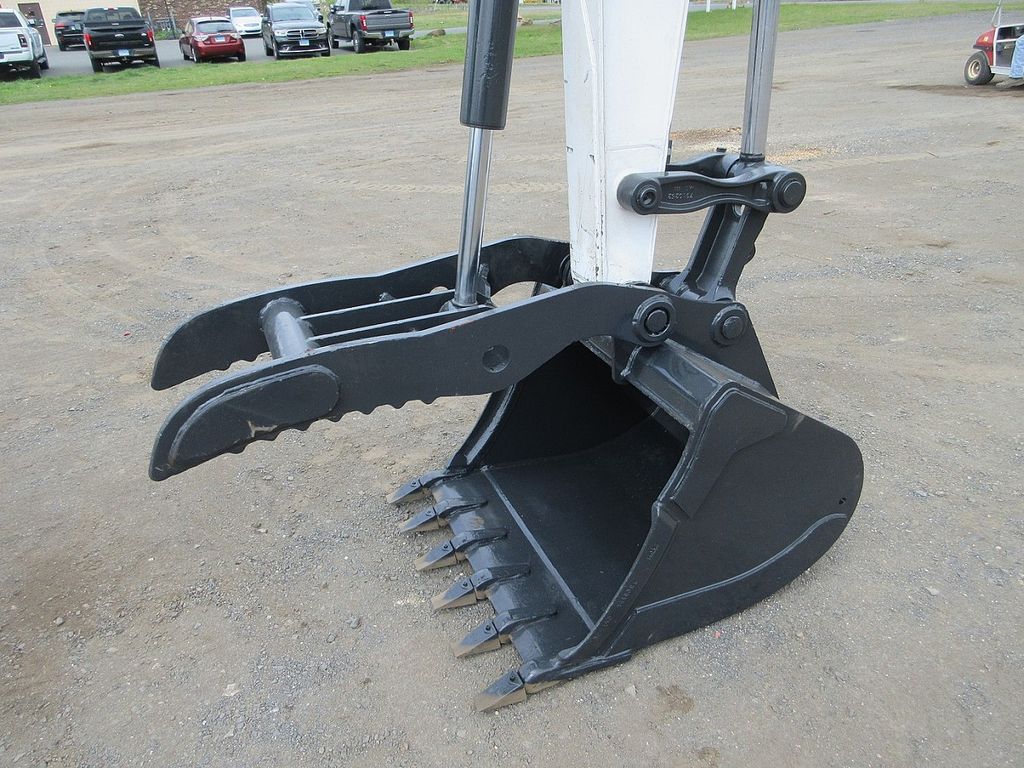

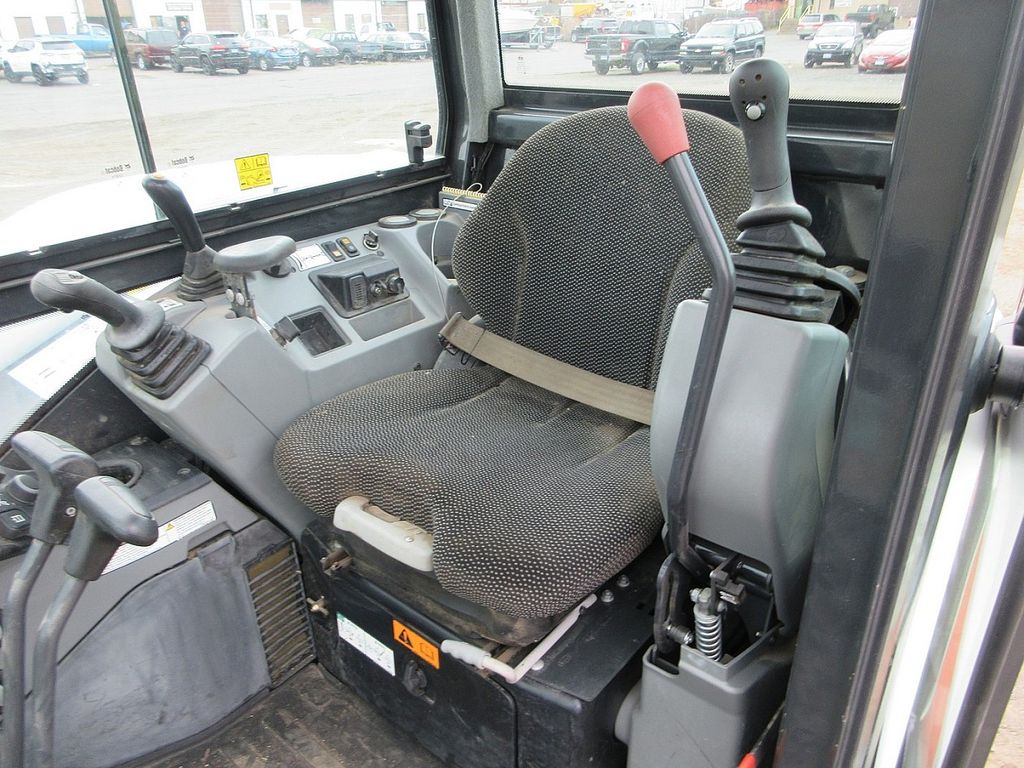

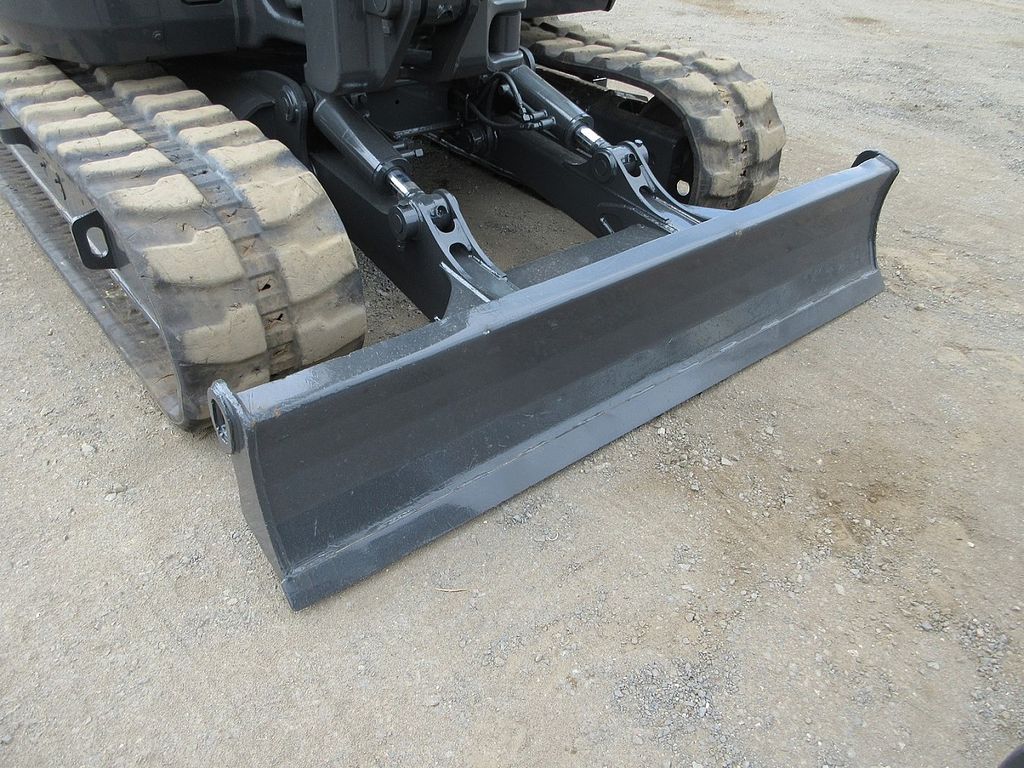

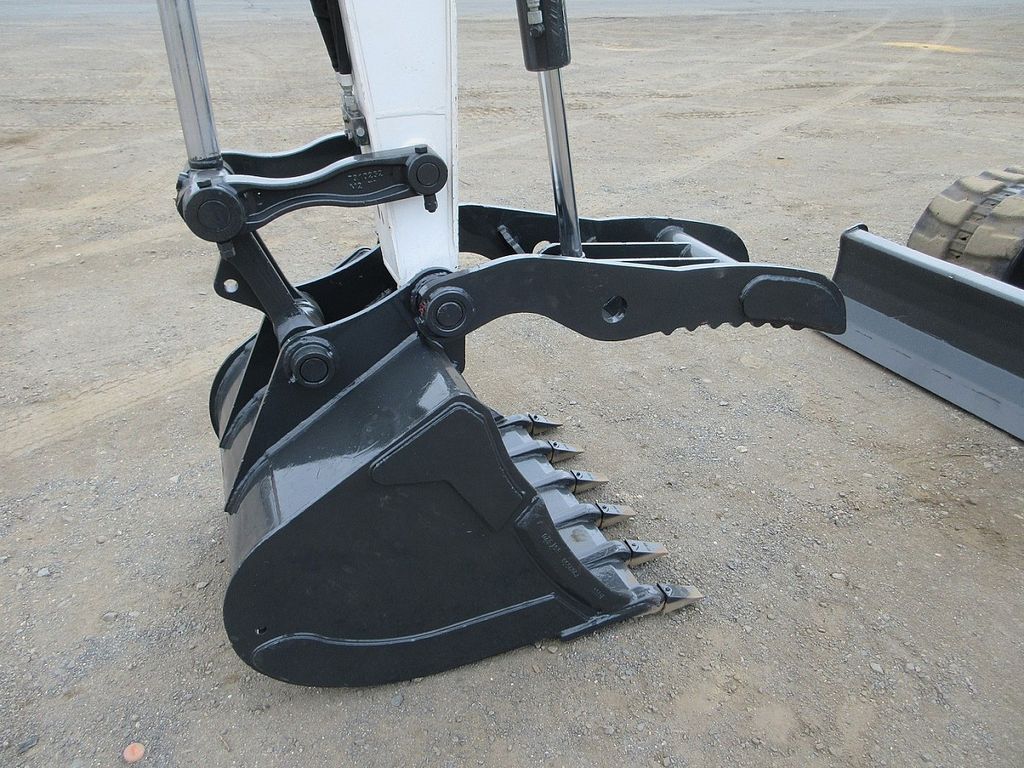

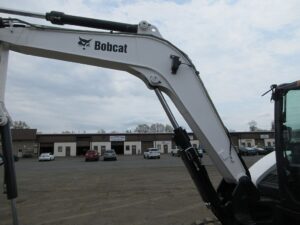

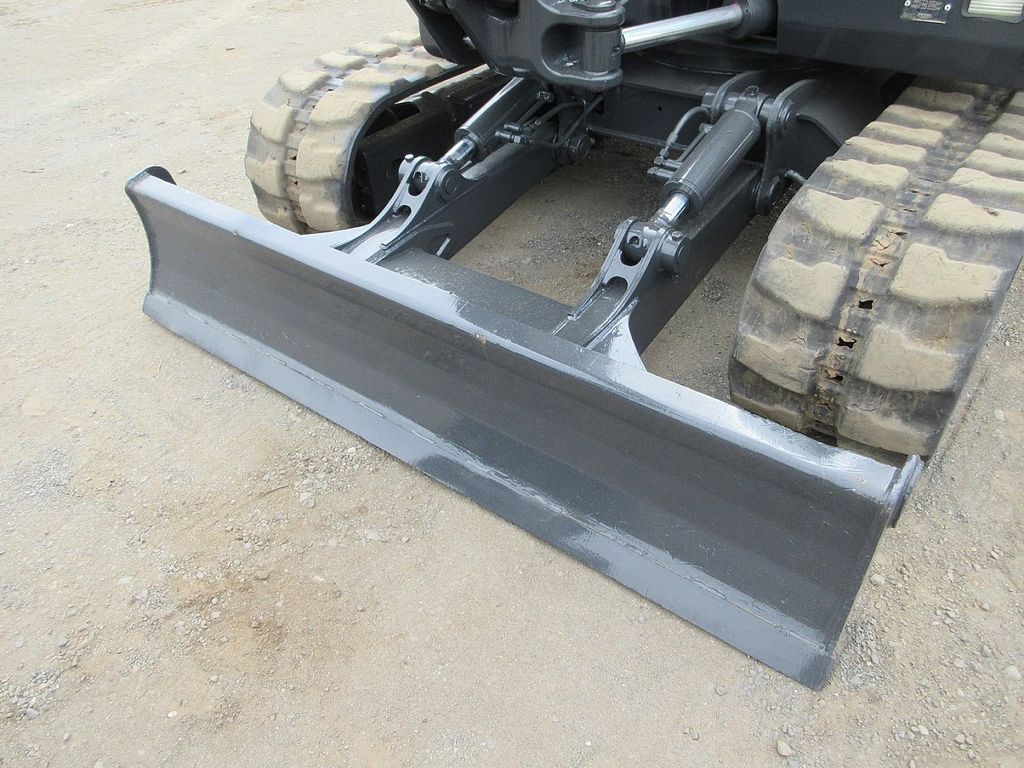

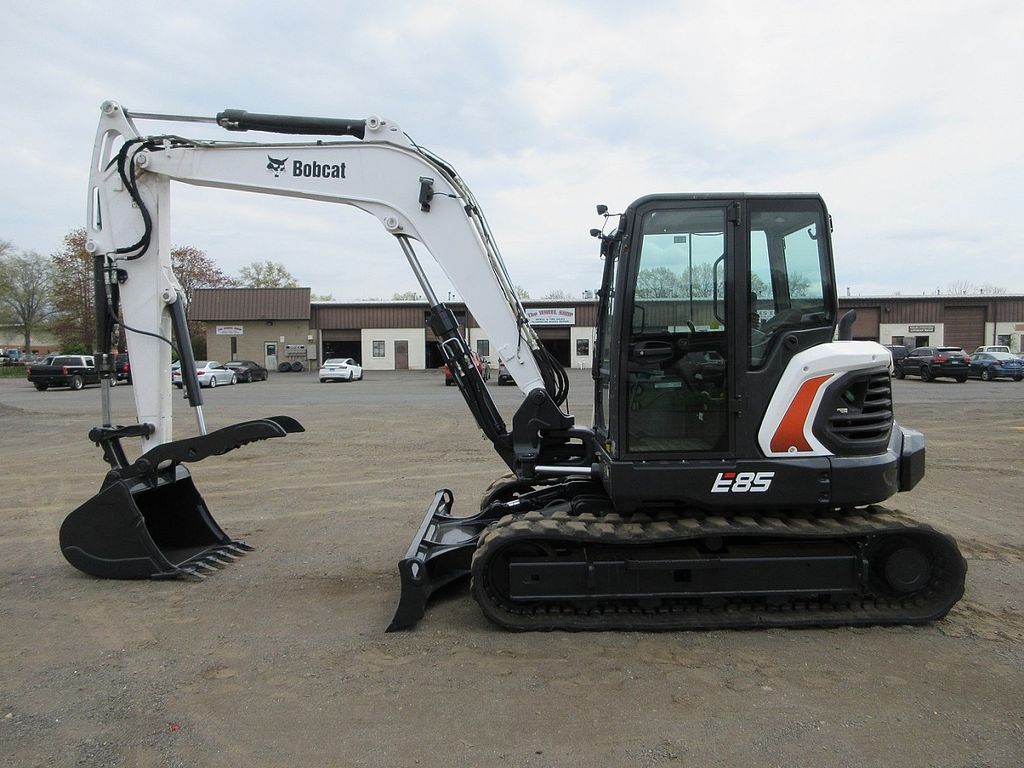

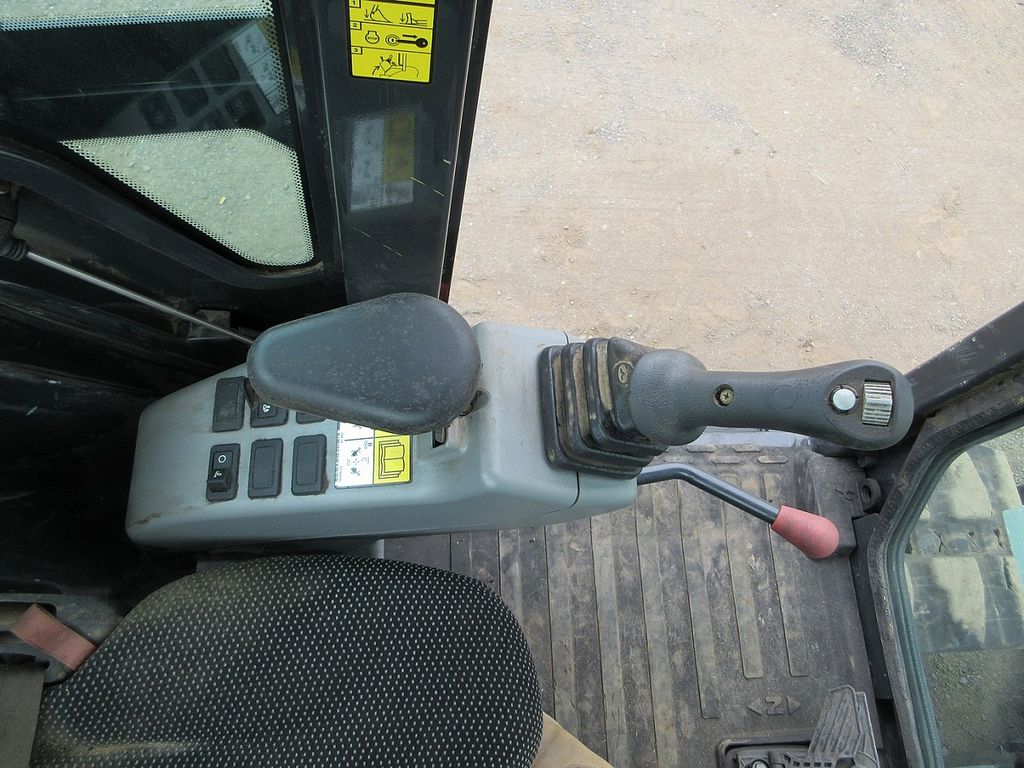

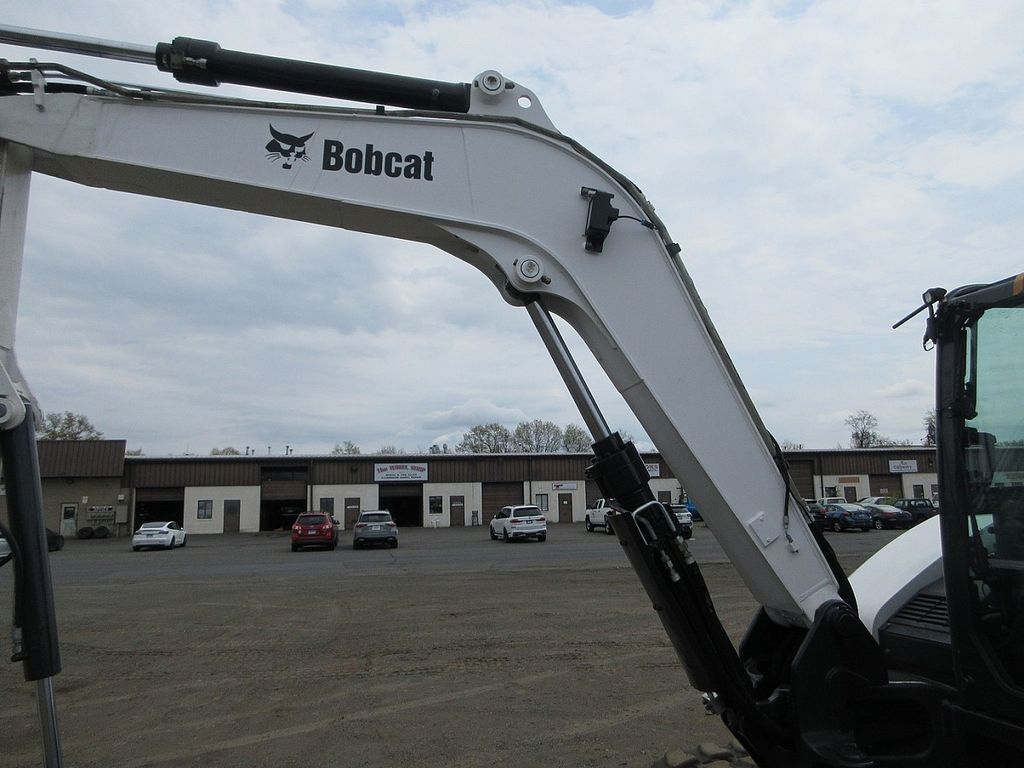

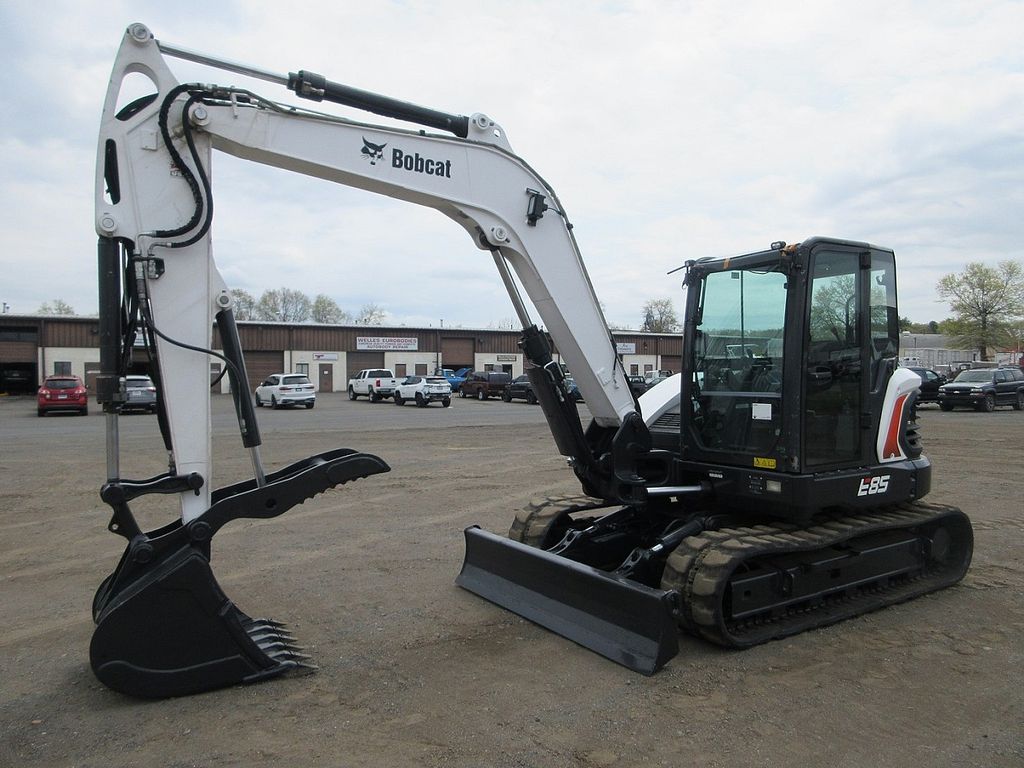

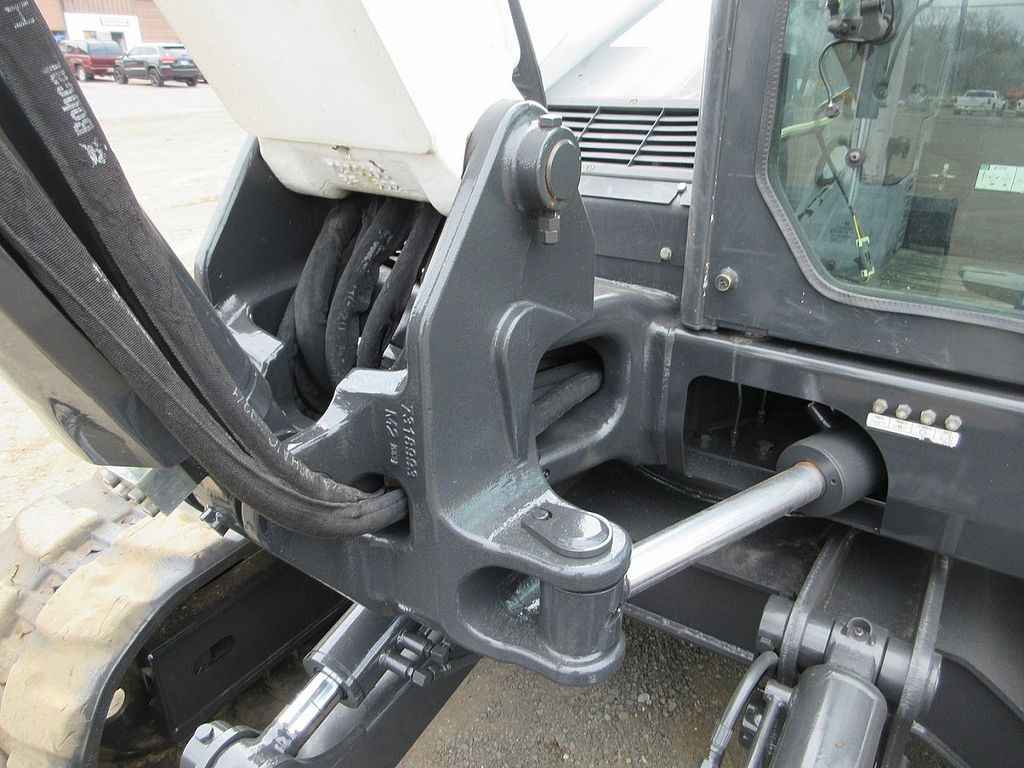

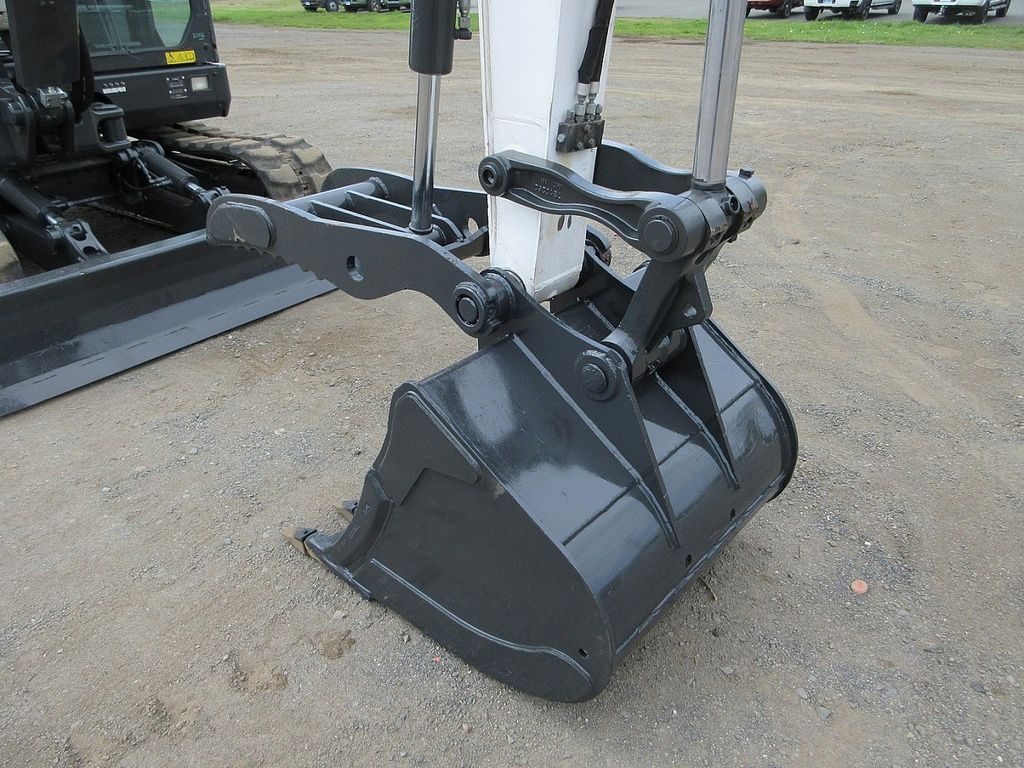

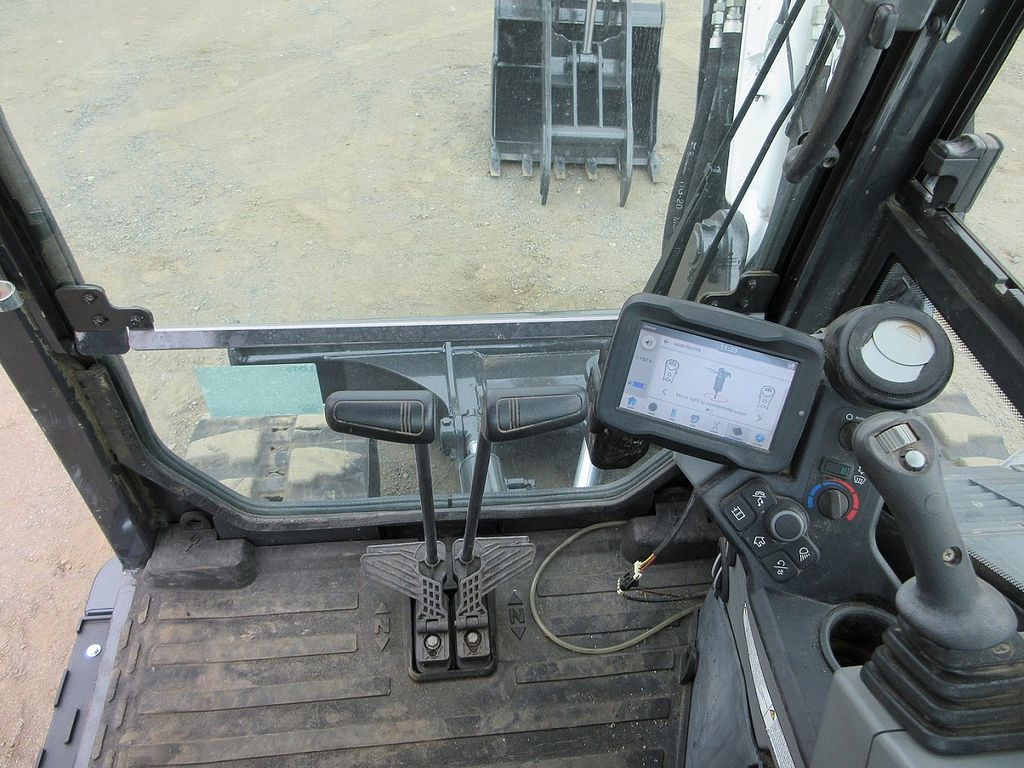

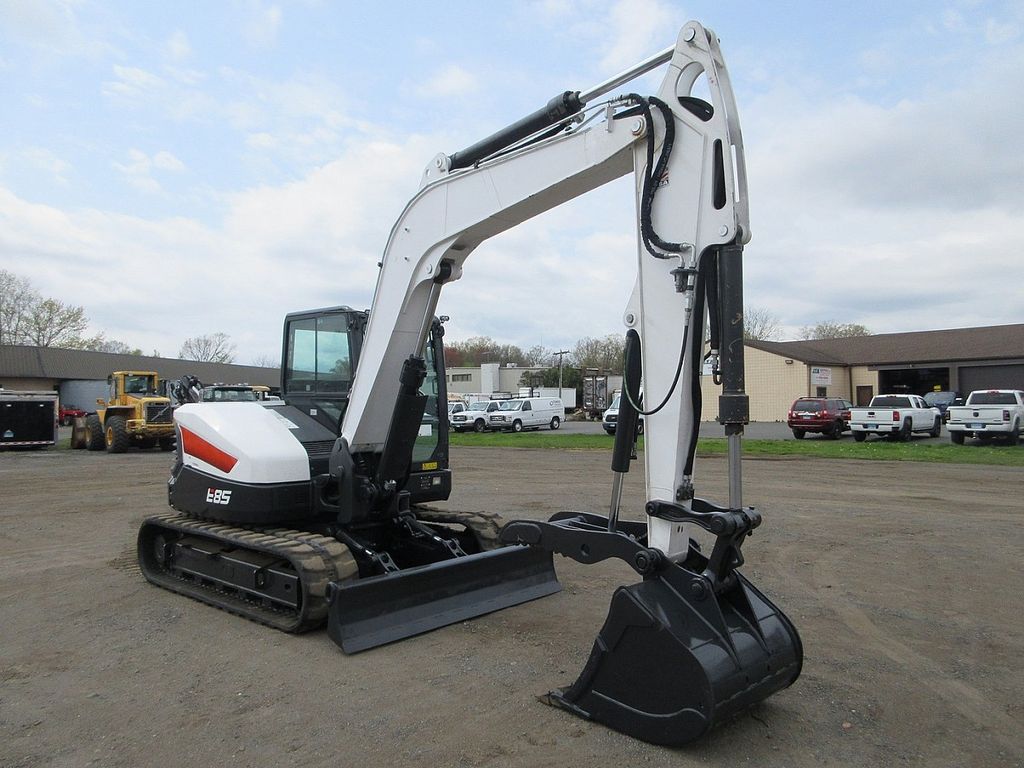

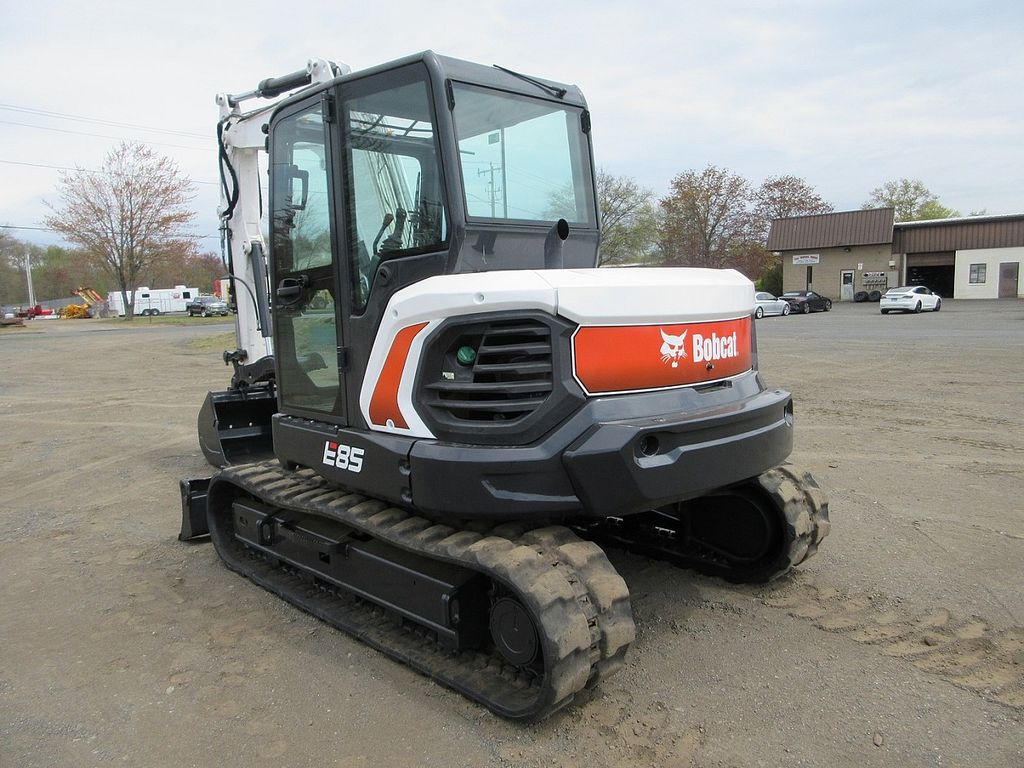

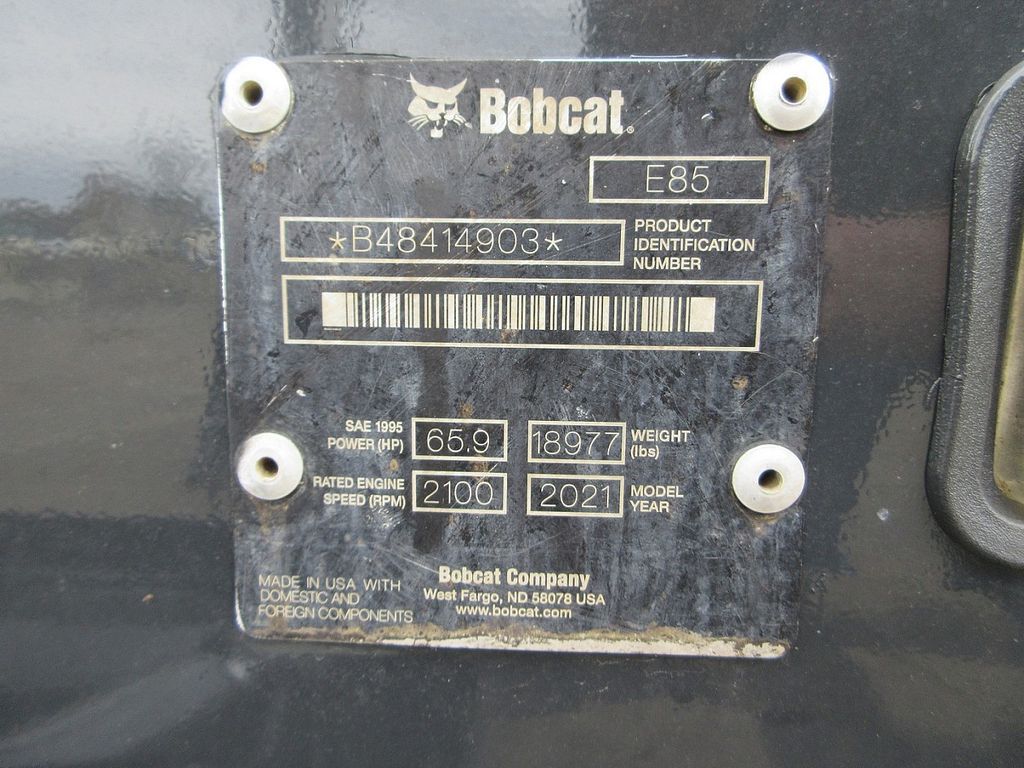

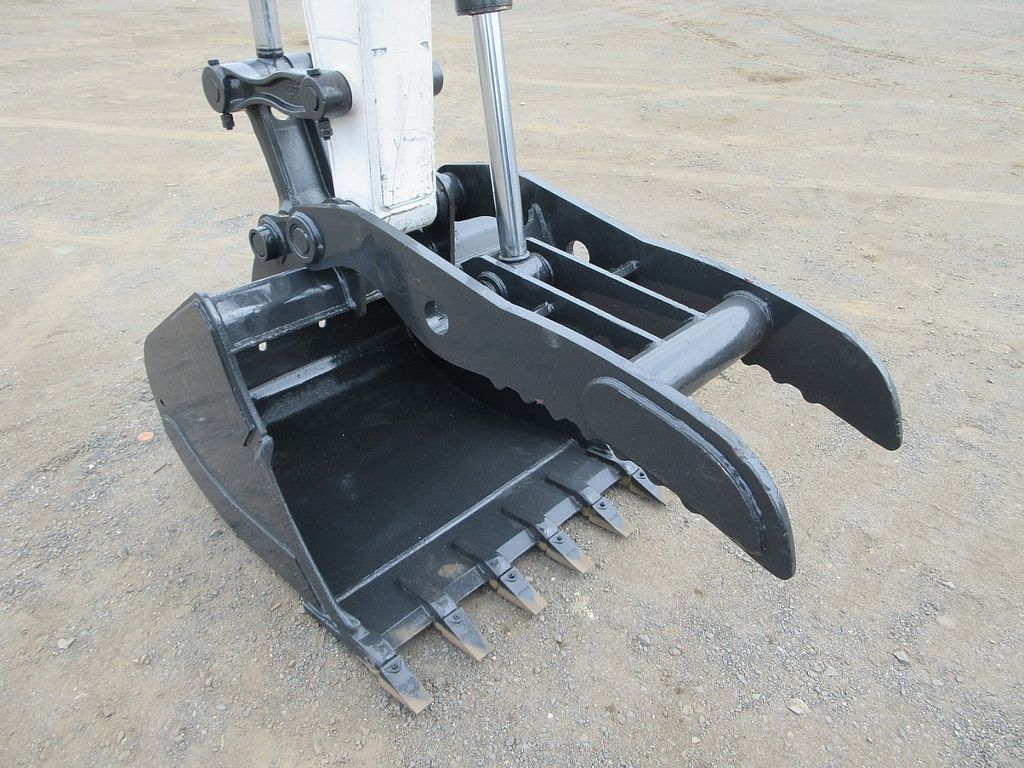

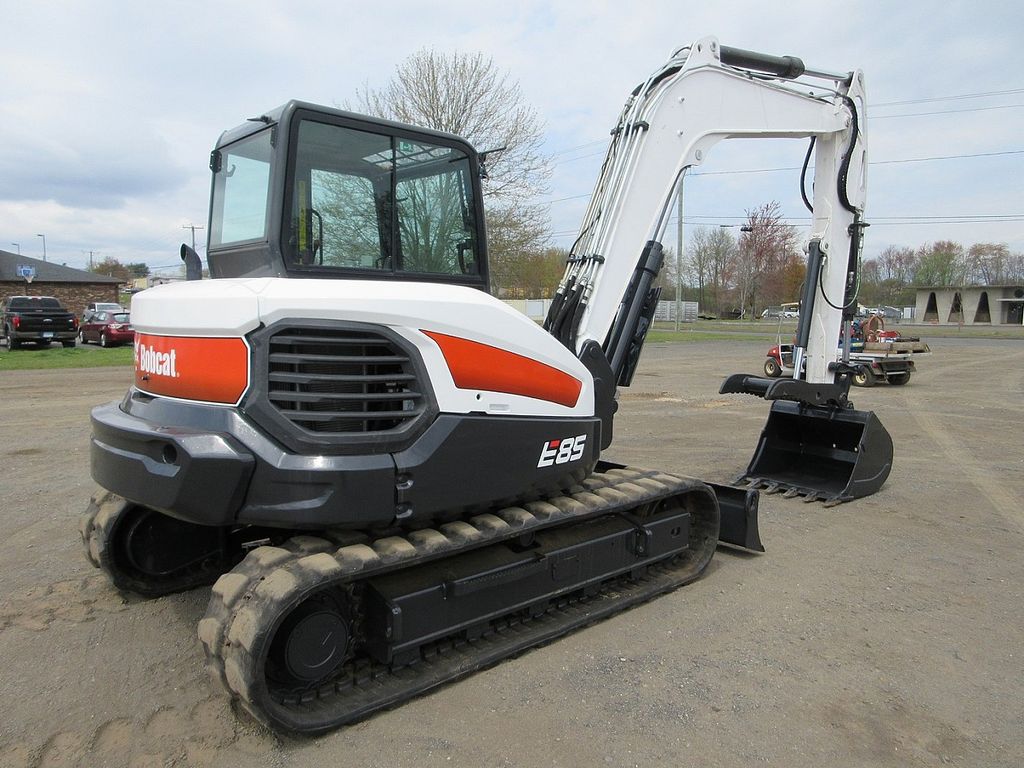

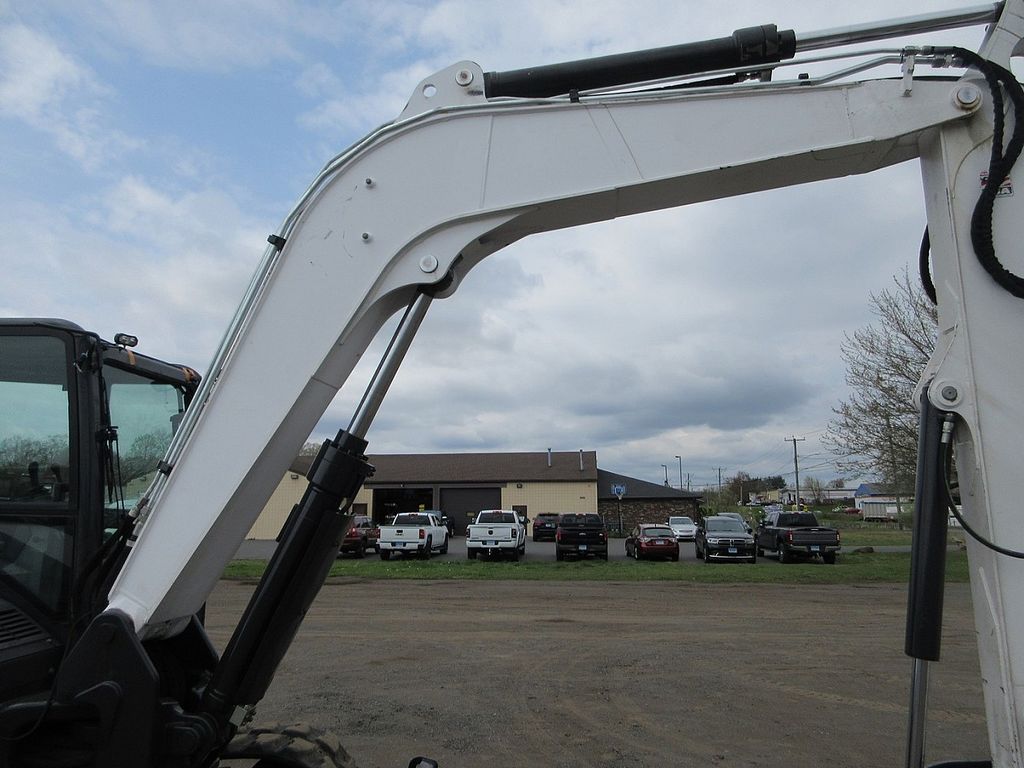

4 cyl Bobcat turbo diesel, cab with heat, A/C, stereo, auto idle, 2 speed travel, keyless start, backfill blade, swing boom, aux hyd, hyd thumb, 7′ 4″ stick, plumbed for hyd coupler, bucket with teeth, meter reads 1327 hours, S/N B48414903

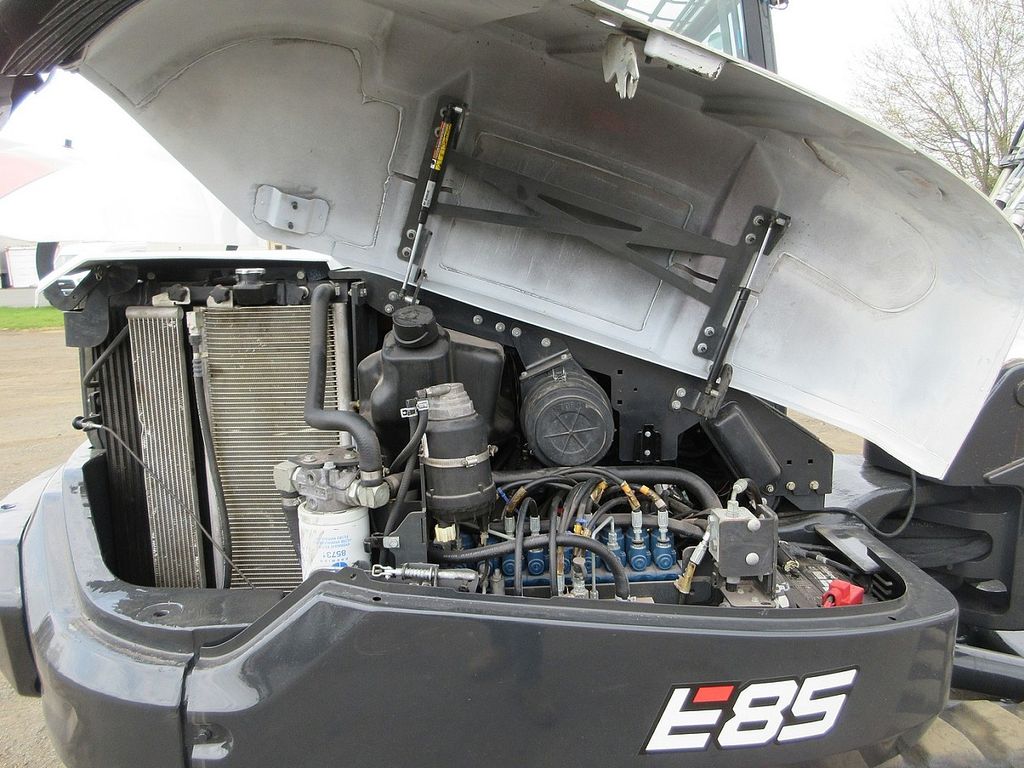

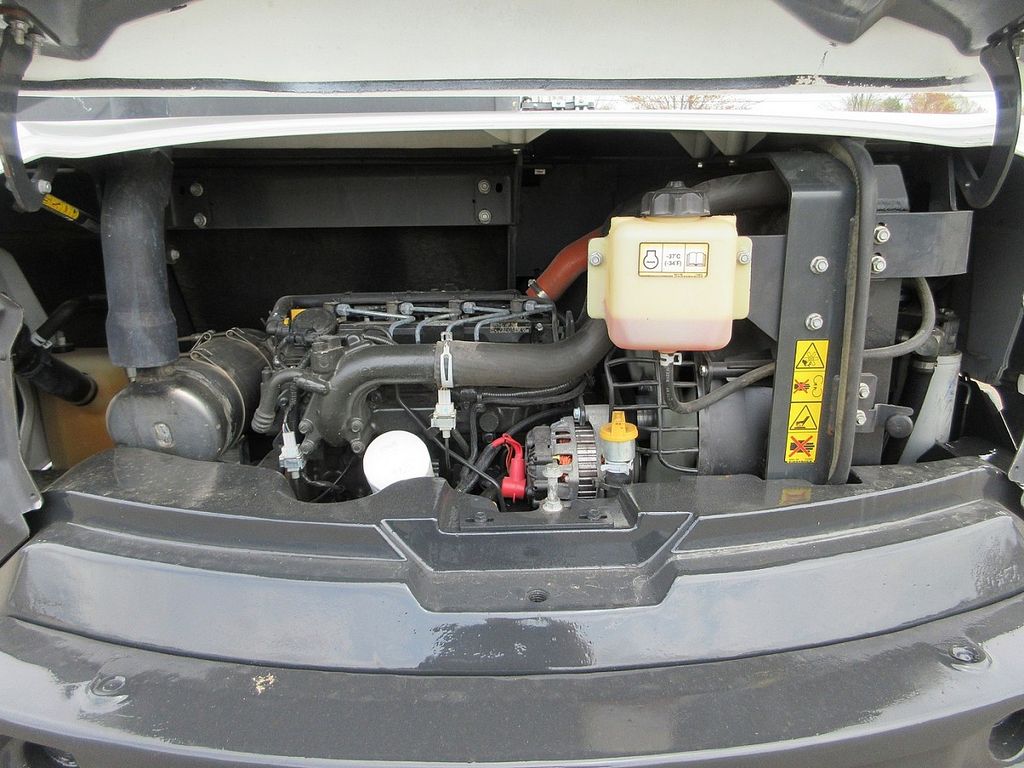

ENGINE
-
Model: Bobcat D24
-
Net Power: 68.5 hp (51.1 kW)
-
Gross Power: 74.3 hp (55.5 kW)
-
Displacement: 116 in³ (1.9 L)
-
Net Torque: 185 lb-ft (250 Nm) @ 1,400 rpm
-
Fuel Capacity: 21.1 gal (80 L)
WEIGHTS
-
Operating Weight (with Cab): 18,990 lb (8,605 kg)
-
Operating Weight (with Canopy): 18,500 lb (8,390 kg)
PERFORMANCE
-
Dig Depth: 12 ft 9 in (3.89 m)
-
Max Dump Height: 10 ft 8 in (3.25 m)
-
Max Reach at Ground Level: 21 ft 7 in (6.58 m)
-
Maximum Travel Speed: 4.0 mph (6.4 km/h)
-
Swing Speed: 8.5 RPM
-
Bucket Breakout Force: 11,500 lbf (51.1 kN)
-
Arm Breakout Force: 7,700 lbf (34.2 kN)
HYDRAULICS
-
Main System – Maximum Flow: 26.4 gal/min (100 L/min)
-
Hydraulic System Pressure (Standard): 3,300 psi (22,800 kPa)
-
Auxiliary Hydraulics: Standard with one-way and two-way flow
DIMENSIONS
-
Overall Length: 20 ft 9 in (6.32 m)
-
Overall Width: 7 ft 4 in (2.24 m)
-
Height to Top of Cab: 8 ft 7 in (2.62 m)
-
Tail Swing Radius: 4 ft 7 in (1.39 m)
-
Ground Clearance: 1 ft 5 in (0.43 m)

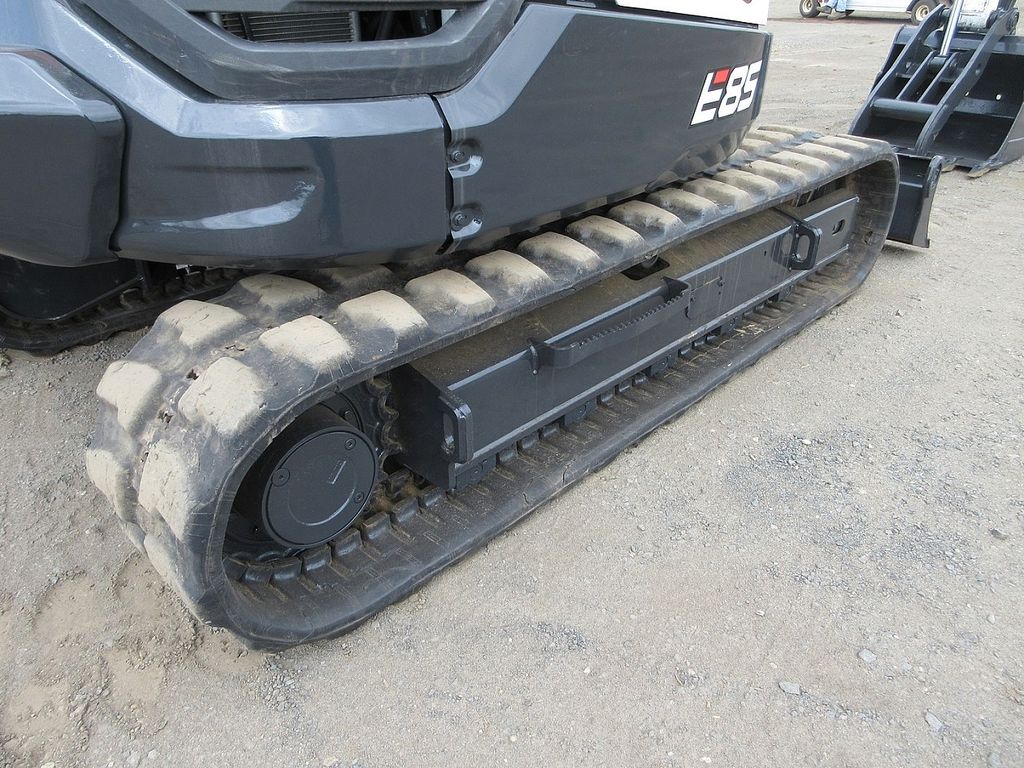

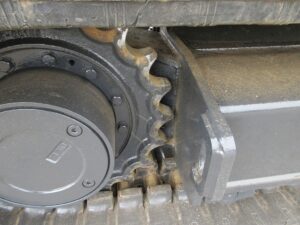

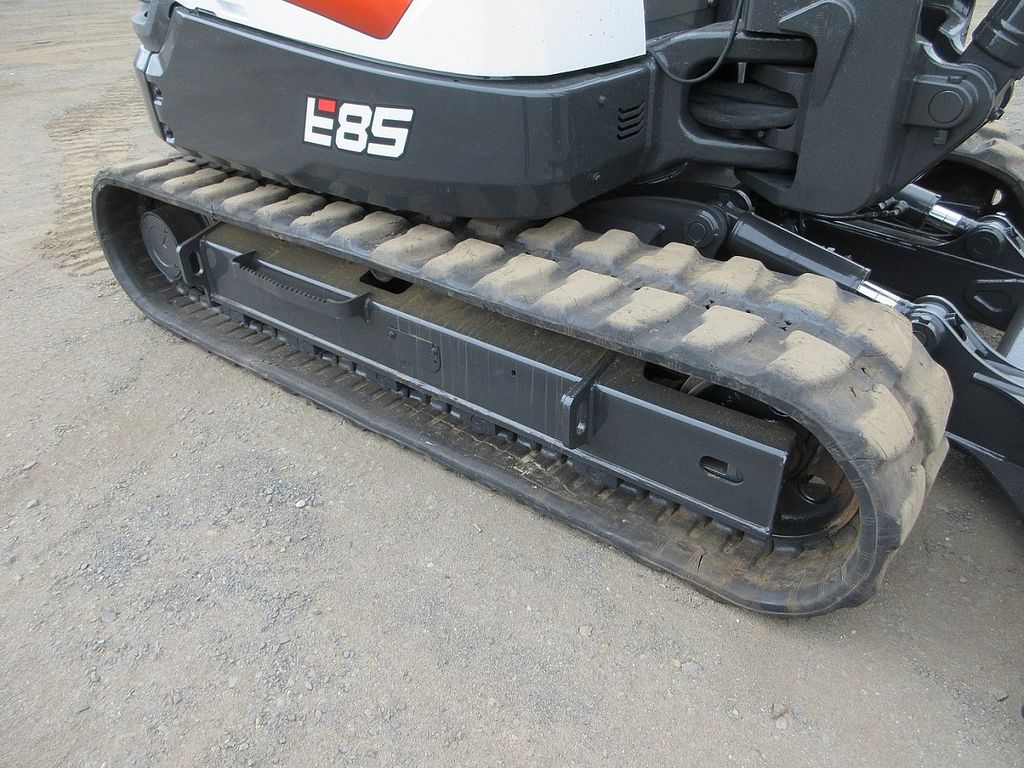

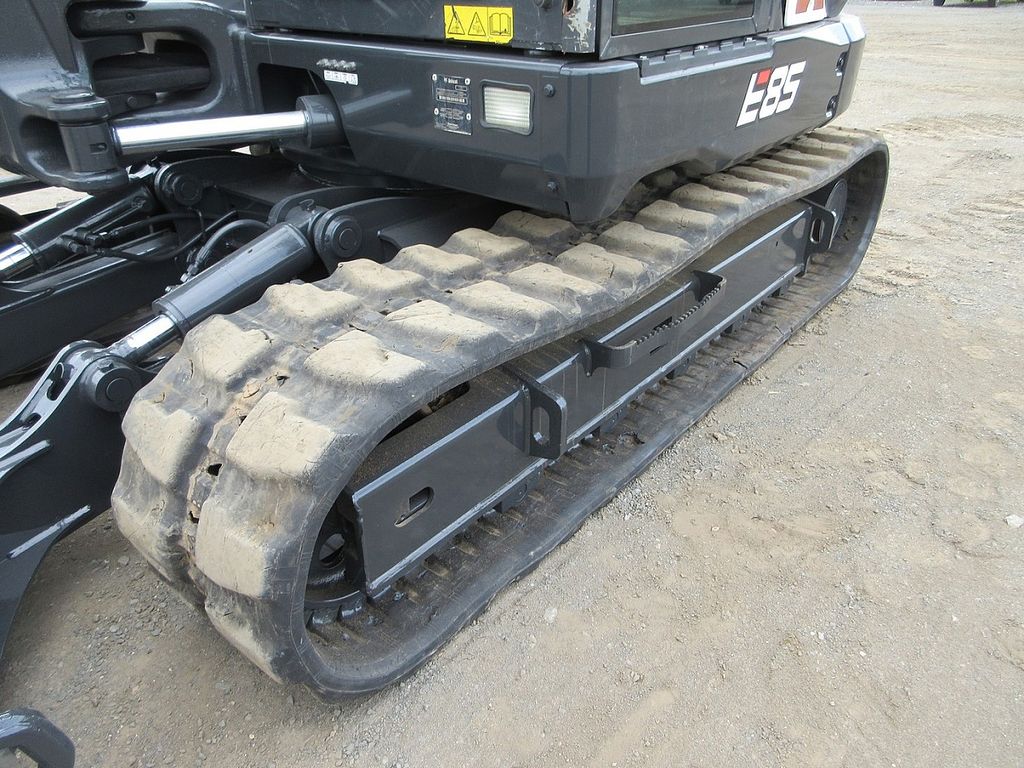

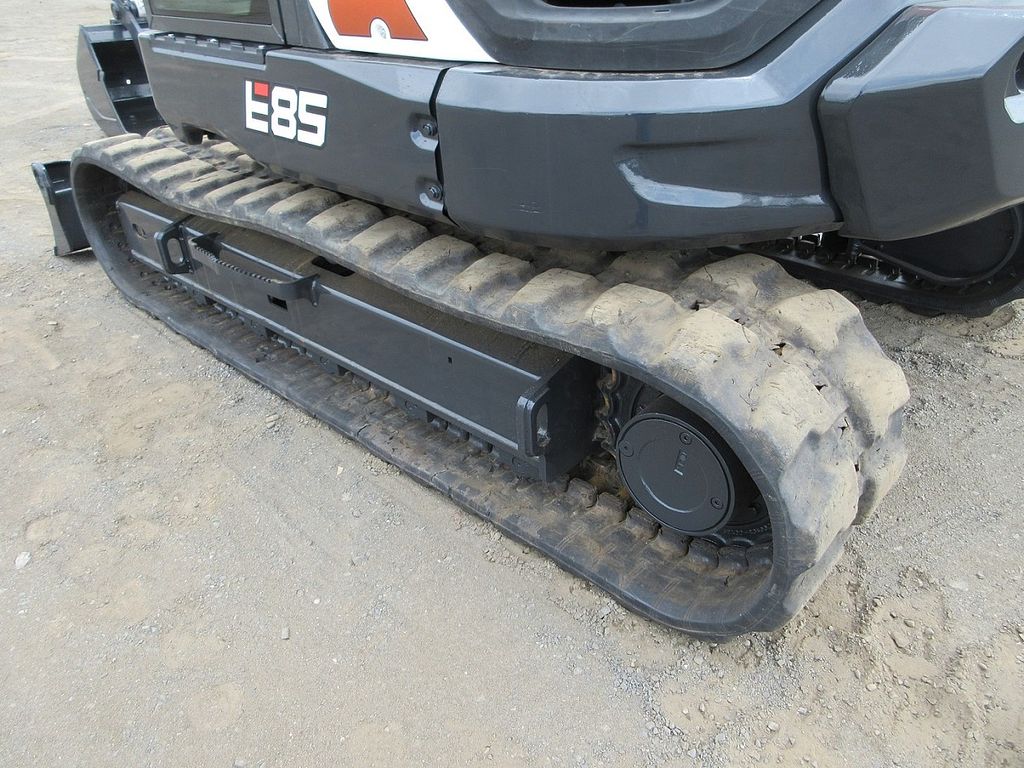

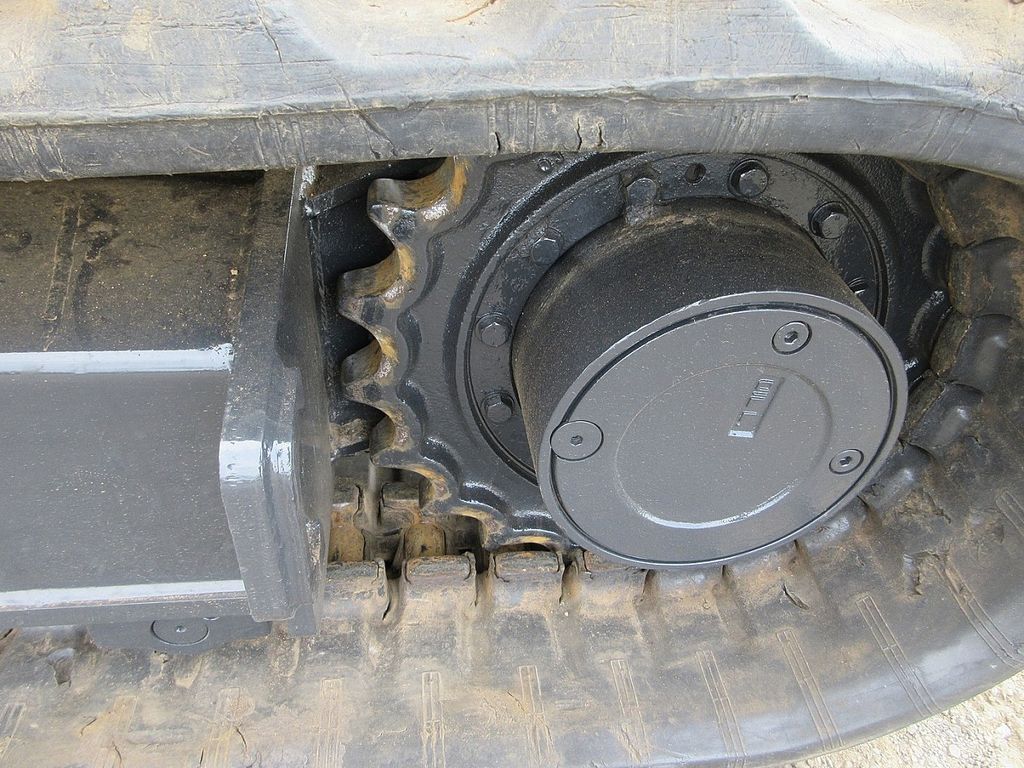

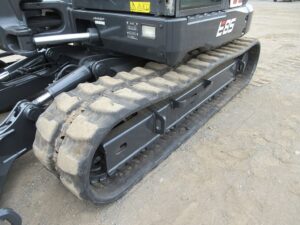

TRACK SYSTEM
-
Track Width: 12 in (300 mm) standard or 18 in (450 mm) optional
-
Track Length: 5 ft 8 in (1.73 m)
