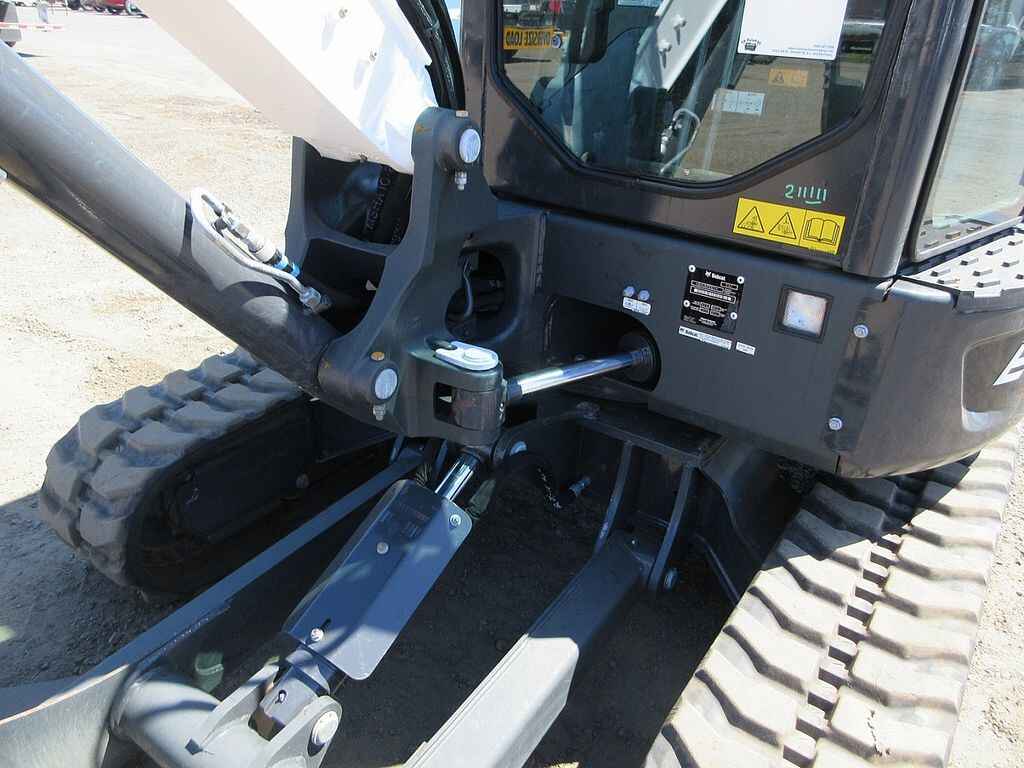

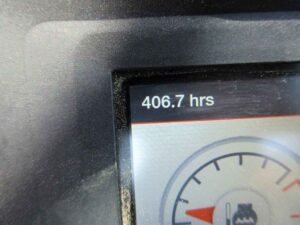

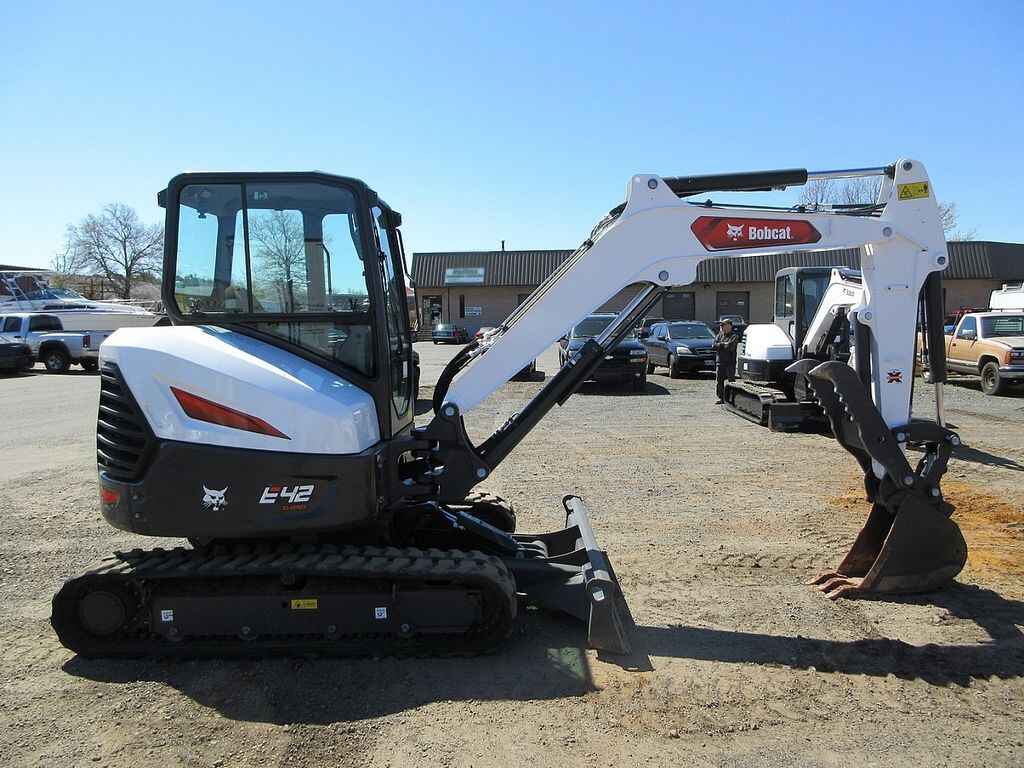

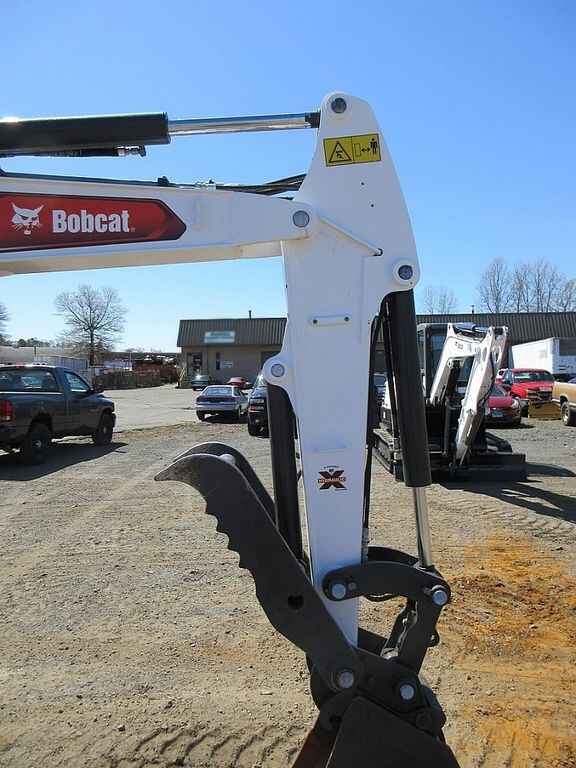

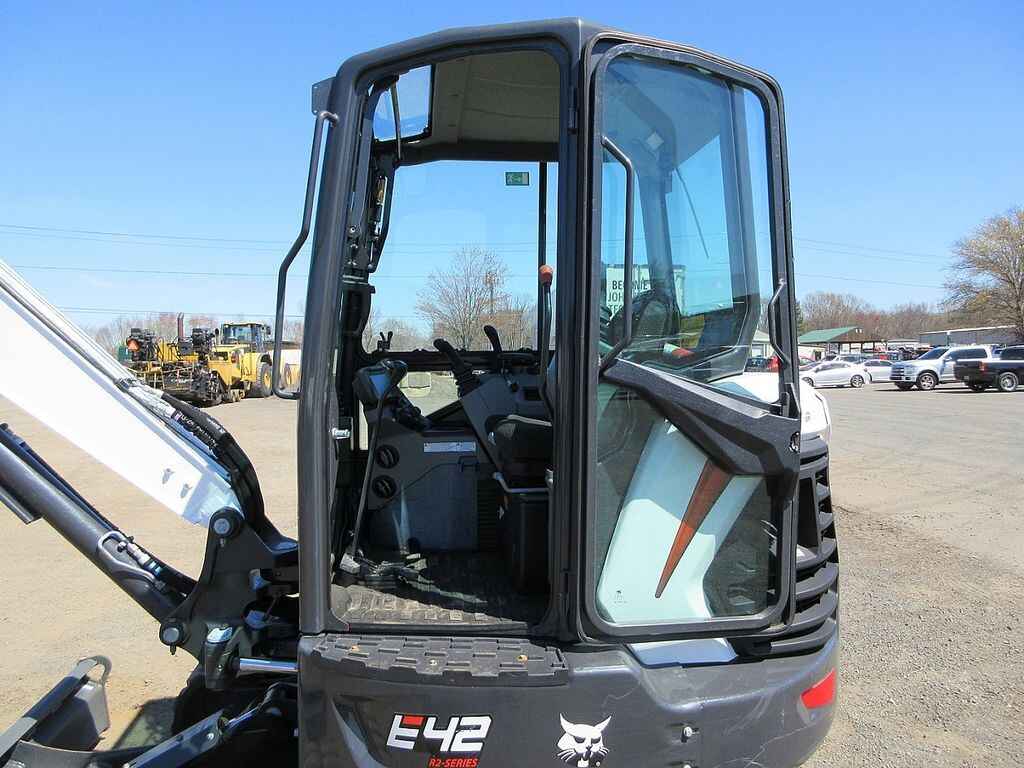

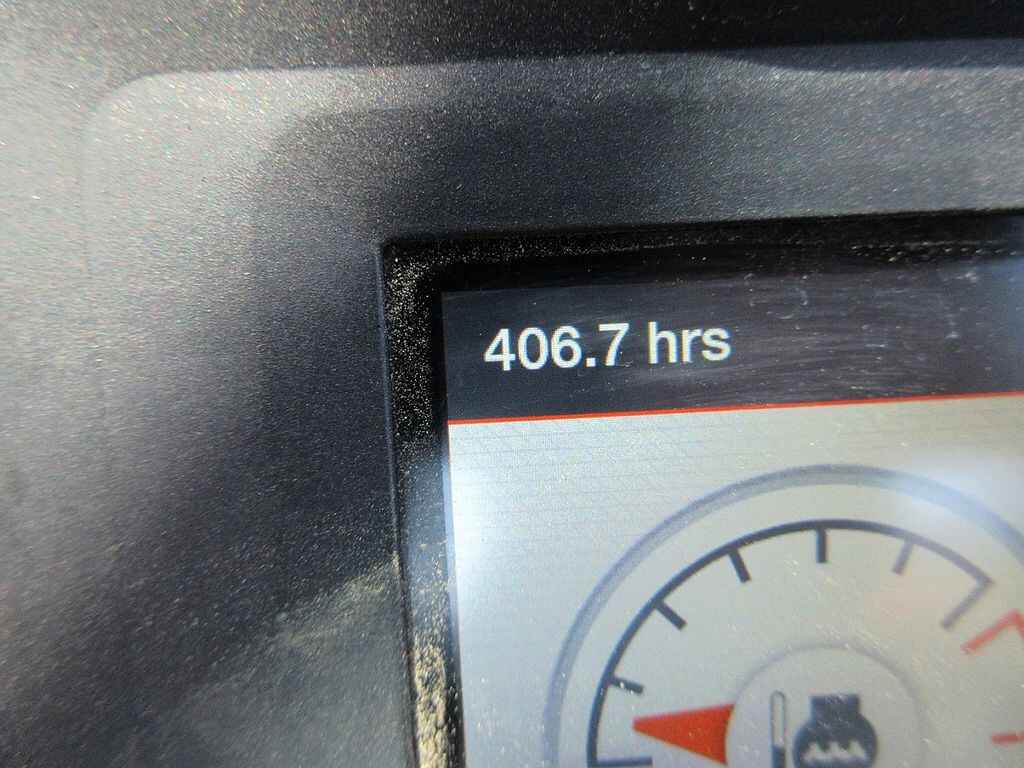

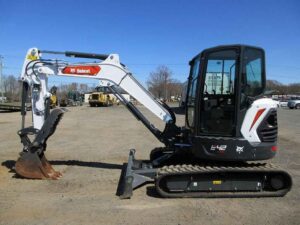

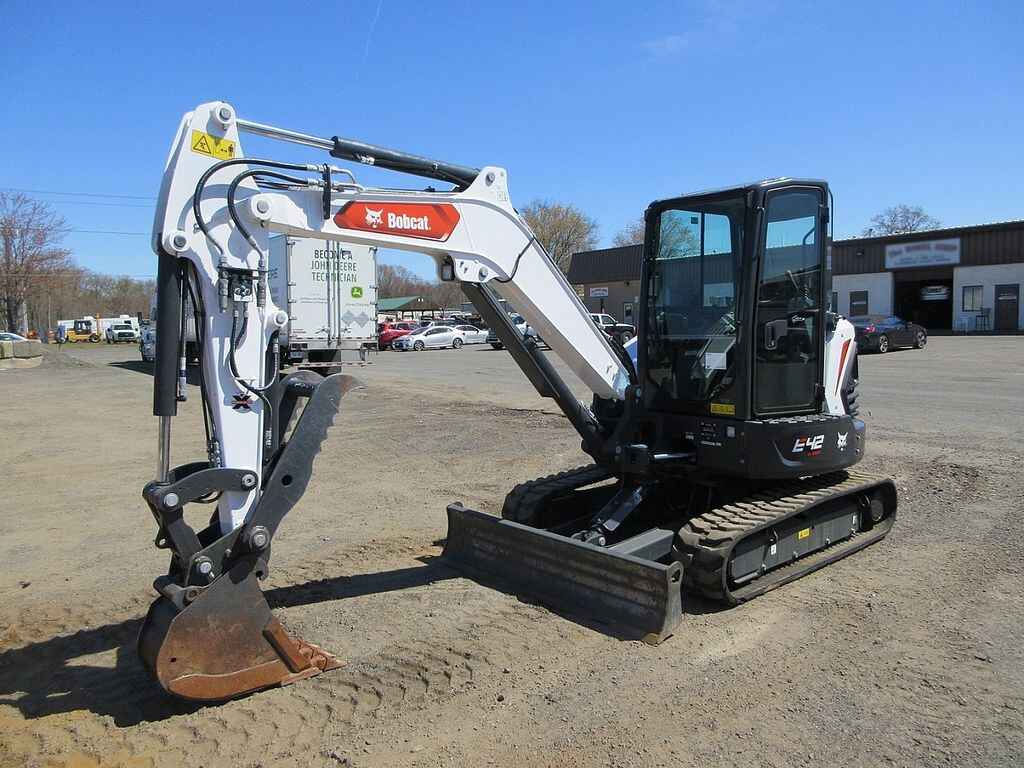

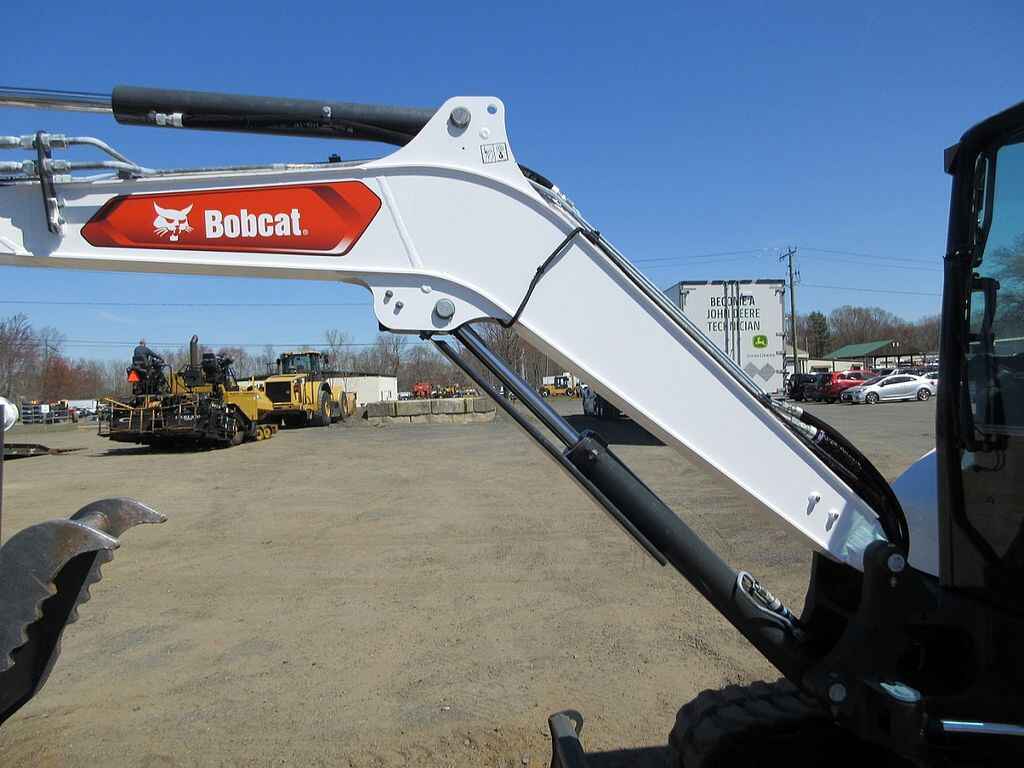

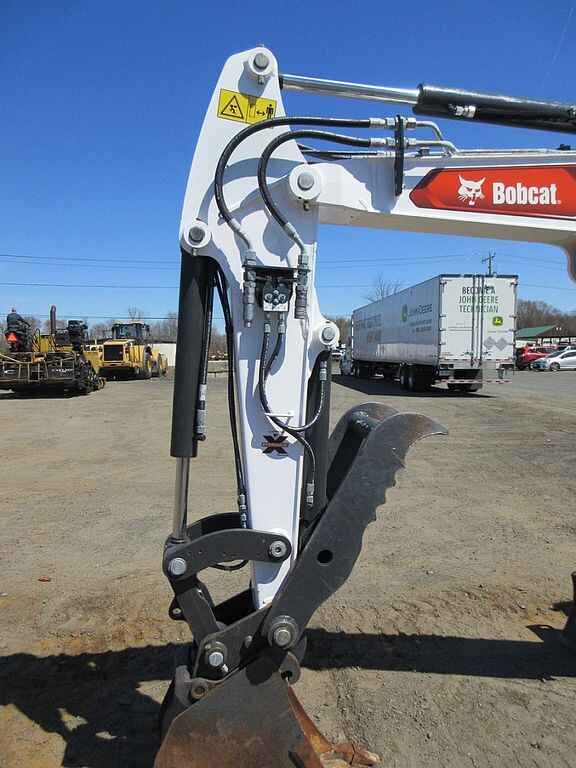

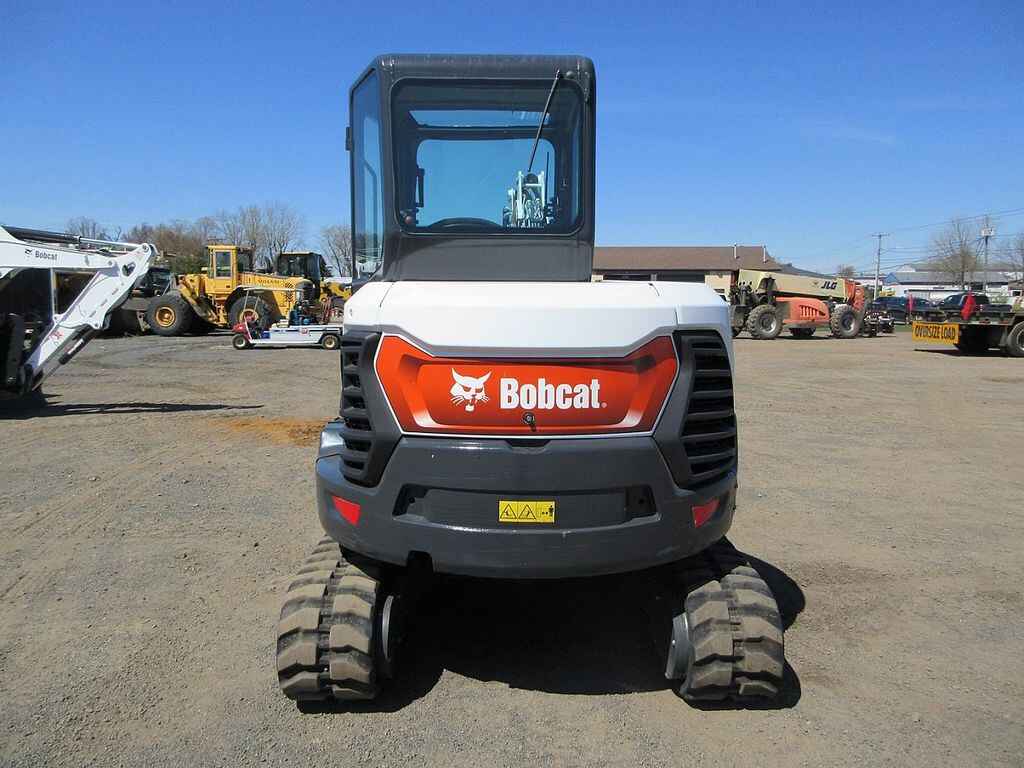

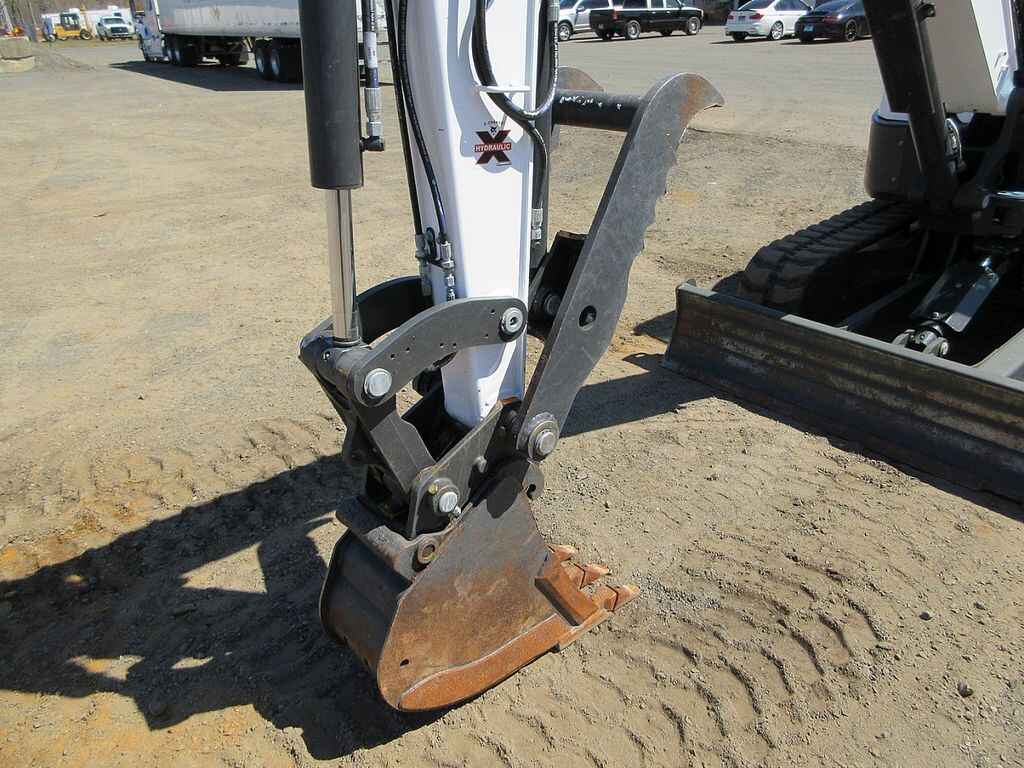

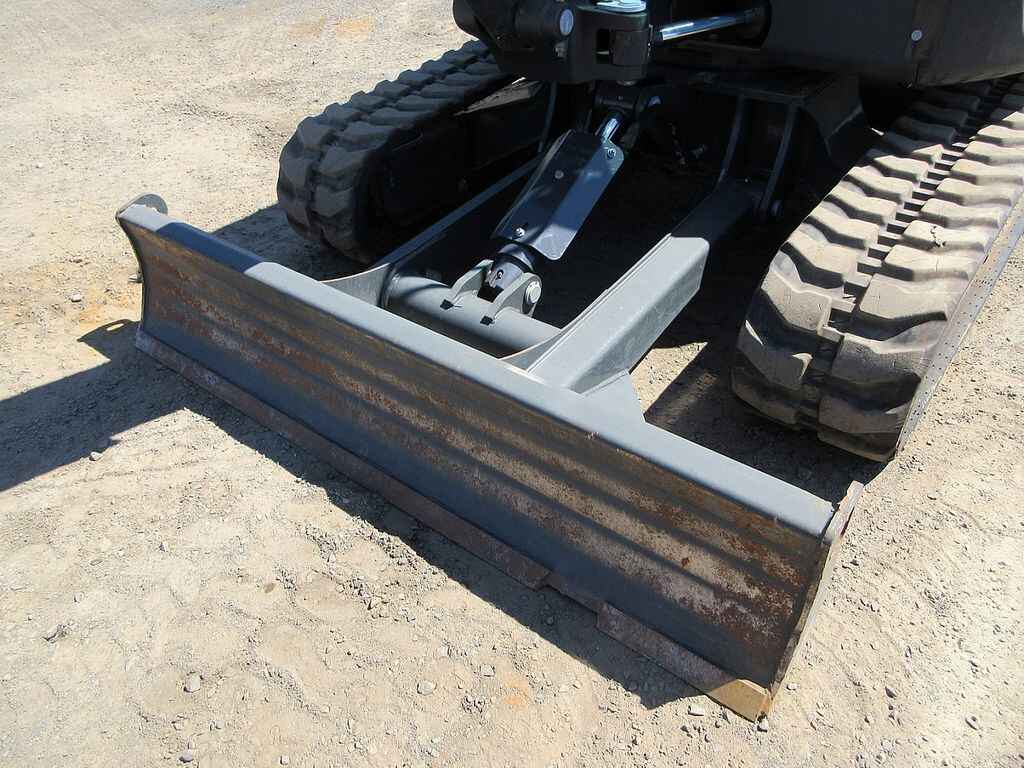

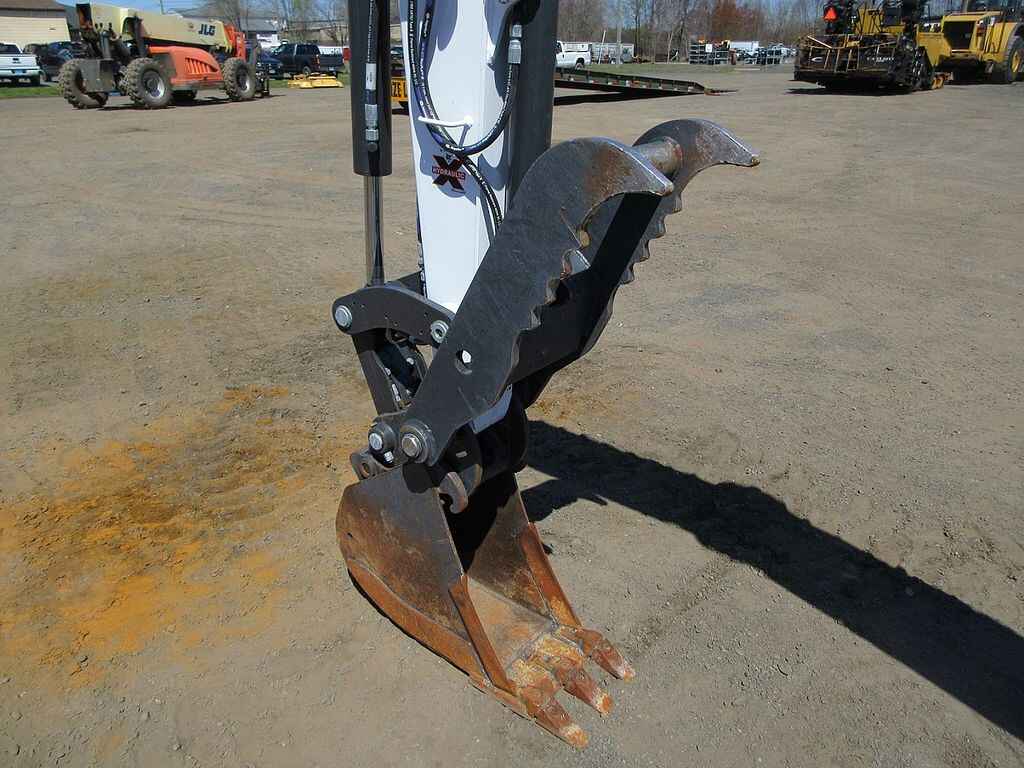

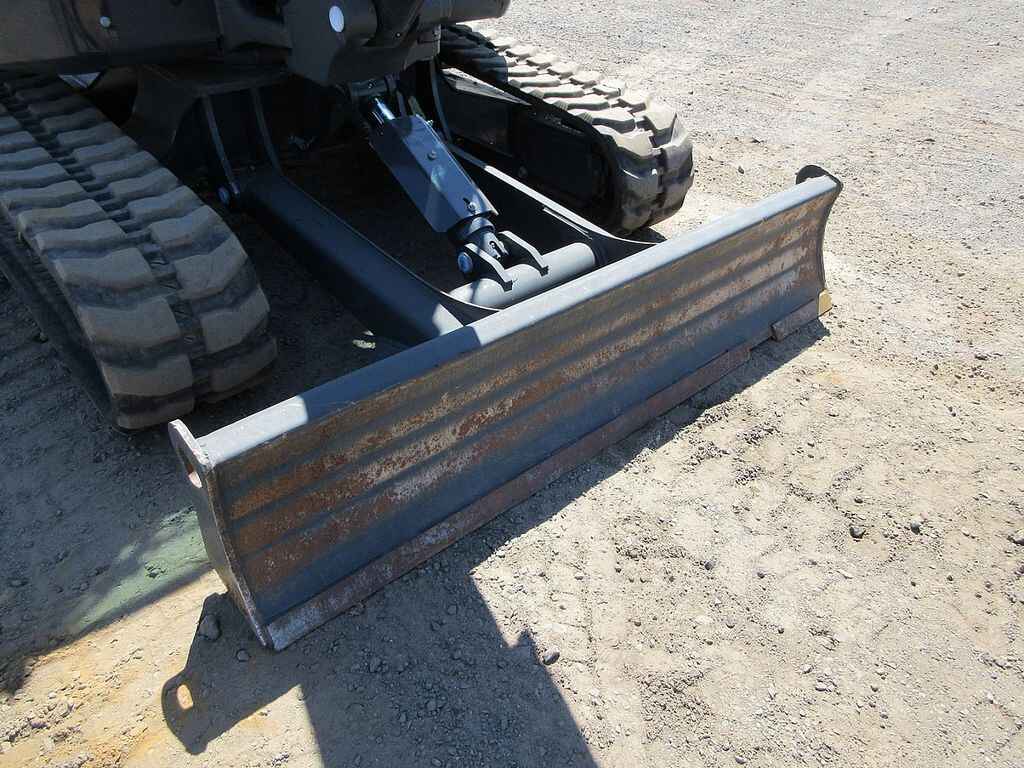

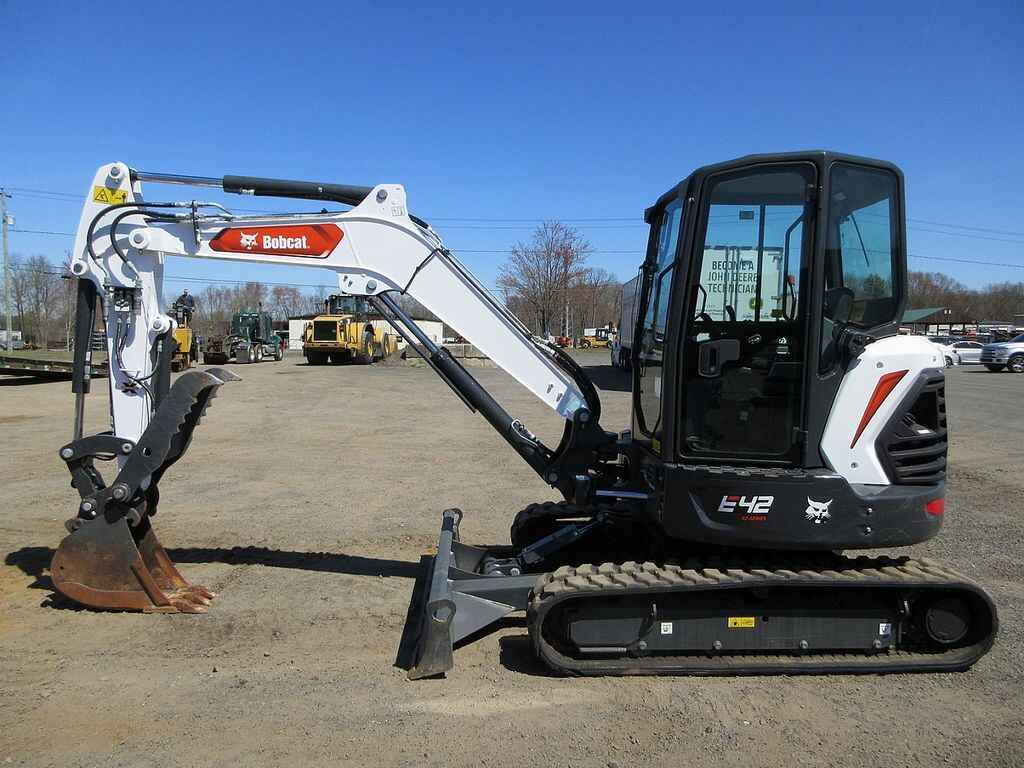

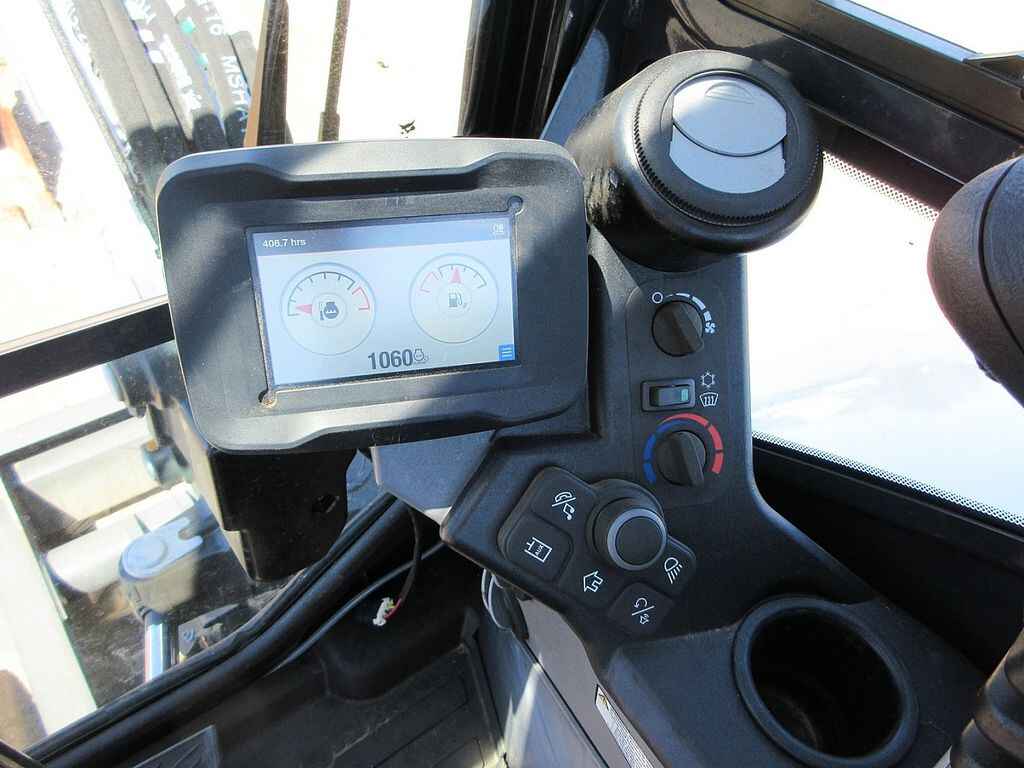

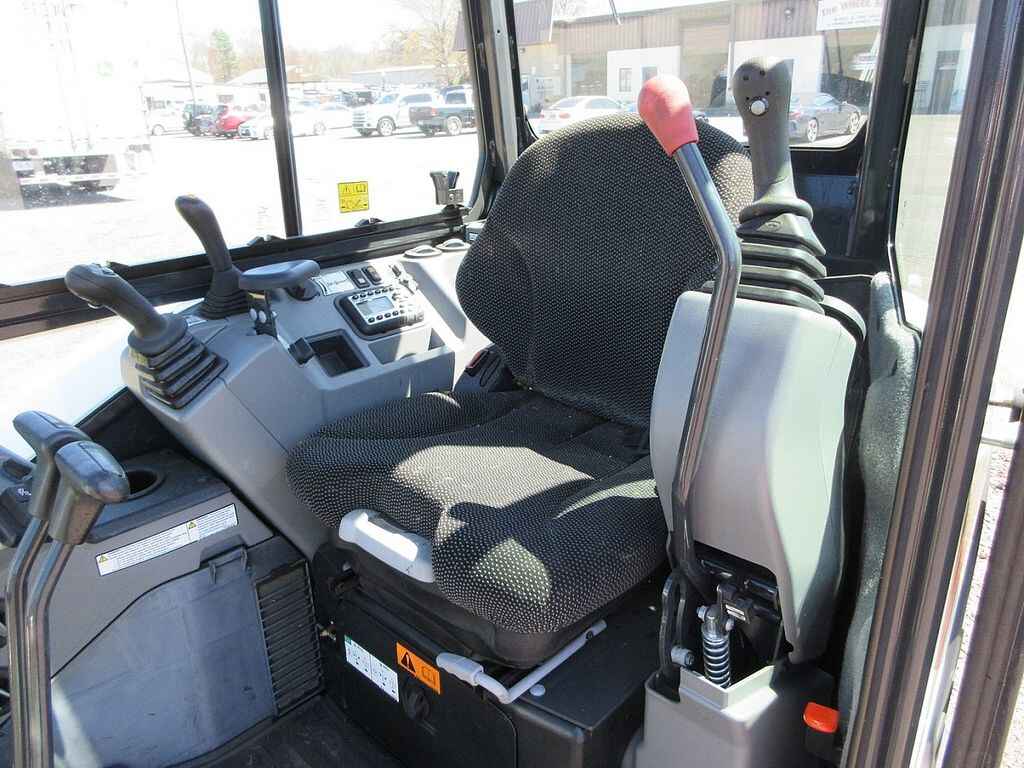

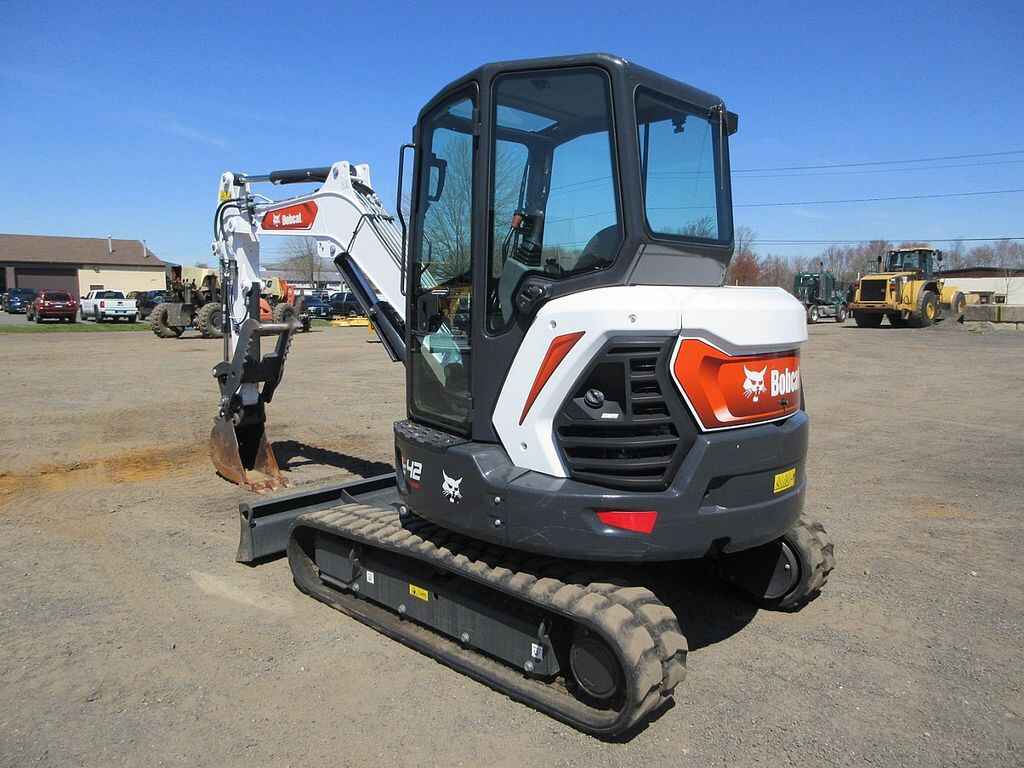

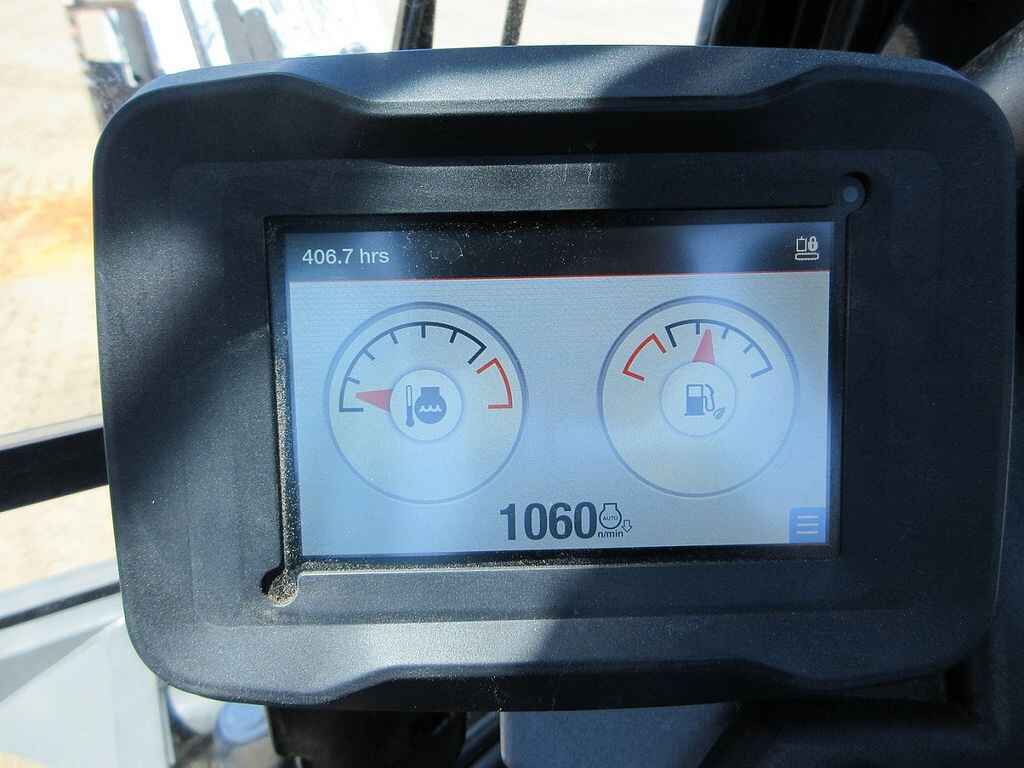

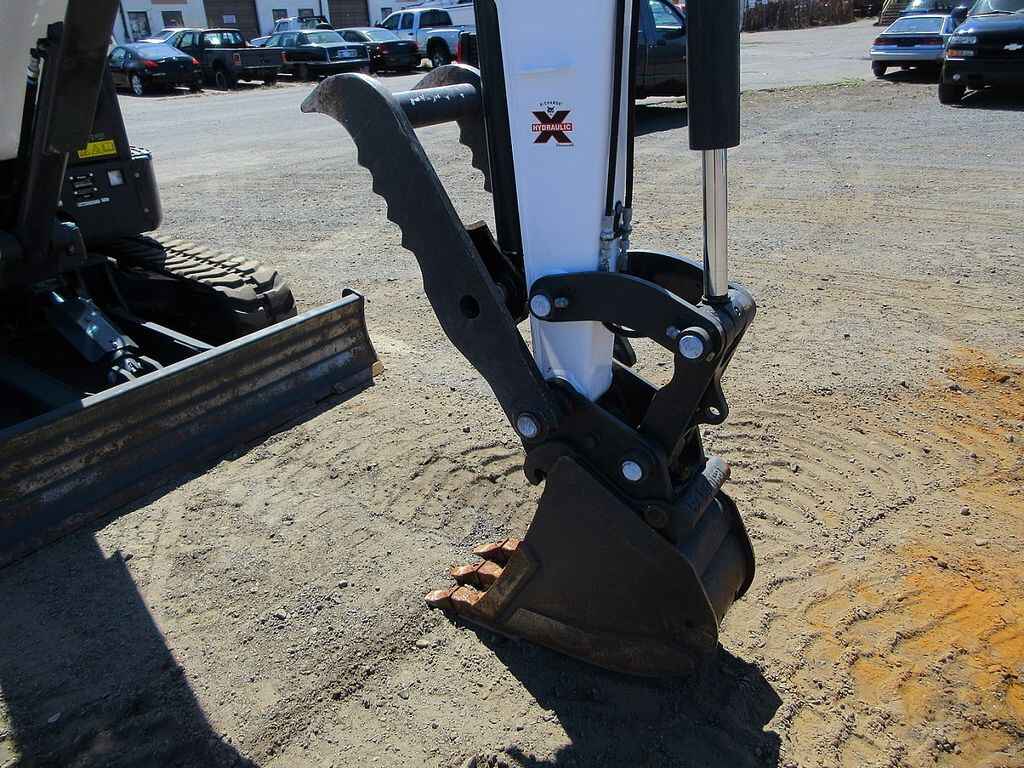

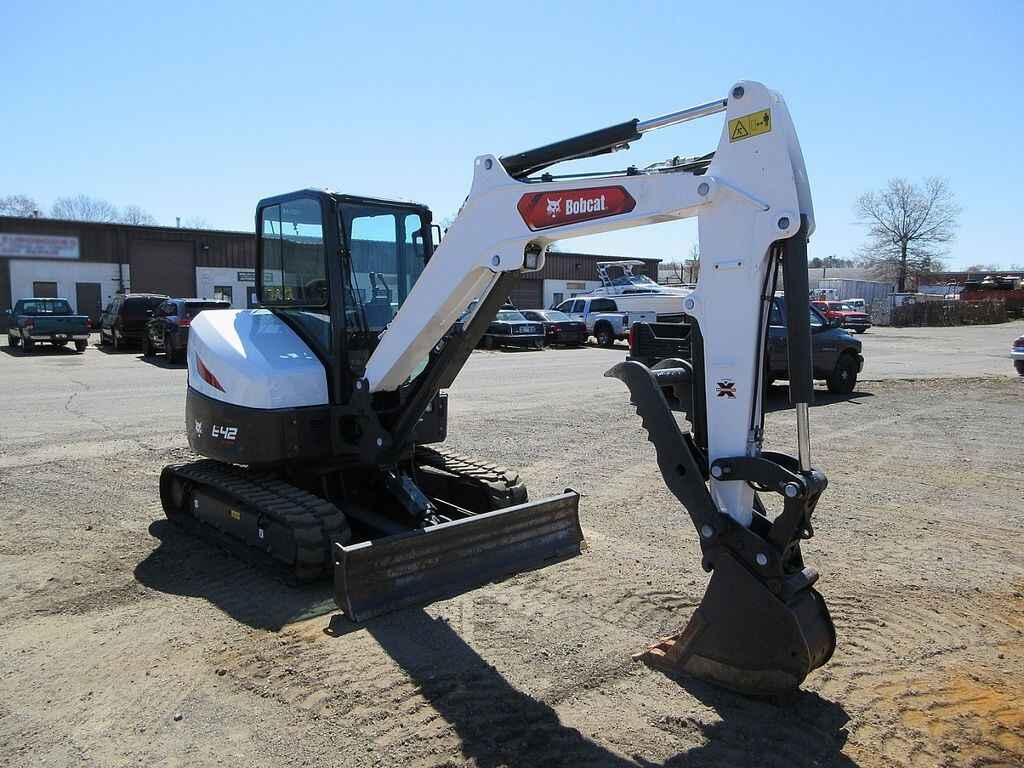

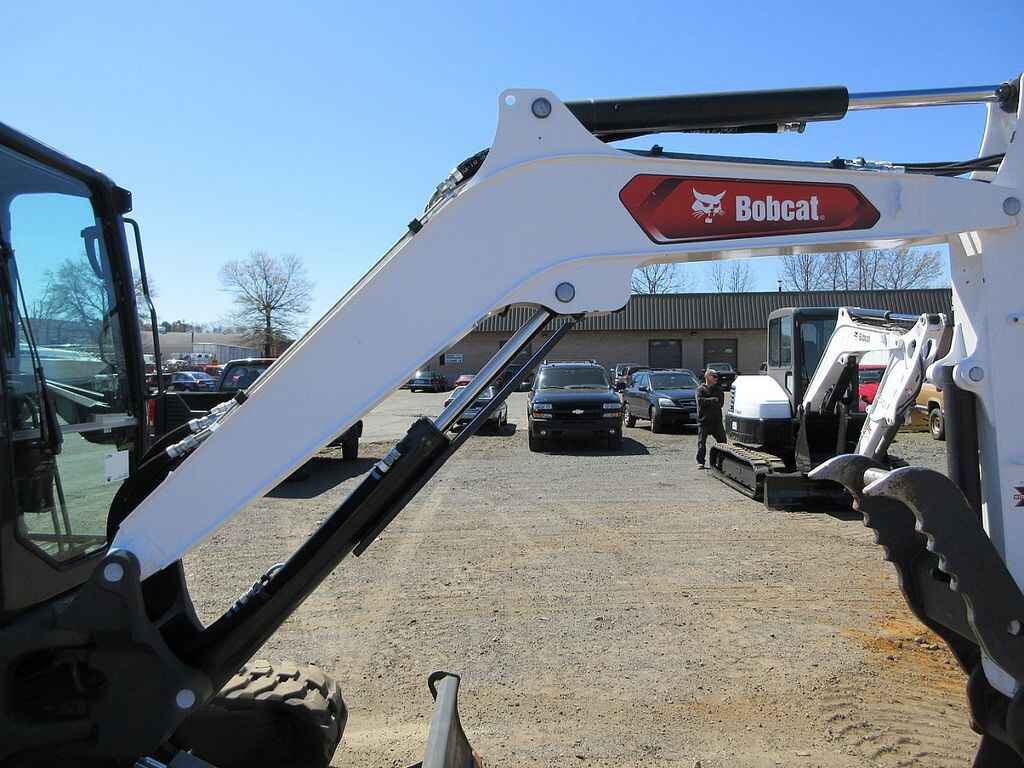

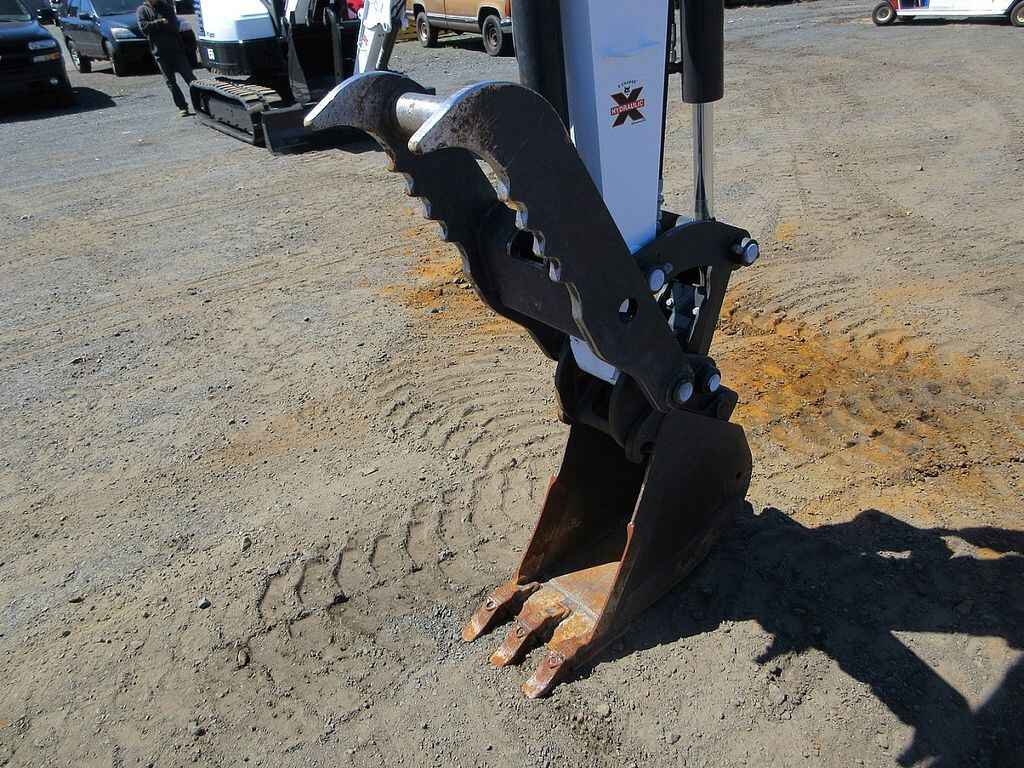

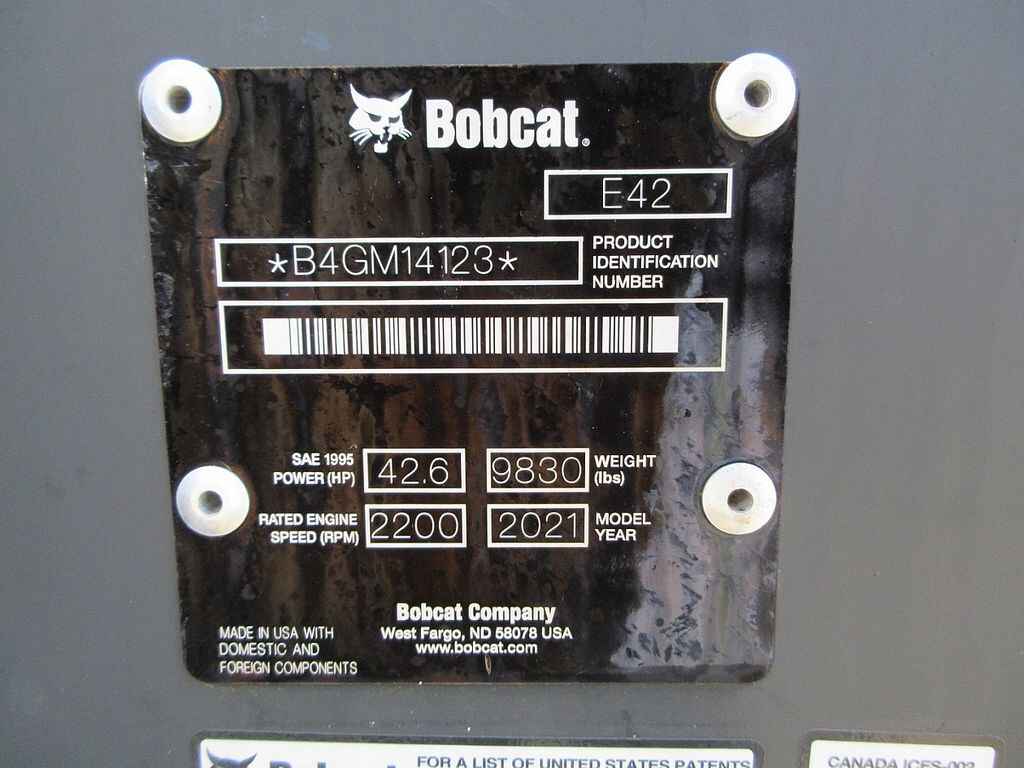

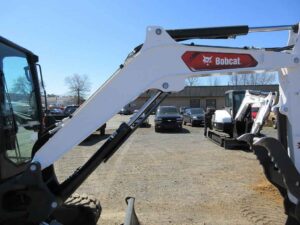

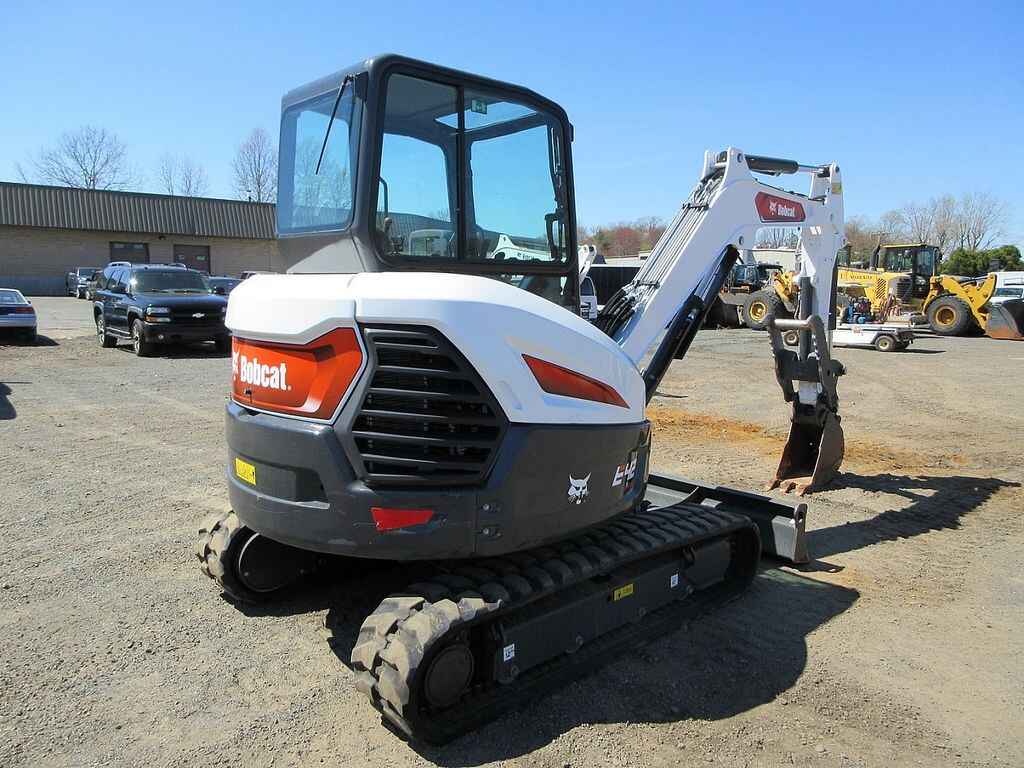

3 cyl Bobcat diesel, cab with heat, A/C, stereo, auto idle, 2 speed travel, backfill blade, swing boom, aux hyd, hyd thumb, 4′ 7″ stick, hyd coupler, bucket with teeth, meter reads 406 hours, S/N B4GM14123, EXCELLENT CONDITION
GENERAL SPECIFICATIONS
-
Operating Weight: 9,246 lb (4,195 kg)
-
Overall Length: 200.8 in (5,100 mm)
-
Width: 68.9 in (1,750 mm)
-
Height: 98.7 in (2,507 mm)
-
Tail Swing: Minimal tail swing design

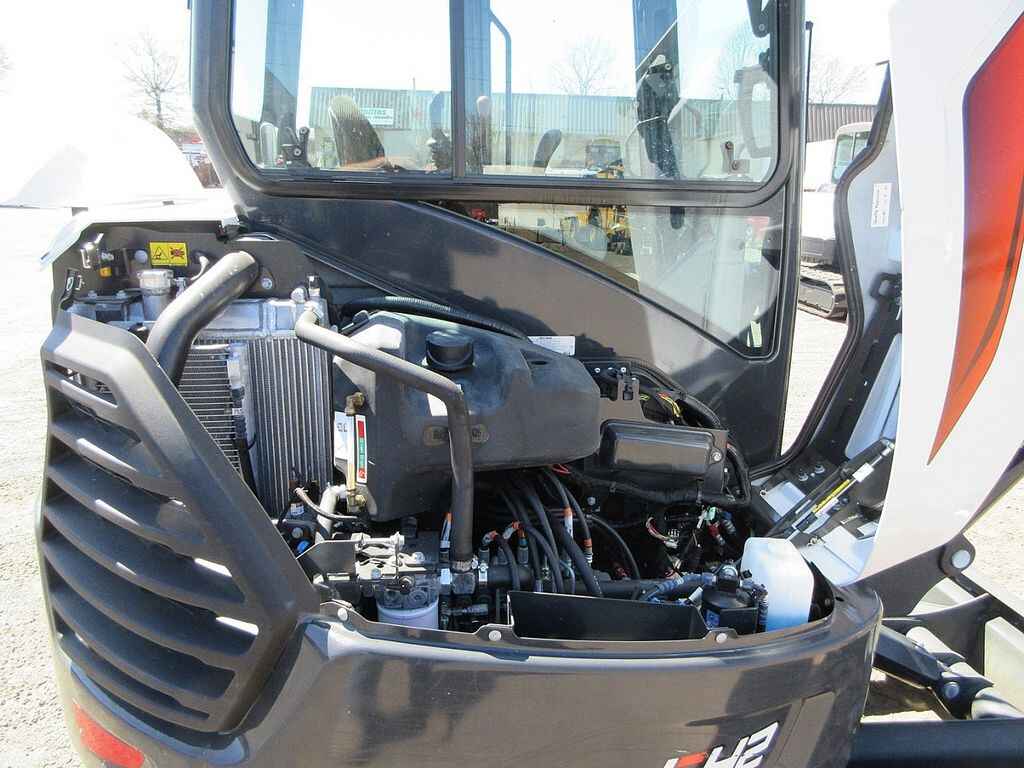

ENGINE
-

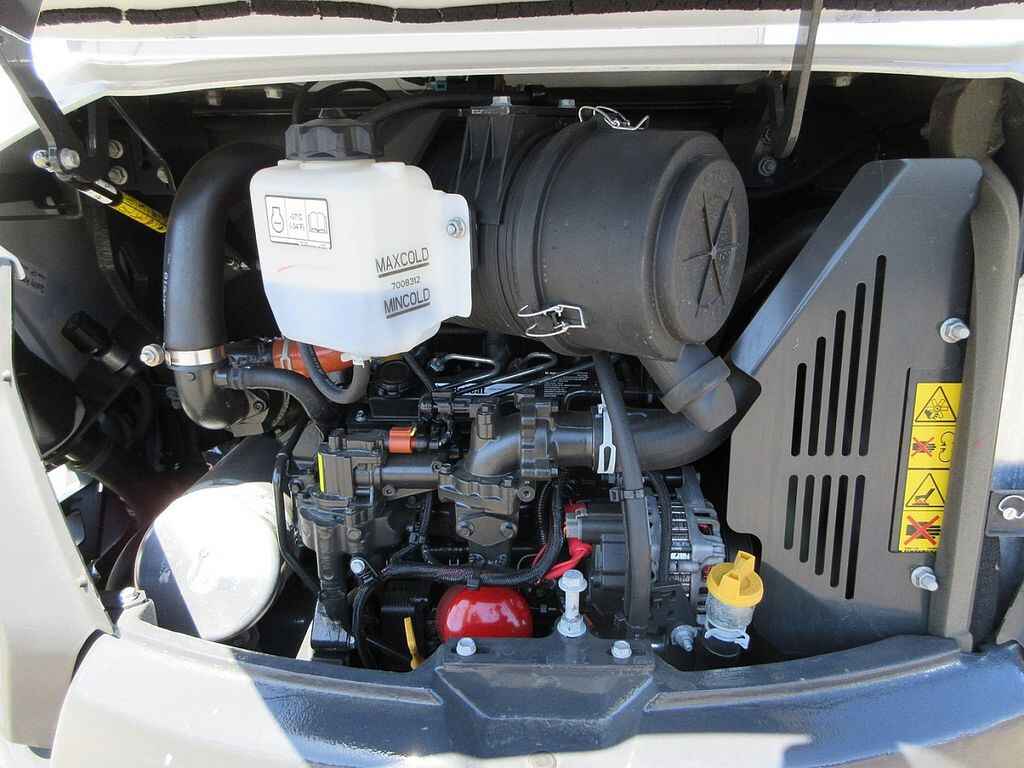

Model: Bobcat D18
-
Fuel Type: Diesel
-
Horsepower: 42.7 hp (31.8 kW) at 2,200 RPM
-
Displacement: 110.5 in³ (1.8 L)
-
Emissions Tier (EPA): Tier 4
PERFORMANCE
-
Maximum Digging Depth: 10.4 ft (3.18 m)
-
Maximum Reach at Ground Level: 17.3 ft (5.27 m)
-
Bucket Digging Force: 8,091 lbf (36 kN)
-
Arm Digging Force: 4,589 lbf (20.4 kN)
-
Travel Speed (Low): 1.6 mph (2.6 km/h)
-
Travel Speed (High): 2.9 mph (4.7 km/h)
HYDRAULIC SYSTEM
-
Hydraulic Pump Flow: 20.7 GPM (78.4 L/min)
-
Auxiliary Hydraulics – Primary: 20.7 GPM (78.4 L/min)
-
Auxiliary Hydraulics – Secondary: Not available
DIMENSIONS
-

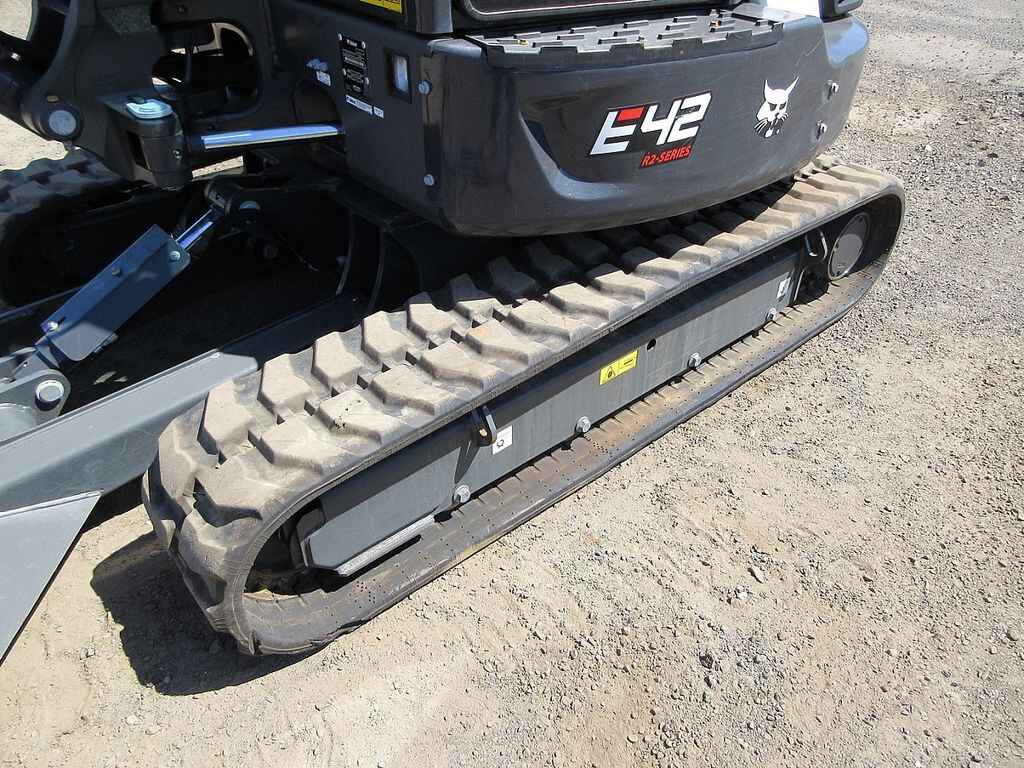

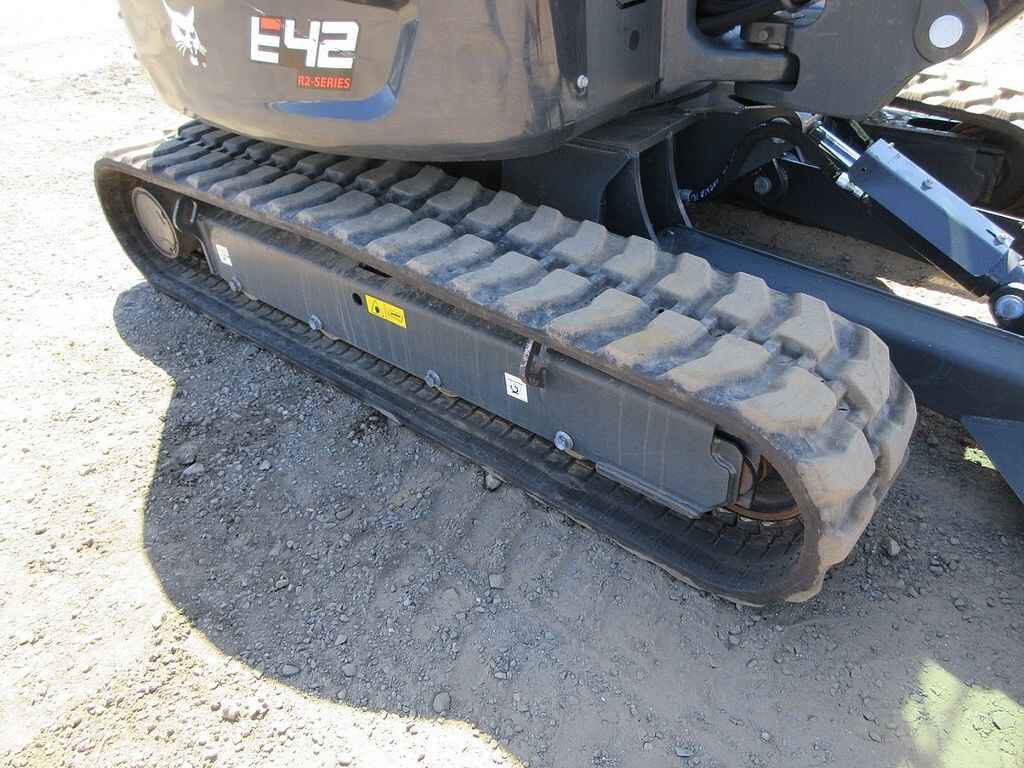

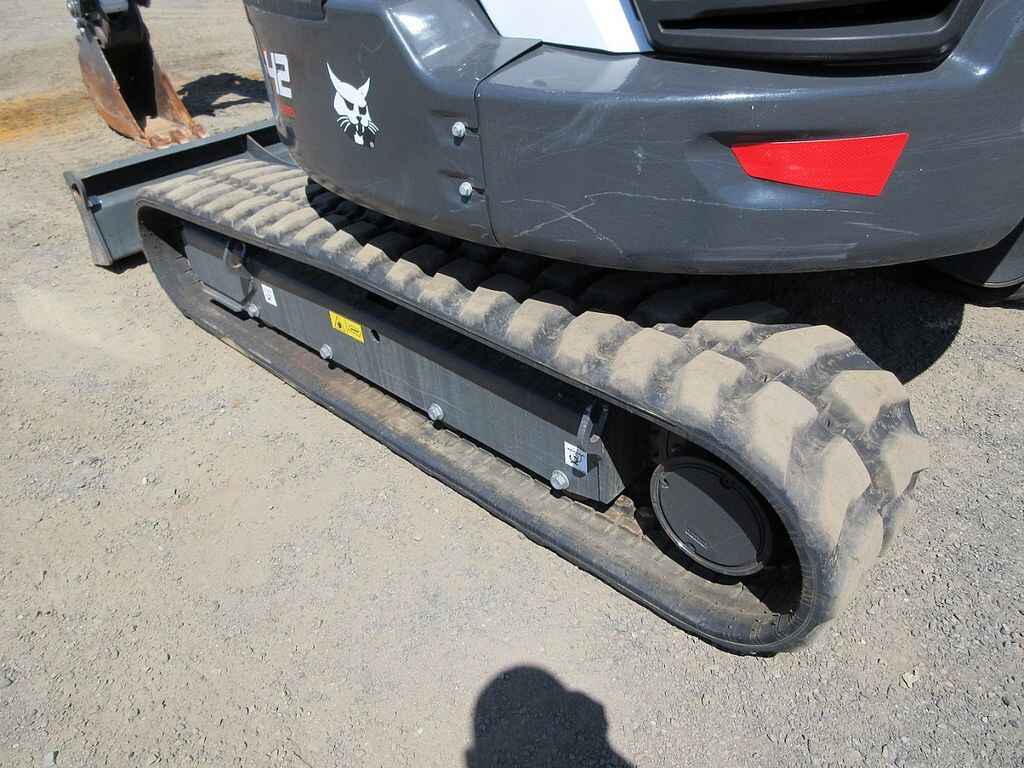

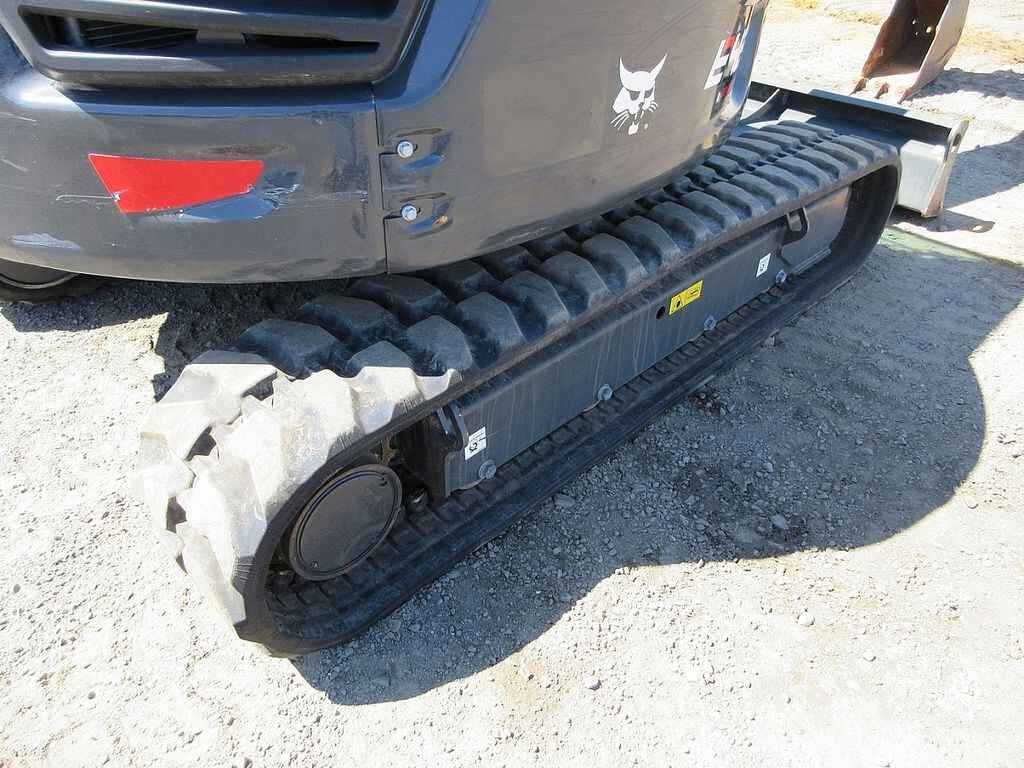

Track Width: 13.8 in (350 mm)
-
Ground Clearance: 13.4 in (340 mm)
-
Tail Swing Overhang: 9.5 in (242 mm)
CAPACITIES
-
Fuel Tank: 21.1 gal (80 L)
-
Hydraulic Reservoir: 14.1 gal (53.4 L)
FEATURES
-
Selectable Auxiliary Hydraulic Flow: Provides better attachment performance and protection
-
Auto Idle: Reduces engine RPM to idle automatically when not in use, improving fuel efficiency
-
Angle Blade Option: Provides better backfilling capabilities (if equipped)
-

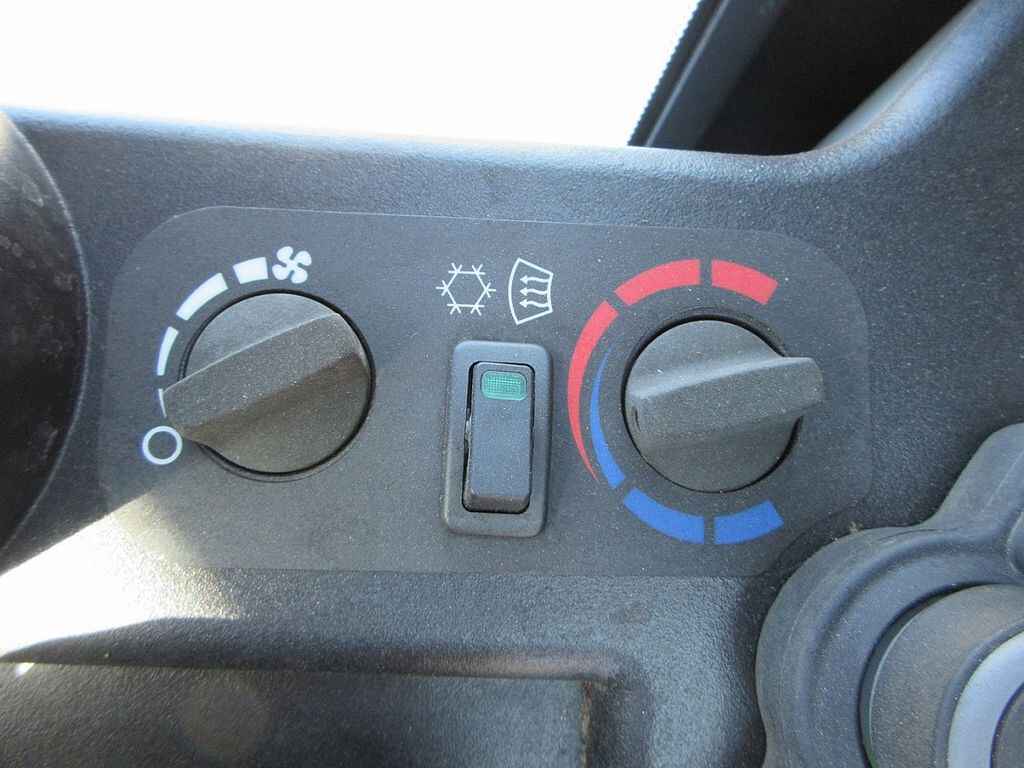

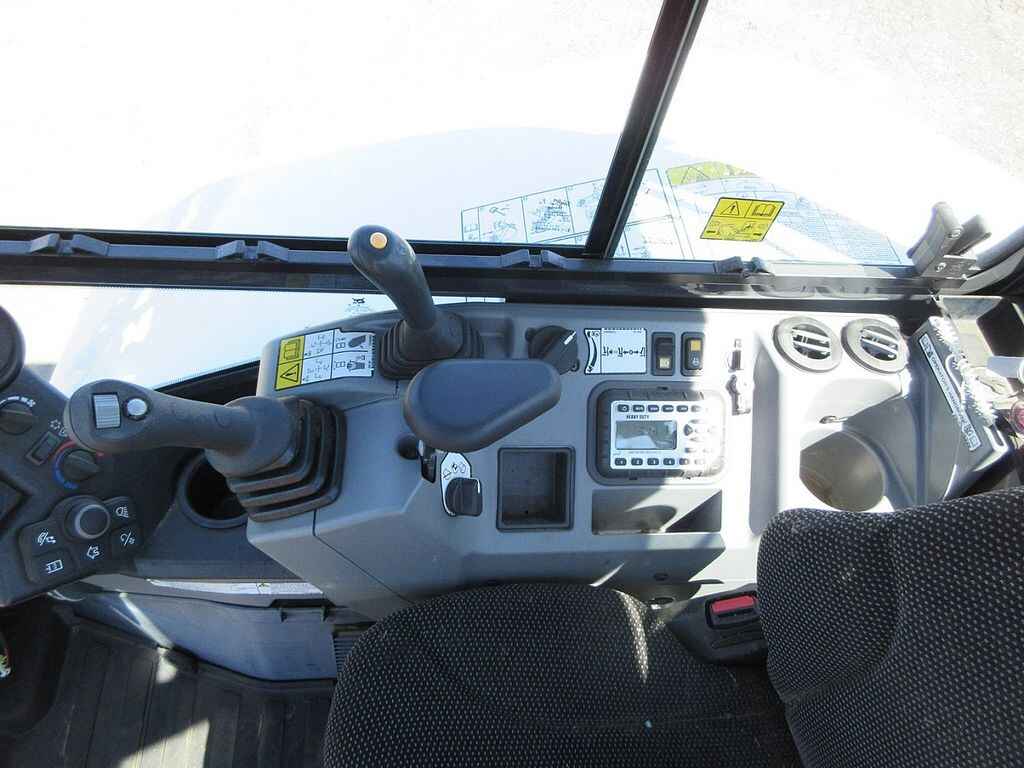

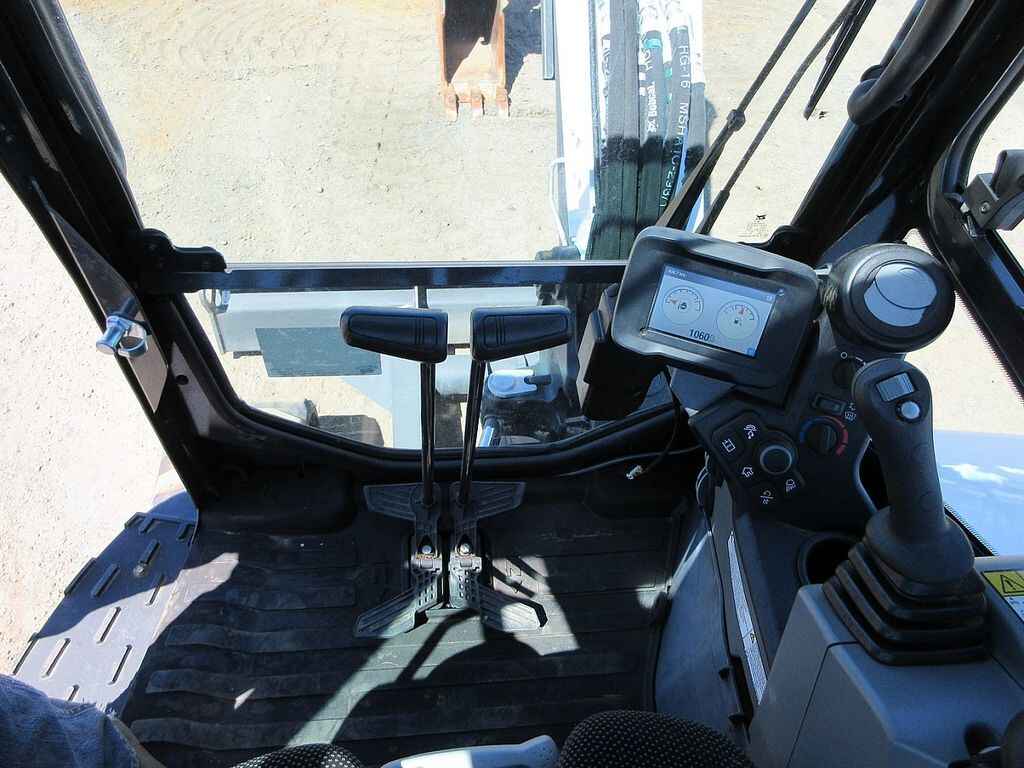

Enclosed Cab with Heat and Air Conditioning: Enhances operator comfort (if equipped)
-
Advanced Hydraulic System: Provides smoother and more responsive operation
ATTACHMENTS
-
Buckets: Various sizes and configurations
-
Thumbs: Hydraulic and mechanical
-
Augers: Various sizes for drilling
-
Grapples: For handling various materials
-
Trenchers: For digging narrow trenches
