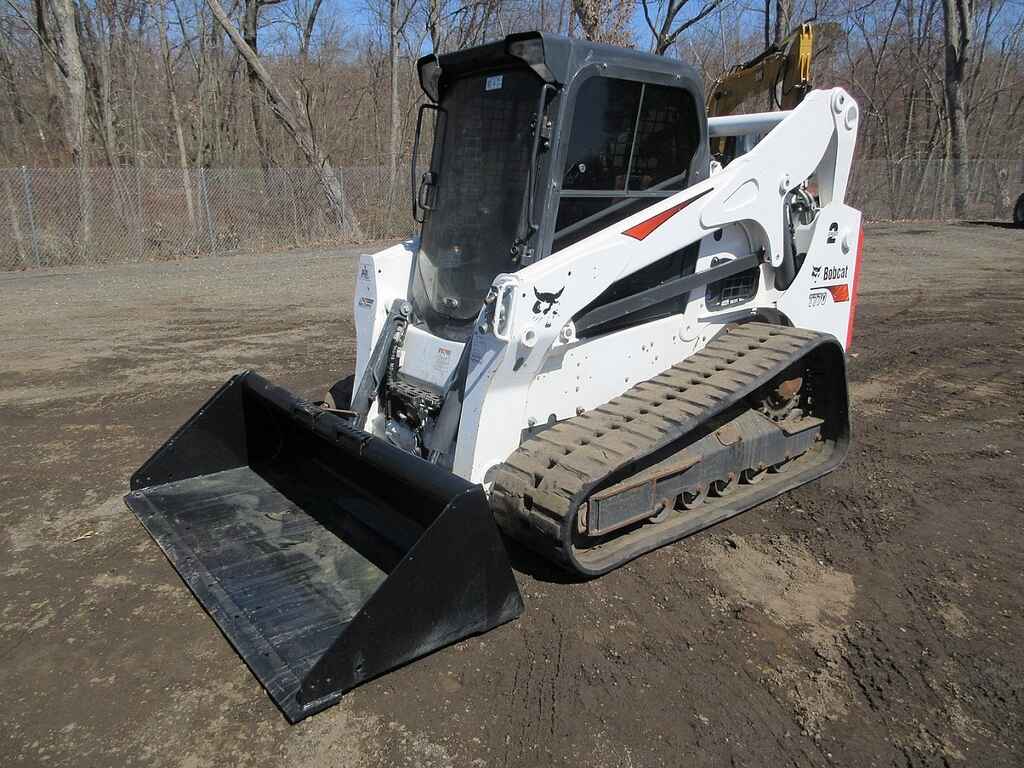

4 CYL BOBCAT TURBO DIESEL, CAB WITH HEAT, A/C, STEREO, KEYLESS START, 2 SPEED TRAVEL, RIDE CONTROL, SELECTABLE JOYSTICK CONTROLS, HIGH FLOW AUX HYD, AUX ELECTRICAL CONNECTOR, HYD COUPLER, GP BUCKET, METER READS 2044 HOURS, S/N AT6323934
Engine & Performance
-
Engine Model: Kubota V3800 turbocharged diesel
-
Gross Power: 92 hp (68.7 kW)
-
Emissions Tier: Tier 4 Final (no Diesel Particulate Filter required)
-
Fuel Tank Capacity: 27.2 gal (103 L)
-
Cooling System: Liquid-cooled
-
Travel Speed:
-
Low Range: 6.6 mph (10.6 km/h)
-
High Range (optional): 10.7 mph (17.2 km/h)
-
-
Ground Pressure: 4.2 psi (28.9 kPa)
Dimensions & Capacities
-
Operating Weight: 10,515 lbs (4,770 kg)
-
Rated Operating Capacity (ISO): 3,475 lbs (1,576 kg)
-
Operating Capacity (50% of tipping load): 4,960 lbs (2,250 kg)
-
Tipping Load: 9,929 lbs (4,500 kg)
-
Length (with standard bucket): 141.6 in (3,598 mm)
-
Width (with bucket): 80 in (2,032 mm)
-
Height to Bucket Hinge Pin: 132 in (3,353 mm)
-
Turning Radius: 88 in (2,235 mm)
-
Track Length on Ground: 63.7 in (1,619 mm)
-
Track Width: 17.7 in (450 mm)
Hydraulic System
-
Auxiliary Hydraulic Flow:
-
Standard Flow: 23 gpm (87 L/min)
-
High Flow (optional): 36.6 gpm (138 L/min)
-
-
System Relief Pressure: 3,500 psi (24.1 MPa)
-
Lift Arm Raise Time: 4.8 seconds
-
Lowering Time: 3.4 seconds
-
Bucket Dump Time: 2.3 seconds
-
Bucket Rollback (at ground): 30°
Features & Options
-
Joystick Control: Optional
-
Air Conditioning: Optional
-
Cab Heater: Optional
-
Ride Control: Optional
-
Two-Speed Travel: Optional
-
Deluxe Instrumentation: Optional
-
Power Bob-Tach: Optional
-
Auxiliary Hydraulics: Standard
-
Bob-Tach Attachment System: Standard
-
Spark Arrestor Muffler: Standard
-
Engine Shutdown: Standard
-
Backup Alarm: Standard
Undercarriage & Tracks
-
Ground Pressure: 4.2 psi (28.9 kPa)
-
Track Width: 17.7 in (450 mm)
-
Length of Track on Ground: 63.7 in (1,619 mm)
