4 CYL BOBCAT TURBO DIESEL, CAB WITH HEAT, A/C, 2 SPEED TRAVEL, KEYLESS START, SELECTABLE JOYSTICK CONTROLS, REARVIEW CAMERA, RIDE CONTROL, AUX HYD, AUX ELECTRICAL CONNECTOR, HYD COUPLER, GP BUCKET, METER READS 1447 HOURS, S/N B4CE11970
Engine & Performance
-
Horsepower: 74 hp (55.2 kW)
-
Engine Type: Turbocharged Diesel
-
Cooling System: Liquid-cooled
-
Fuel Tank Capacity: 31.7 gal (120 L)
-
Emissions Tier (EPA): Tier 4 Final
Dimensions & Capacities
-
-
Operating Weight: 10,250 lbs (4,649 kg)
-
Rated Operating Capacity (ISO): 2,900 lbs (1,315 kg)
-
Operating Capacity (50% of Tip): 4,143 lbs (1,878 kg)
-
Tipping Load: 8,285 lbs (3,760 kg)
-
Length (with Standard Bucket): 147.1 in (3,737 mm)
-
Width (with Bucket): 74 in (1,880 mm)
-
Height to Bucket Hinge Pin: 128.3 in (3,259 mm)
-
Ground Clearance: 8.8 in (224 mm)
-
Turning Radius: 89.3 in (2,268 mm)
-
Track Width: 12.6 in (320 mm) (Optional 17.7 in / 450 mm)
-
Length of Track on Ground: 59.2 in (1,504 mm)
-
Hydraulic System
-
System Relief Pressure: 3,500 psi (24.1 MPa)
-
Auxiliary Standard Flow: 23.3 gpm (88.1 L/min)
-
Auxiliary High Flow: 30.3 gpm (114.7 L/min)
-
Auxiliary Super Flow: Not available
Features & Options
-

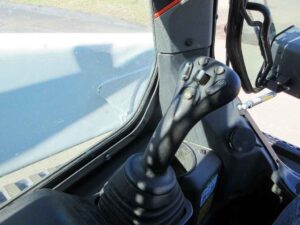

Selectable Joystick Control (SJC): Standard
-
Air Conditioning: Standard
-
Cab Heater: Standard
-

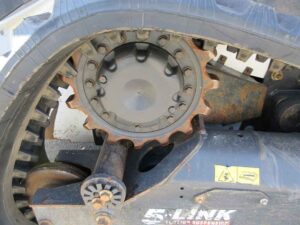

5-Link Torsion Suspension Undercarriage: Optional
-
Heated Cloth Air-Ride Seat: Standard
-
Backup Alarm: Standard
-
BICS System (Interlock): Standard
-
Cab Enclosure: Standard
-
Two-Speed Travel: Optional
-
Deluxe Instrumentation: Optional
-
High Flow Hydraulics: Optional
-
Auxiliary Hydraulics: Standard
-
Bob-Tach Attachment System: Standard
-
Power Bob-Tach: Optional
-
Ride Control: Optional
-
Rear Hydraulics: Optional
-
Horn: Standard
