6MONTH/1500HR FULL WARRANTY!
Just Fully cleaned, serviced, greased & looked over! Photos just taken! Delivery Available!

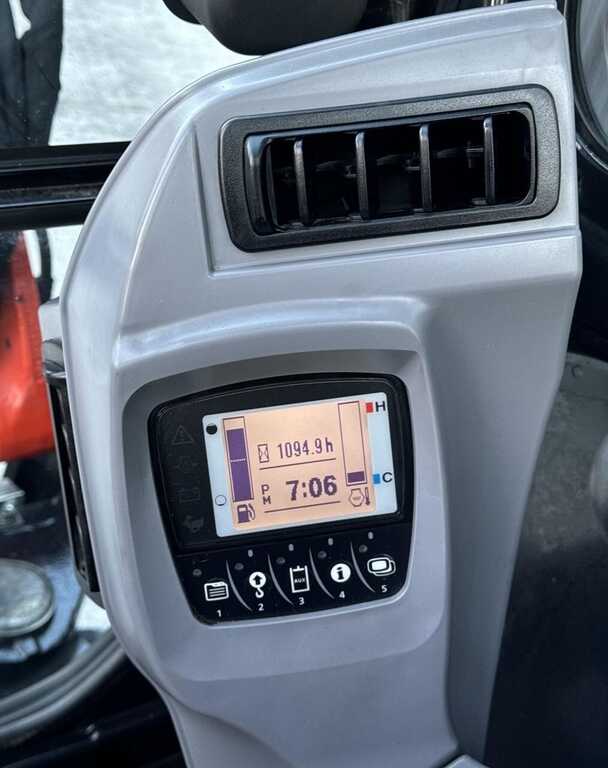

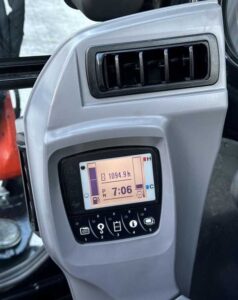

– 1,094 WELL KEPT Hours

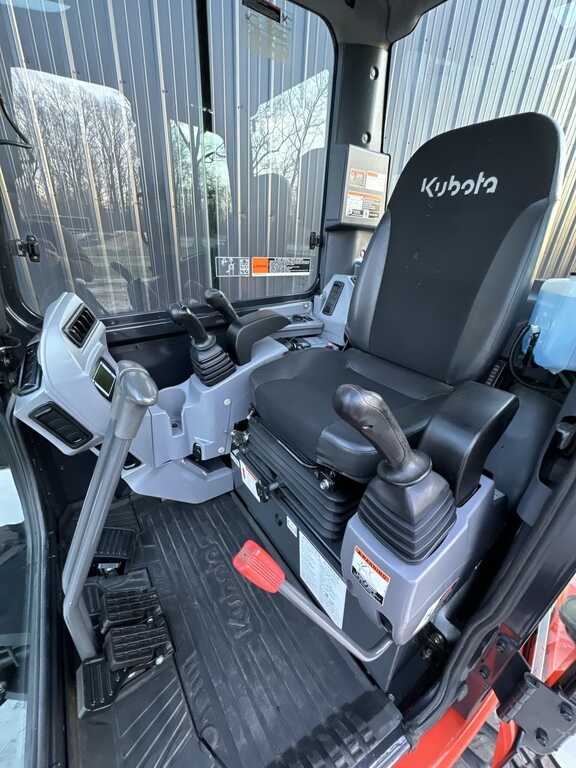

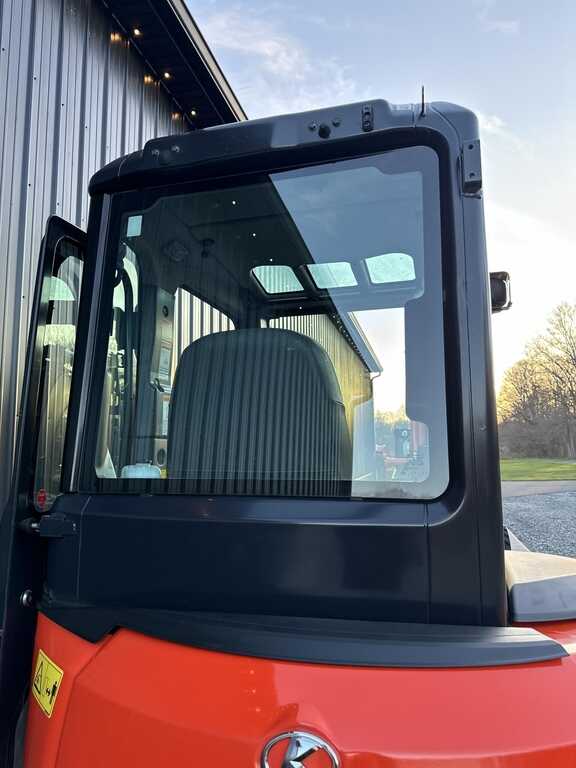

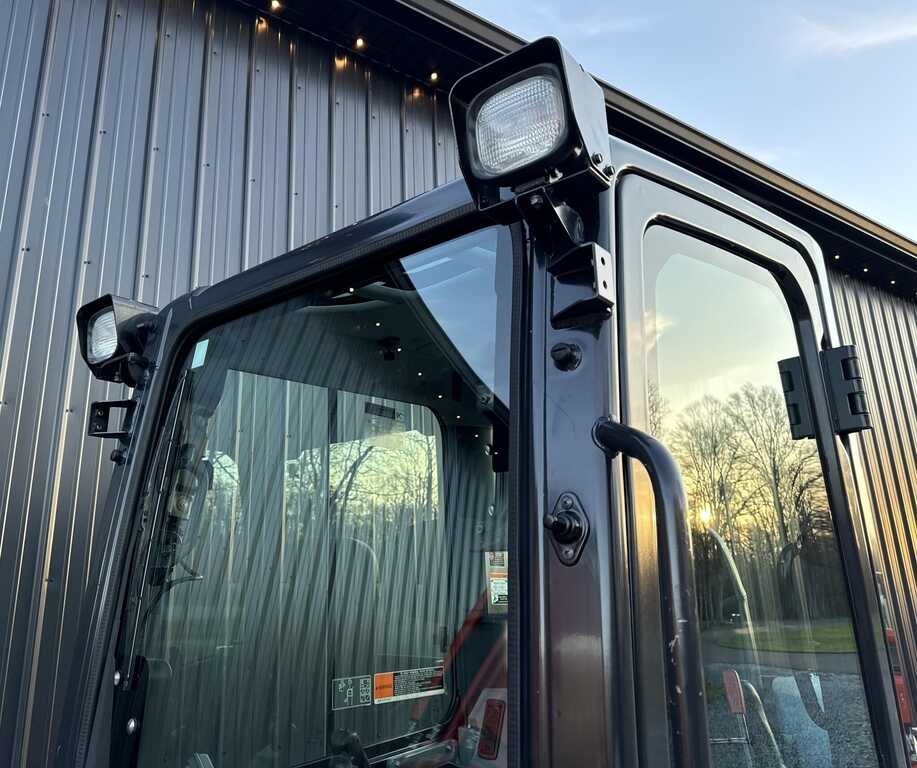

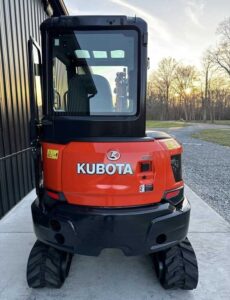

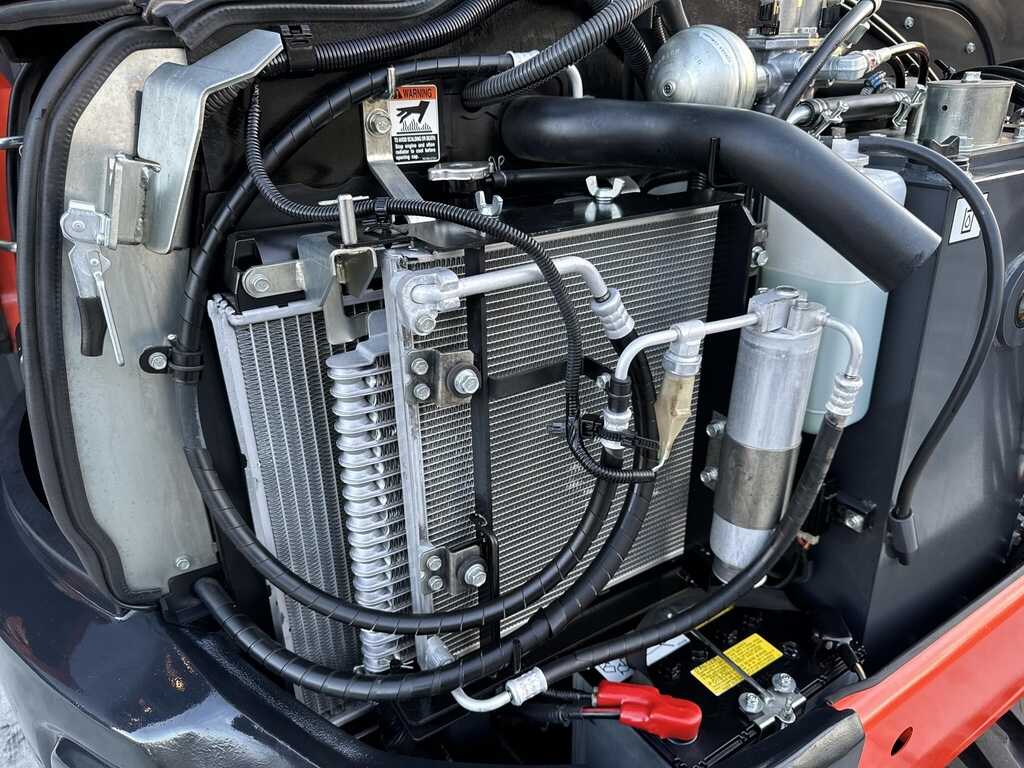

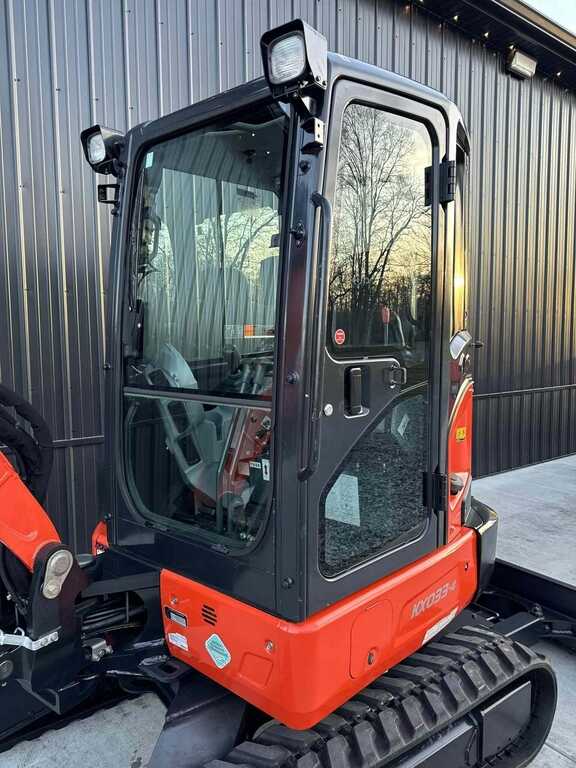

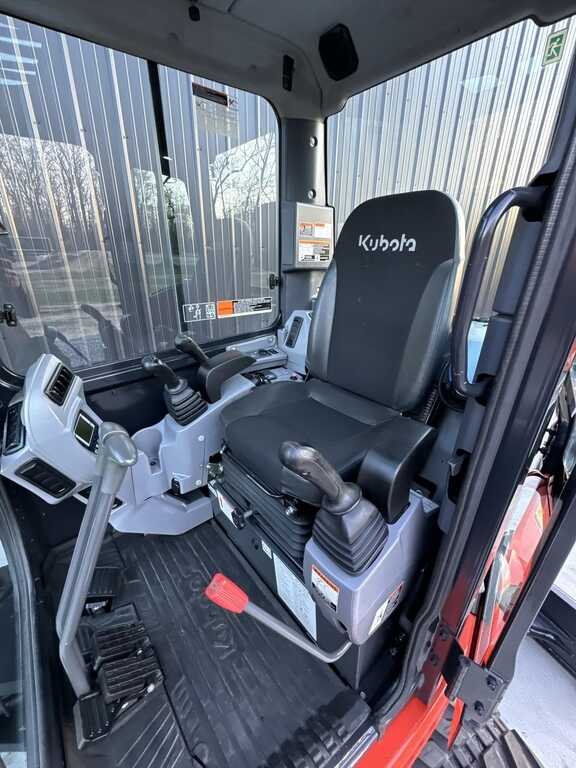

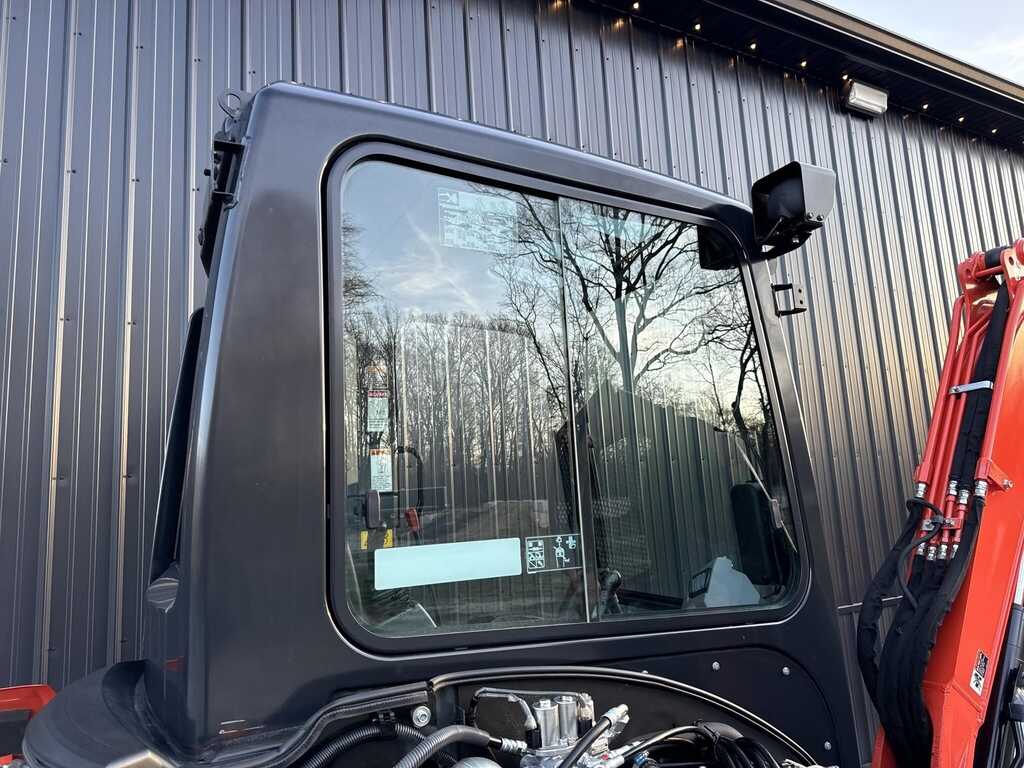

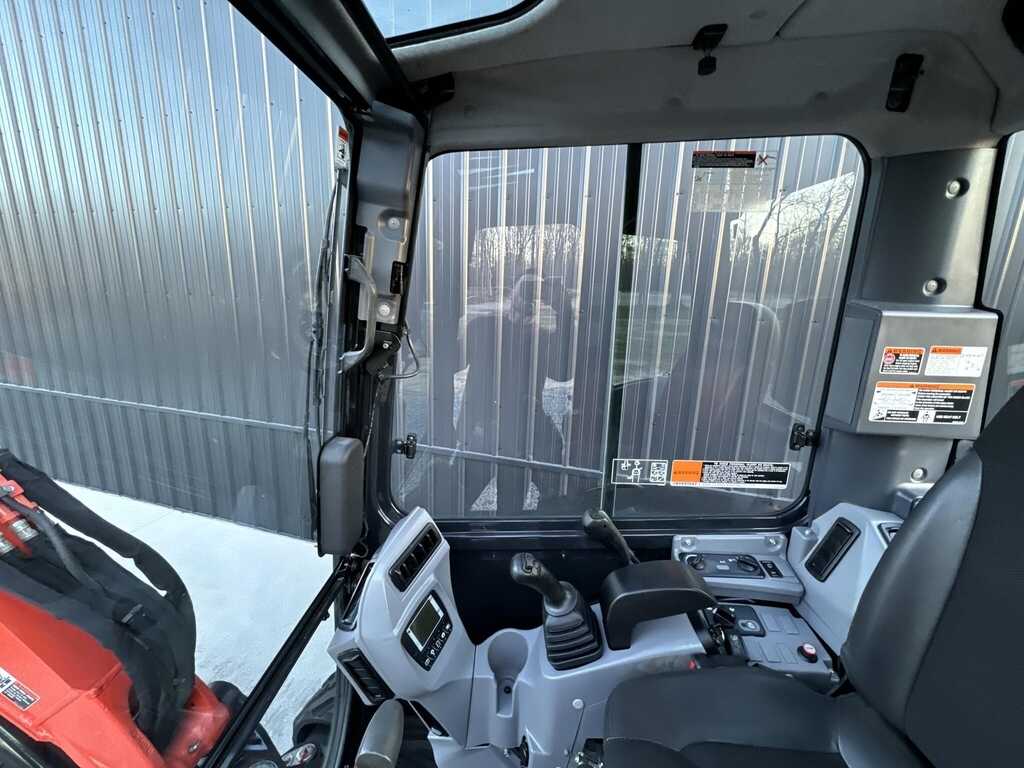

– Enclosed HEAT/AC

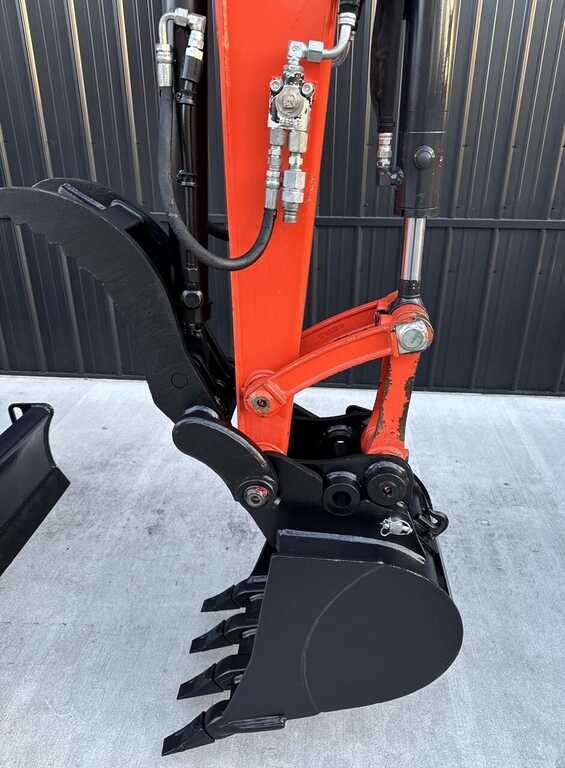

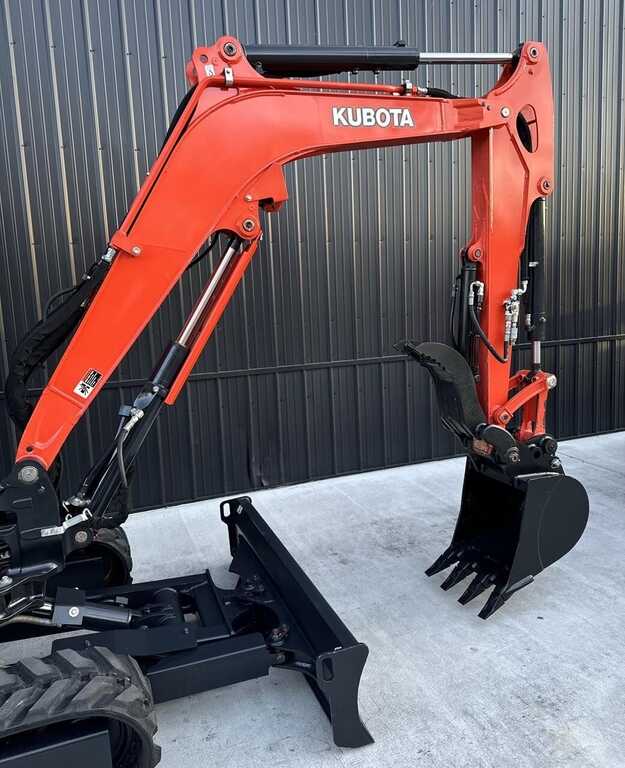

– Hydraulic Thumb
– Quick coupler

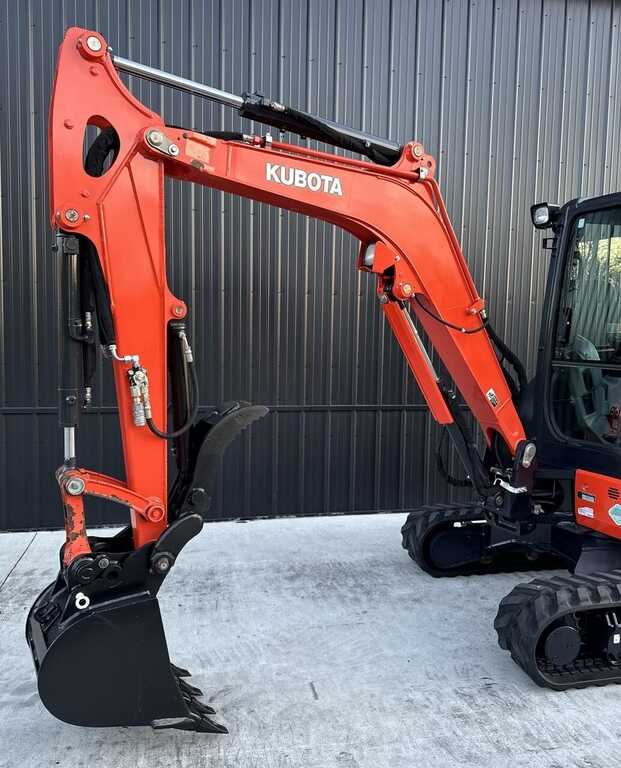

– 18”, 30″ and 36″ Tooth Buckets

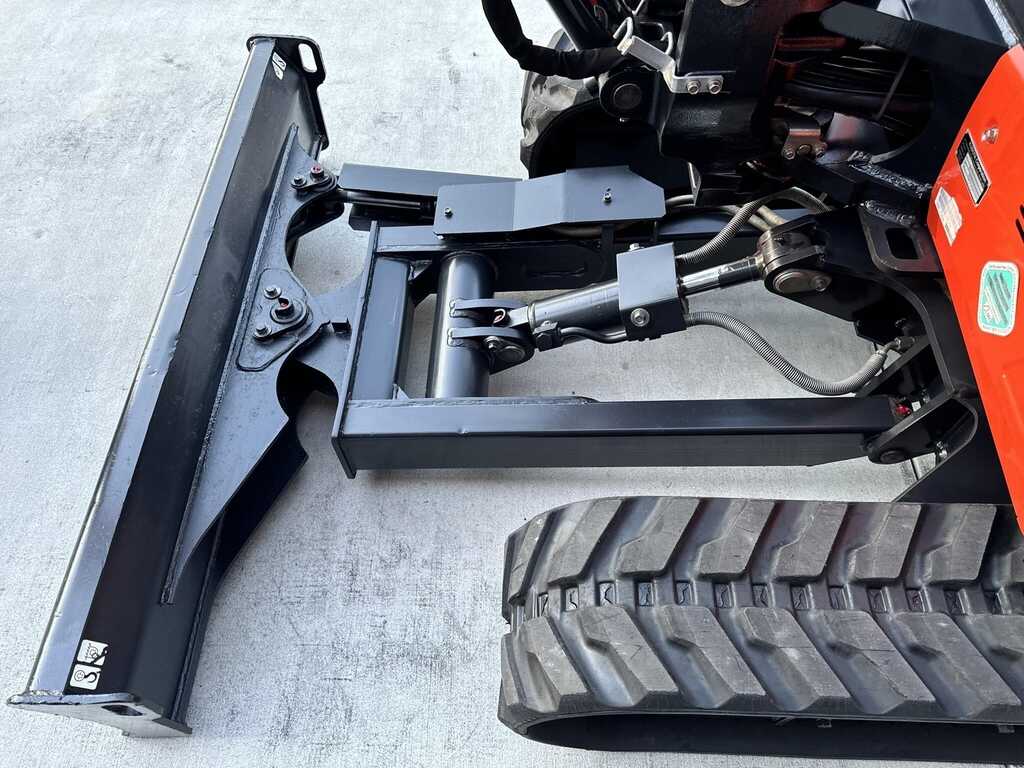

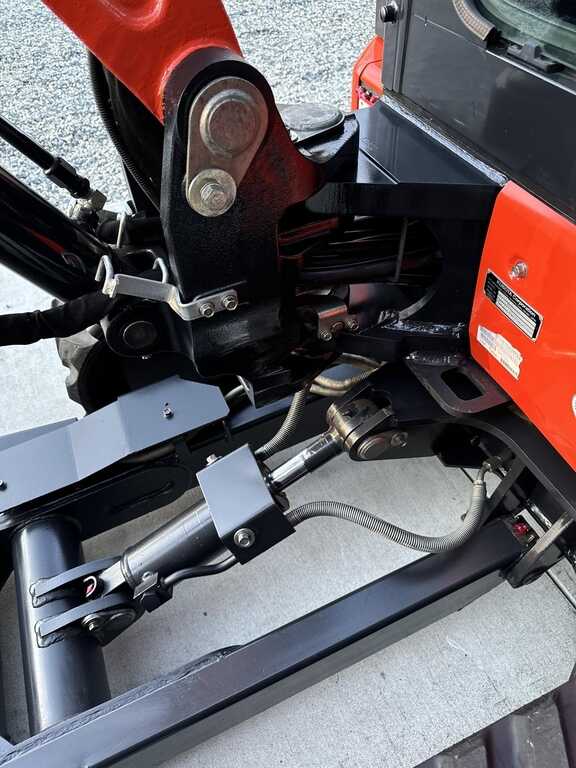

– Hydraulic Angle blade
– 2 Speed
– 28Hp
– 8k Lbs
MACHINE IS TIGHT & READY TO WORK

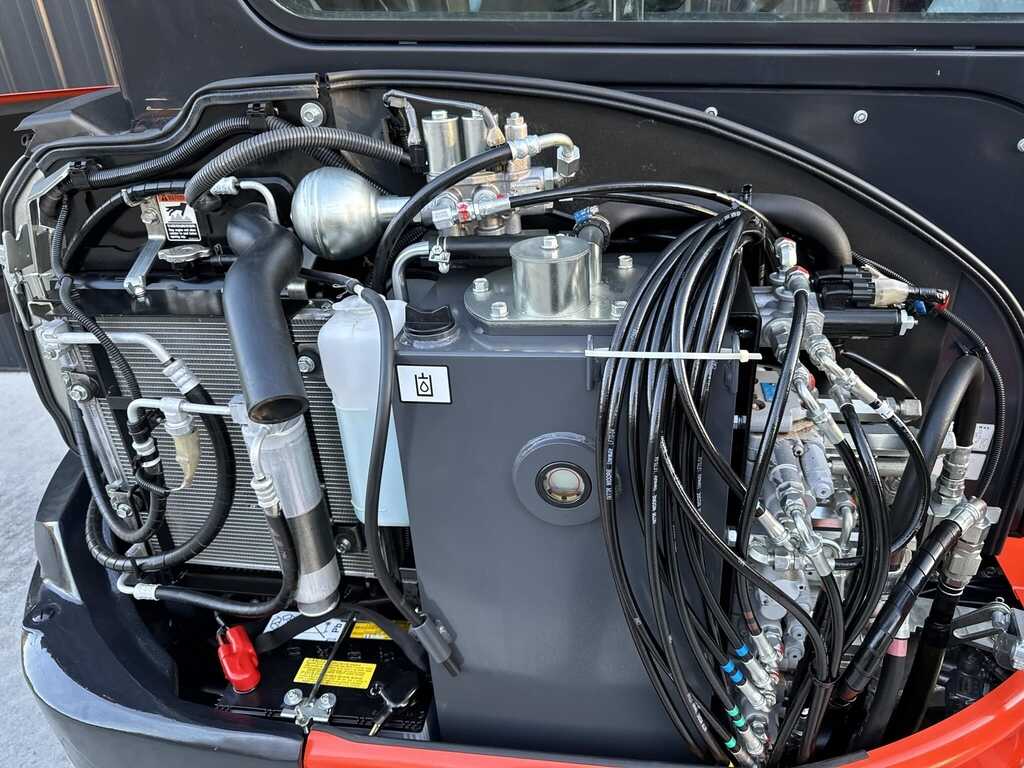

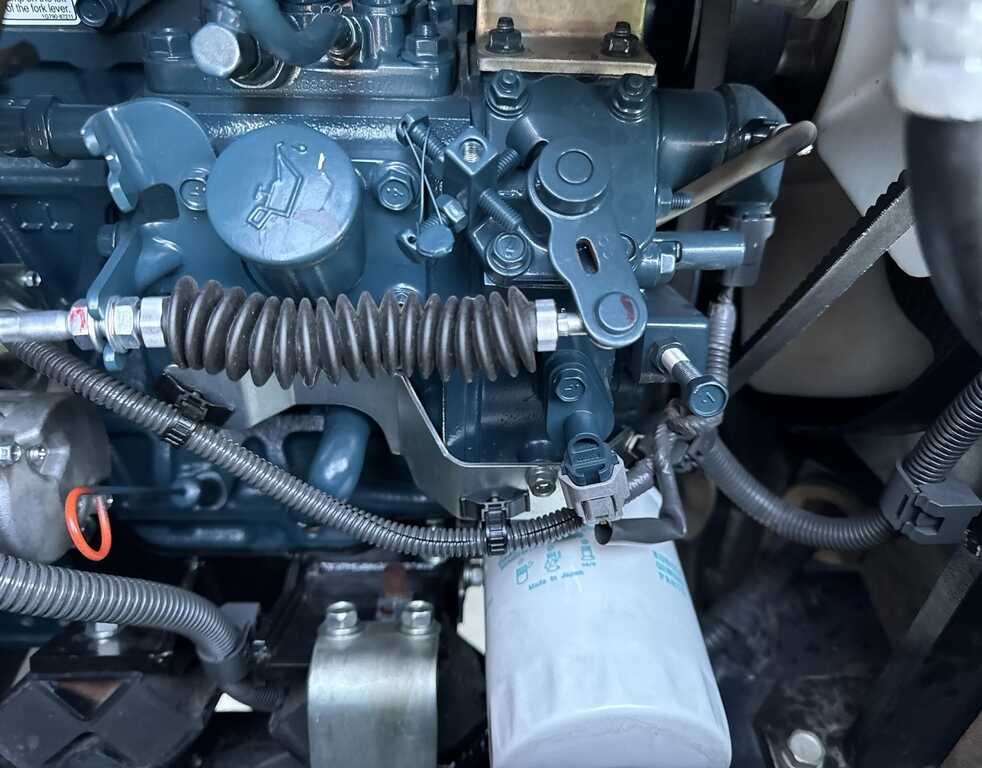

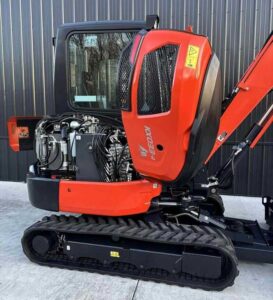

Engine
-
Model: Kubota D1703-M-DI-E4
-
Type: 4-stroke, liquid-cooled, diesel
-
Displacement: 100.5 cu in (1.647 L)
-
Gross Power: 24.8 hp (18.5 kW)
-
Net Power: 23.1 hp (17.2 kW)
-
Rated Speed: 2,400 RPM
-
Cylinders: 3
-
Emissions: Tier 4 Final
Dimensions
-
-
Overall Length: 192.9 in (4,900 mm)
-
Overall Width: 59.8 in (1,520 mm)
-
Overall Height: 96.5 in (2,450 mm)
-
Ground Clearance: 12.2 in (310 mm)
-

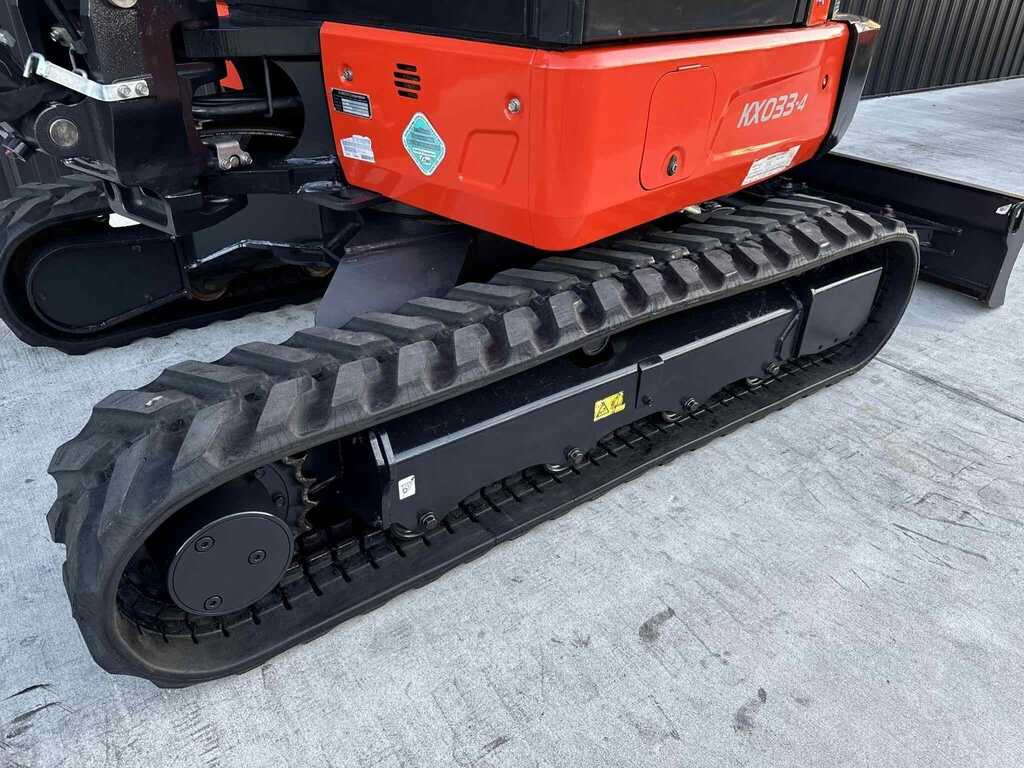

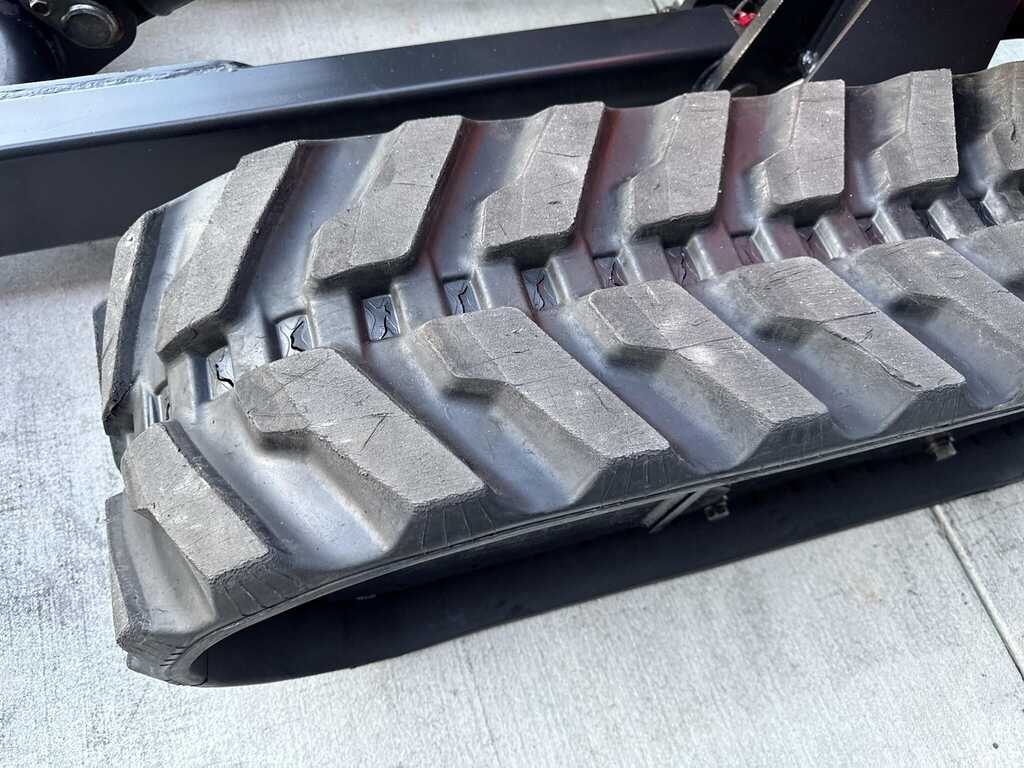

Track Width: 12 in (300 mm)
-
Tail Swing Radius: 3 ft 11 in (1,185 mm)
-
Undercarriage Length: 7 ft 6 in (2,280 mm)
-

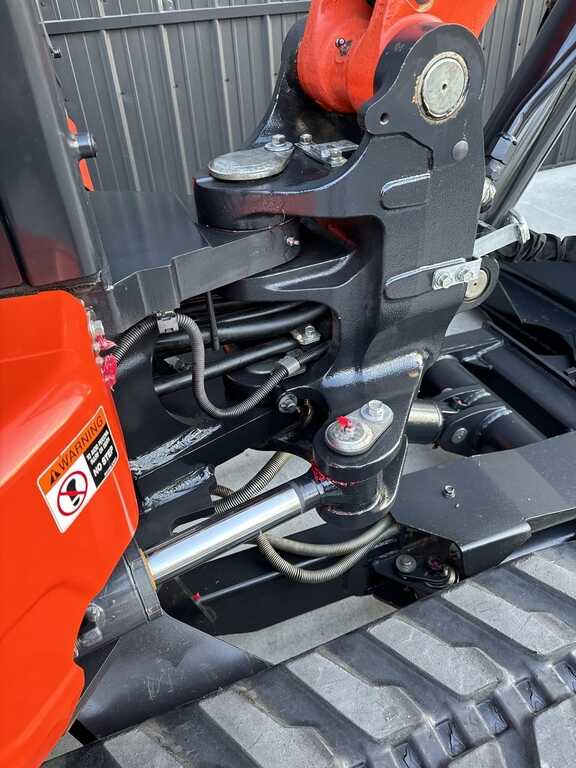

Boom Swing Angle (Left/Right): 70° / 55°
-
Capacities
-
Fuel Tank: 13.4 gal (51 L)
-
Hydraulic System Fluid: 9.2 gal (35 L)
-
Engine Oil: 1.9 gal (7.1 L)
-
Cooling System Fluid: 1.2 gal (4.5 L)
Performance
-
Operating Weight: 7,742 lbs (3,266 kg)
-
Max Dig Depth: 10 ft 6 in (3,205 mm)
-
Max Reach at Ground: 17 ft 11 in (5,465 mm)
-
Max Dump Height: 11 ft 8 in (3,555 mm)
-
Bucket Breakout Force: 8,138 lbs (36.2 kN)
-
Arm Breakout Force: 3,867 lbs (17.2 kN)
-
Max Traction Force: 7,970 lbs (35.5 kN)
-
Travel Speed:
-
Low: 1.8 mph (2.8 km/h)
-
High: 2.9 mph (4.6 km/h)
-

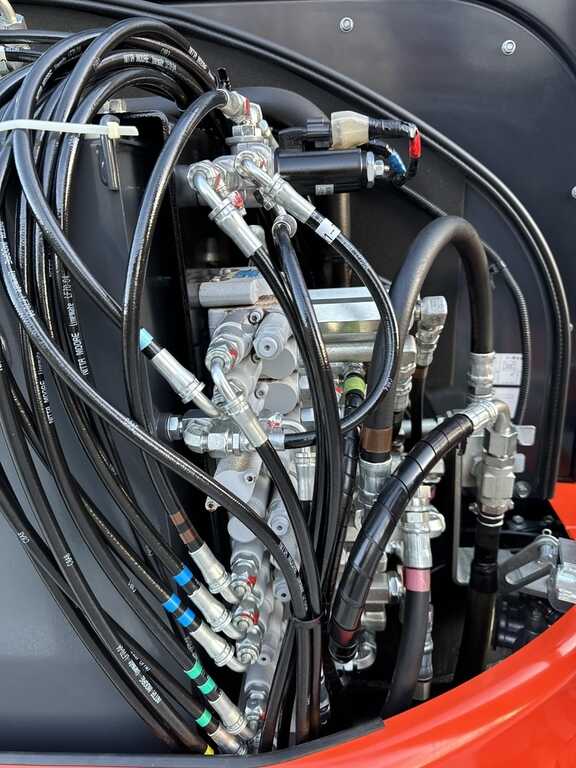

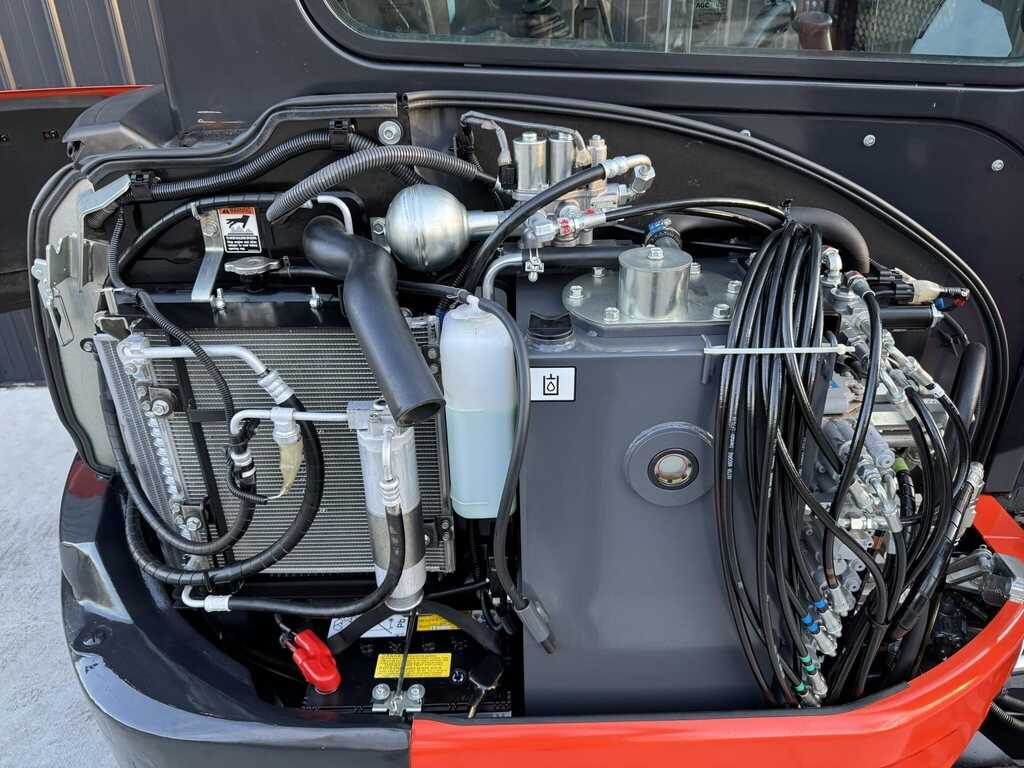

Hydraulic System
-
Pump Capacity: 27.3 GPM (103.2 L/min)
-
Auxiliary Hydraulic Flow: 15.8 GPM (60 L/min)
-
System Pressure: 3,134 psi (21.6 MPa)
