PRICE FIRM NO TAX OR FEES
6MONTH / 1500HR FULL WARRANTY!

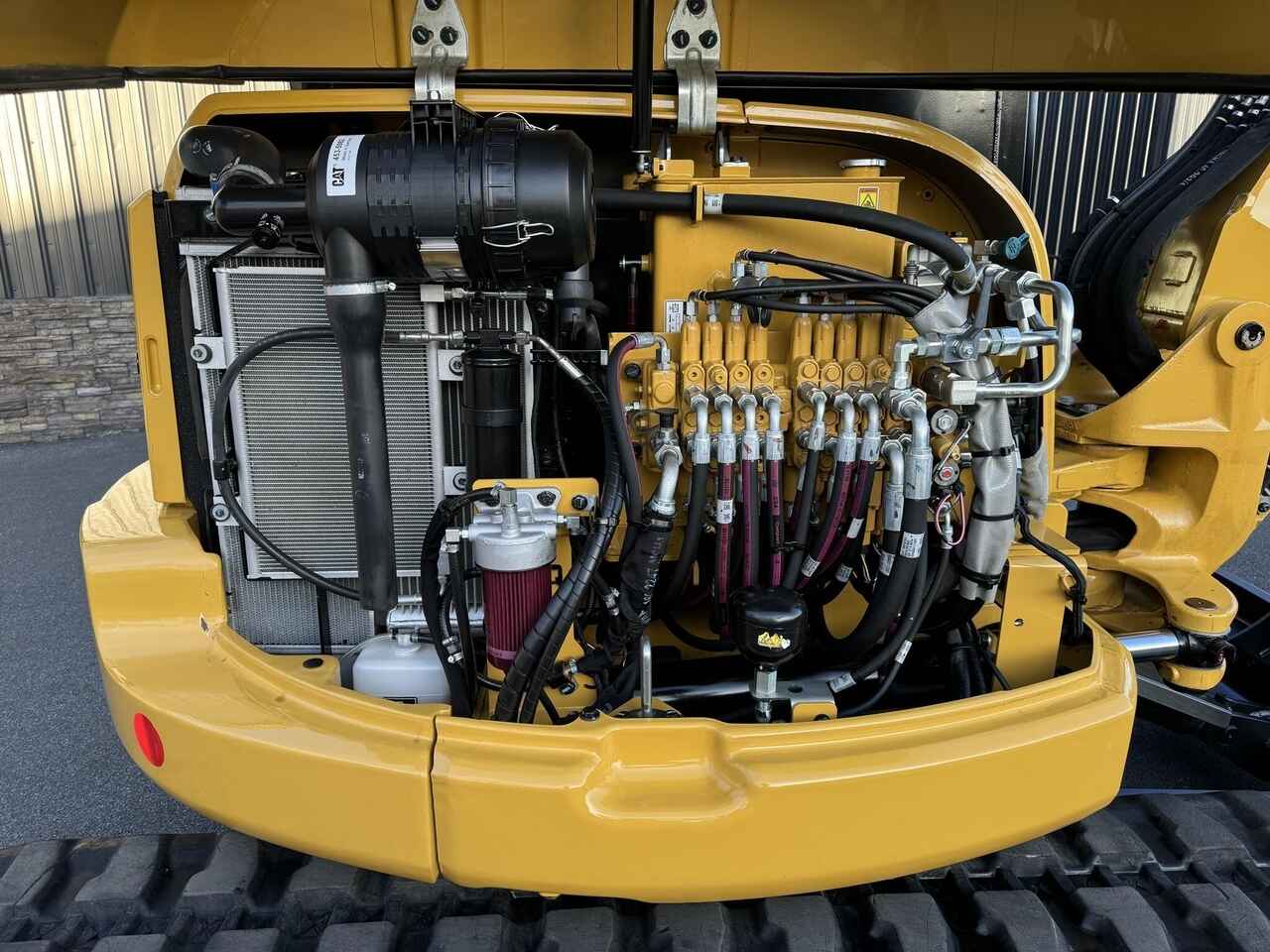

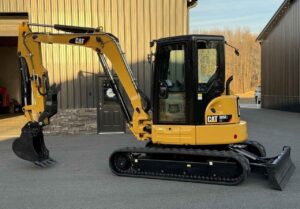

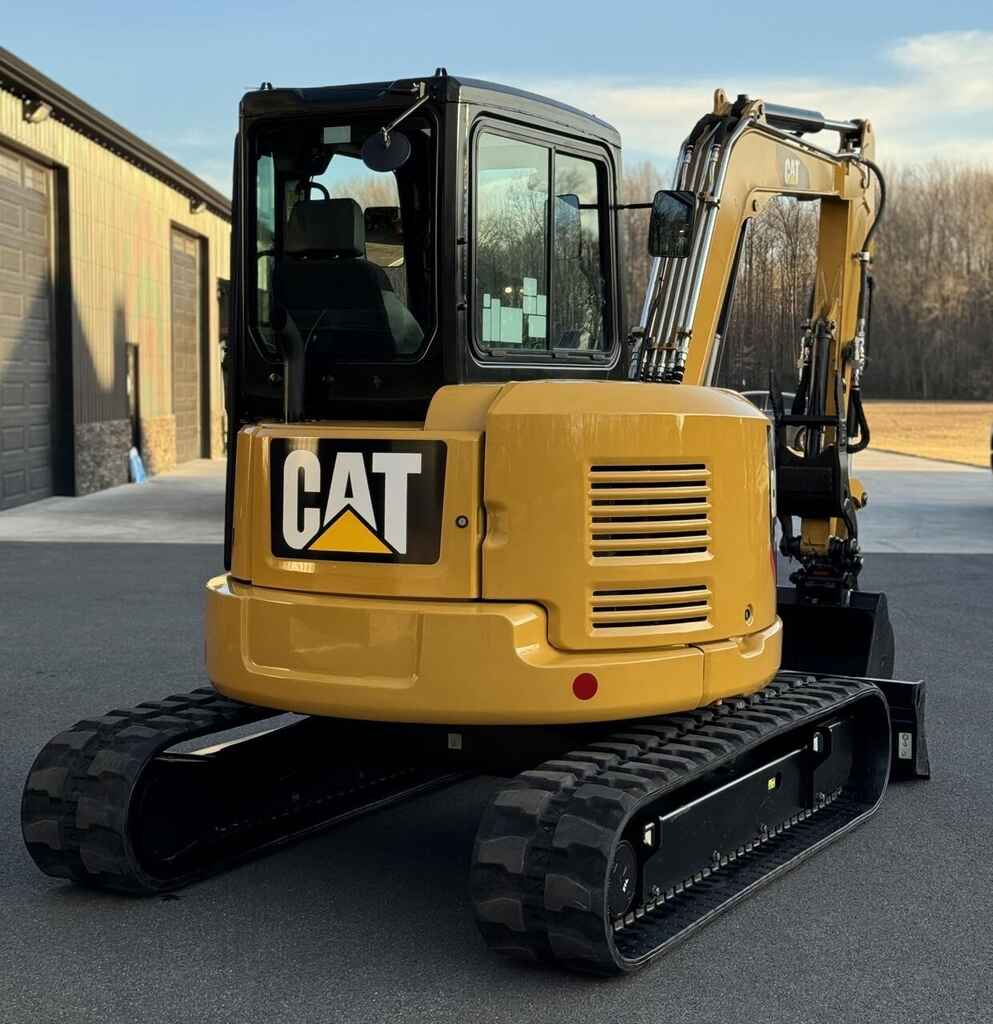

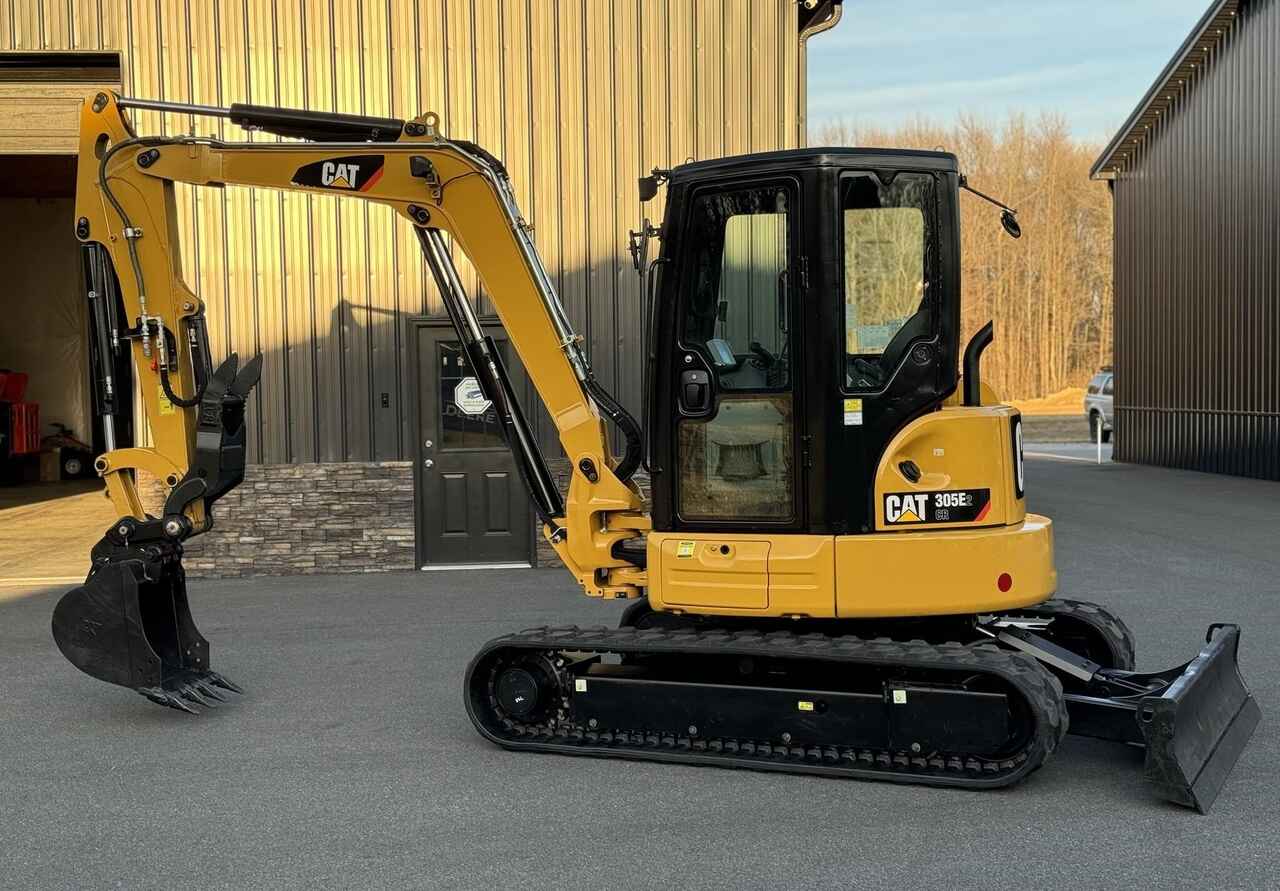

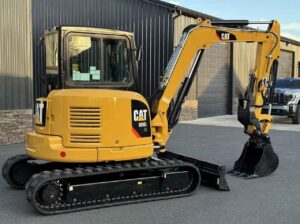

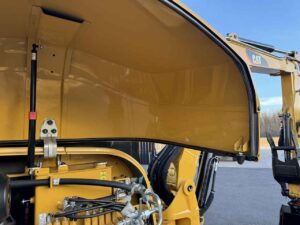

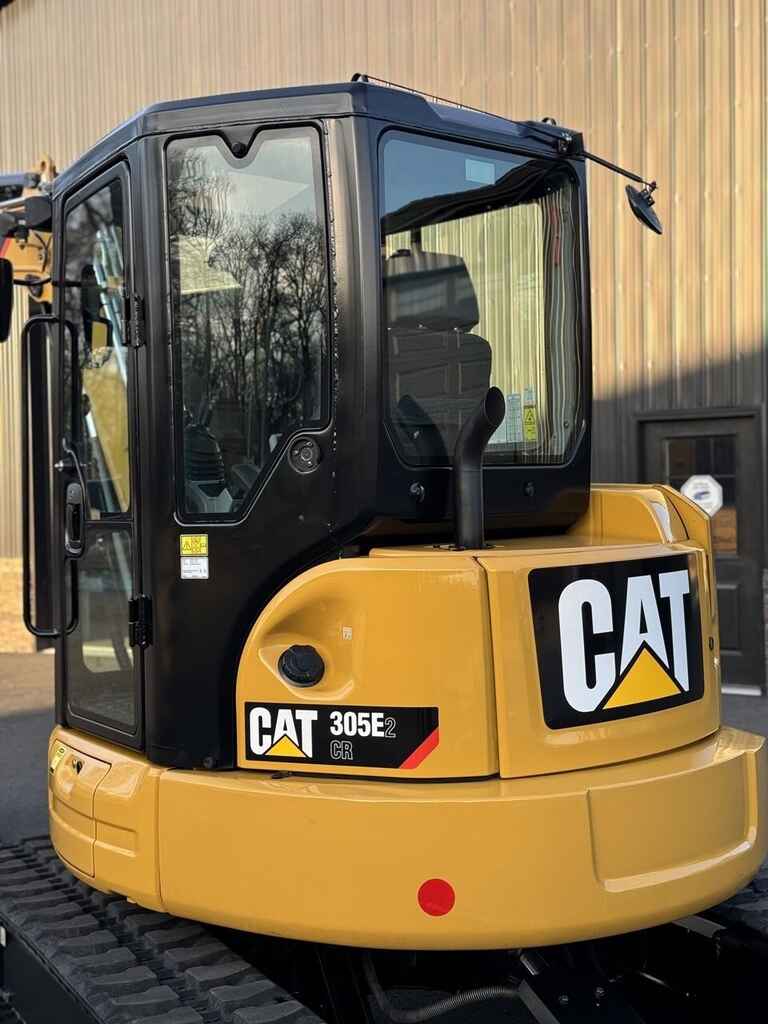

Machine was just fully cleaned, greased, serviced and looked over! Photos just taken! Delivery Available!

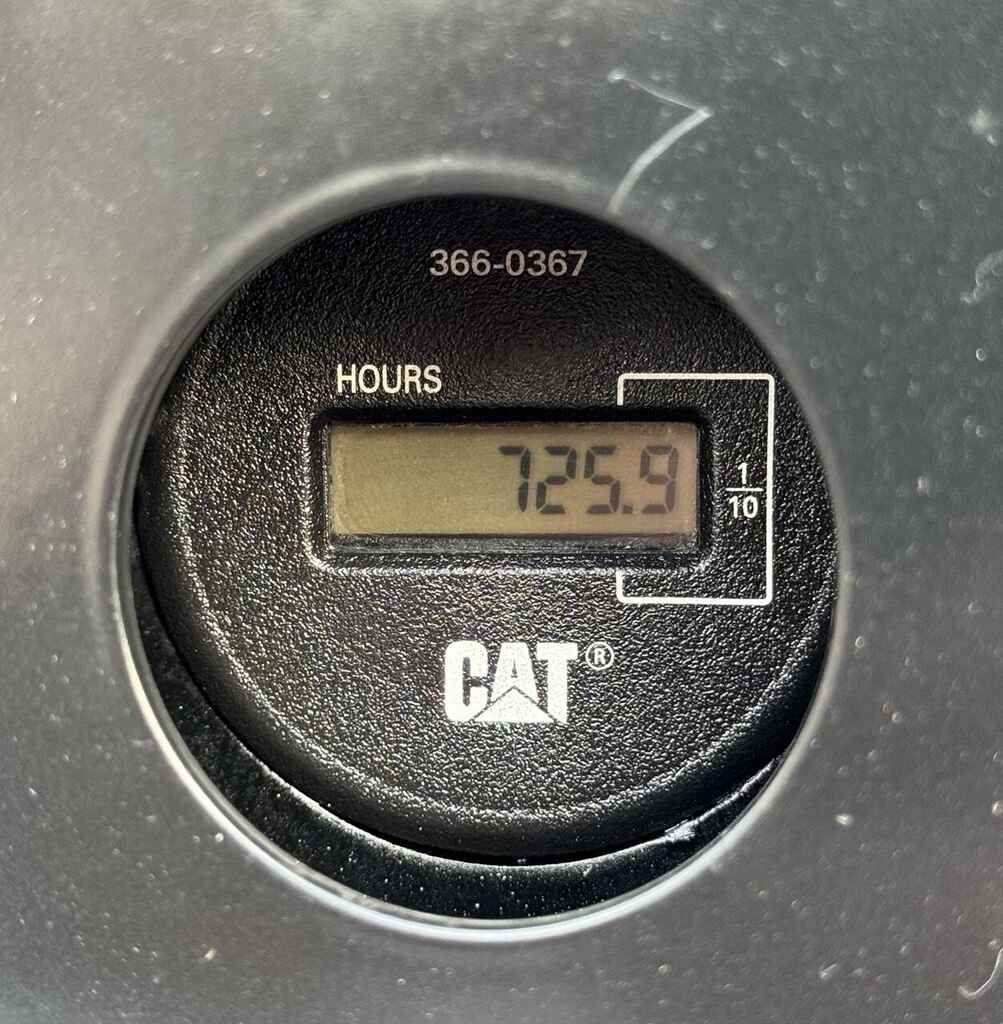

– ONLY WELL KEPT 725 Hrs
– 1 OWNER!
– All Original Yellow paint!

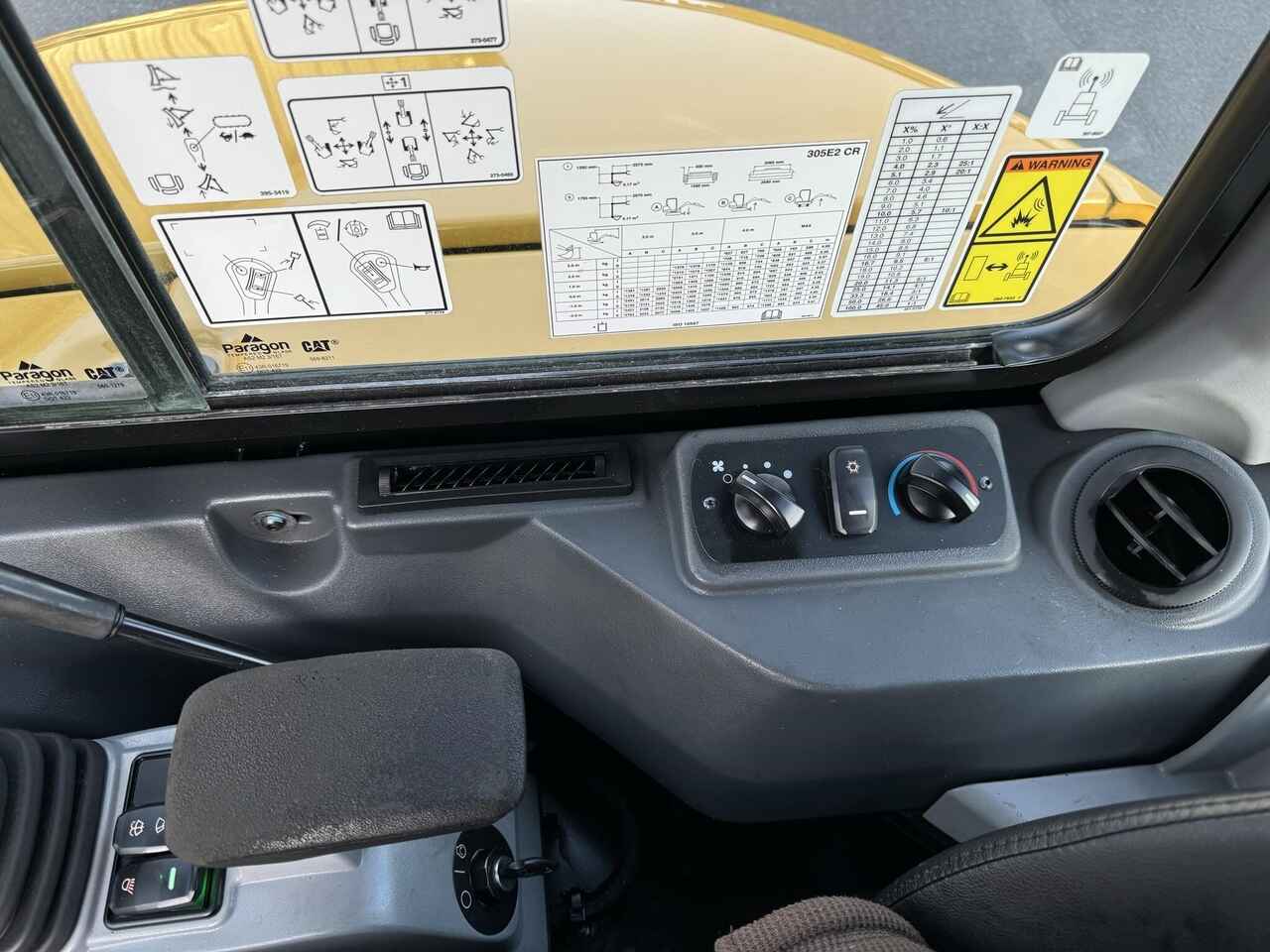

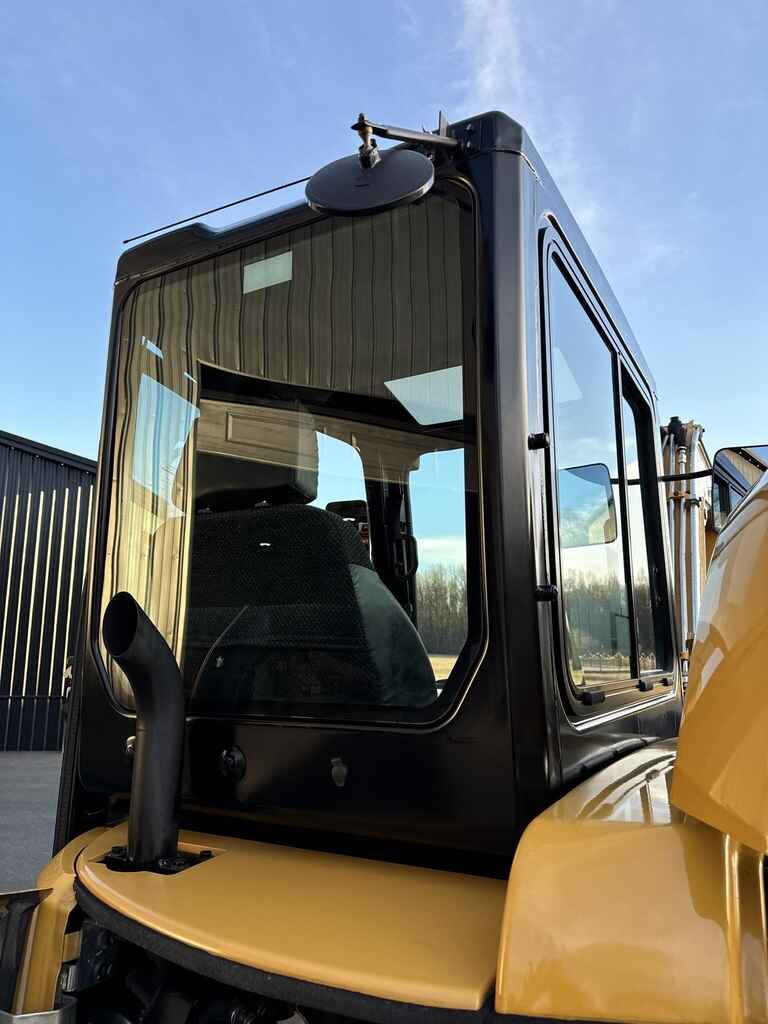

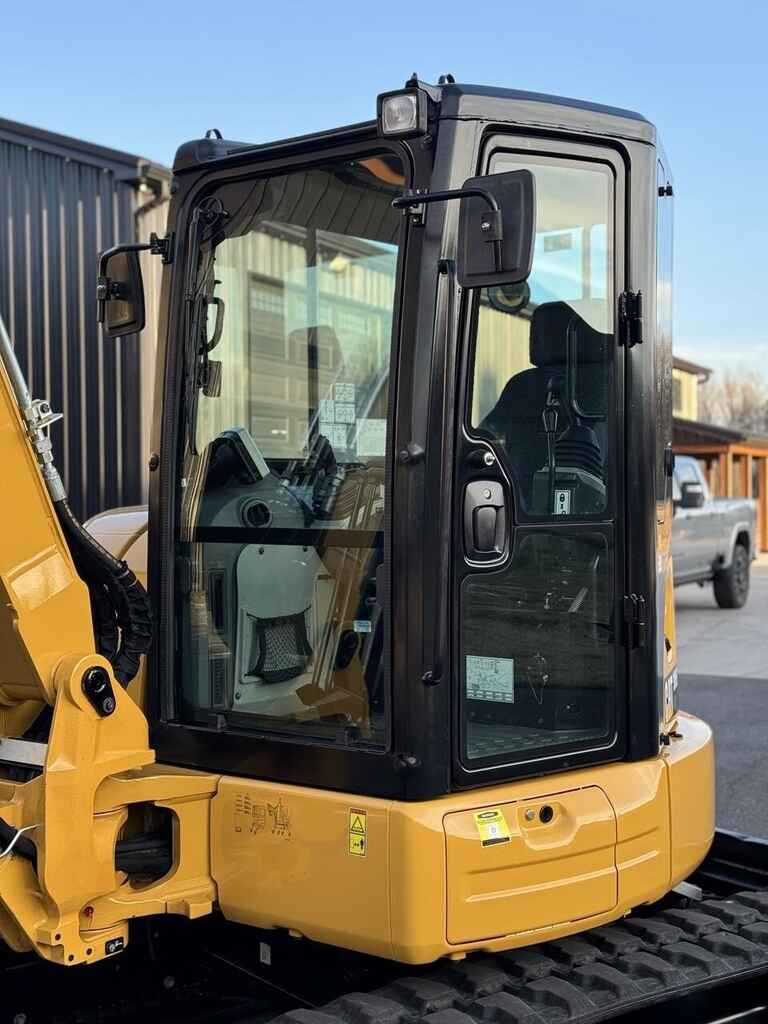

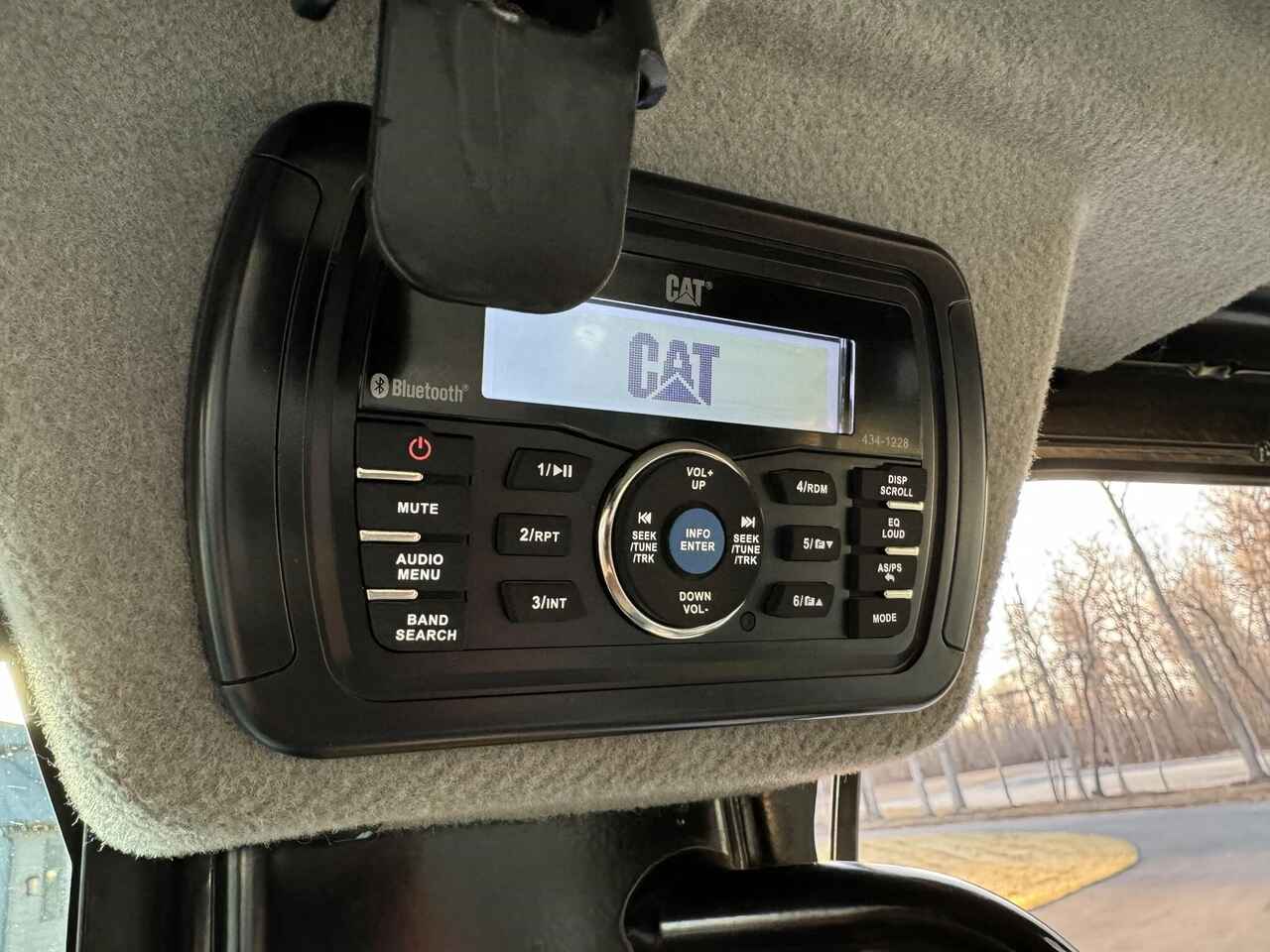

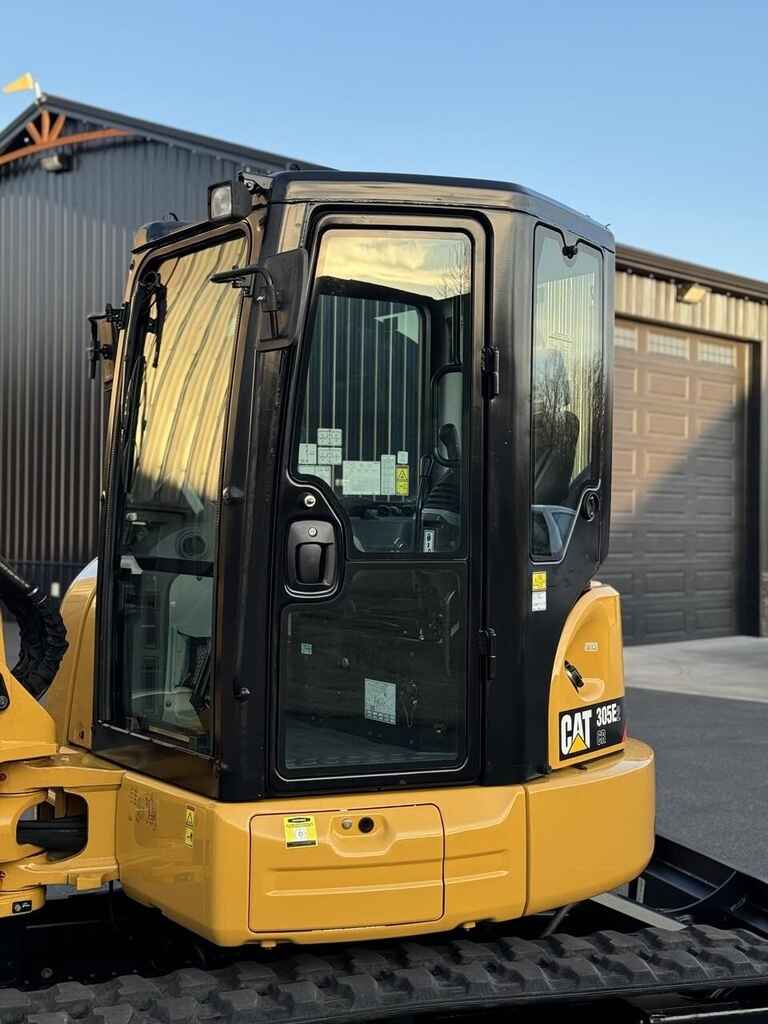

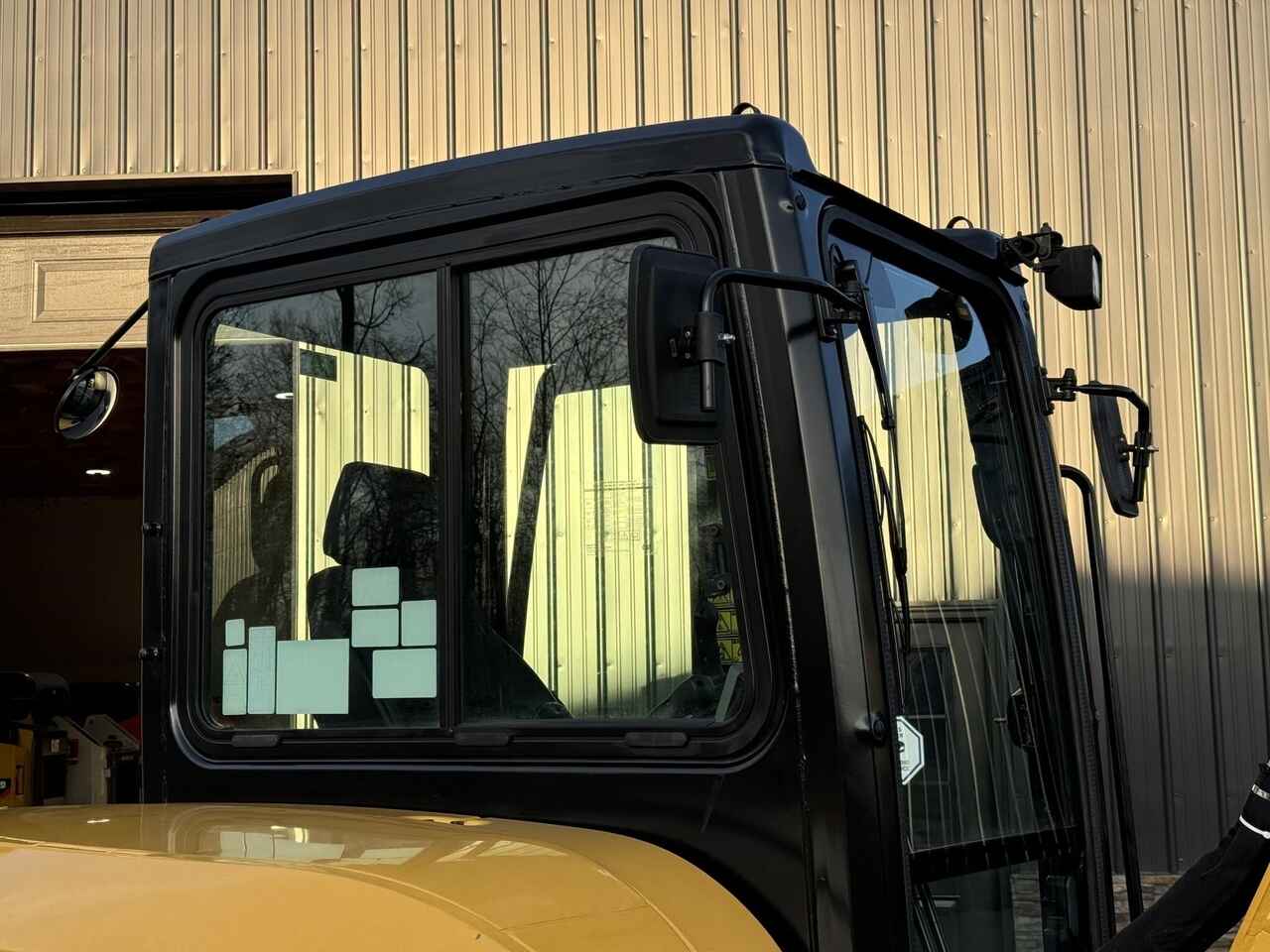

– Enclosed HEAT/AC/RADIO

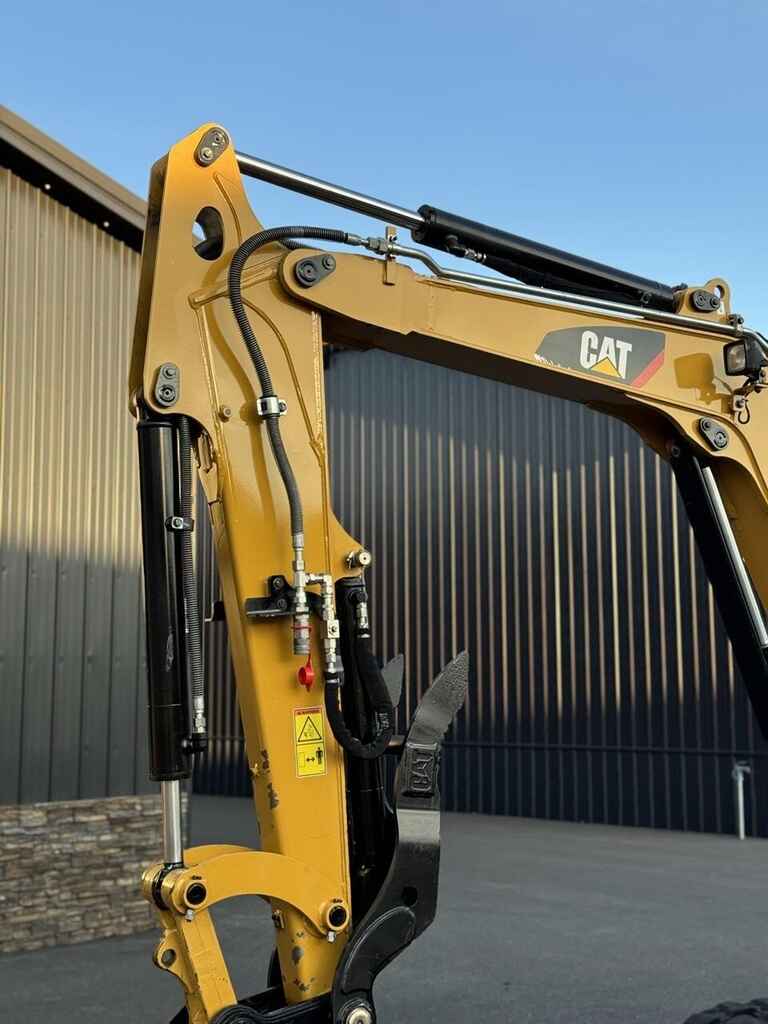

– Hydraulic Thumb
– Long Stick
– 2 speed
– 12″, 24” & 36″ tooth buckets
– 42 Hp
– 11,500 Lbs
Machine is READY TO WORK
Key Specifications:
- Operating Weight: 11,443 lbs (Cab, Long Stick)
- Maximum Dig Depth: 144 in
- Maximum Reach: 235 in
- Maximum Dump Clearance: 154 in
- O/A Shipping Dimensions:
- Height: 100 in
- Length: 208 in
- Track Width: 78 in

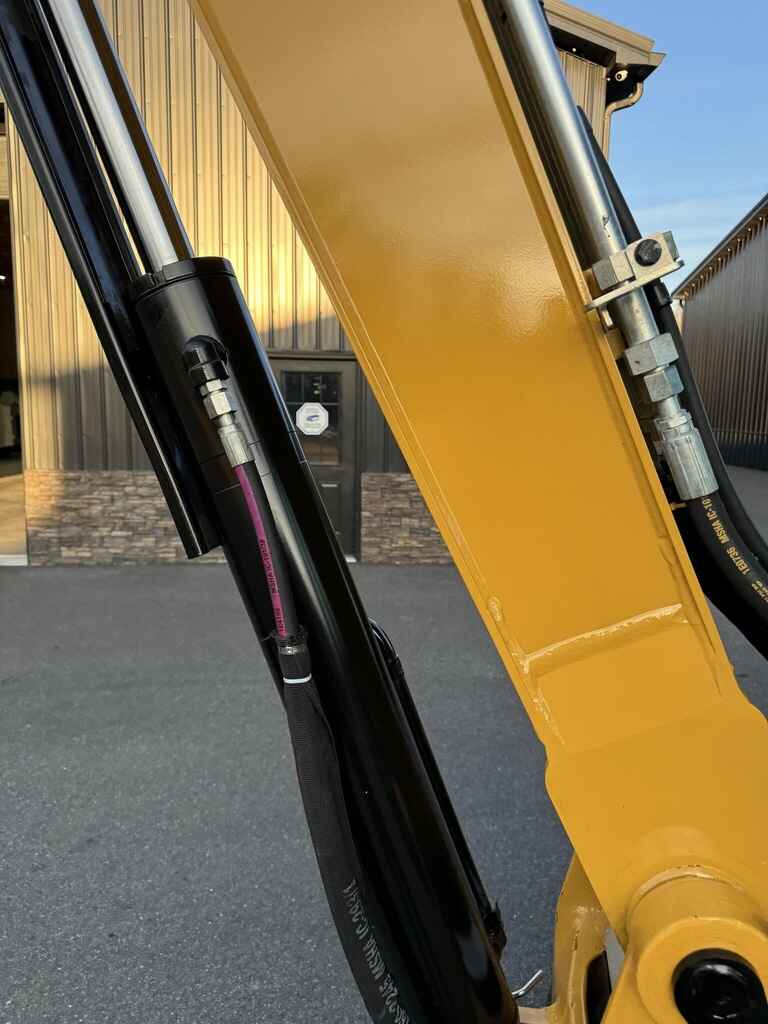

Performance & Hydraulics:

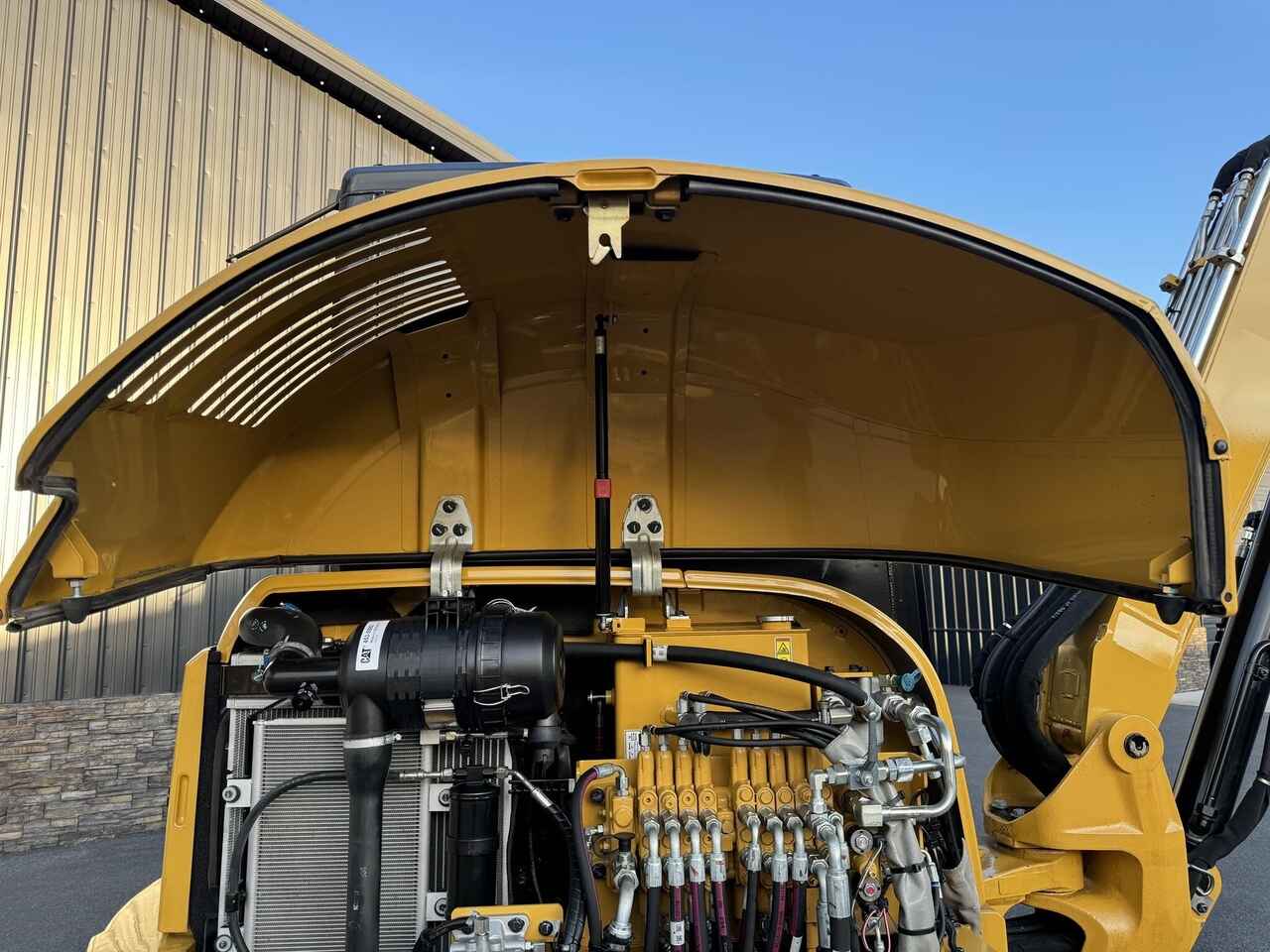

- Hydraulic System Type: Load Sensing Hydraulics with Variable Displacement Piston Pump
- Pump Flow: 39.6 GPM @ 2,400 RPM
- Operating Pressures:
- Swing: 3,132 PSI
- Equipment & Travel: 3,553 PSI
- Digging Forces:
- Bucket: 10,050 lbs
- Stick (Standard): 5,550 lbs
- Stick (Long): 4,788 lbs

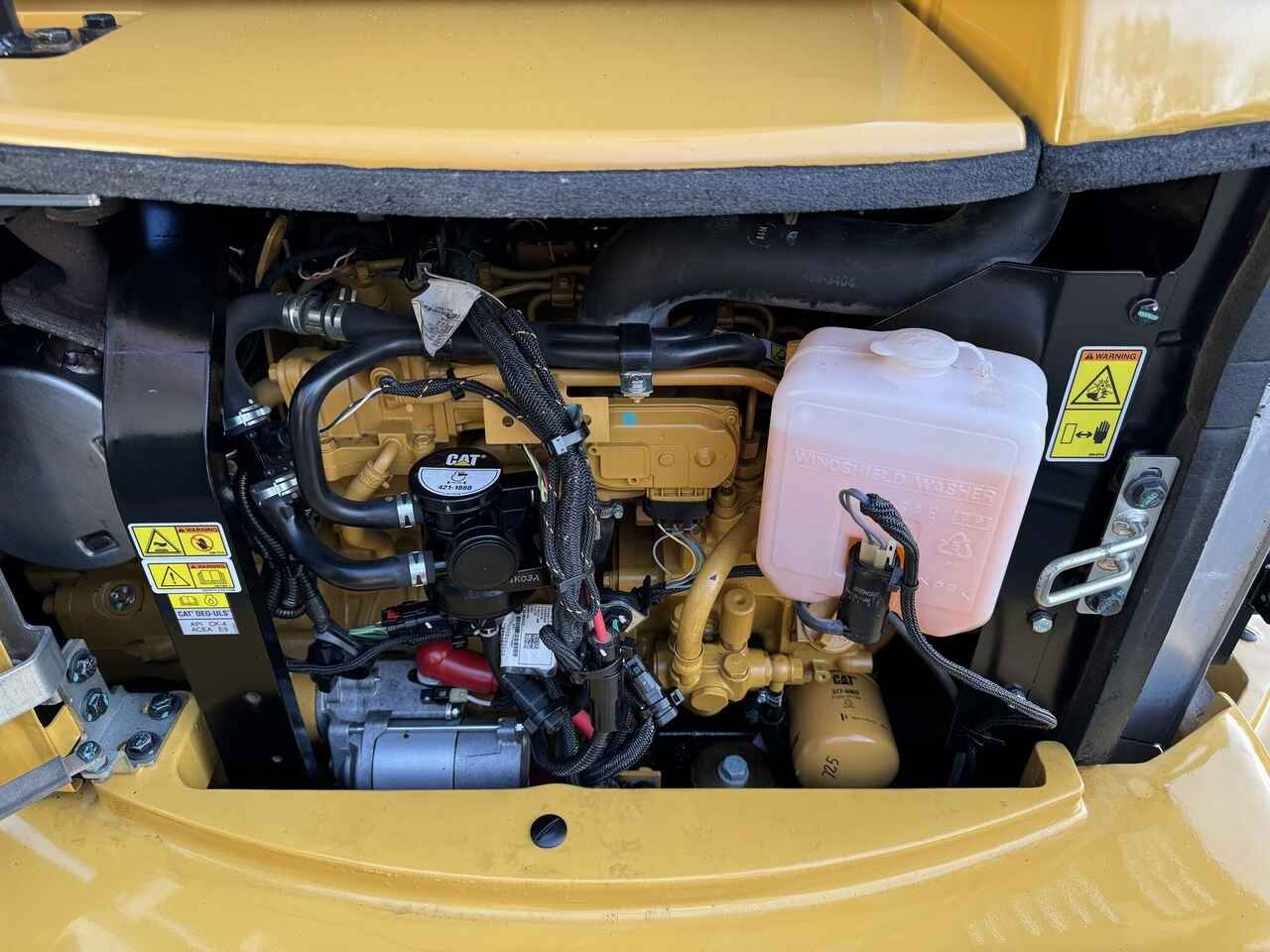

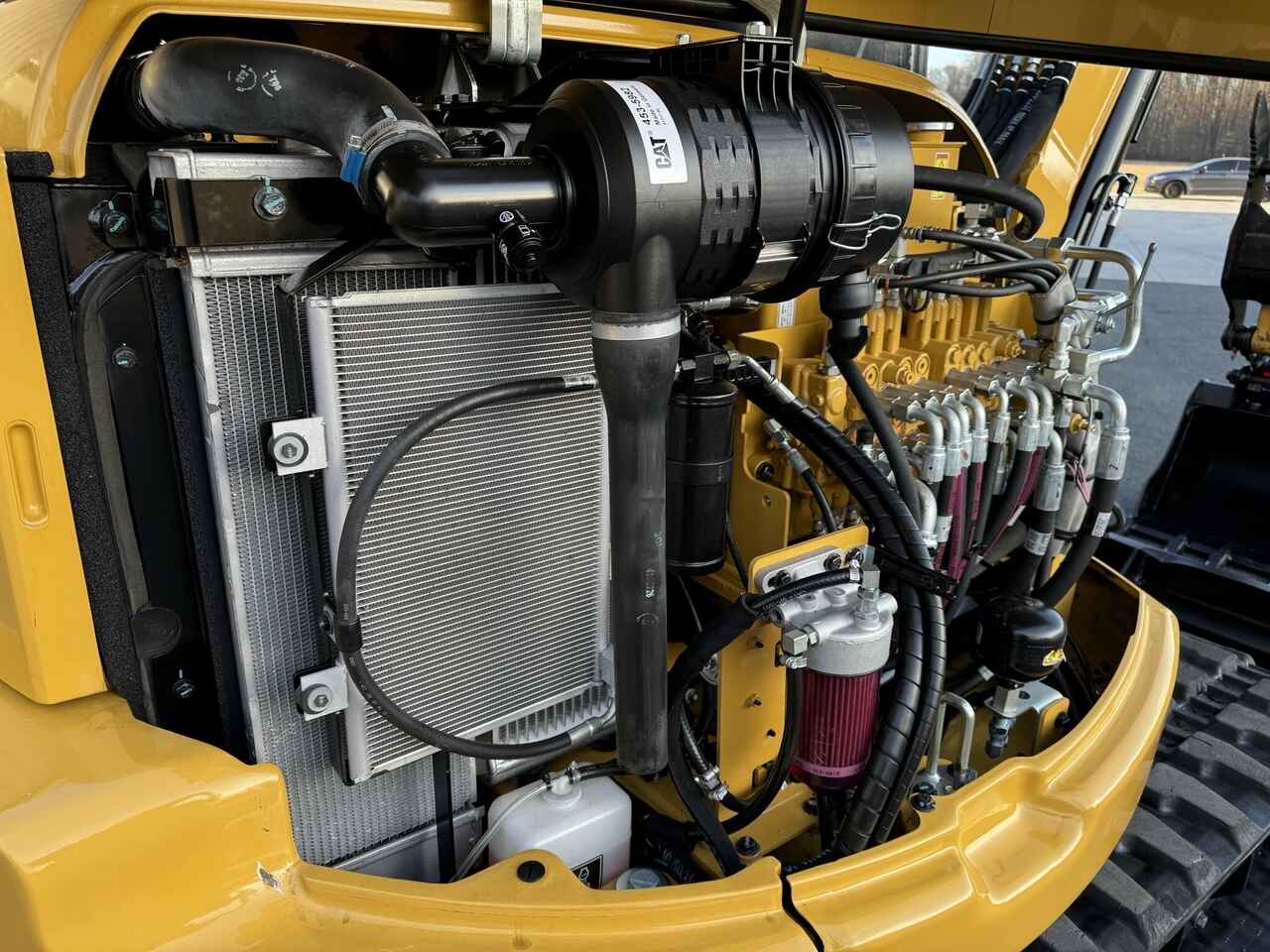

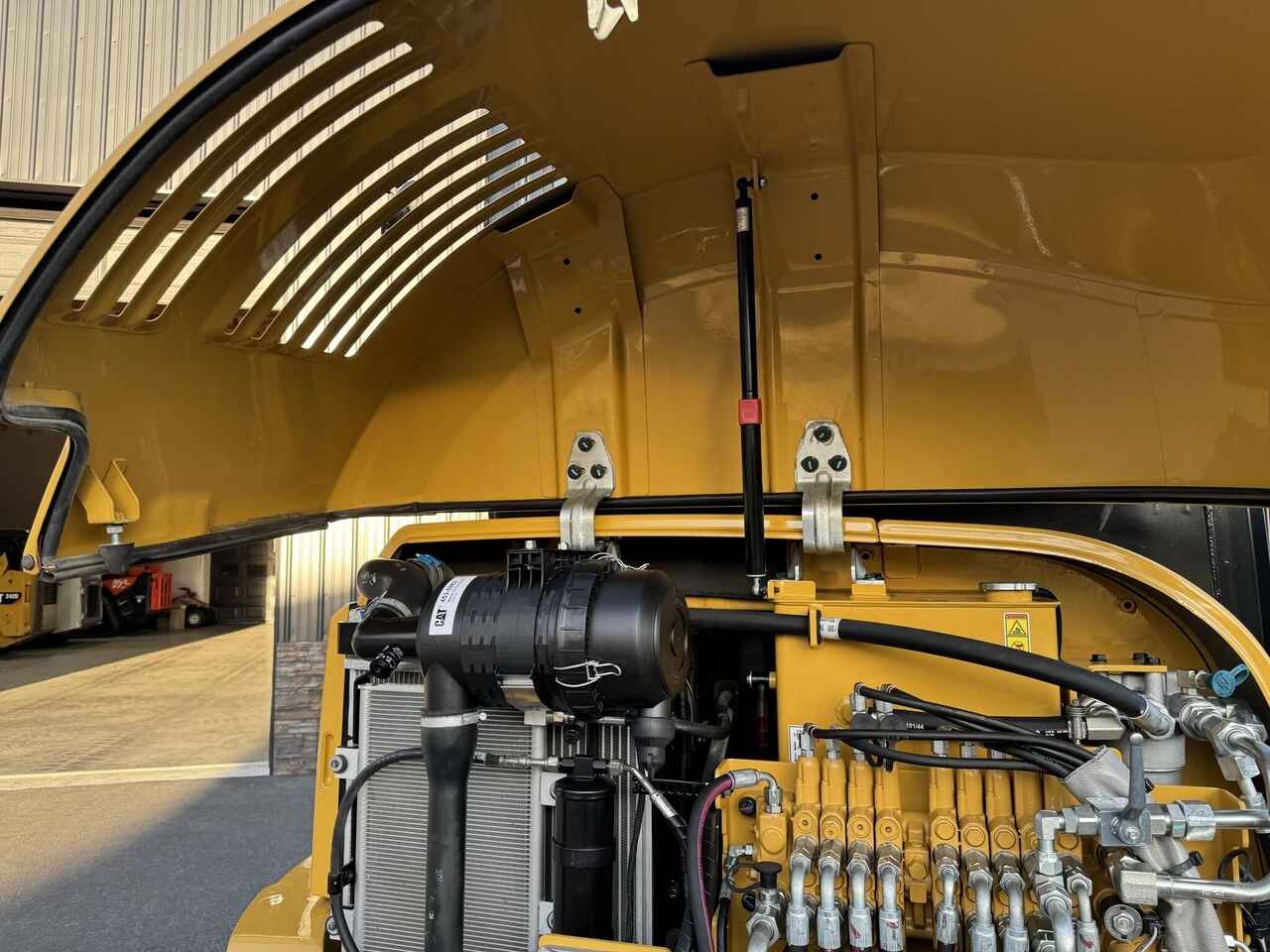

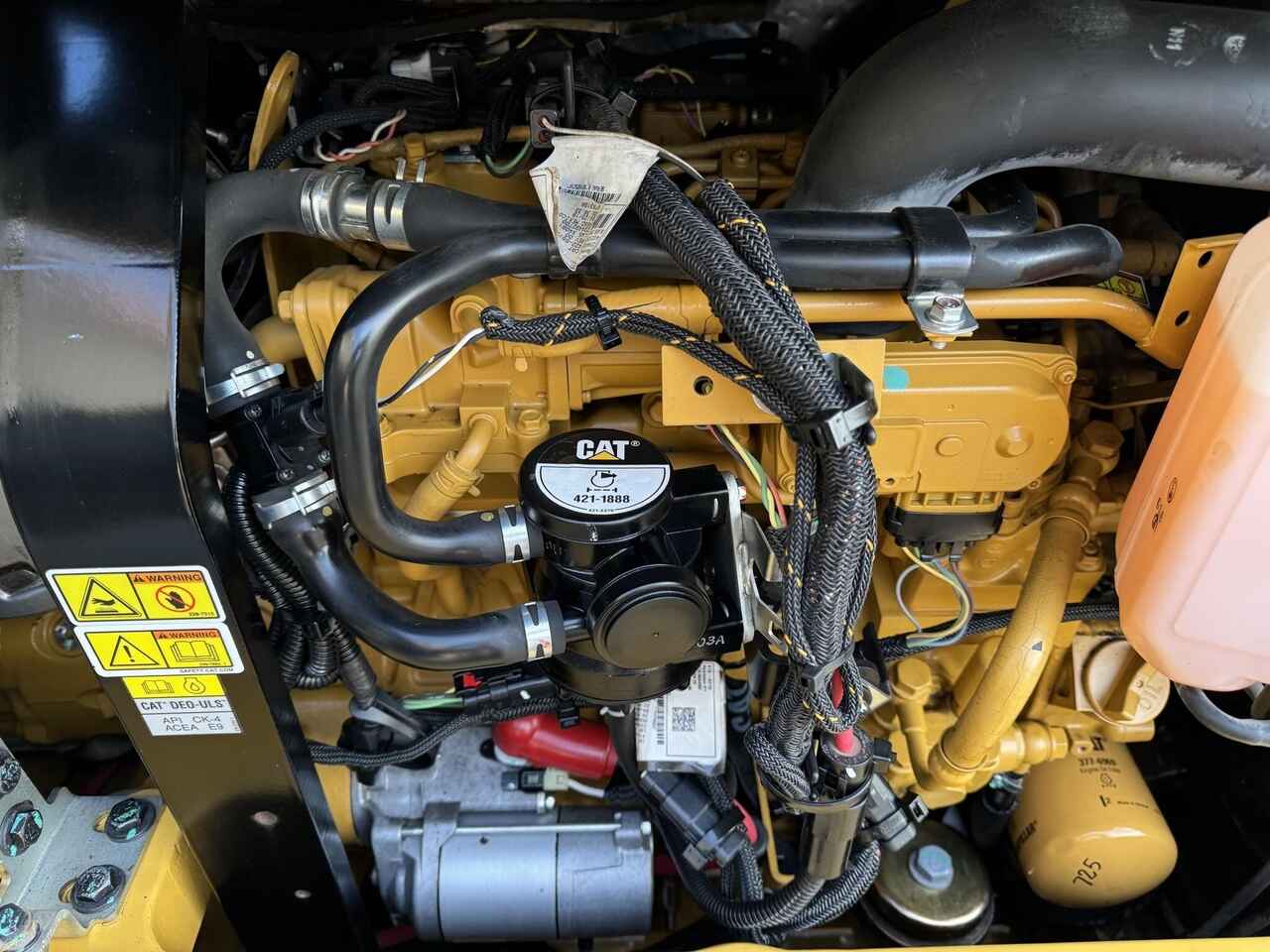

Engine & Powertrain:
- Engine Model: CAT C2.4
- Net Power: 40.2 HP @ 2,200 RPM
- Displacement: 146 cu in
- Fuel Tank Capacity: 16.6 gal
- Travel Speed:
- High: 2.7 mph
- Low: 1.7 mph

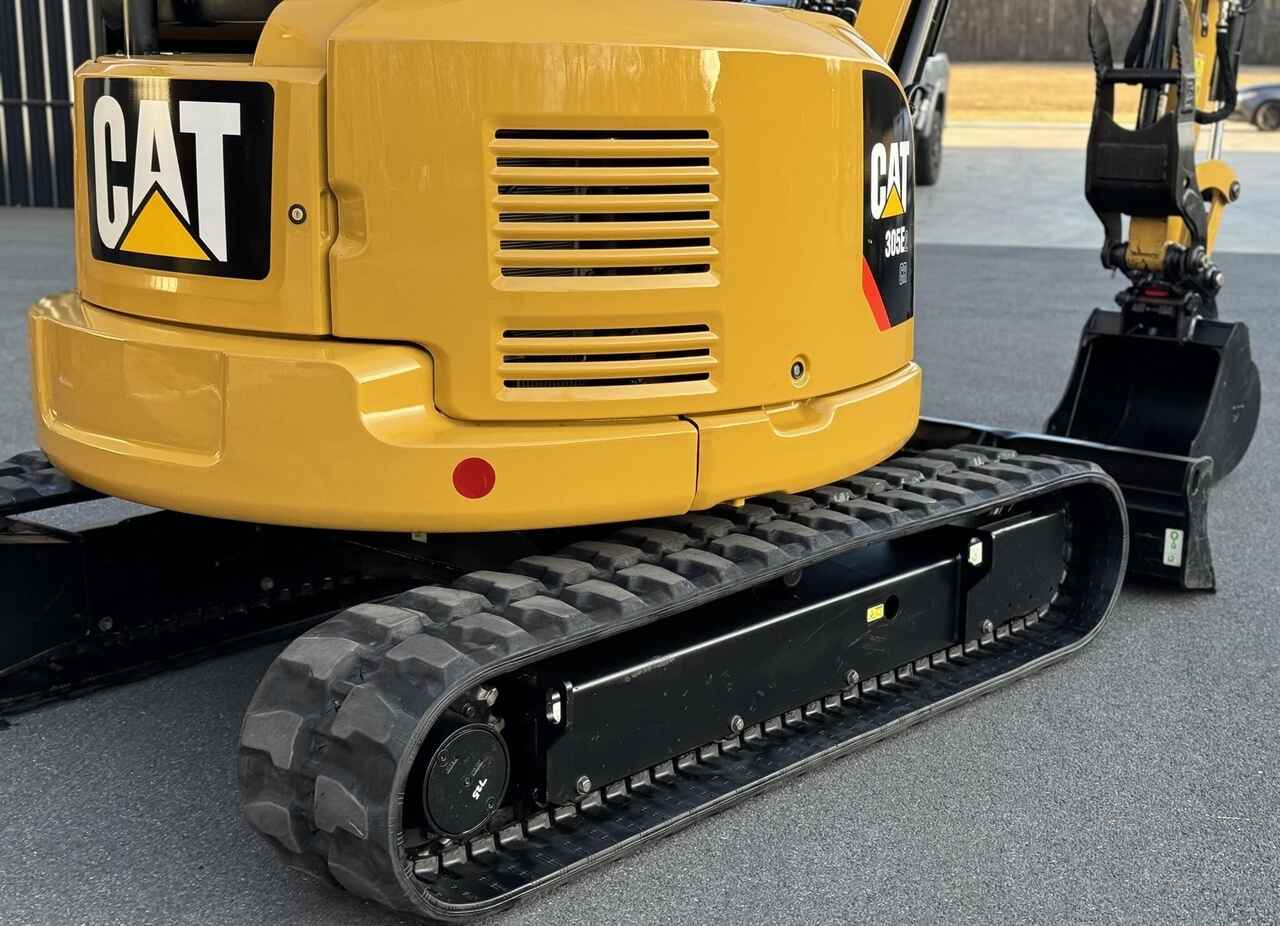

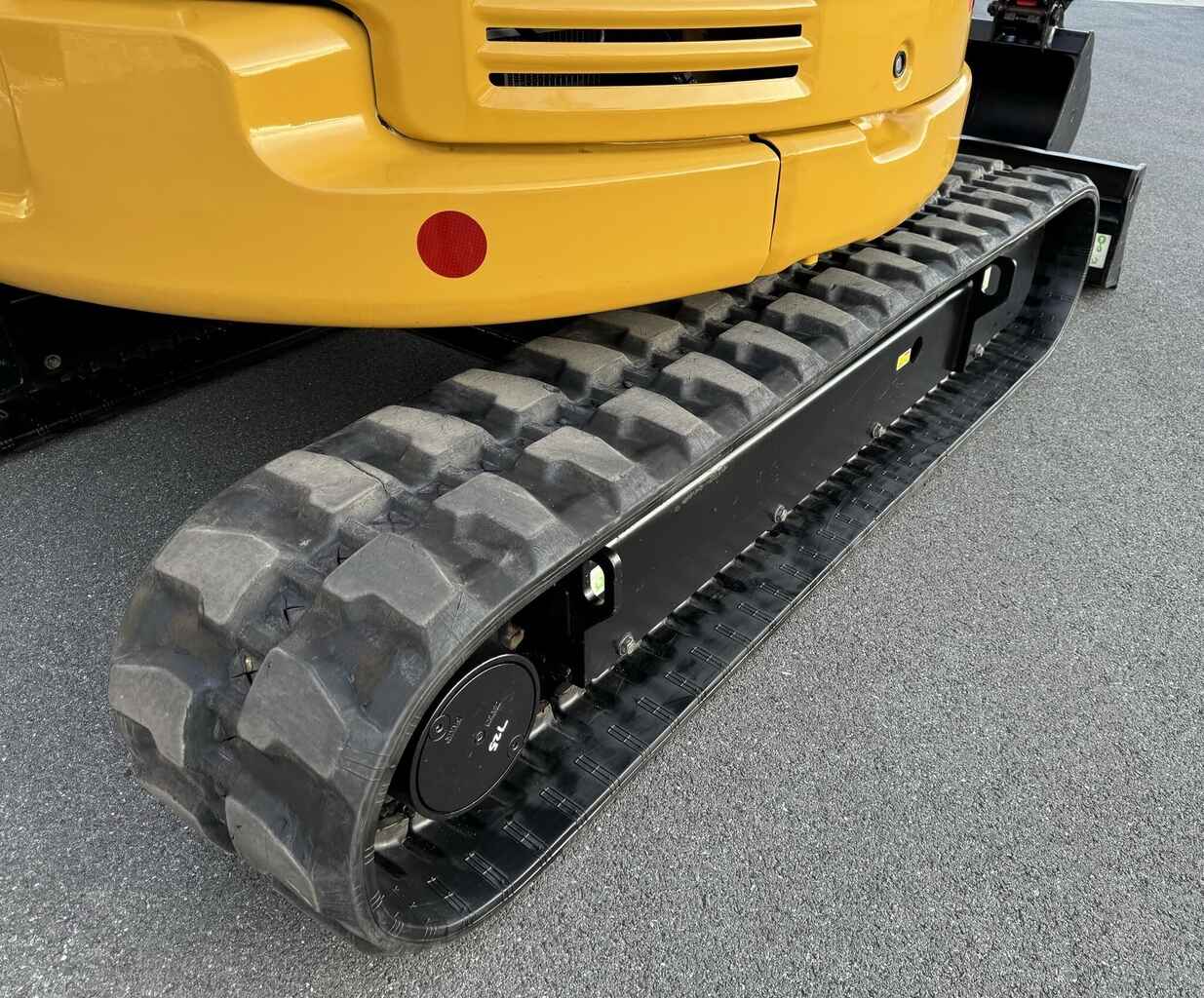

Undercarriage & Track System:
- Track Type: Center Flange
- Track Shoe Width: 16 in
- Carrier Rollers: 1
- Track Rollers: 4

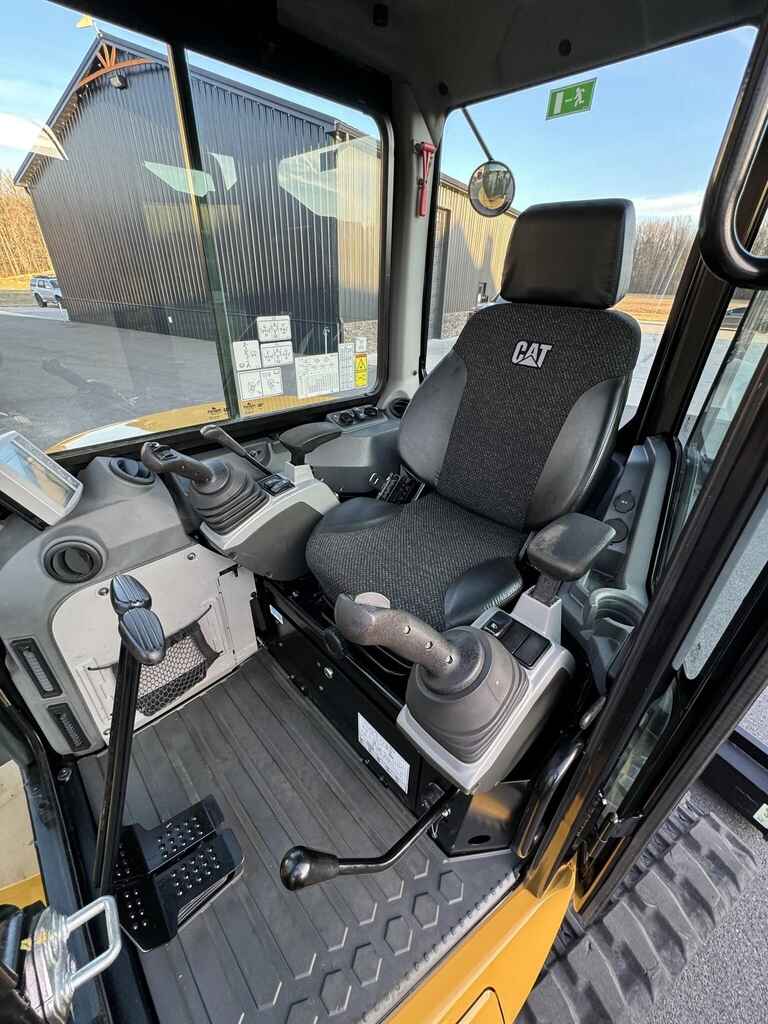

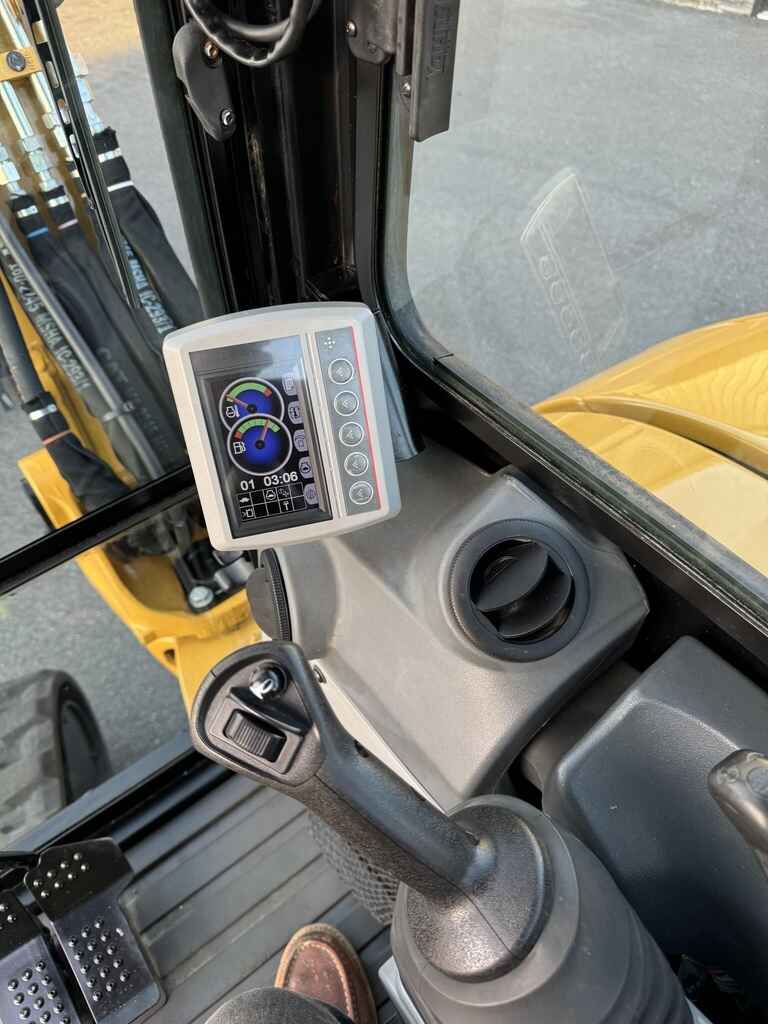

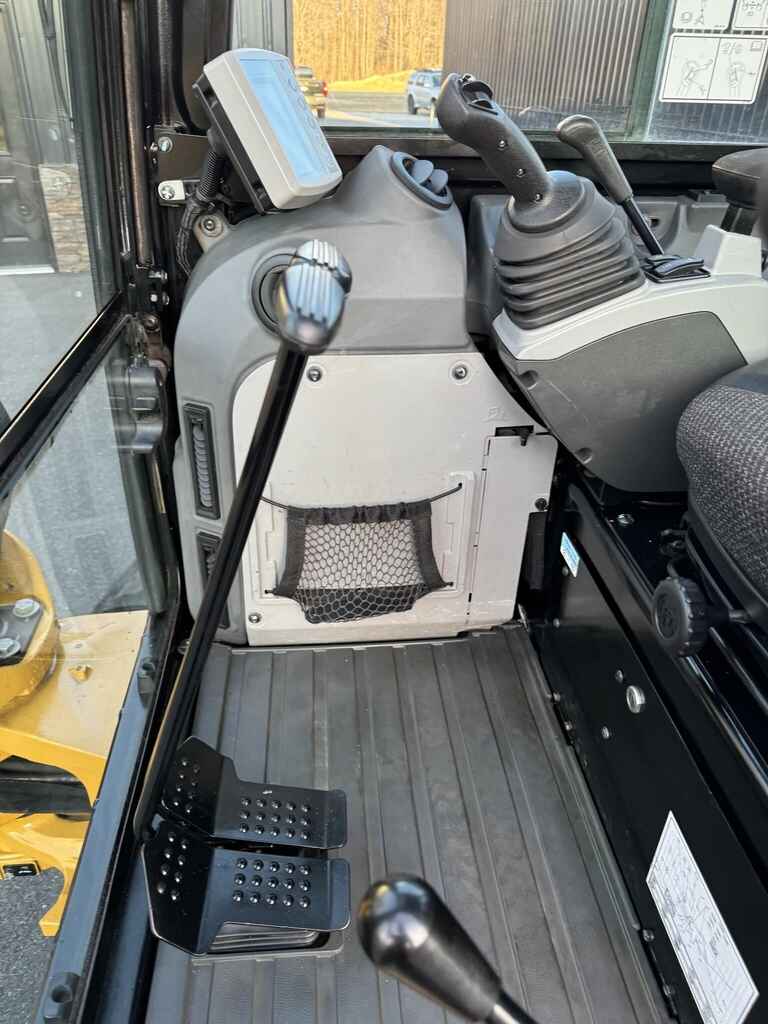

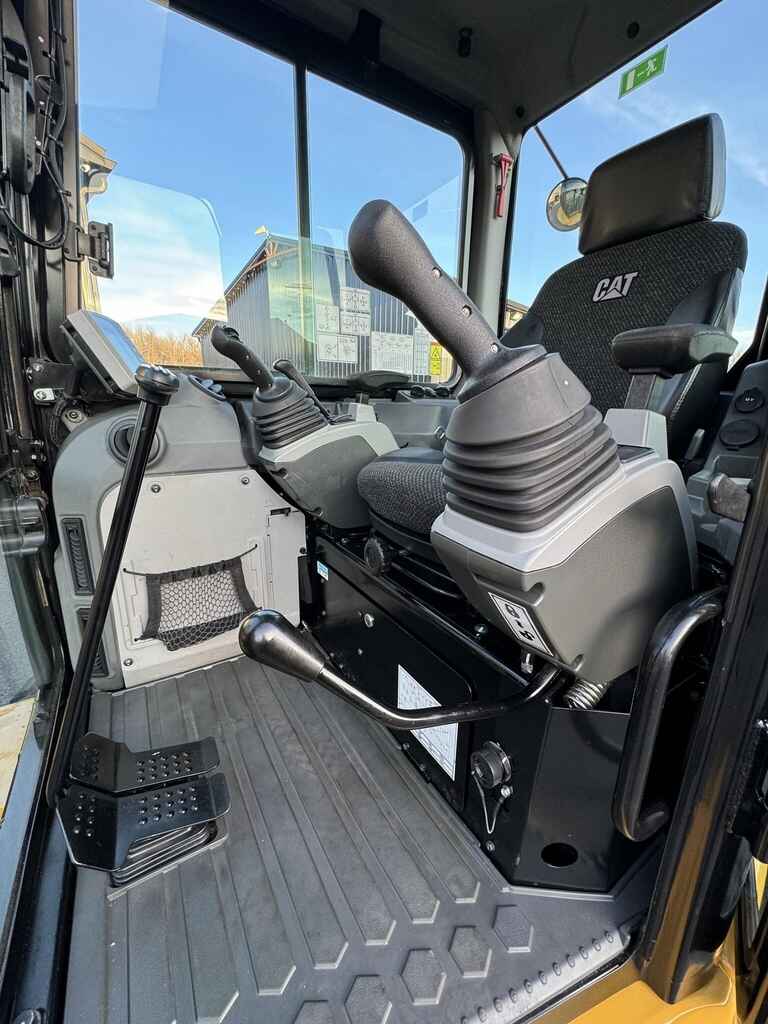

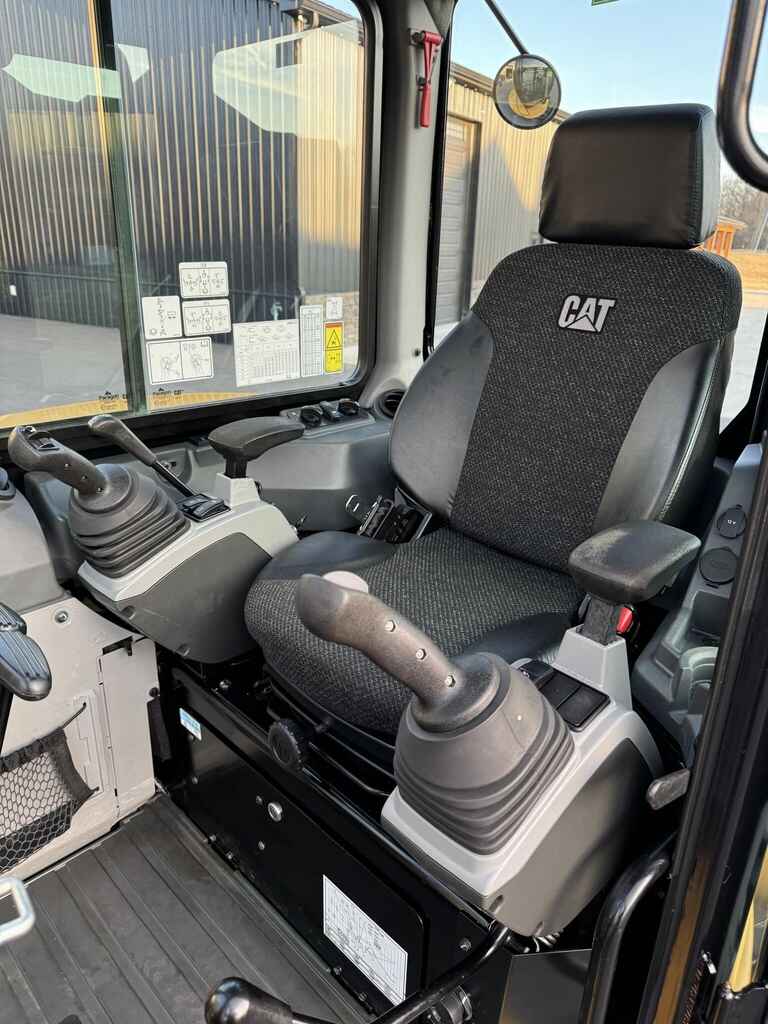

Operator & Safety Features:
- ROPS Certified (ISO 12117-2)
- TOPS Certified (ISO 12117)
- Cab with Air Conditioning
- Automatic Swing Brake
- Hydraulic Release System
Blade Dimensions & Capabilities:
- Blade Width: 6.5 ft
- Blade Height: 14.8 in
- Maximum Blade Lift Height: 15.9 in
- Maximum Blade Dig Depth: 21.9 in
Lift Capacities (At Ground Level)
Lift Point Radius: 9’8” (3000 mm)
- Blade Down – Front: 5,159 lbs
- Blade Up – Front: 3,197 lbs
- Blade Down – Side: 2,646 lbs
- Blade Up – Side: 2,359 lbs
Lift Point Radius: 13’1” (4000 mm)
- Blade Down – Front: 2,778 lbs
- Blade Up – Front: 1,676 lbs
- Blade Down – Side: 1,411 lbs
- Blade Up – Side: 1,257 lbs
