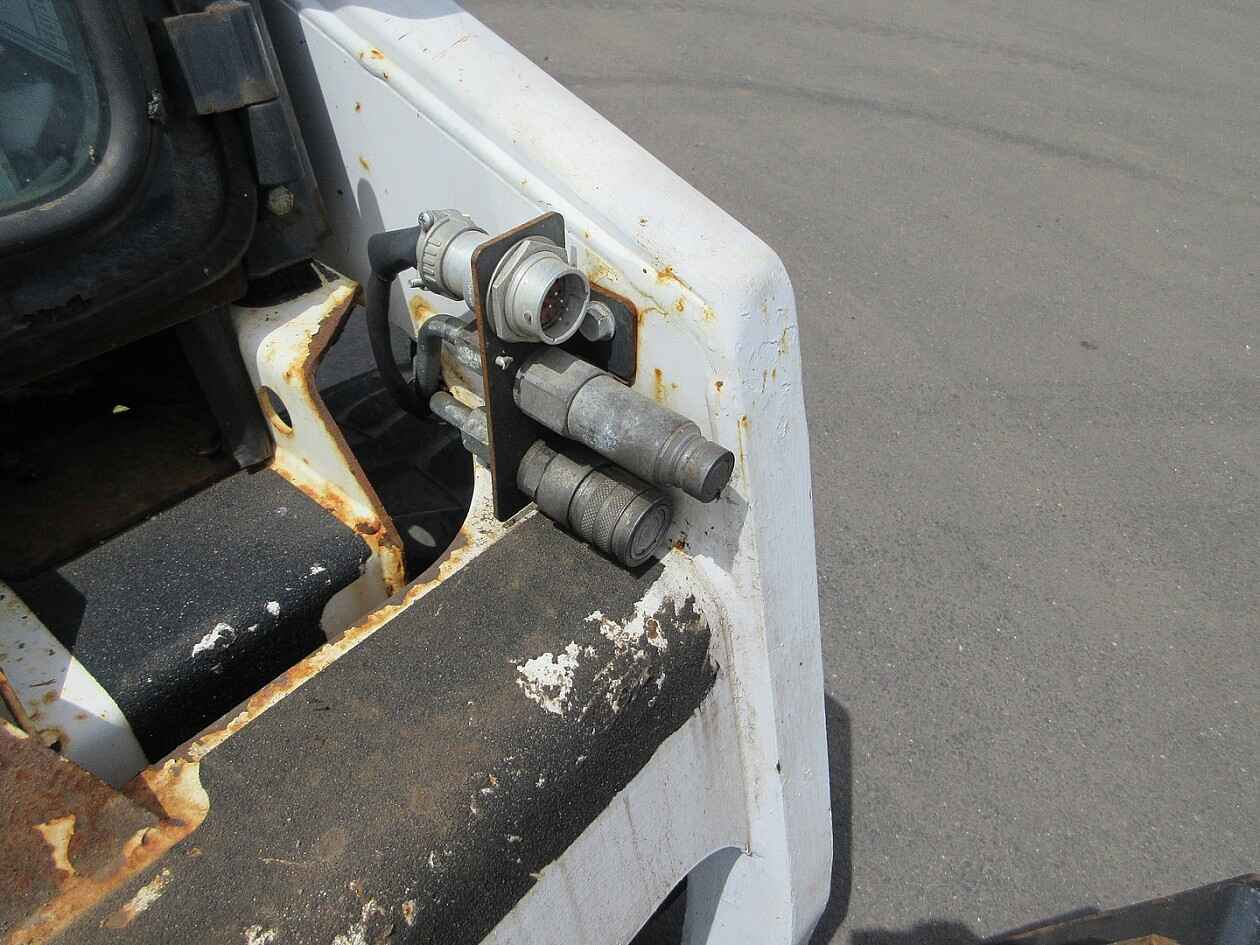

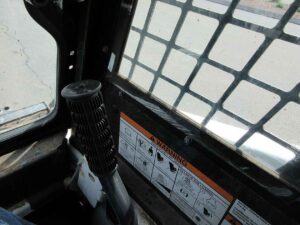

3 cyl Kubota diesel, cab with heat, aux hyd, aux electrical connector, GP bucket with BOCE, meter reads 866 hours, S/N B38V15528
Engine
-
Model: Kubota D1005-E4B-BC-3
-
Net Power: 23.5 hp (17.5 kW)
-
Gross Power: 24.8 hp (18.5 kW)
-
Displacement: 61.1 cu in (1 L)
-
Net Torque: 41.6 lb-ft @ 2,600 rpm
-
Fuel Capacity: 6.5 gal (24.6 L)
Weights
-
Operating Weight (with Cab): 2,845 lbs (1,290 kg)
-
Operating Weight (with Canopy): 2,892 lbs (1,311 kg)
Performance
-
Rated Operating Capacity: 760 lbs (345 kg)
-
Tipping Load: 1,519 lbs (689 kg)
-
Maximum Travel Speed: 6.1 mph (9.8 km/h)
-
Bucket Breakout Force: 1,422 lbs (645 kg)
Hydraulics
-
Main System – Maximum Flow: 9.8 GPM (37.1 L/min)
-
Hydraulic System Pressure (Standard): 3,000 psi (206.8 bar)
-
Auxiliary Hydraulics: Yes
Dimensions
-
Overall Length (without Attachment): 75.6 in (1,920 mm)
-
Overall Width (with Standard Tires): 35.5 in (902 mm)
-
Height to Top of Cab: 71.4 in (1,815 mm)
-
Ground Clearance: 5.5 in (140 mm)
-
Wheelbase: 28.4 in (721 mm)
