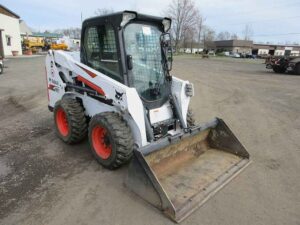

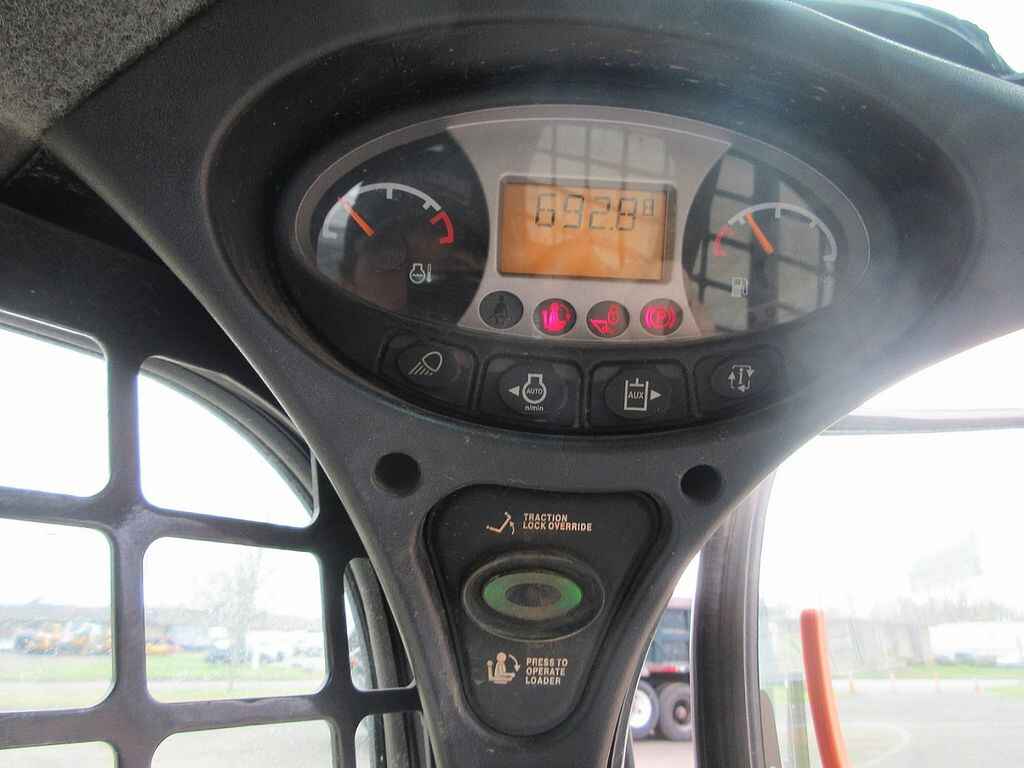

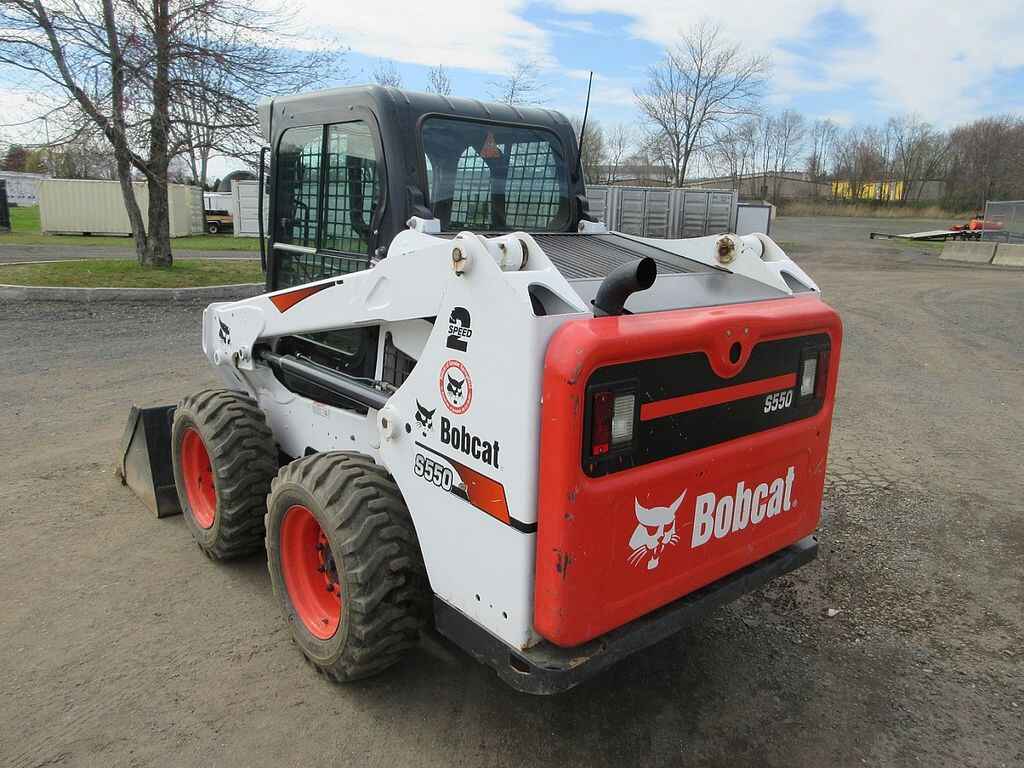

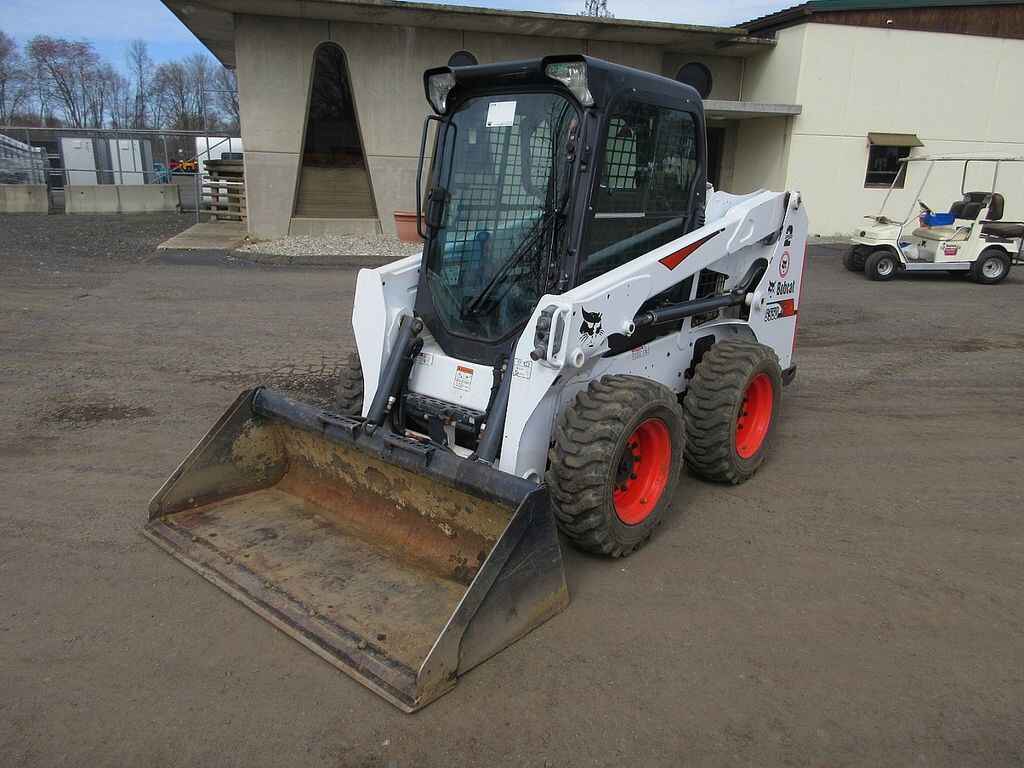

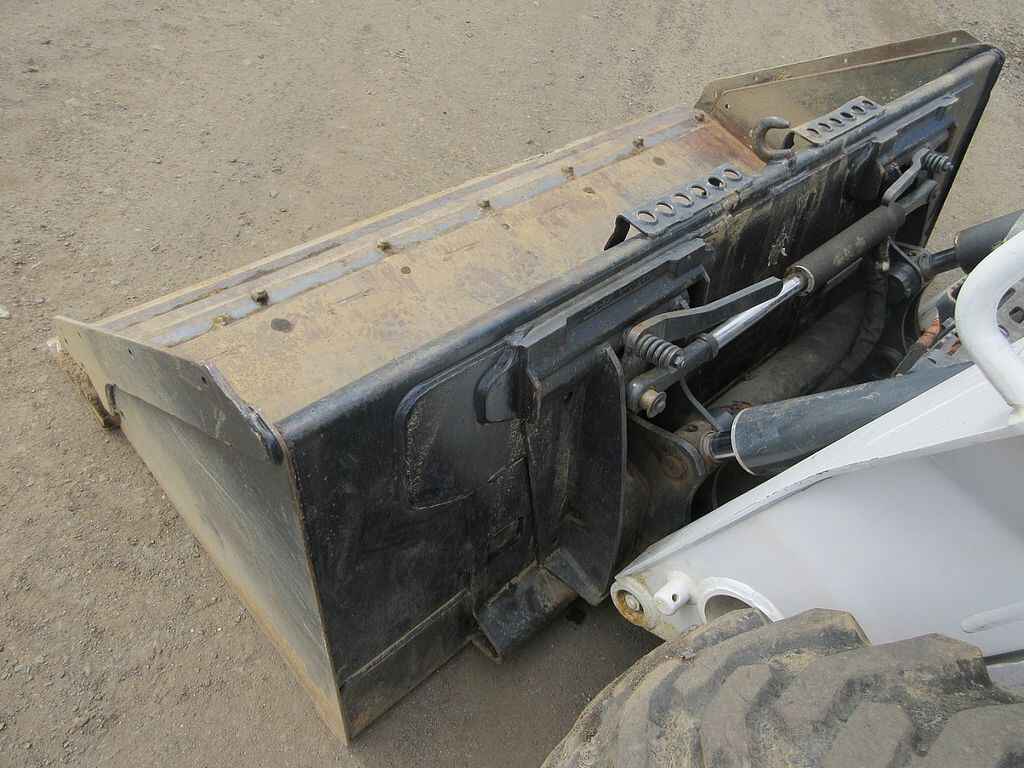

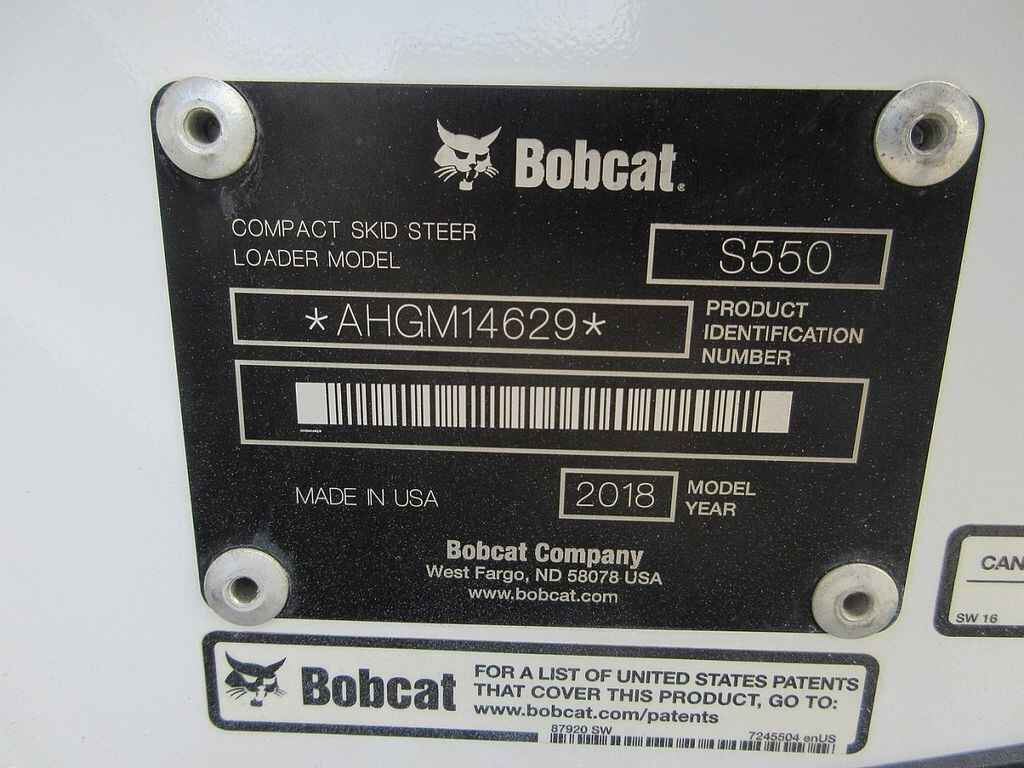

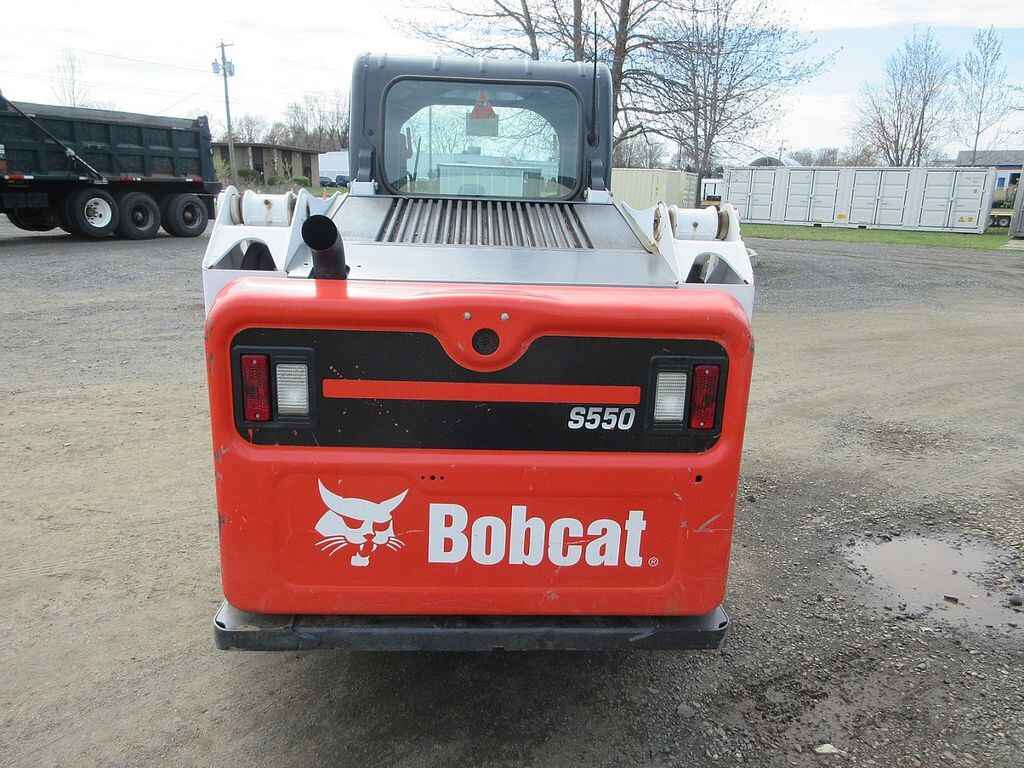

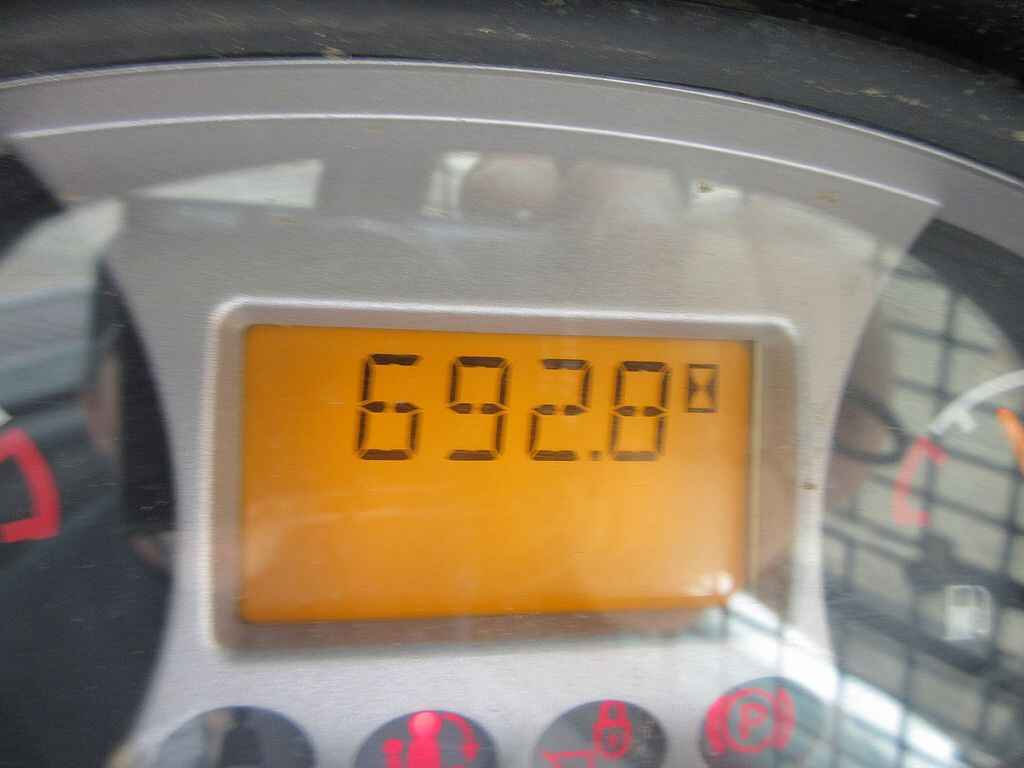

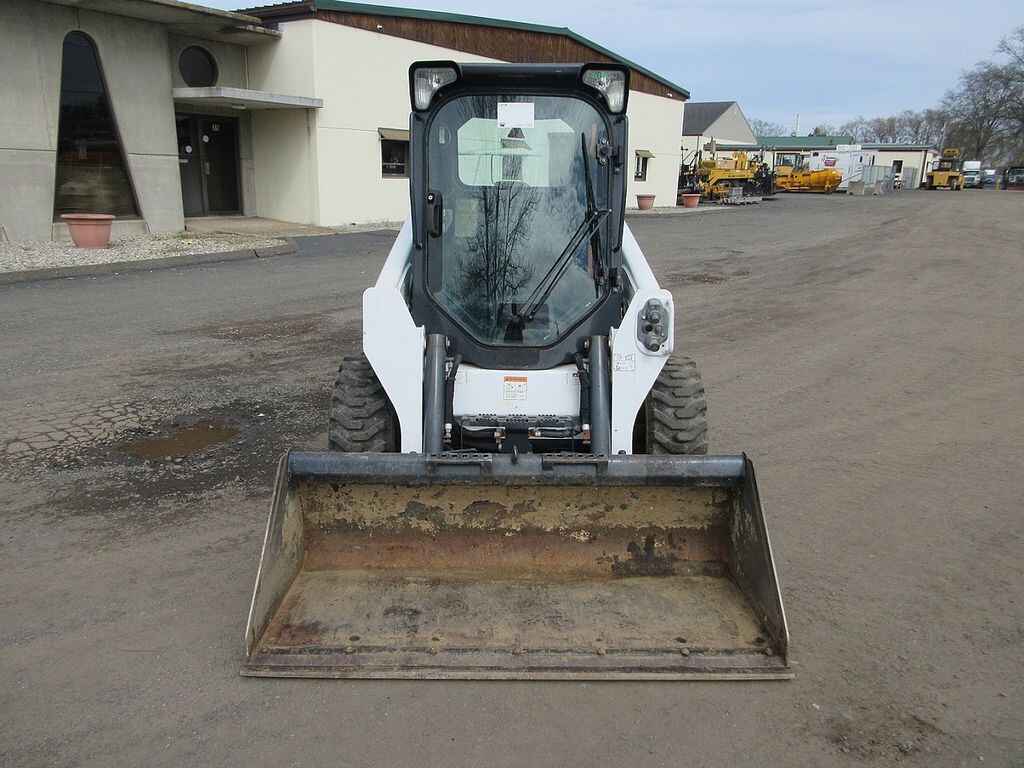

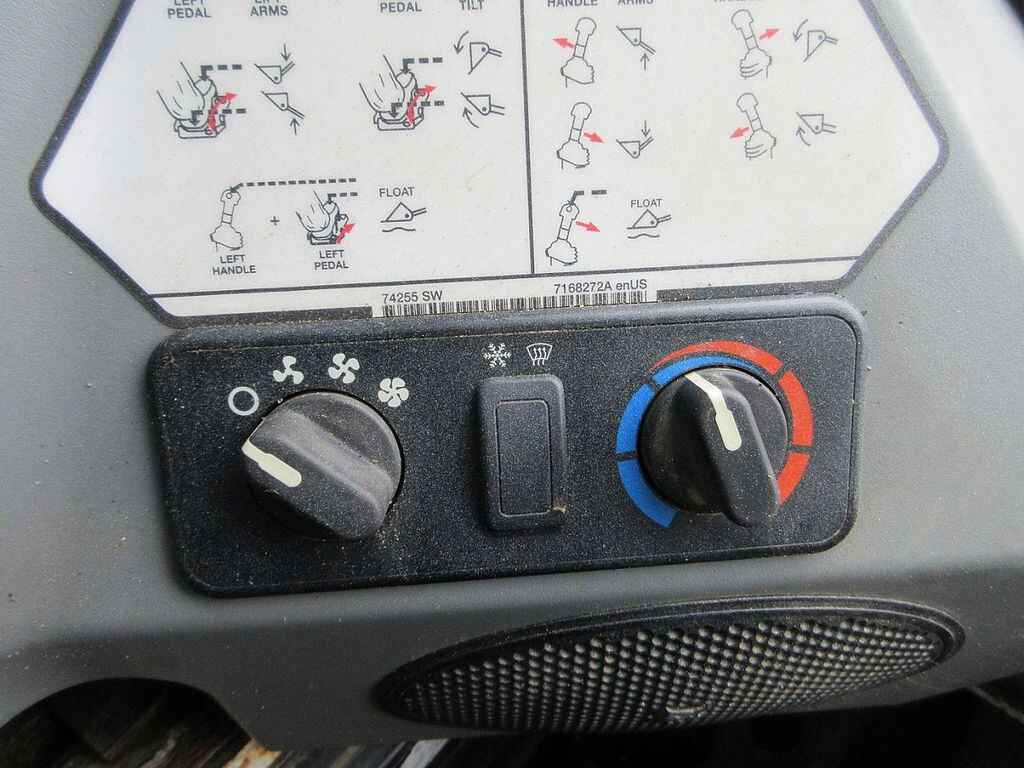

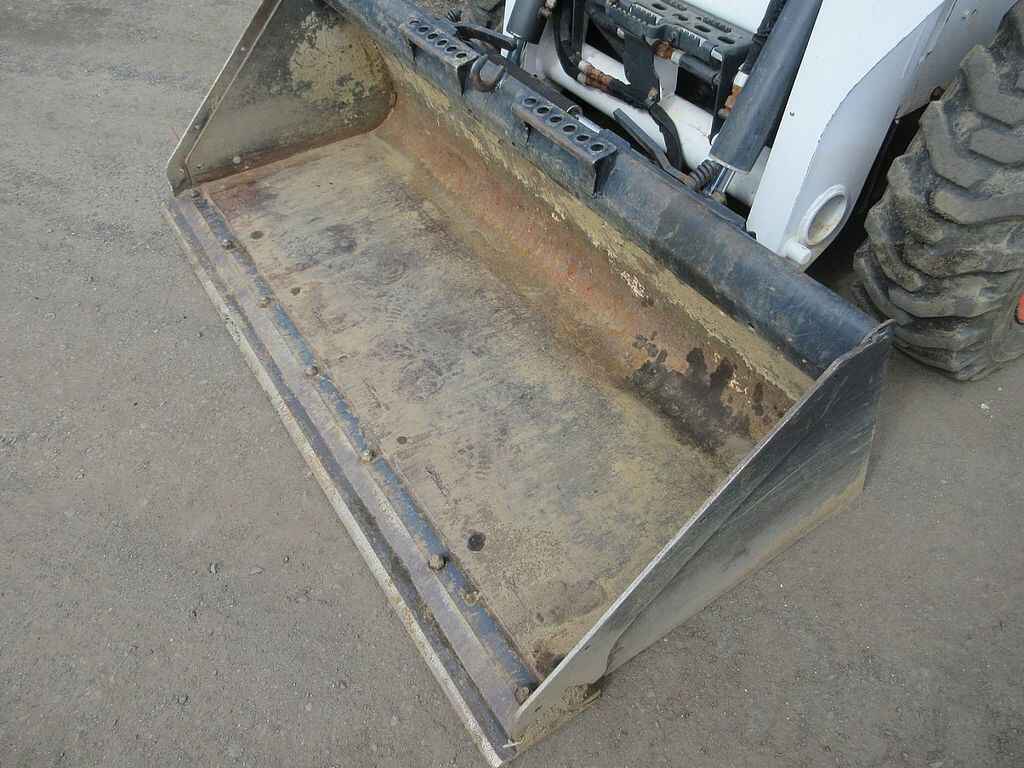

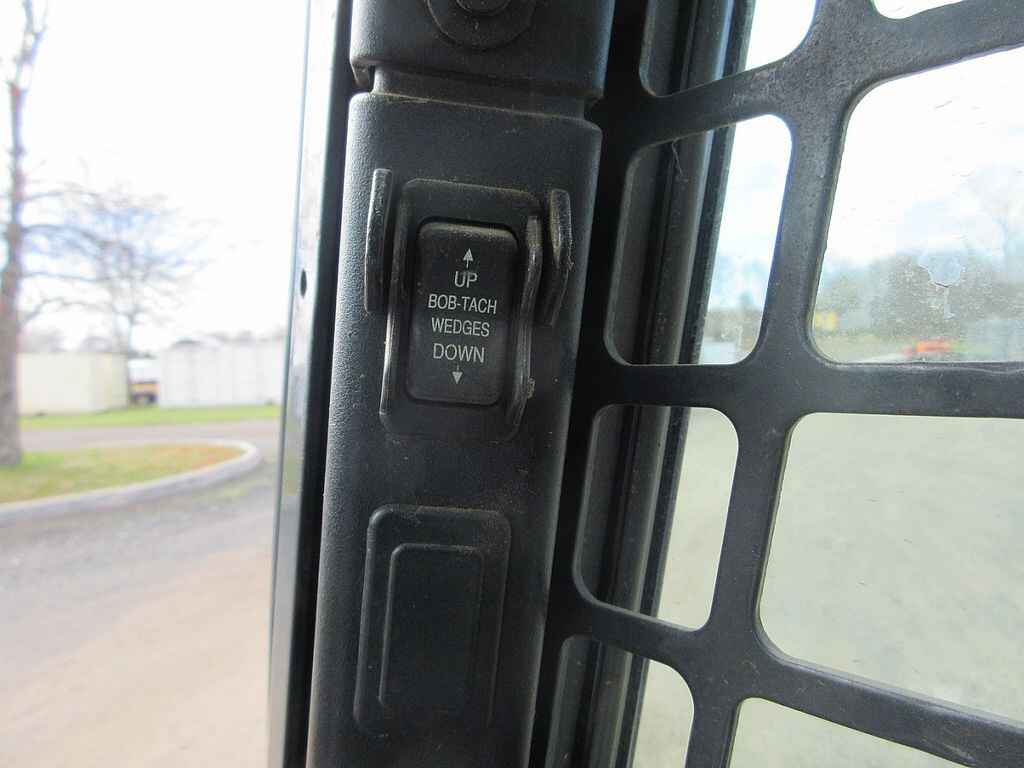

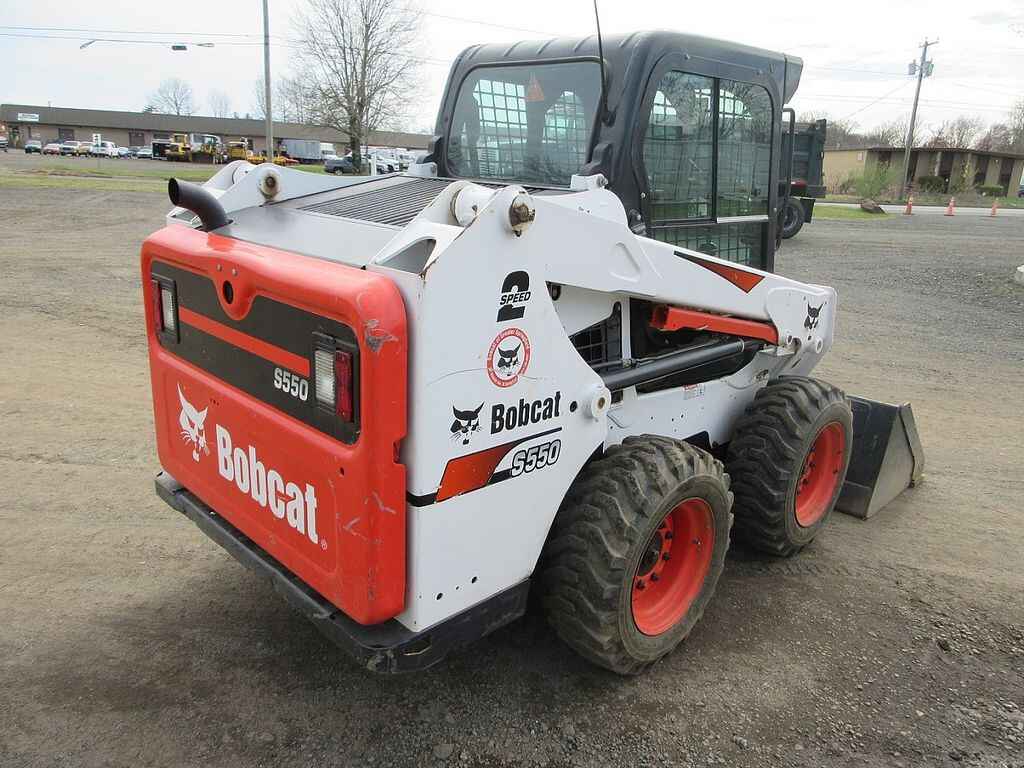

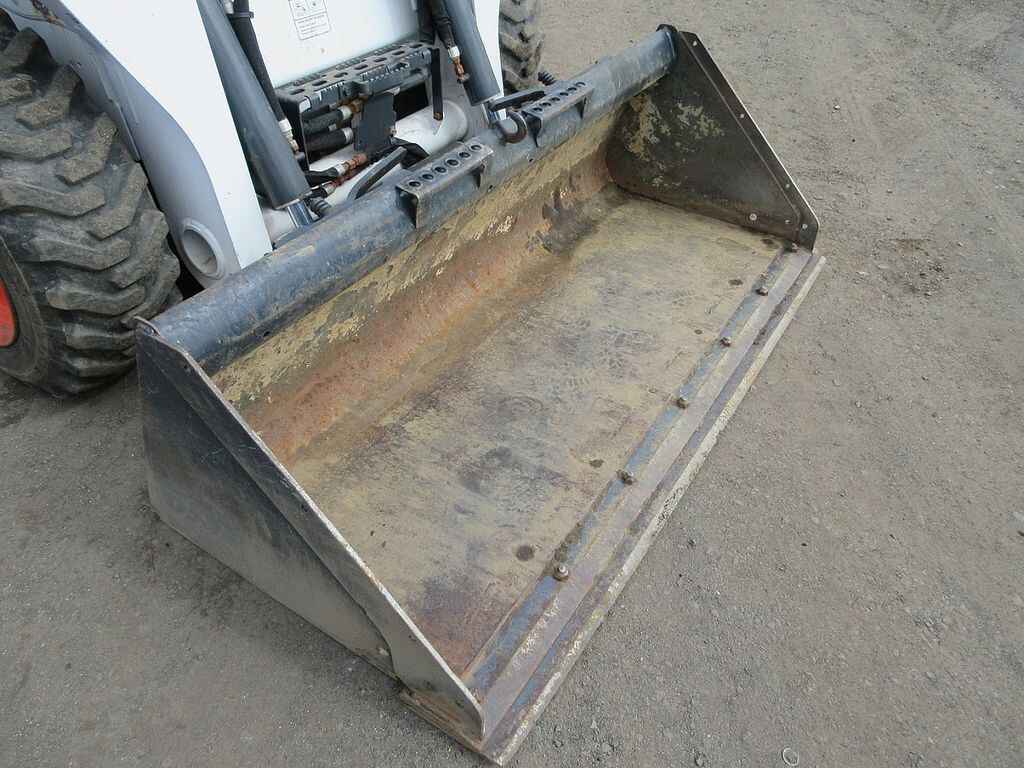

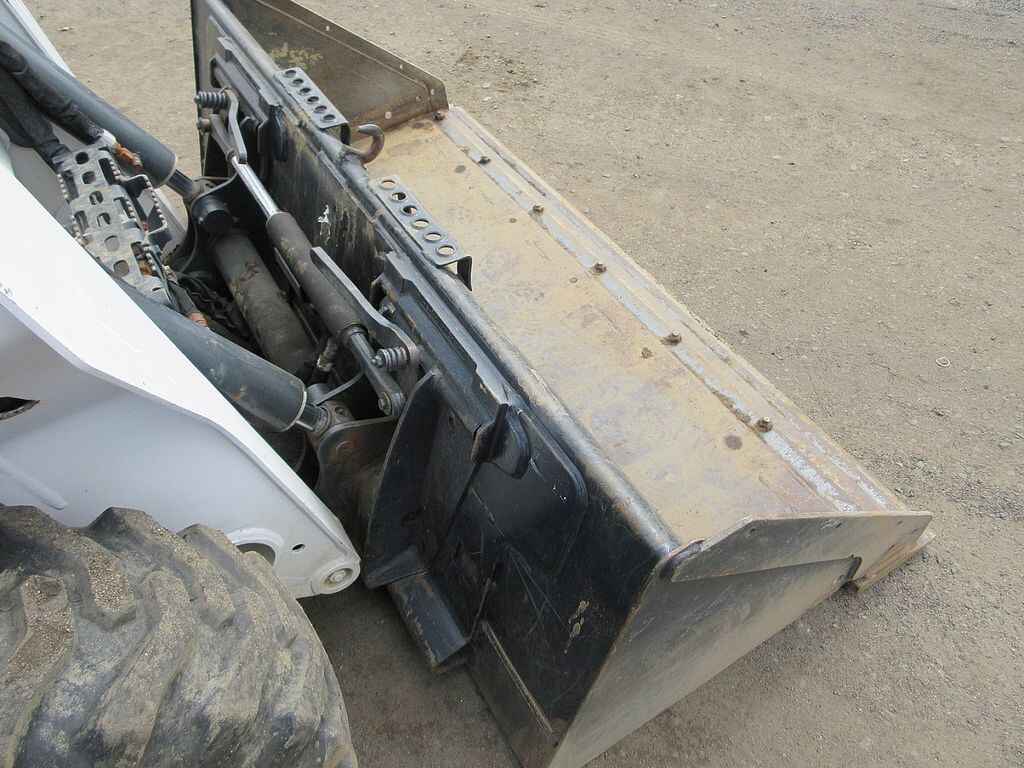

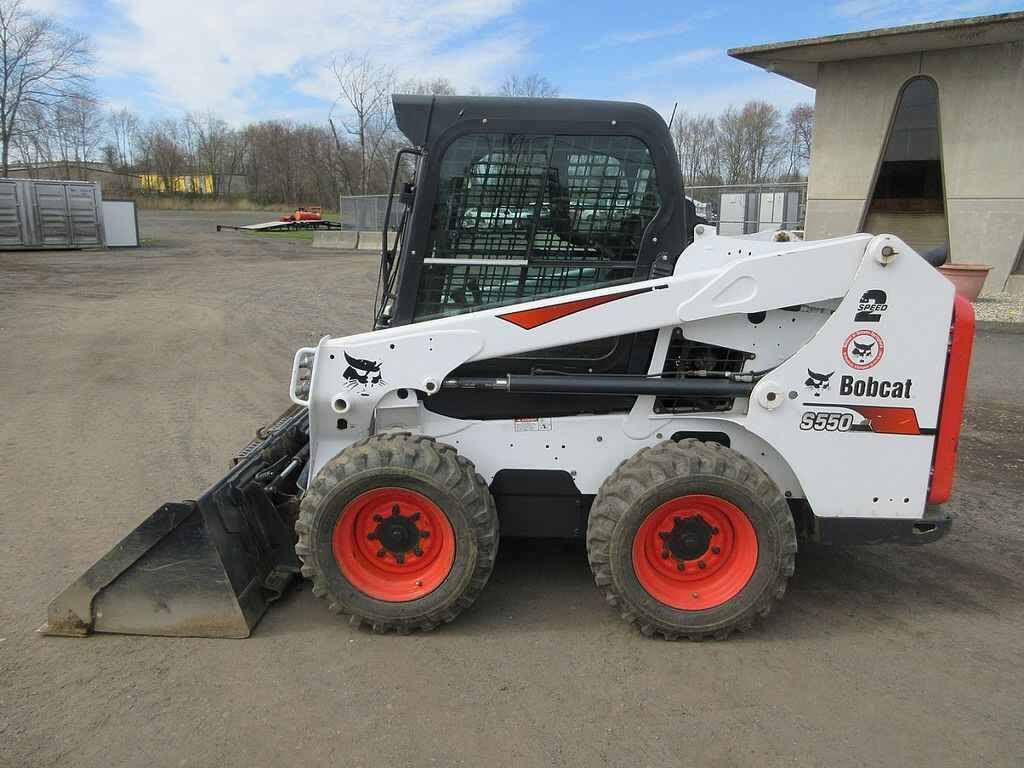

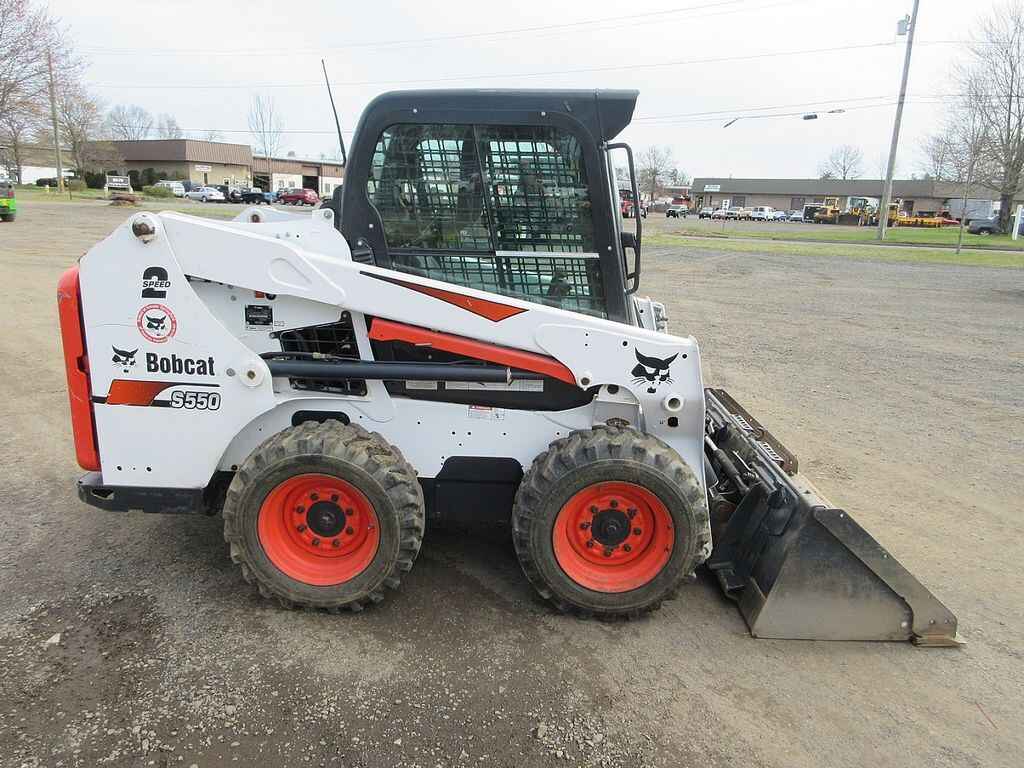

4 cyl turbo diesel, cab with heat, 2 speed travel, aux hyd, Power Bob-Tach, GP bucket with BOCE, meter reads 692 hours, S/N AHGM14629

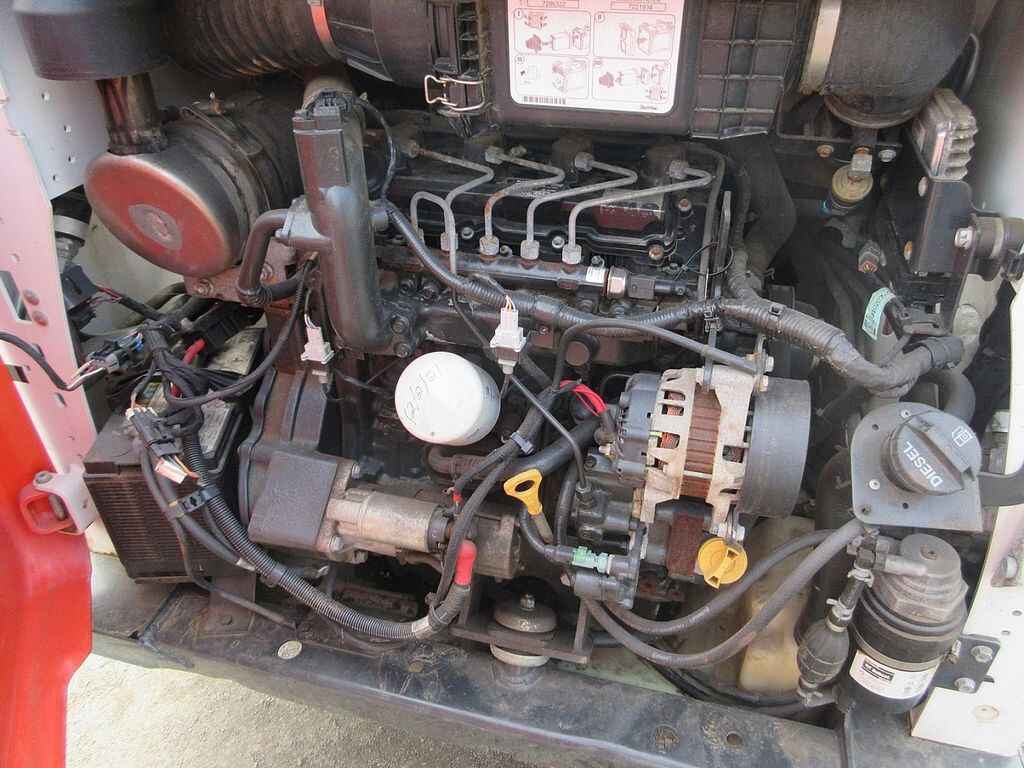

Engine
-
Engine Model: Bobcat 4-cylinder diesel
-
Gross Power: 70 hp (52 kW)
-
Net Power: 65 hp (48.5 kW)
-
Engine Type: 4-Cylinder, Diesel
-
Engine Displacement: 168 cu in (2.75 L)
-
Rated Engine Speed: 2,300 rpm
-
Fuel Tank Capacity: 24.5 gal (92.8 L)
-
Cooling System Capacity: 3.8 gal (14.4 L)
-
Hydraulic Tank Capacity: 13.5 gal (51 L)
Dimensions
-
Operating Weight: 7,840 lbs (3,555 kg)
-
Length (with bucket): 11.2 ft (3,413 mm)
-
Width (with bucket): 5.3 ft (1,616 mm)
-
Height to Top of Cab: 6.3 ft (1,915 mm)
-
Ground Clearance: 8.0 in (203 mm)
-
Width Over Tires: 5.3 ft (1,616 mm)
-
Wheelbase: 3.3 ft (1,004 mm)
-
Length Without Bucket: 8.3 ft (2,531 mm)
-
Height to Bucket Pin: 10.5 ft (3,174 mm)
-
Rear Overhang: 4.4 ft (1,336 mm)
Performance
-
Rated Operating Capacity: 1,750 lbs (794 kg)
-
Tipping Load: 3,500 lbs (1,588 kg)
-
Lift Height: 10.5 ft (3,174 mm)
-
Max Reach at Full Lift Height: 3.1 ft (948 mm)
-
Max Reach with Bucket: 2.1 ft (635 mm)
-
Max Dump Height: 8.4 ft (2,561 mm)
-
Dump Angle: 40°
-
Bucket Rollback (at ground): 30°
-
Rollback at Maximum Lift Height: 92°
-
Travel Speed (Low): 5.7 mph (9.2 km/h)
-
Travel Speed (High): 11.6 mph (18.7 km/h)
-
Drawbar Pull: 4,700 lbs (2,130 kg)
-
Hydraulic Flow: 23.5 gal/min (89 L/min)
-
Hydraulic Pressure: 3,300 psi (22,950 kPa)
Hydraulic System
-
Auxiliary Hydraulic Flow (Standard): 23.5 gal/min (89 L/min)
-
Auxiliary Hydraulic Pressure: 3,300 psi (22,950 kPa)
-
Lift Cylinder Bore: 2.5 in (64 mm)
-
Tilt Cylinder Bore: 2.5 in (64 mm)
Undercarriage
-

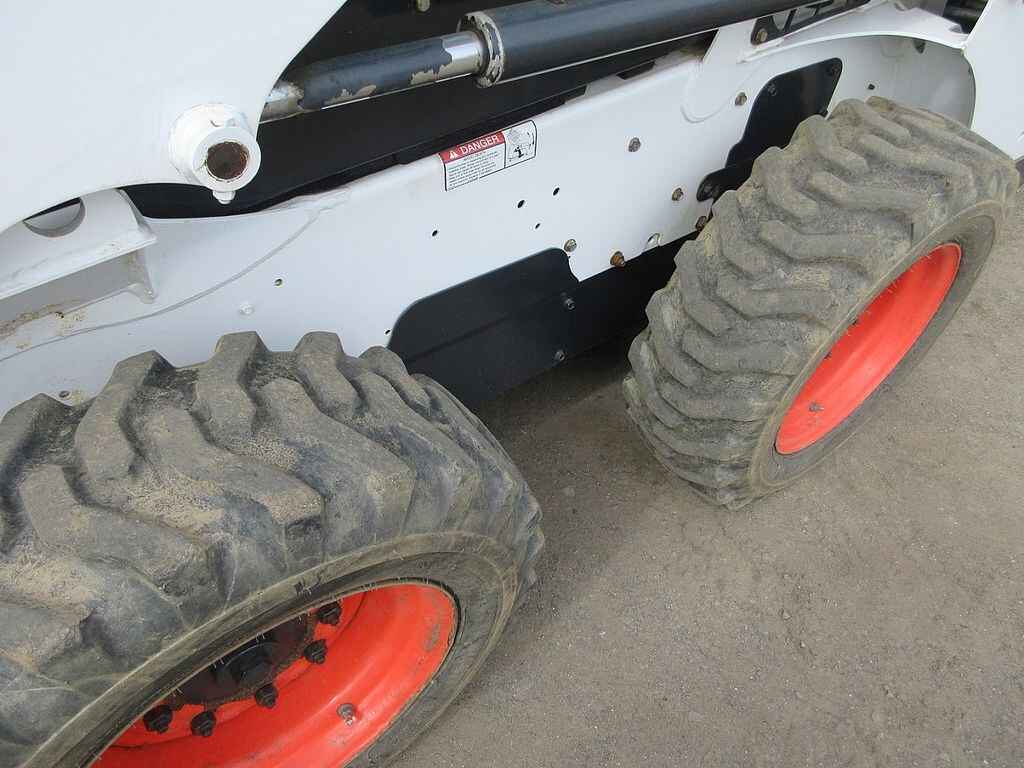

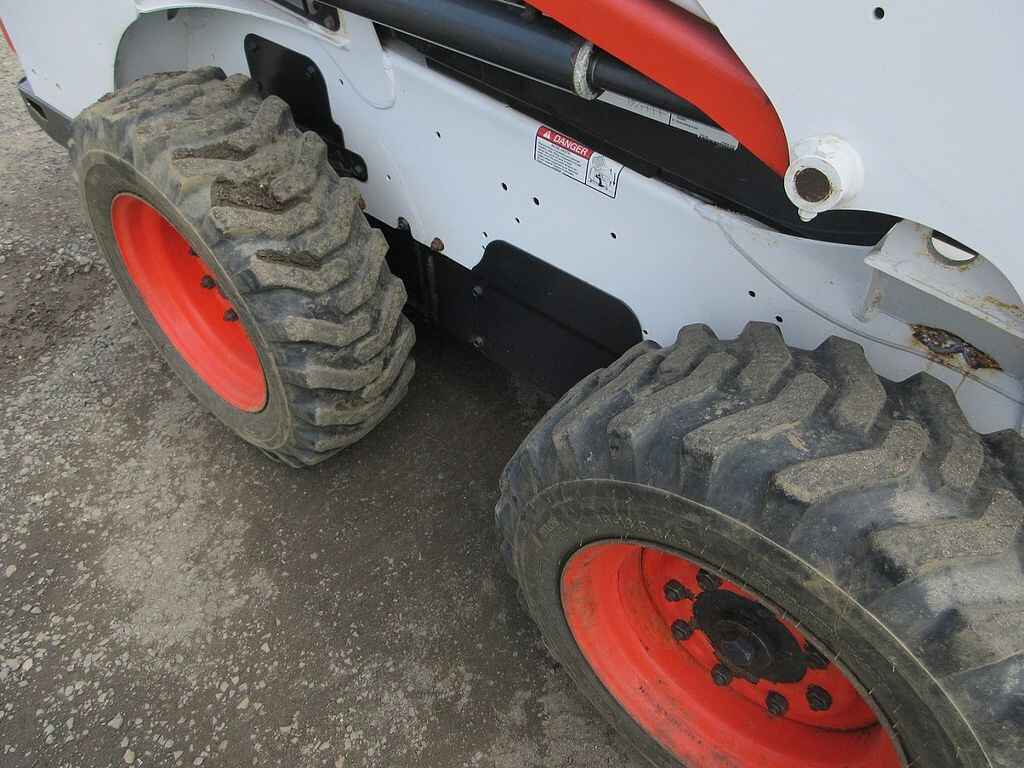

Tire Size: 10-16.5
-
Track Width: 12 in (305 mm)
-
Ground Pressure: 4.4 psi (30.4 kPa)
-
Number of Wheels: 4
-
Wheelbase: 3.3 ft (1,004 mm)
Capacities
-
Fuel Tank Capacity: 24.5 gal (92.8 L)
-
Hydraulic Reservoir Capacity: 13.5 gal (51 L)
-
Hydraulic System Fluid Capacity: 23.5 gal (89 L)
-
Engine Oil Capacity: 3.7 qt (3.5 L)
Cab Features
-
ROPS: ISO 3471:2008
-
FOPS: ISO 3449:2005 Level II
-

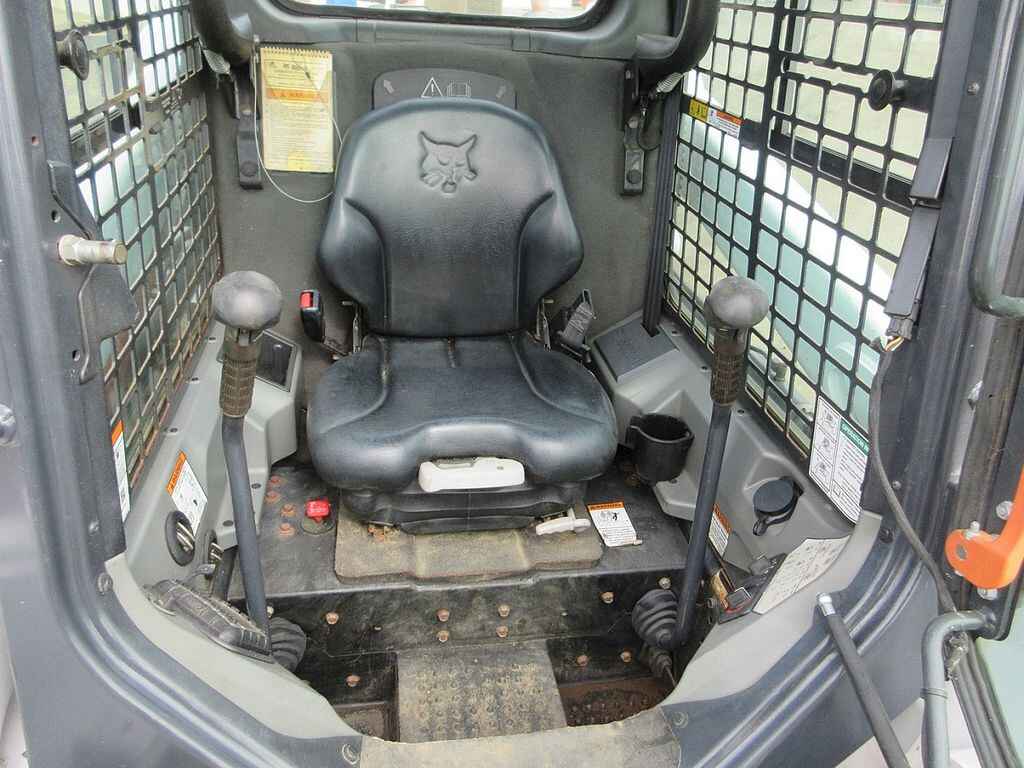

Operator Cab: Standard
-
Heating System: Optional
-
Air Conditioning: Optional
-
Joystick Controls: Standard
-
Seats: Adjustable
-
Cab Mounting: Isolated
Brakes and Safety
-
Brakes: Hydraulic wet disc brakes
-
Parking Brake: Automatic
-
Safety Features:
-
Backup alarm
-
Seat belt interlock
-
Roll-over protection (ROPS)
-
Additional Features
-
Lift Arm Path: Vertical
-

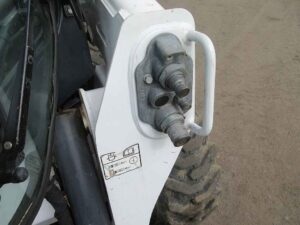

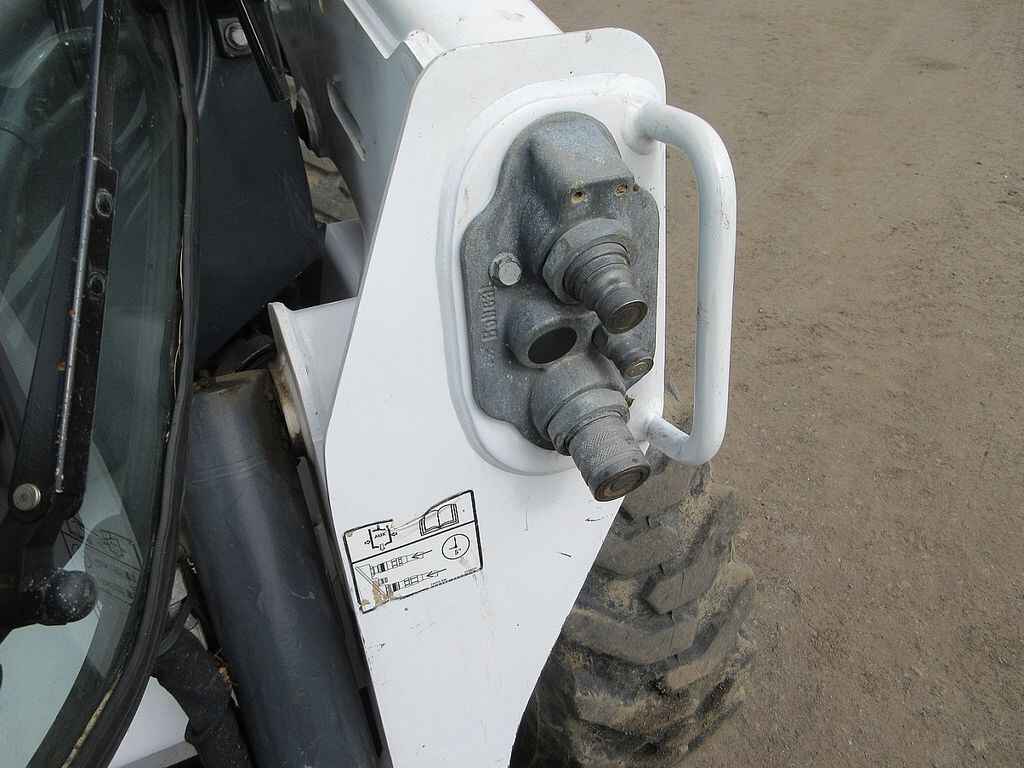

Auxiliary Hydraulics: Standard
-
Engine Shutdown: Optional
-
Machine Control System: Optional
