PRICE FIRM NO TAX OR FEES
Just completely cleaned, Serviced, greased & looked over. Photos just taken and will send video upon request. Very nice machine and well kept.
– Only 1,273 Hours

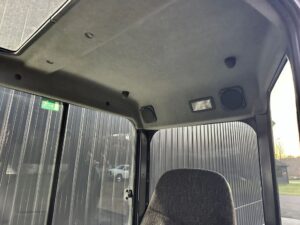

– Enclosed HEAT/AC/RADIO
– Hydraulic Quick attach
– 24” Tooth bucket
– Hydraulic Thumb
– 2 speed
– 50 Hp
– 10,900 Lbs
MACHINE IS READY TO WORK!
ENGINE SPECIFICATIONS
-
Model: Bobcat D24
-
Net Power: 40.9 hp (30.5 kW)
-
Gross Power: 49.8 hp (37.1 kW)
-
Displacement: 146.5 in³ (2.4 L) (same as Cat C2.4 Turbo)
-
Net Torque: Not available
-
Fuel Capacity: 21.1 gal (80 L)
WEIGHTS
-
Operating Weight (with Cab): 10,677 lb (4,844 kg)
-
Operating Weight (with Canopy): Not available
PERFORMANCE
-
Dig Depth: 11.5 ft (3.51 m)
-
Max Dump Height: 12.5 ft (3.8 m)
-
Max Reach at Ground Level: 19.7 ft (6.0 m)
-
Maximum Travel Speed: 3.1 mph (5.0 km/h)
-
Swing Speed: Not available
-
Bucket Breakout Force: 9,511 lbf (4,317 kgf)
-
Stick Breakout Force: Not available
HYDRAULICS
-
Main System – Maximum Flow: 20 gpm (75.7 L/min)
-
Hydraulic System Pressure (Standard): 3,045 psi (21,000 kPa)
-
Auxiliary Hydraulics: Standard with one-way and two-way flow
DIMENSIONS
-
Overall Length: 18 ft 3 in (5.56 m)
-
Overall Width: 6 ft 5 in (1.96 m)
-
Height to Top of Cab: 8 ft 2 in (2.50 m)
-
Tail Swing Radius: Minimal tail swing
-
Ground Clearance: Not available
TRACK SYSTEM
-
Track Width: 15.7 in (400 mm) (same as standard)
-
Track Length: Not available for Bobcat E50
