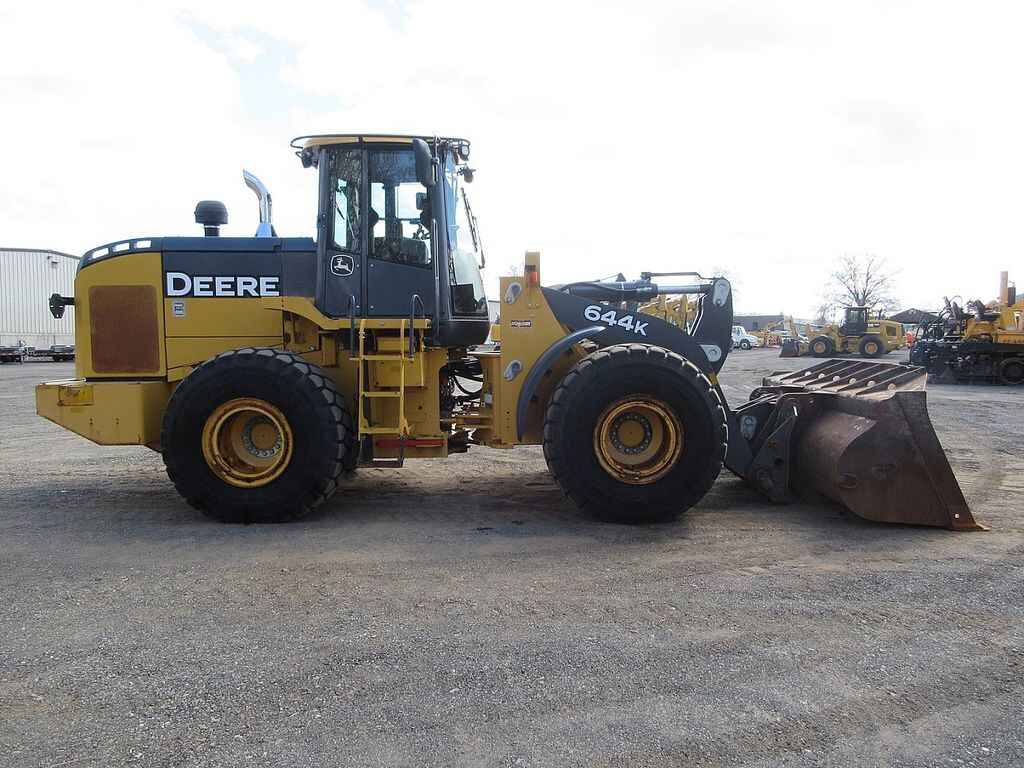

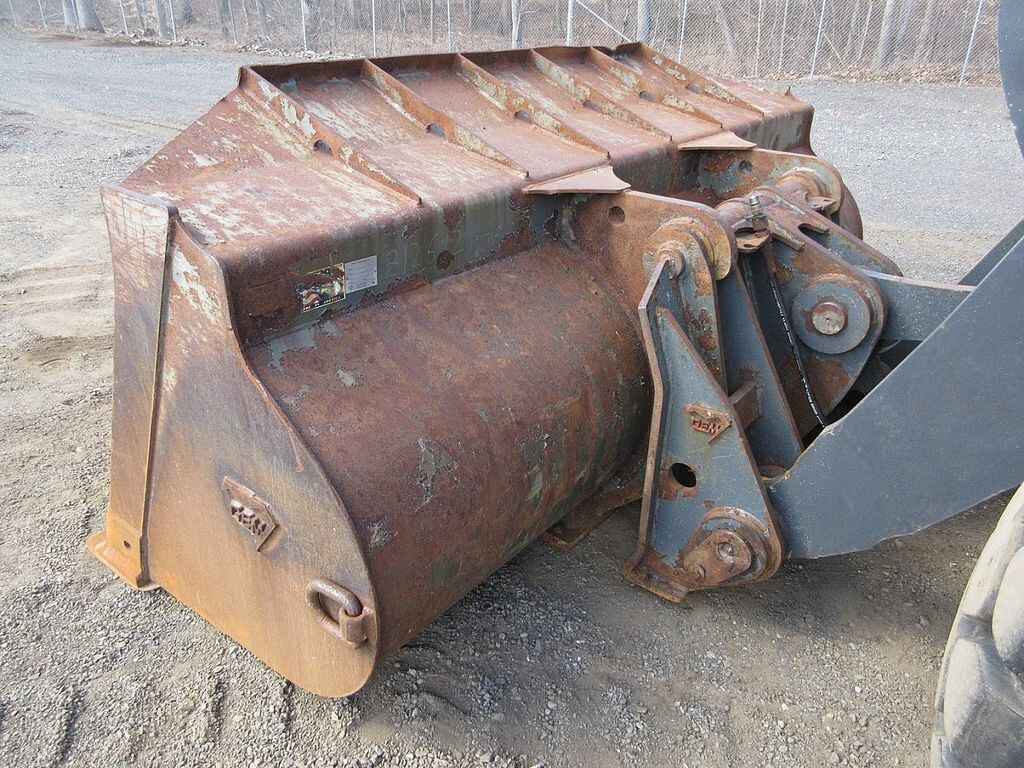

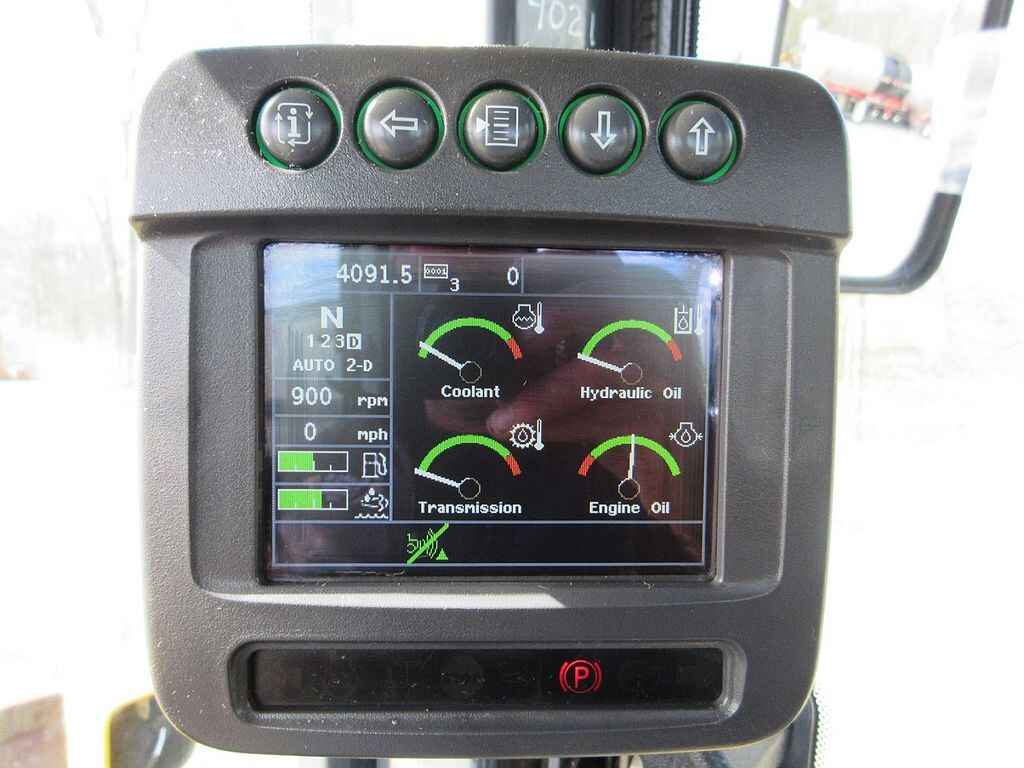

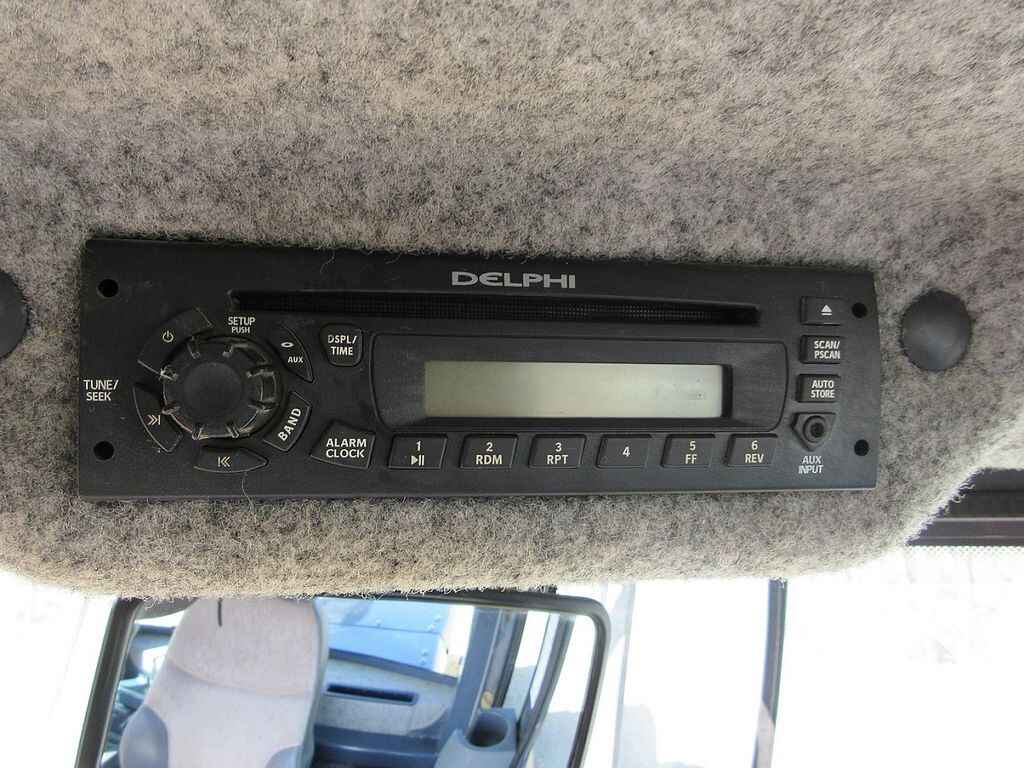

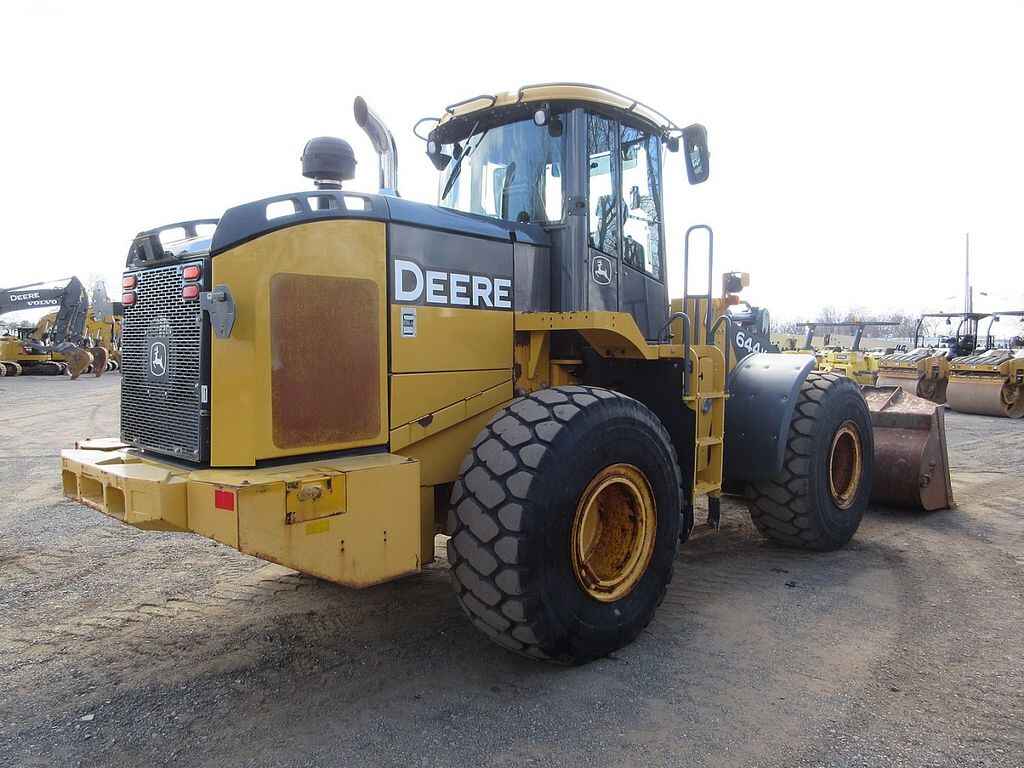

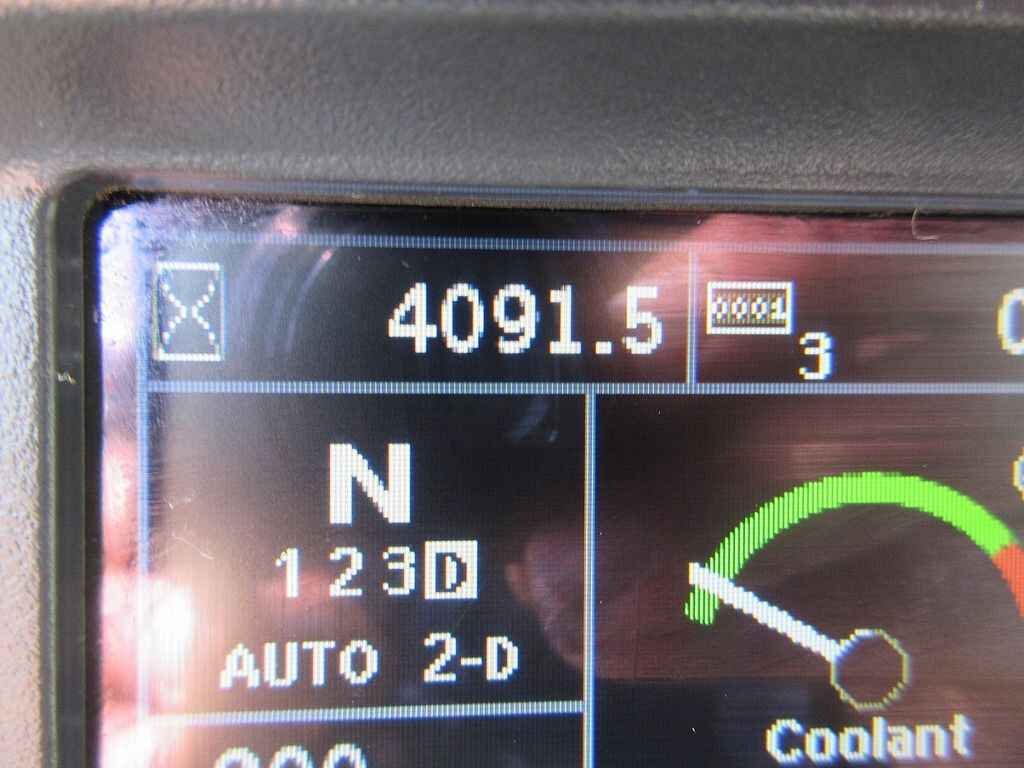

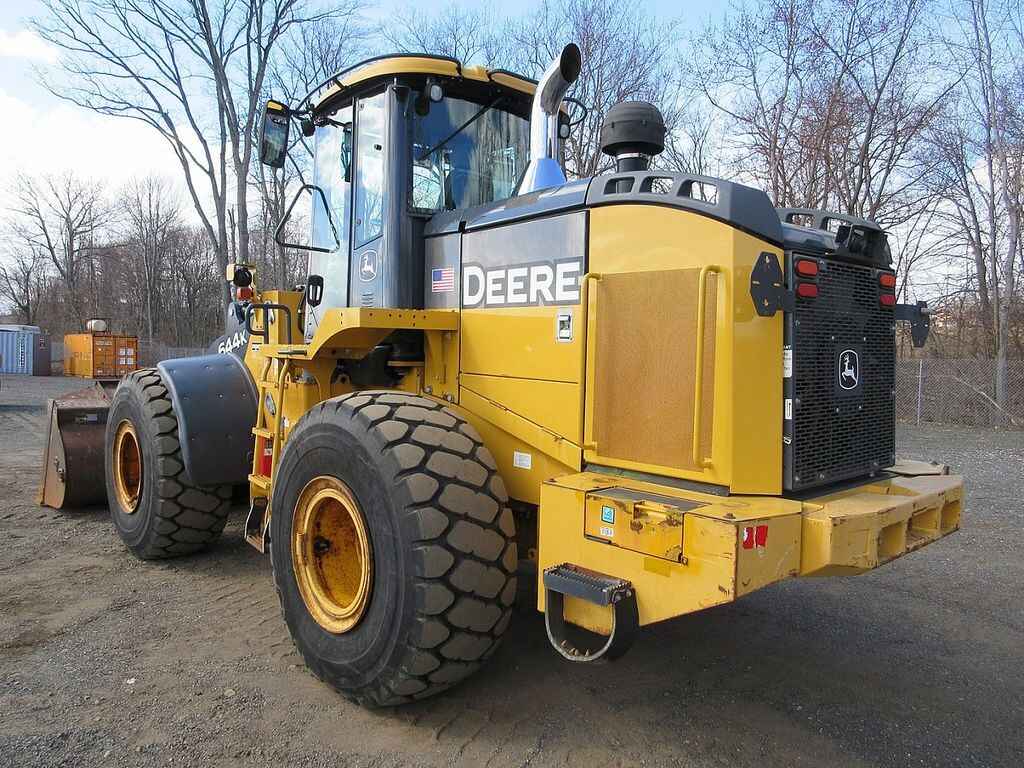

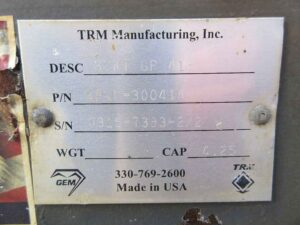

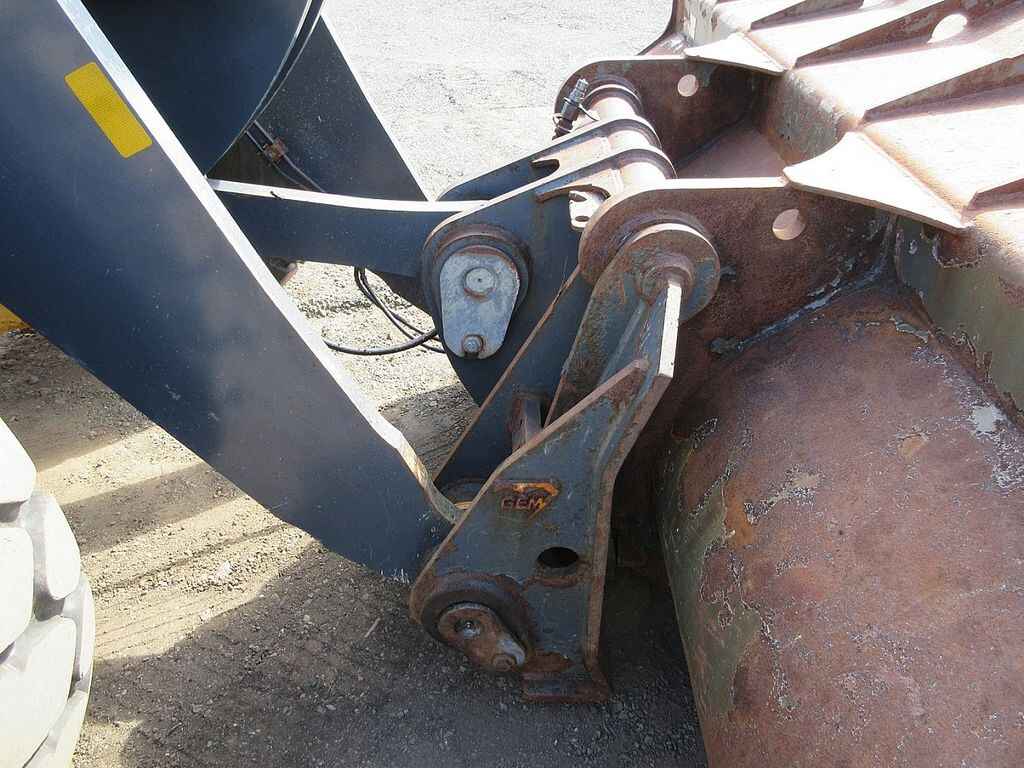

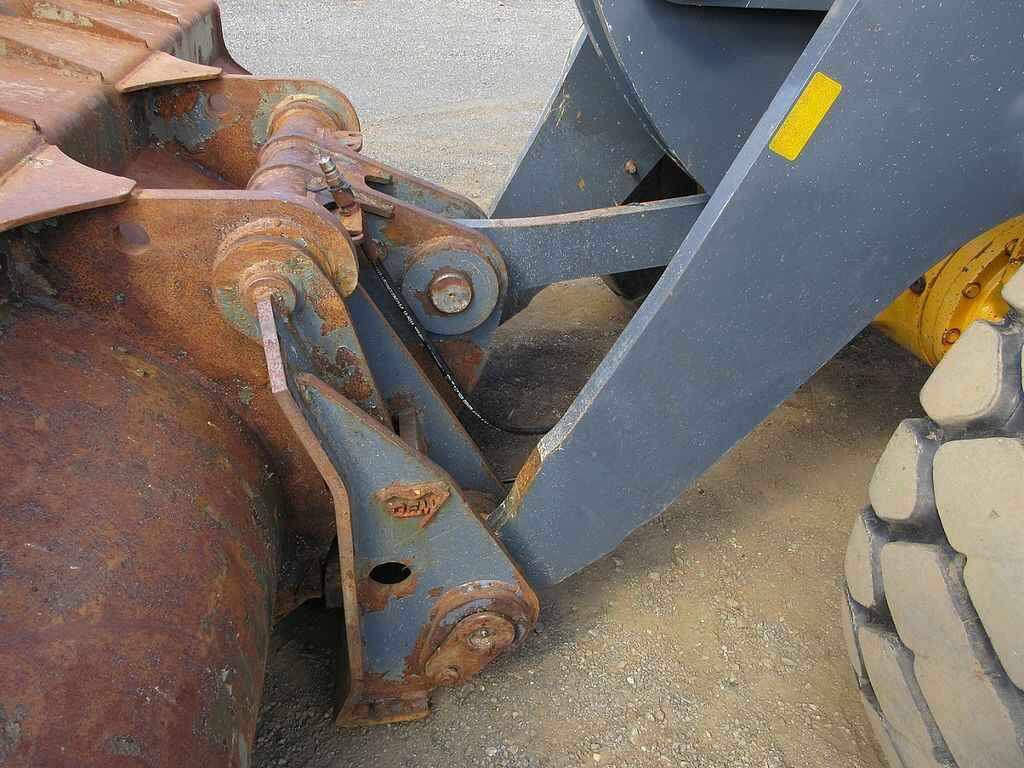

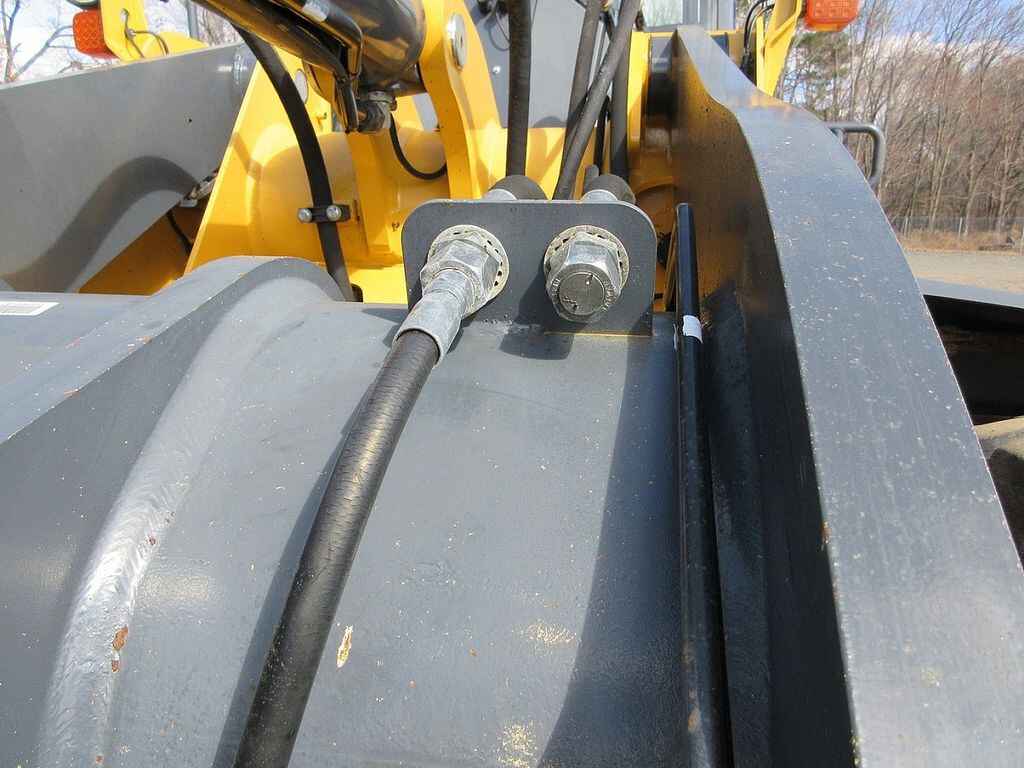

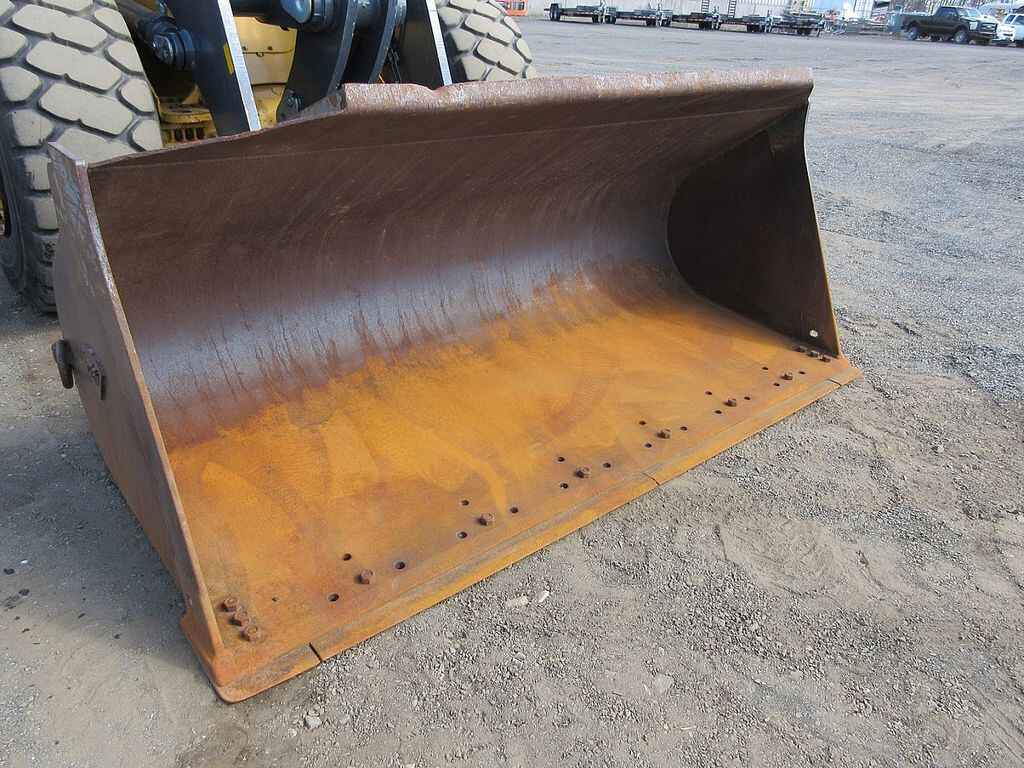

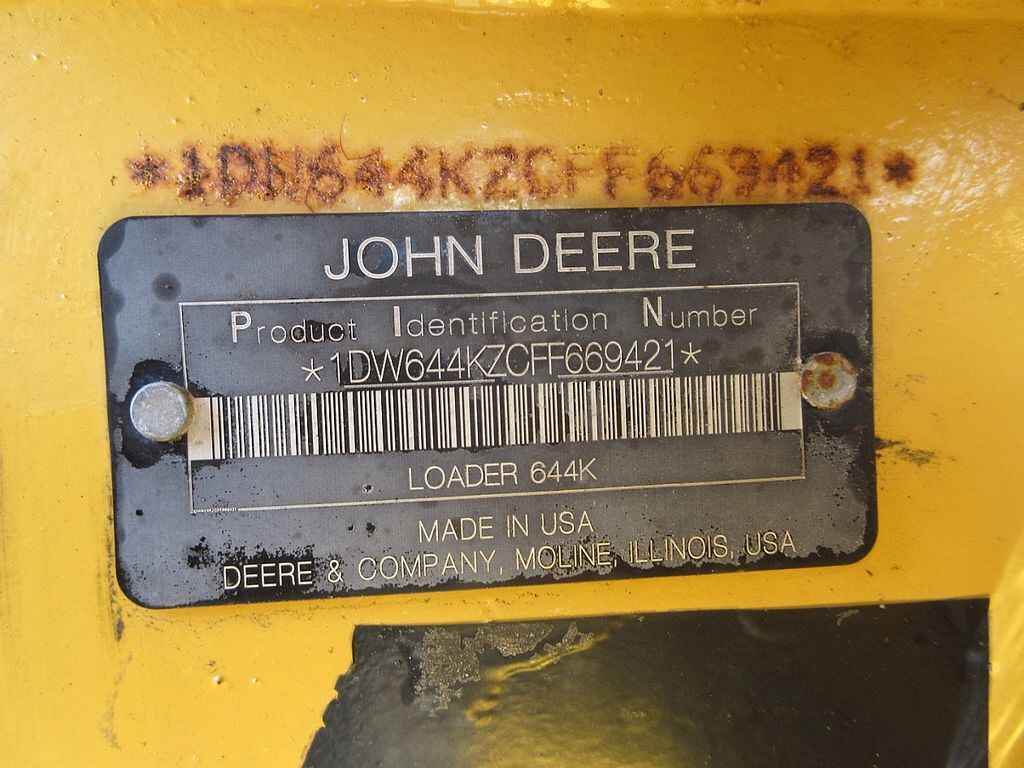

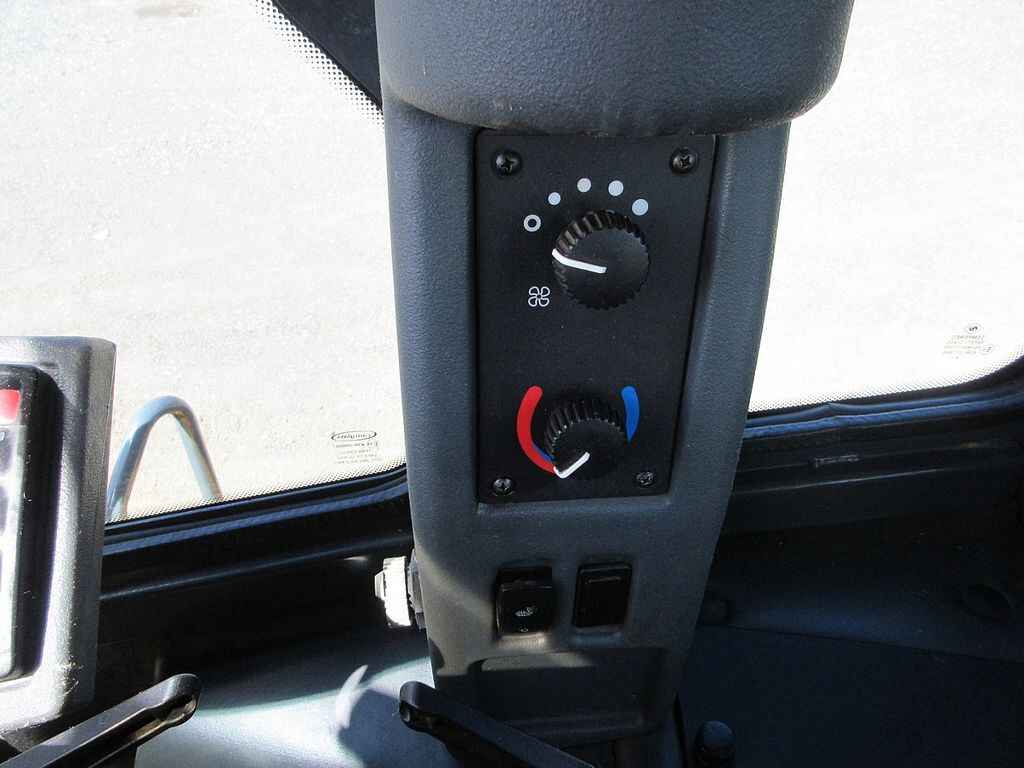

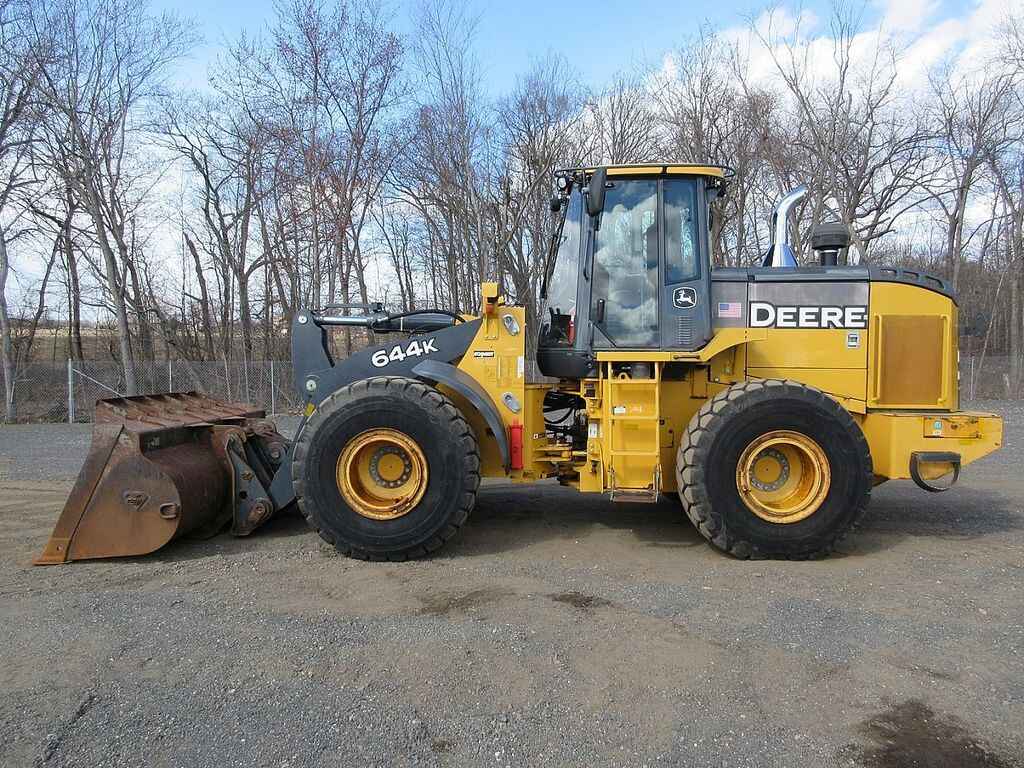

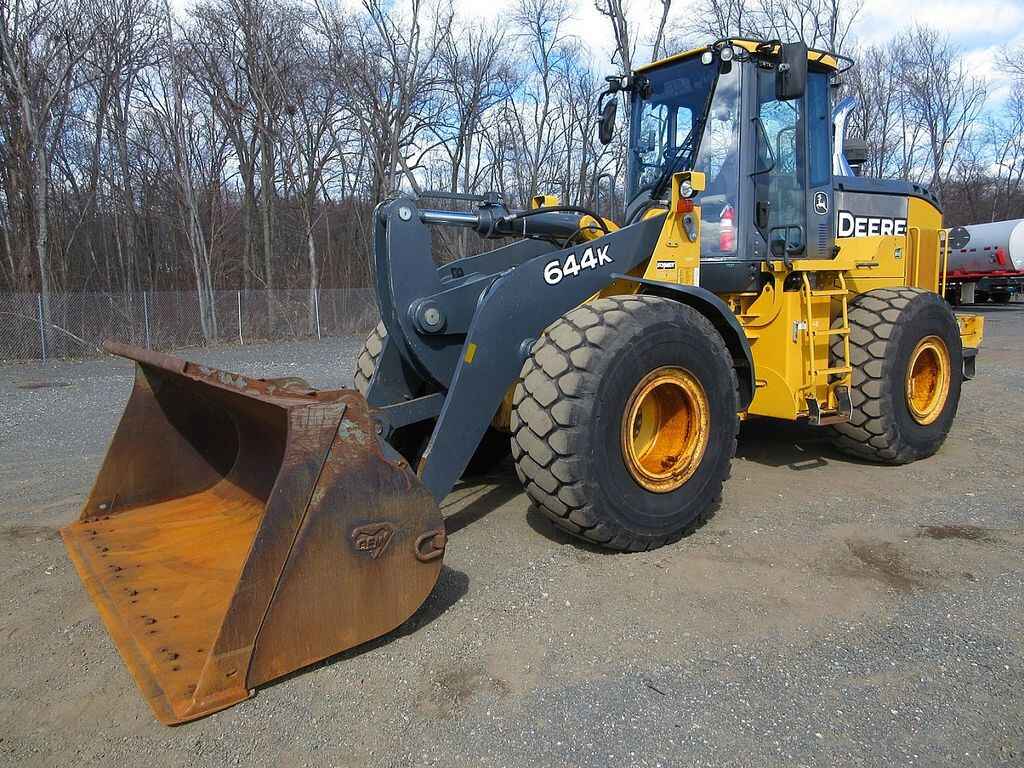

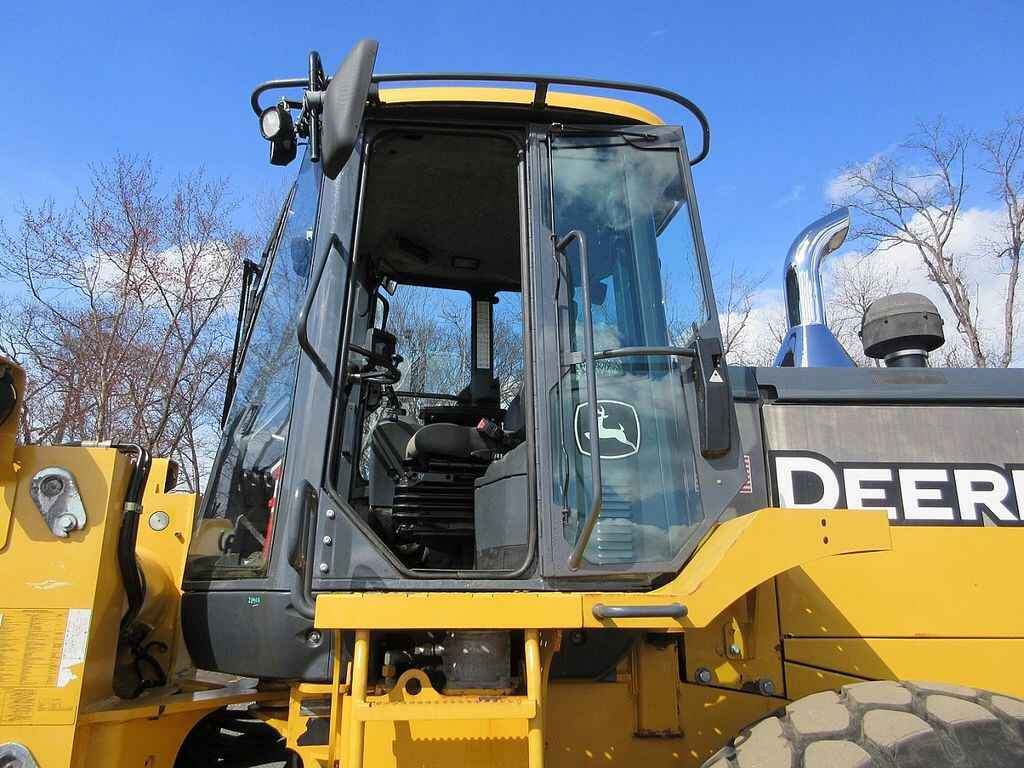

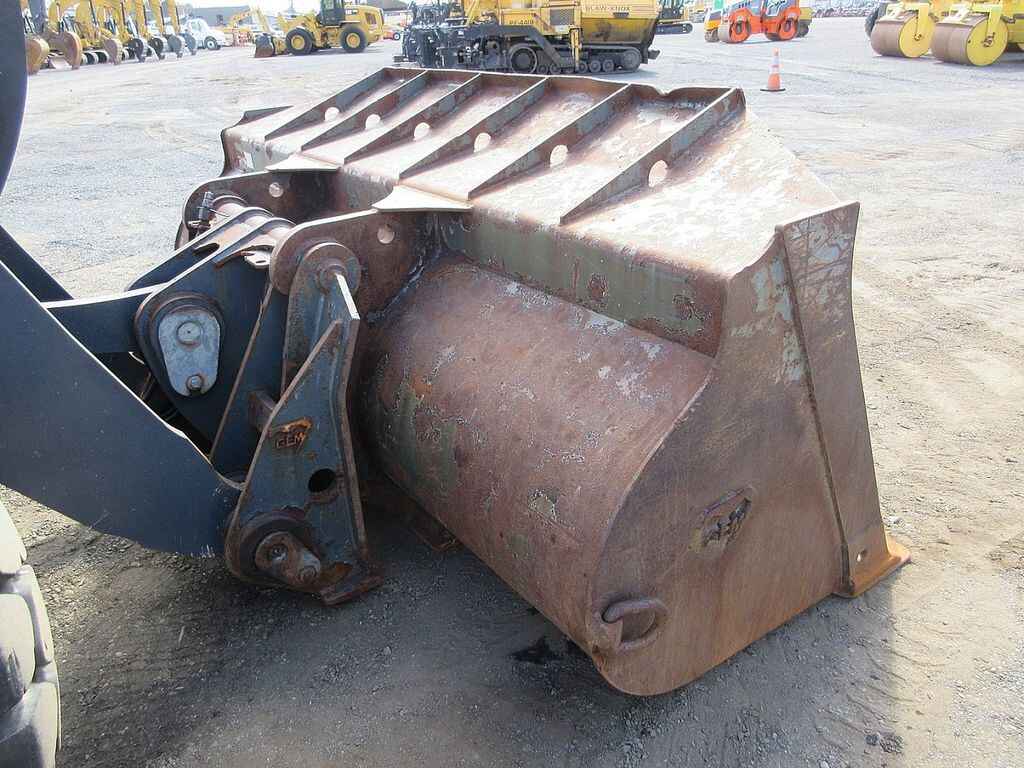

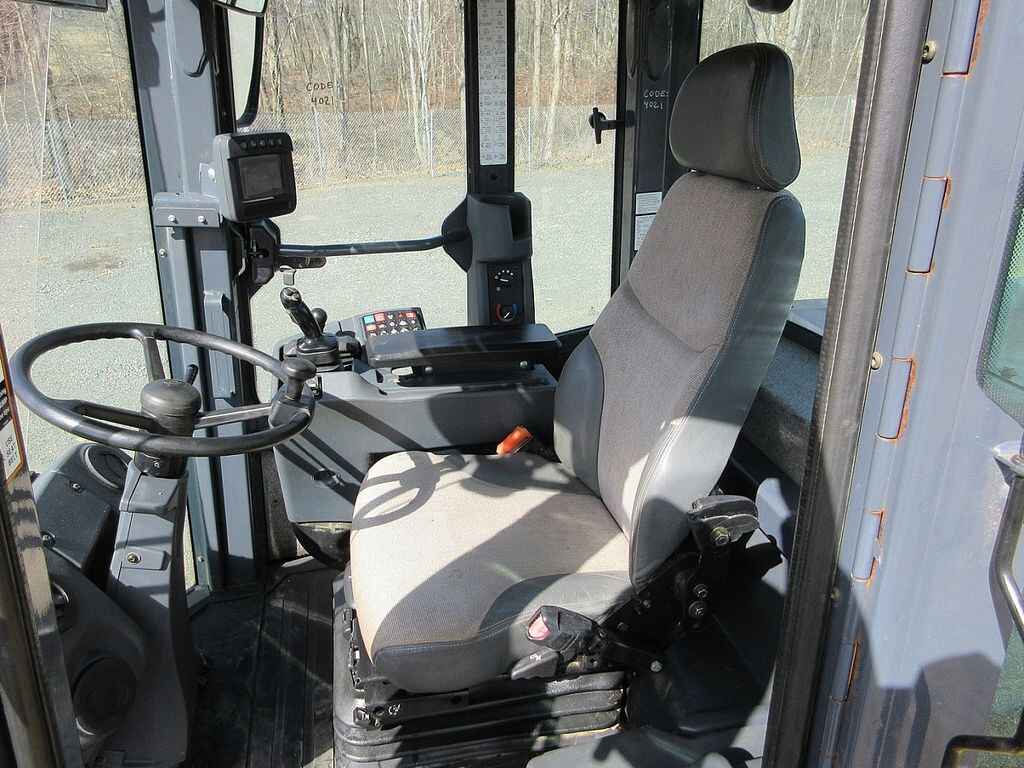

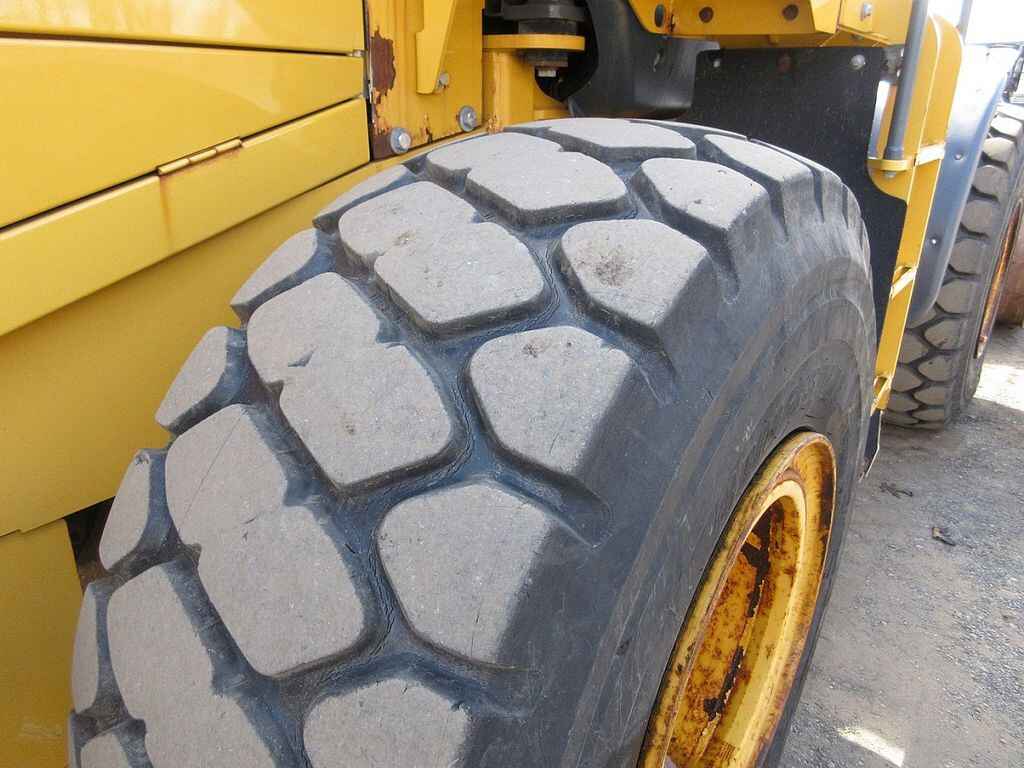

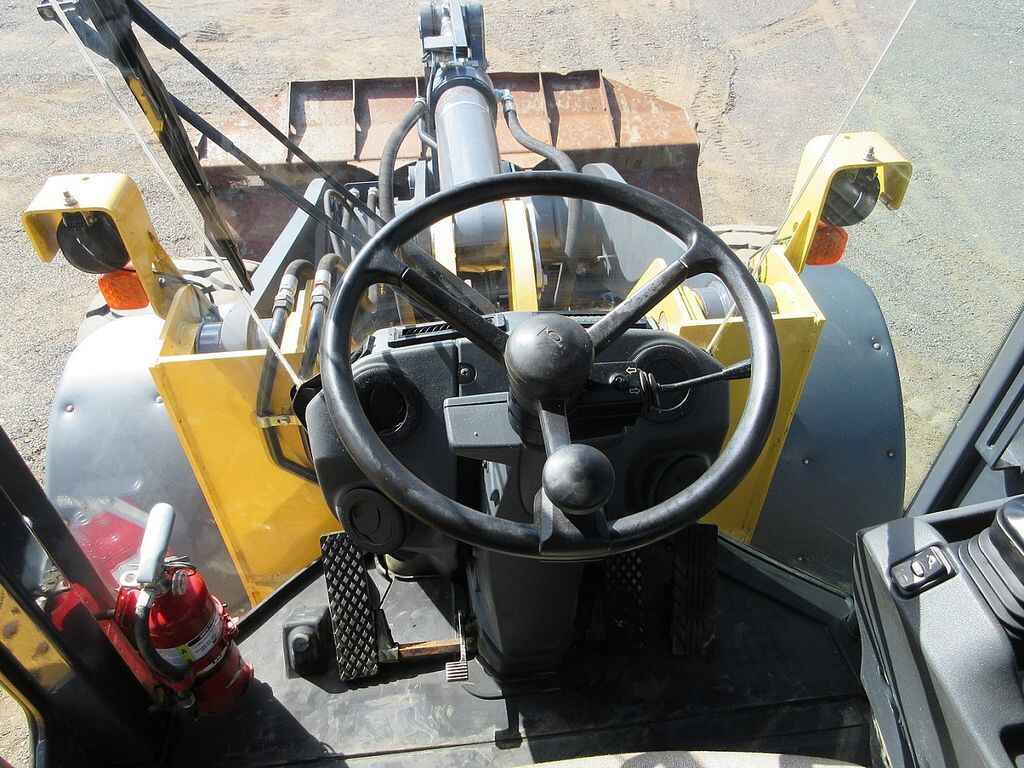

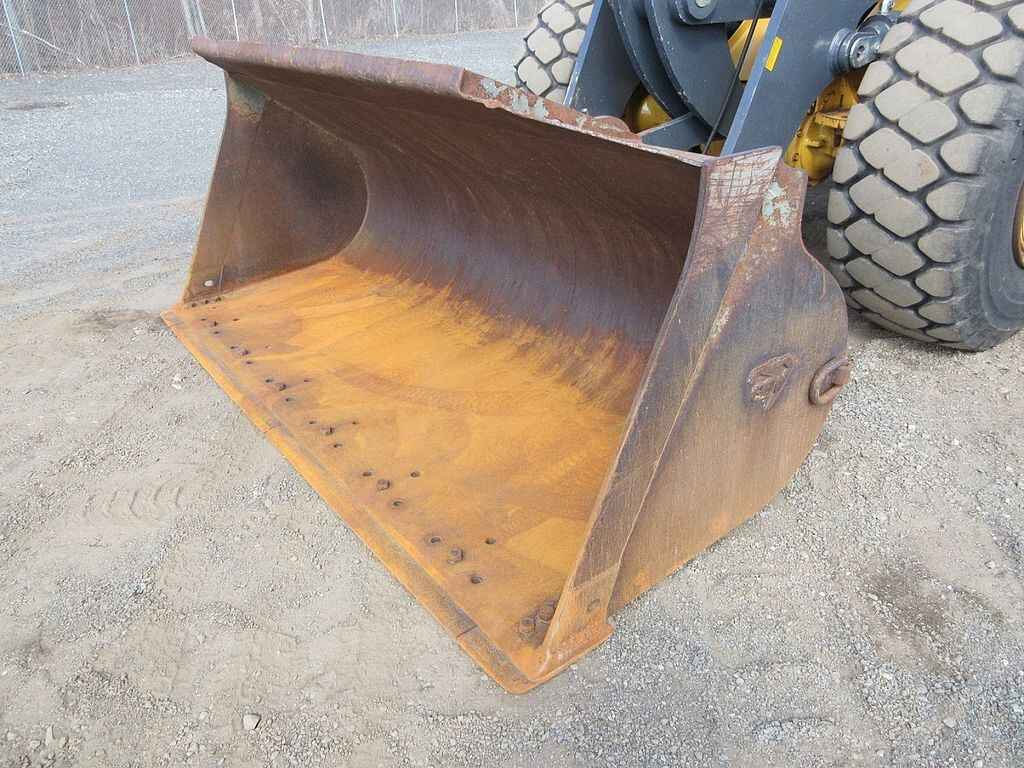

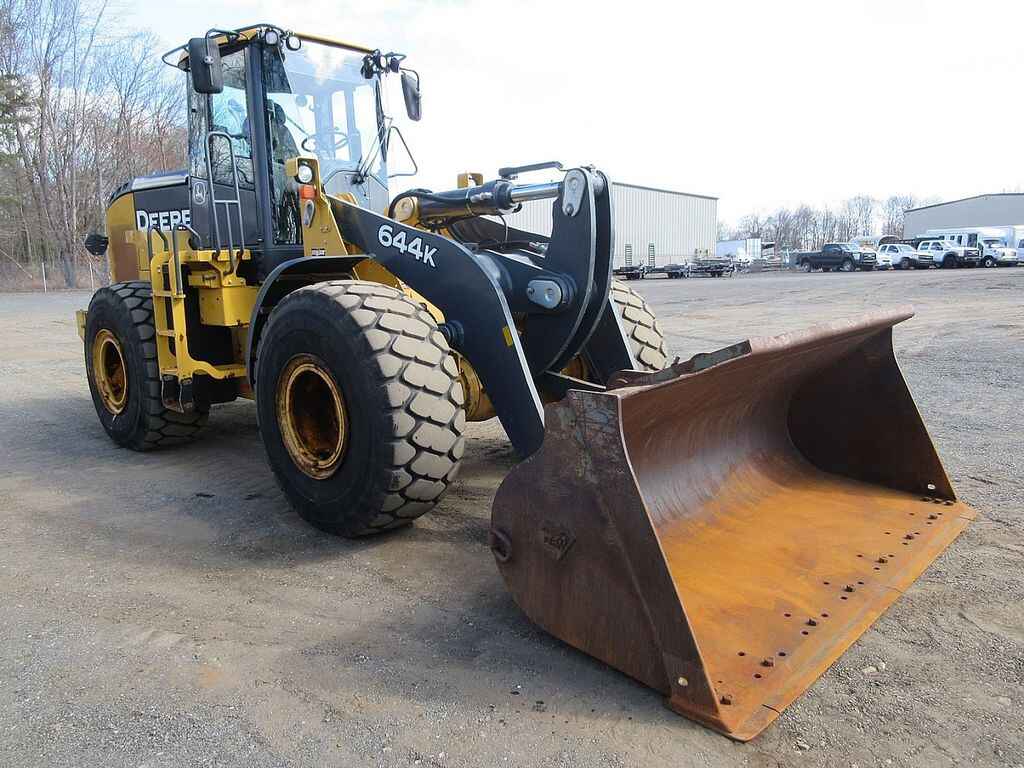

6 cyl John Deere turbo diesel, cab with heat, A/C, stereo, autoshift, ride control, keyless start, rearview camera, 23.5R25 Bridgestone radial rubber, aux hyd, JRB hyd coupler, GP bucket with BOCE, meter reads 4091 hours, S/N 1DW644KZCFF669421, EQUIPMENT FROM NEIGHBORHOOD ENTERPRISES
Specifications

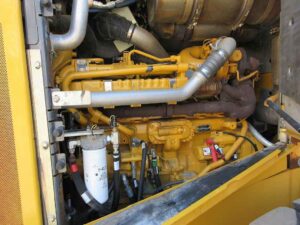

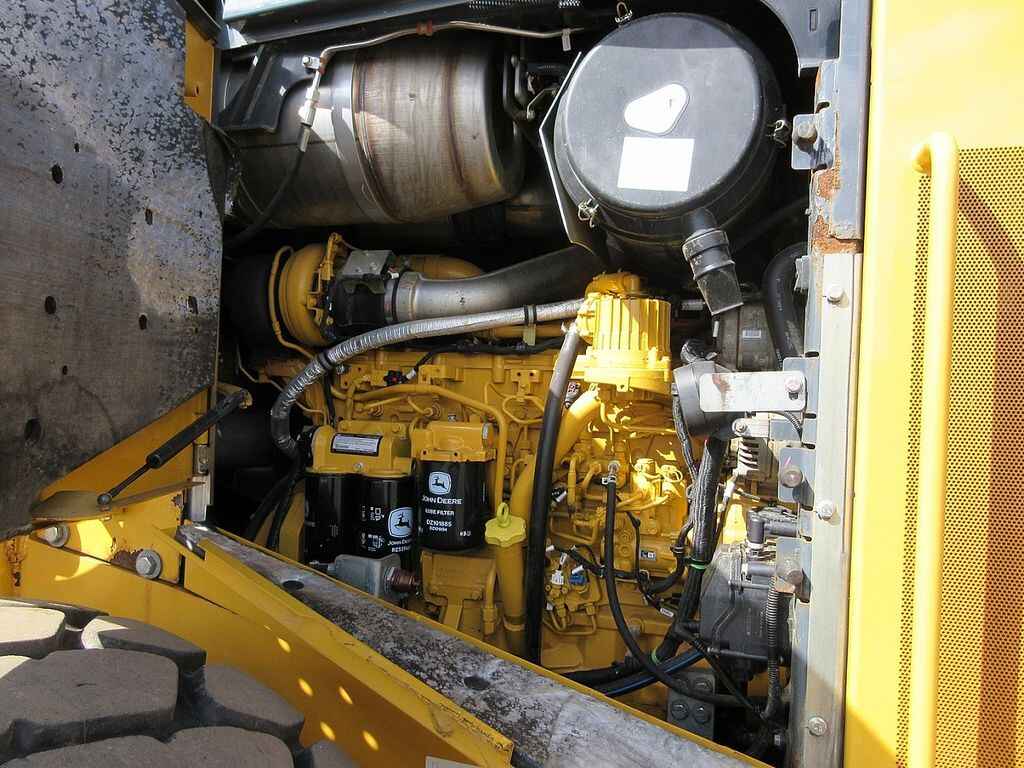

Engine
- Model: John Deere PowerTech™ 6068H
- Emission Standard: EPA Tier 3/EU Stage IIIA
- Net Peak Power: 224 hp (167 kW) at 1,700 rpm
- Gross Peak Power: 234 hp (175 kW) at 1,700 rpm
- Peak Torque: 755 lb-ft (1,024 Nm) at 1,400 rpm
- Displacement: 414 cu in (6.8 L)
- Fuel System: High-pressure common rail
- Aspiration: Turbocharged, charge air cooled
Dimensions
- Length with Bucket on Ground: 27 ft 3 in (8.3 m)
- Width over Tires: 9 ft 5 in (2.87 m)
- Height to Top of Cab: 11 ft 3 in (3.43 m)
- Wheelbase: 10 ft 8 in (3.25 m)
- Ground Clearance: 1 ft 6 in (0.45 m)
- Turning Radius (Outside): 18 ft 3 in (5.57 m)
Capacities
- Bucket Capacity: 4.0–4.25 cu yd (3.1–3.2 m³)
- Fuel Tank: 105 gal (397 L)
- Hydraulic Tank: 28 gal (106 L)
- Transmission: 6 gal (23 L)
- Front Axle/Diff Fluid: 6 gal (23 L)
- Rear Axle/Diff Fluid: 6 gal (23 L)
Performance
- Operating Weight: 40,417 lbs (18,333 kg)
- Breakout Force: 33,903 lbs (15,378 kg)
- Static Tipping Load (Full Turn): 28,393 lbs (12,879 kg)
- Transmission Type: Countershaft-type PowerShift™
- Travel Speed (Forward): 22.8 mph (36.7 km/h)
- Travel Speed (Reverse): 15.5 mph (25 km/h)
Hydraulics
- System Pressure: 3,650 psi (25.2 MPa)
- Pump Flow Capacity: 81.9 gal/min (310 L/min)
- Raise Time: 5.5 seconds
- Dump Time: 1.4 seconds
- Lower Time: 3.0 seconds

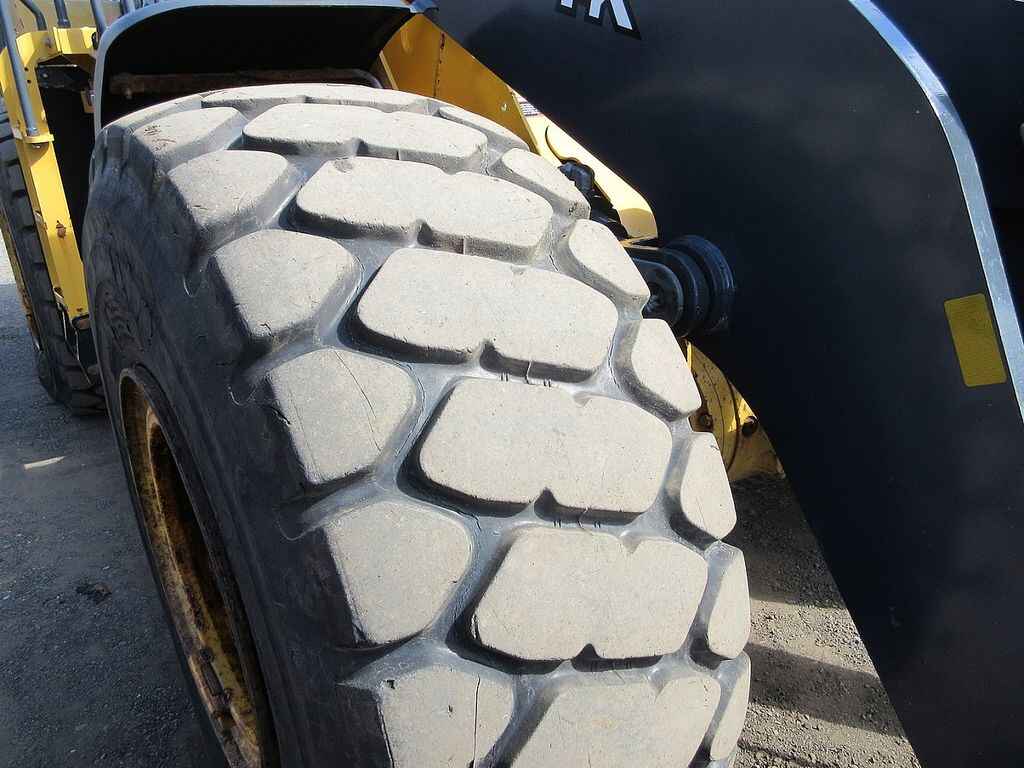

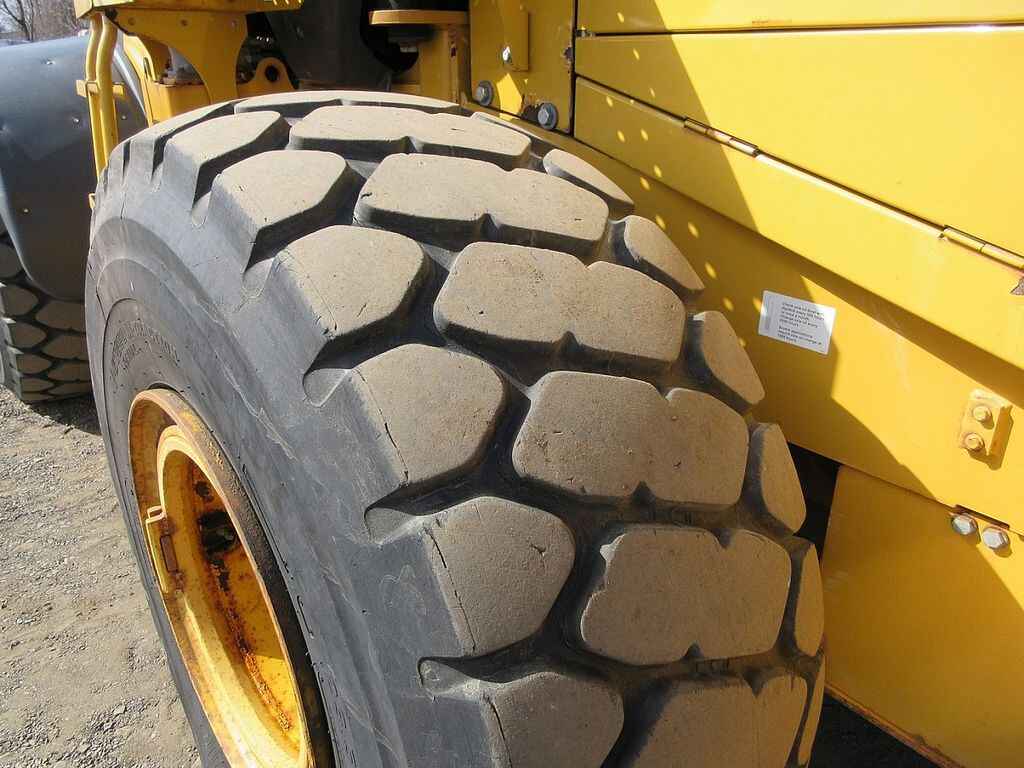

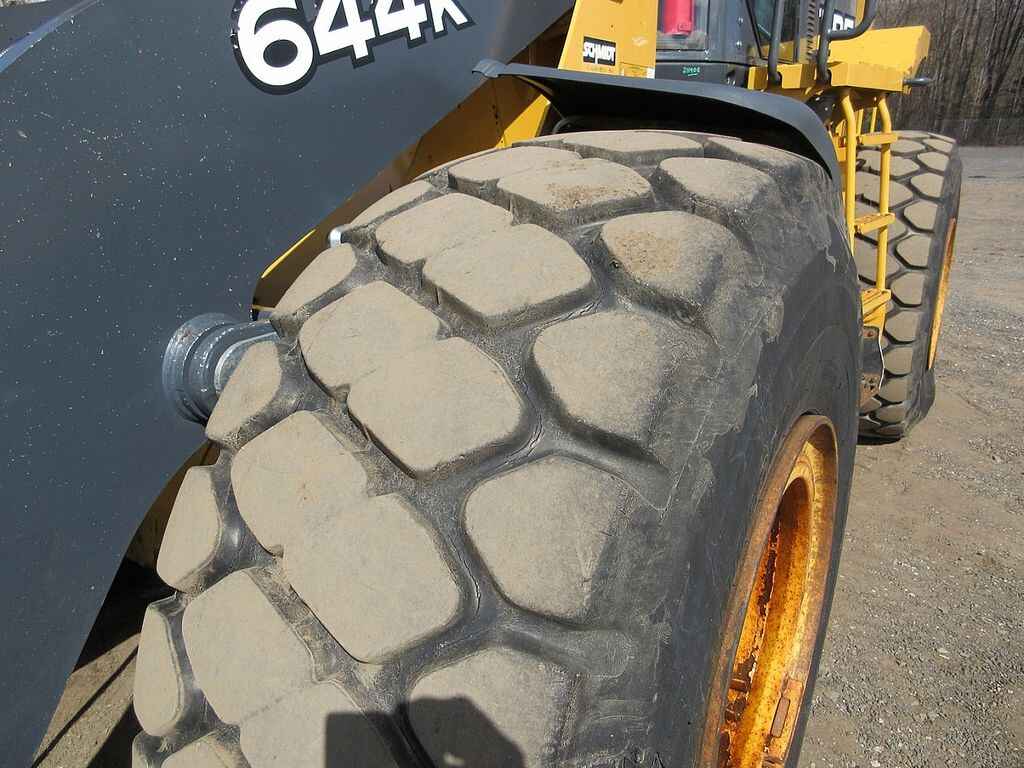

Tires
- Standard Tire Size: 23.5 R25
