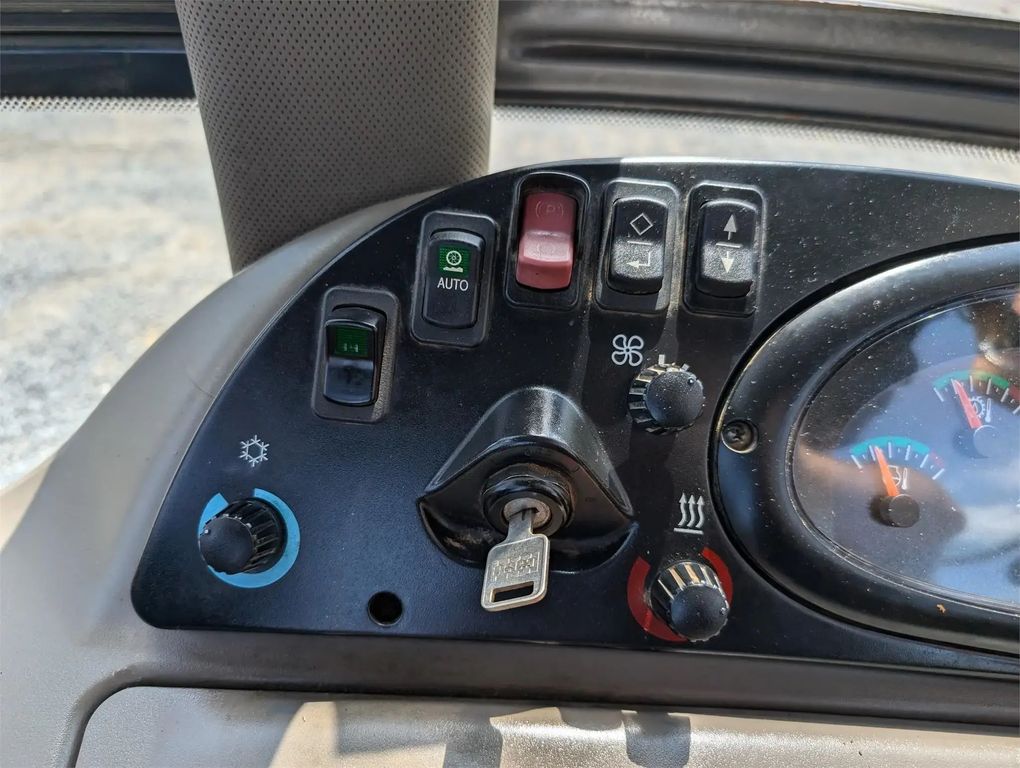

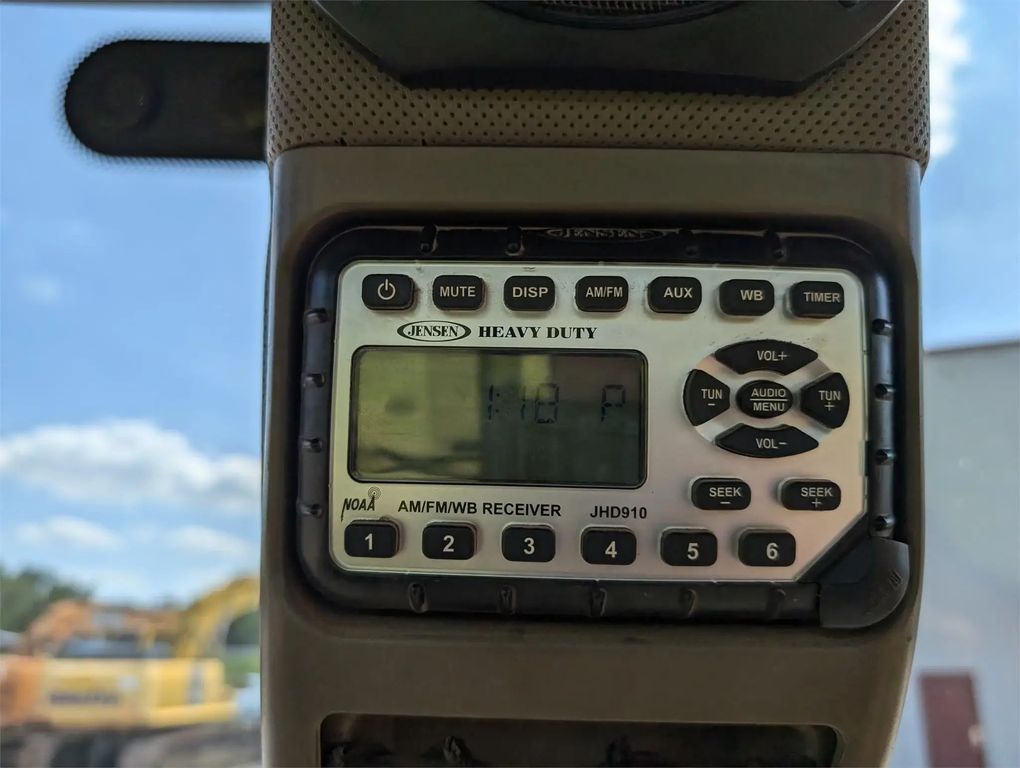

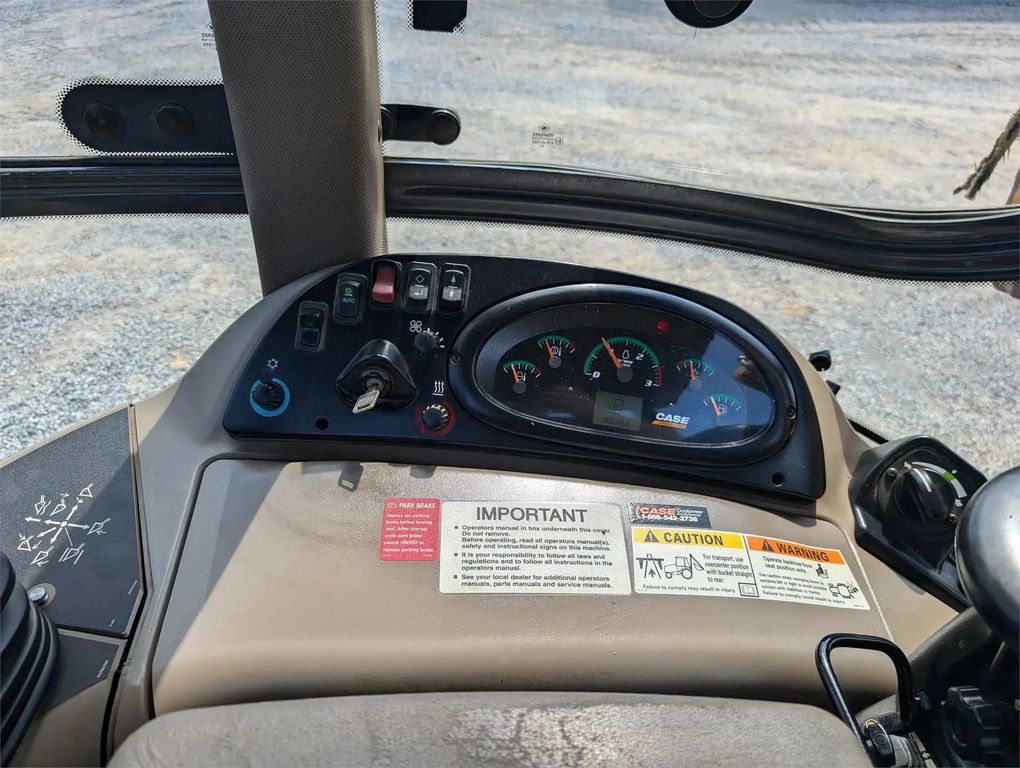

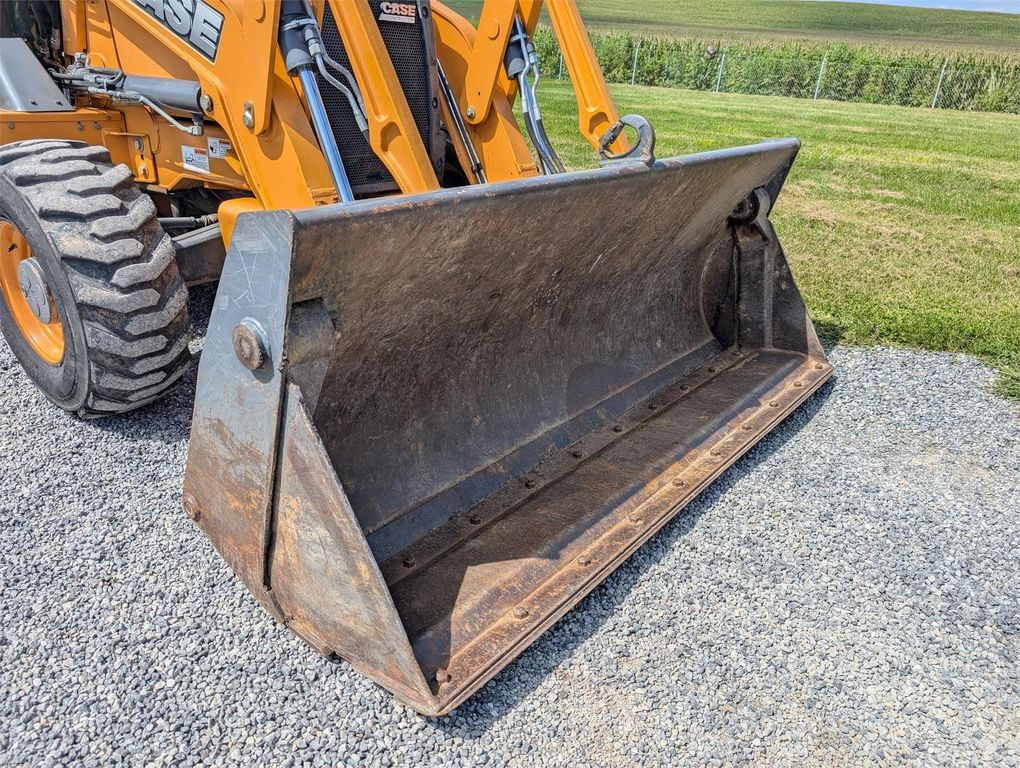

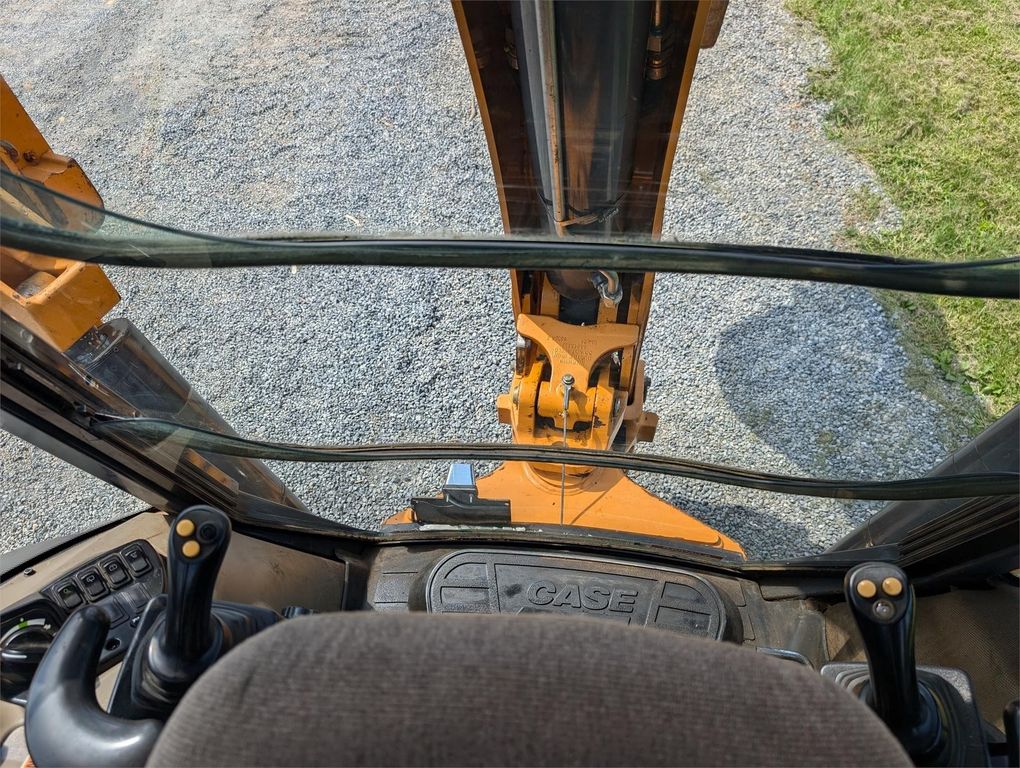

Heat, A/C, Radio, Pilot Controls, Front and Rear Auxiliary Hydraulics, 4-N-1 Bucket!
Exterior
ROPS

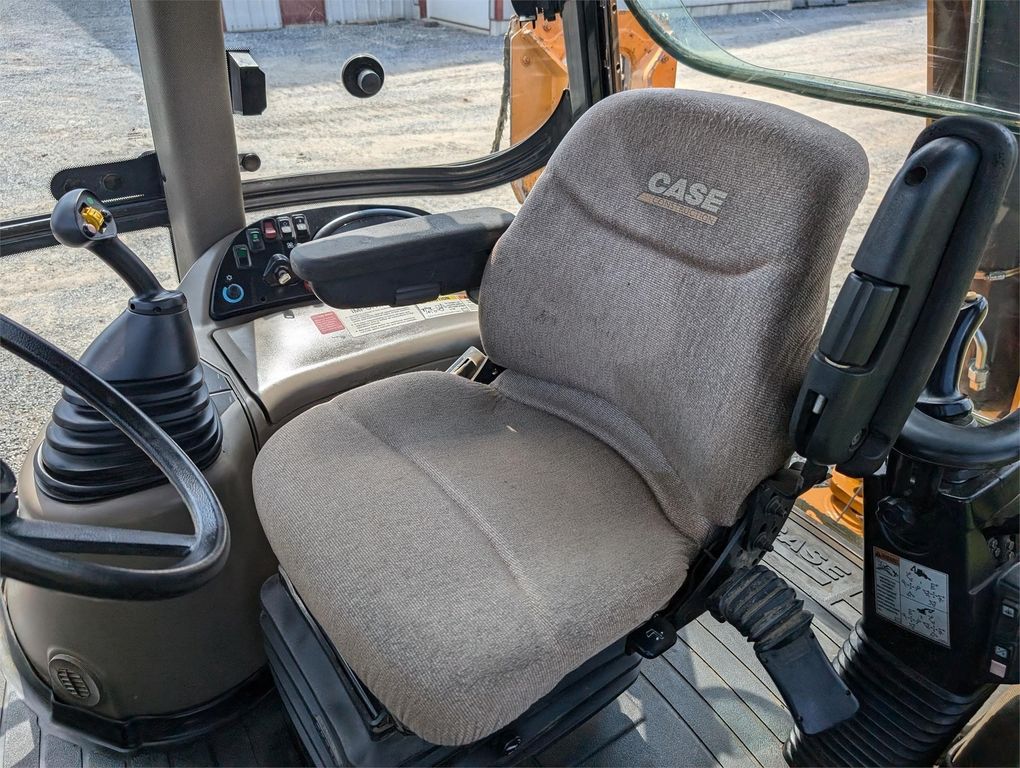

Enclosed
Powertrain
Drive
4WD
Engine
-
Model: FPT F5BFL413B*F001
-
Type: Turbocharged, 4-cylinder, 4-stroke diesel
-
Displacement: 4.5 liters (275 cu in)
-
Gross Power: 110 hp (82 kW)
-
Net Power: 95 hp (71 kW) @ 2,200 rpm
-
Peak Torque: 400 lb-ft (542 Nm) @ 1,400 rpm
Dimensions
-
Operating Weight: 16,948 lbs (7,690 kg)
-
Overall Length: 23.5 ft (7.16 m)
-
Width over Tires: 7.8 ft (2.38 m)
-
Height to Top of Cab: 9.4 ft (2.86 m)
-
Wheelbase: 7.2 ft (2.18 m)
-
Ground Clearance: 1.3 ft (0.39 m)

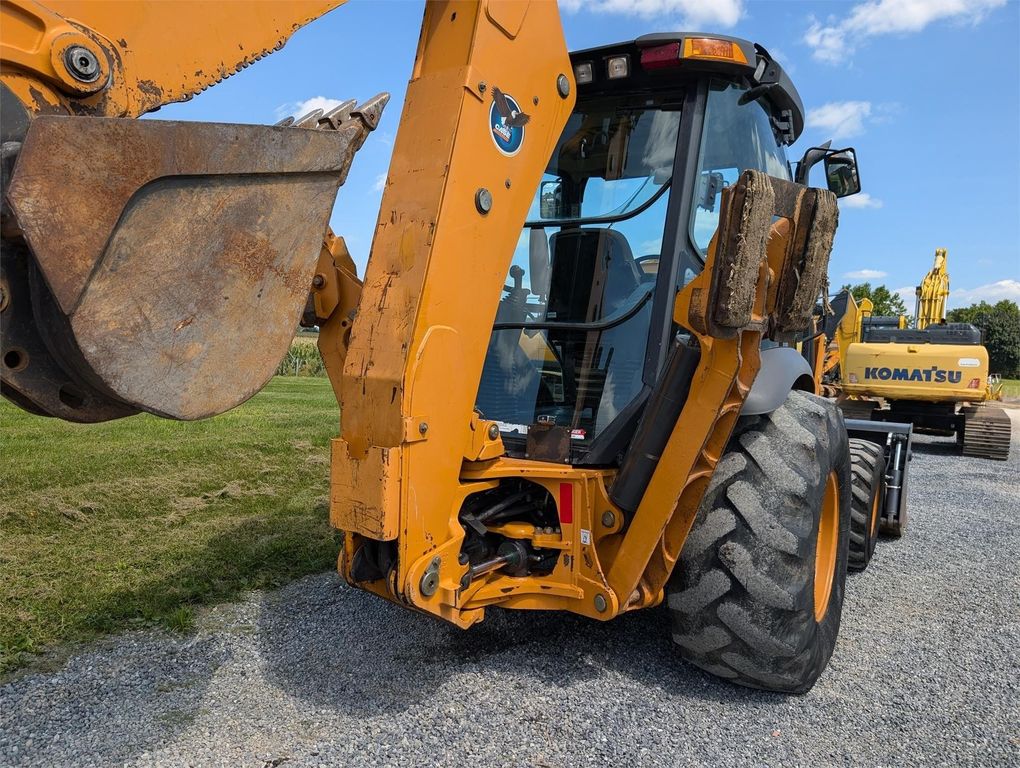

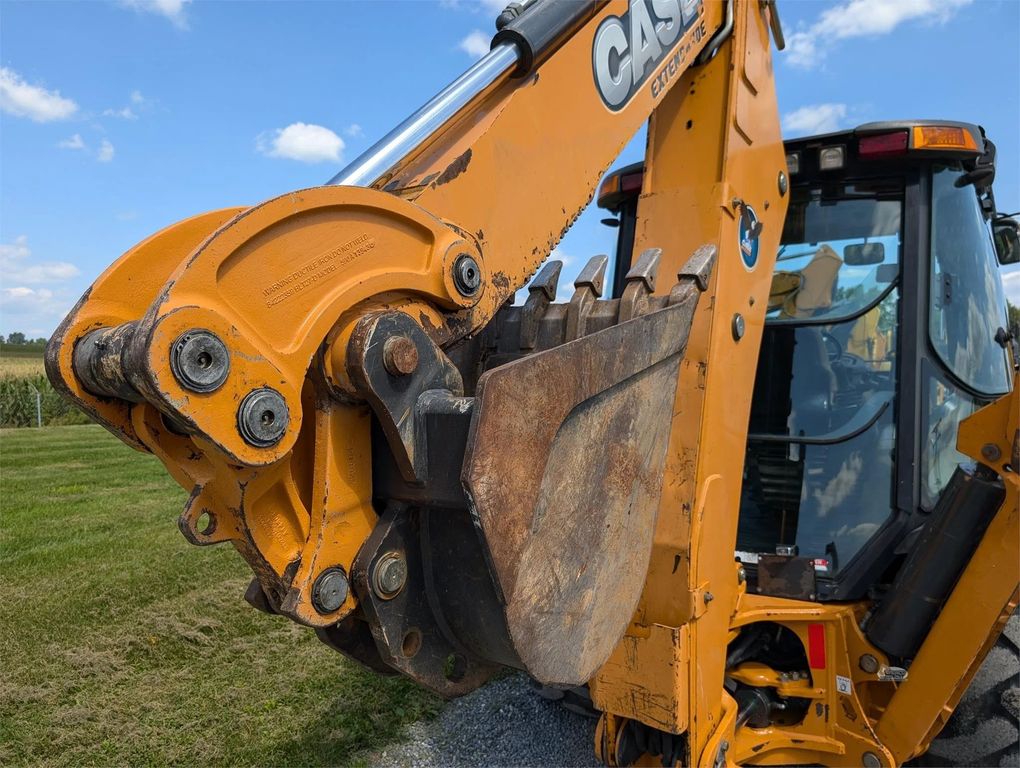

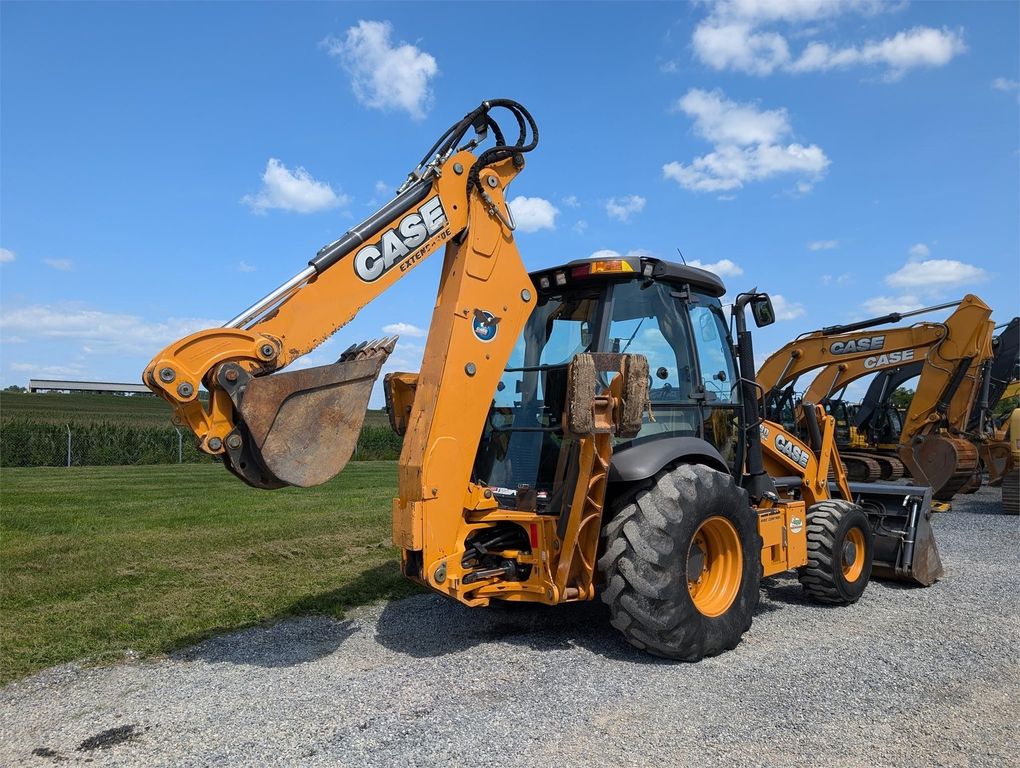

Backhoe Performance
-
Digging Depth: 15.5 ft (4.73 m)
-
Reach from Center of Swing Pivot: 19.5 ft (5.94 m)
-
Bucket Digging Force: 13,823 lb (61.5 kN)
-
Dipper Stick Digging Force: 8,723 lb (38.8 kN)

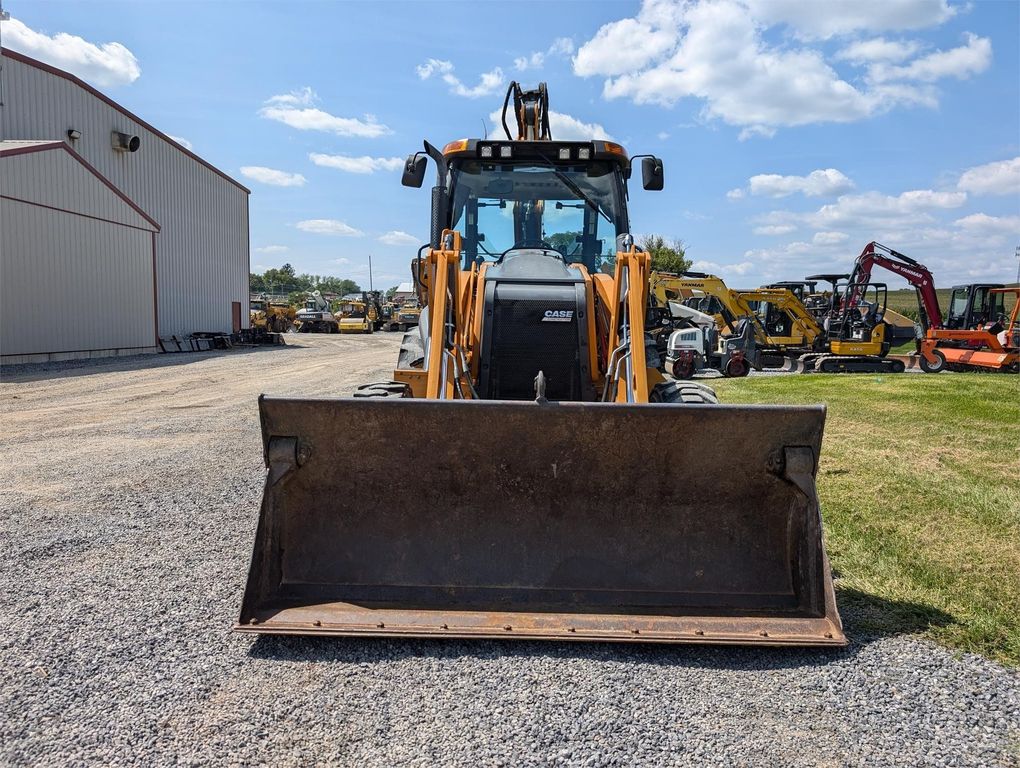

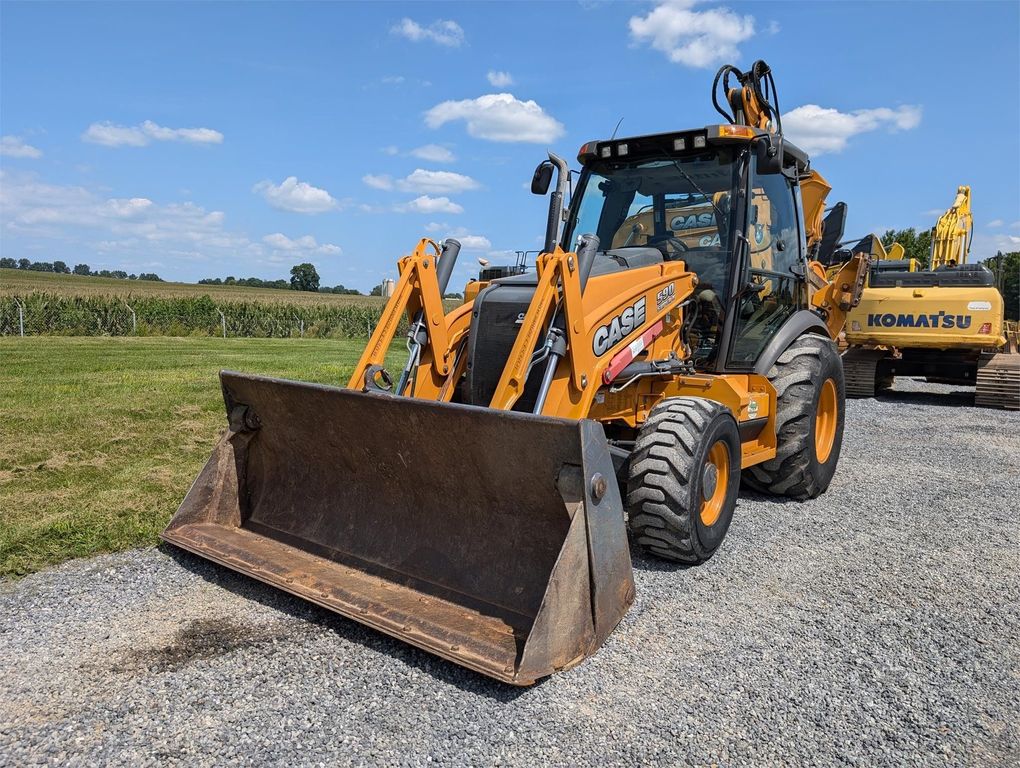

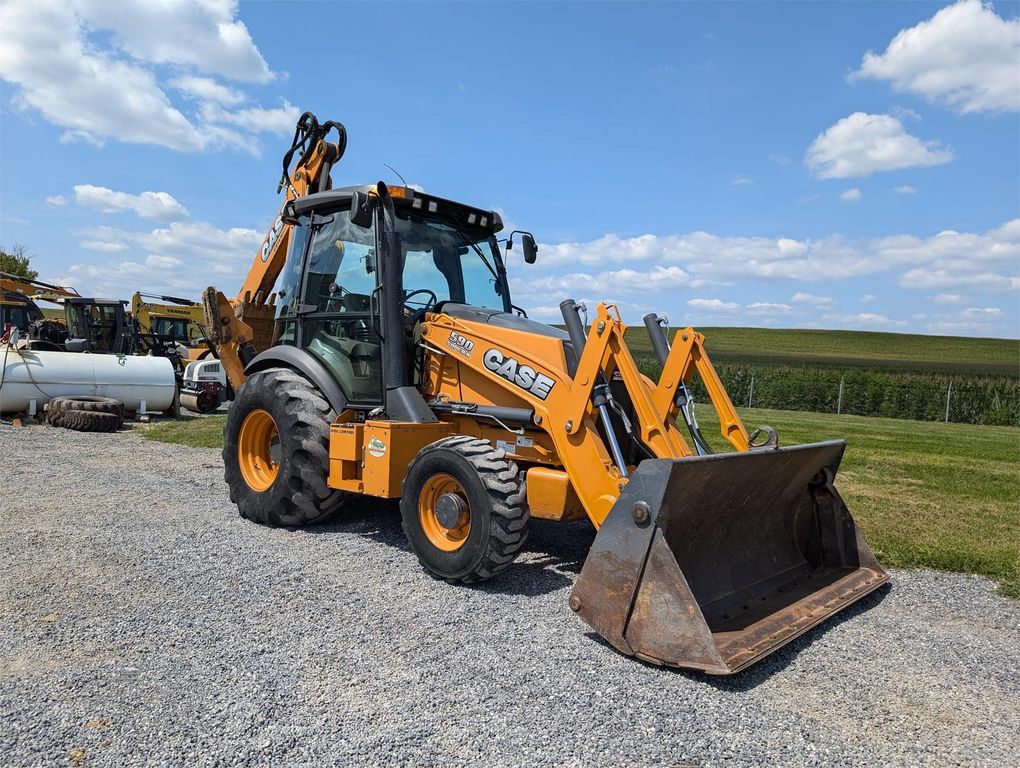

Loader Performance
-
Bucket Capacity: 1.3 cubic yards (1 m³)
-
Bucket Width: 7.5 ft (2.28 m)
-
Lift Capacity: 7,754 lb (3,517 kg)
-
Breakout Force: 12,821 lb (57 kN)
Transmission
-
Type: Powershift S-Type with 4 forward and 3 reverse gears
-
Max Forward Speed: 24.6 mph (39.6 km/h)
-
Max Reverse Speed: 7.8 mph (12.5 km/h)
Hydraulic System
-
System Type: Open center with single gear pump
-
Pump Flow: 33.4 GPM (126 L/min)
-
System Pressure: 3,600 psi (248 bar)

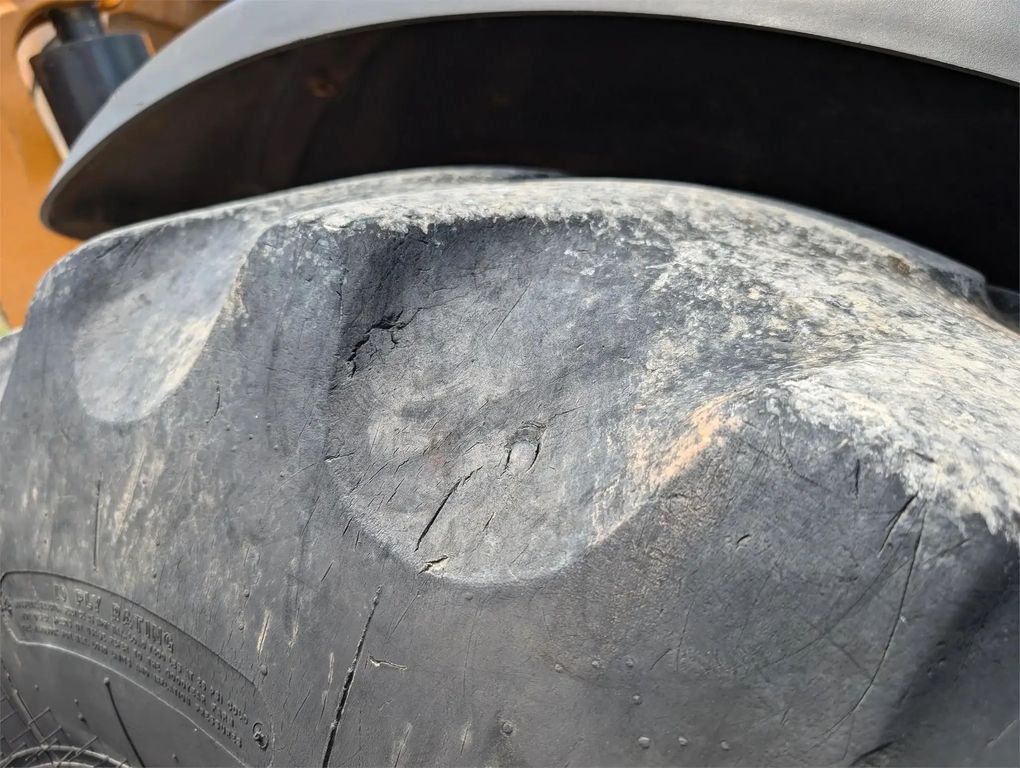

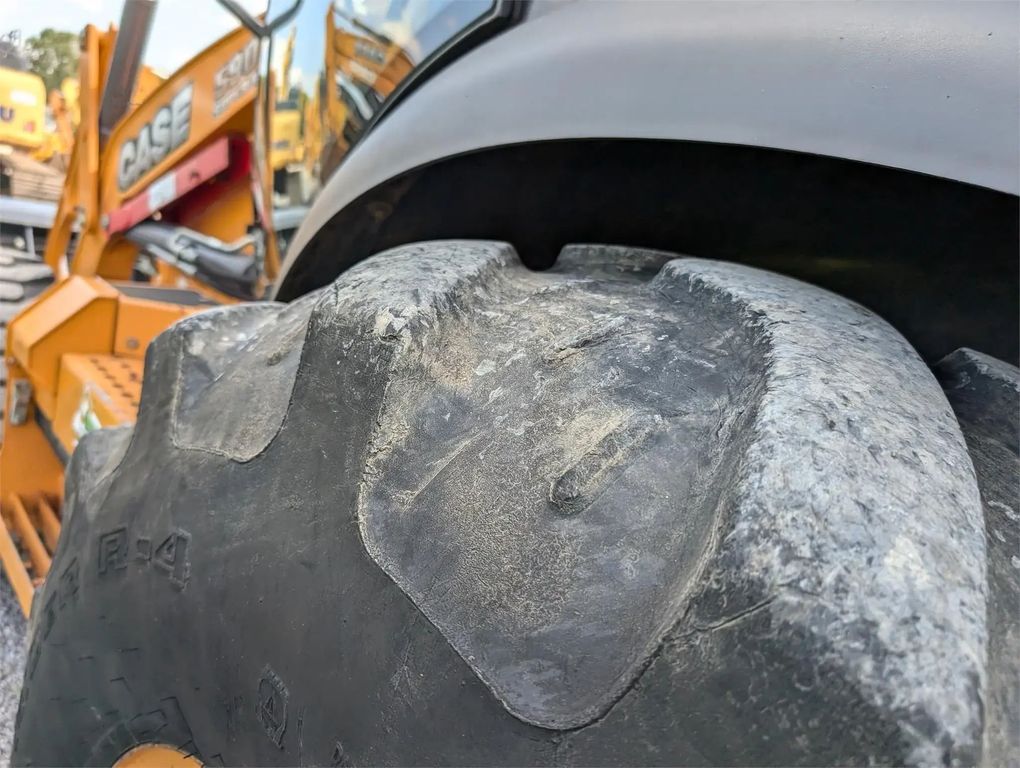

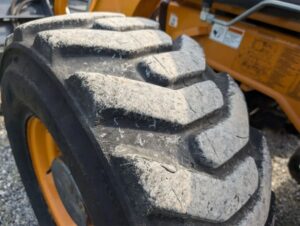

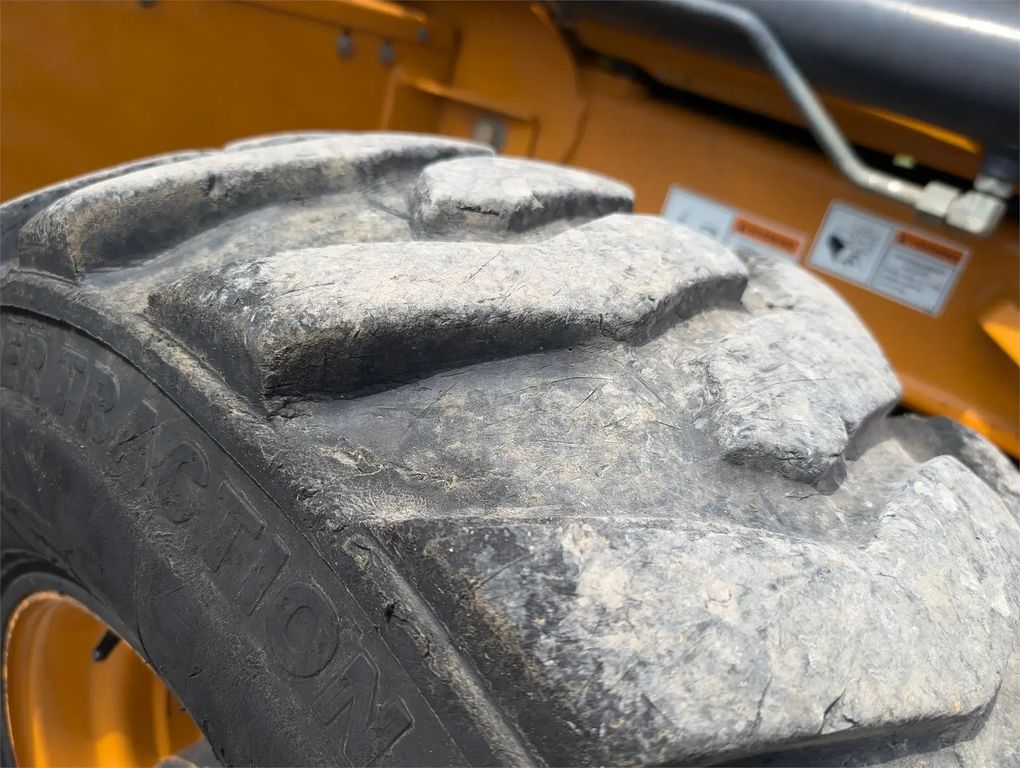

Tires
-
Front: 12.5/80-18
-
Rear: 21L-24
Additional Features
-
ROPS/FOPS Cab or Canopy
-
Four-Wheel Drive (4WD)
-

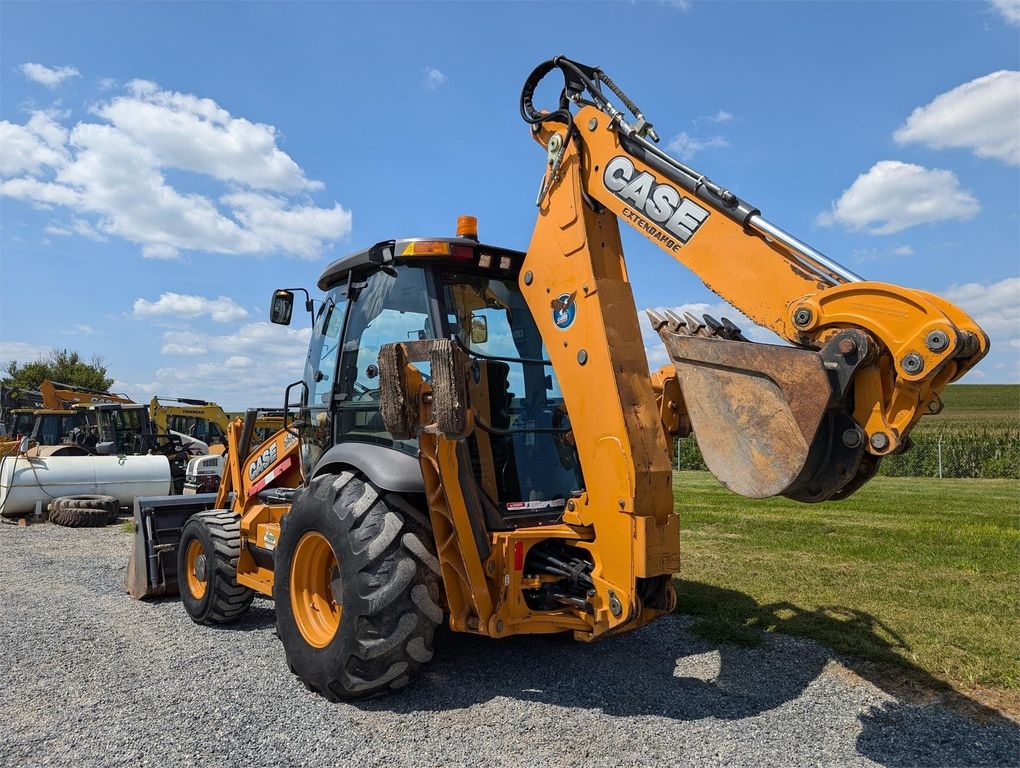

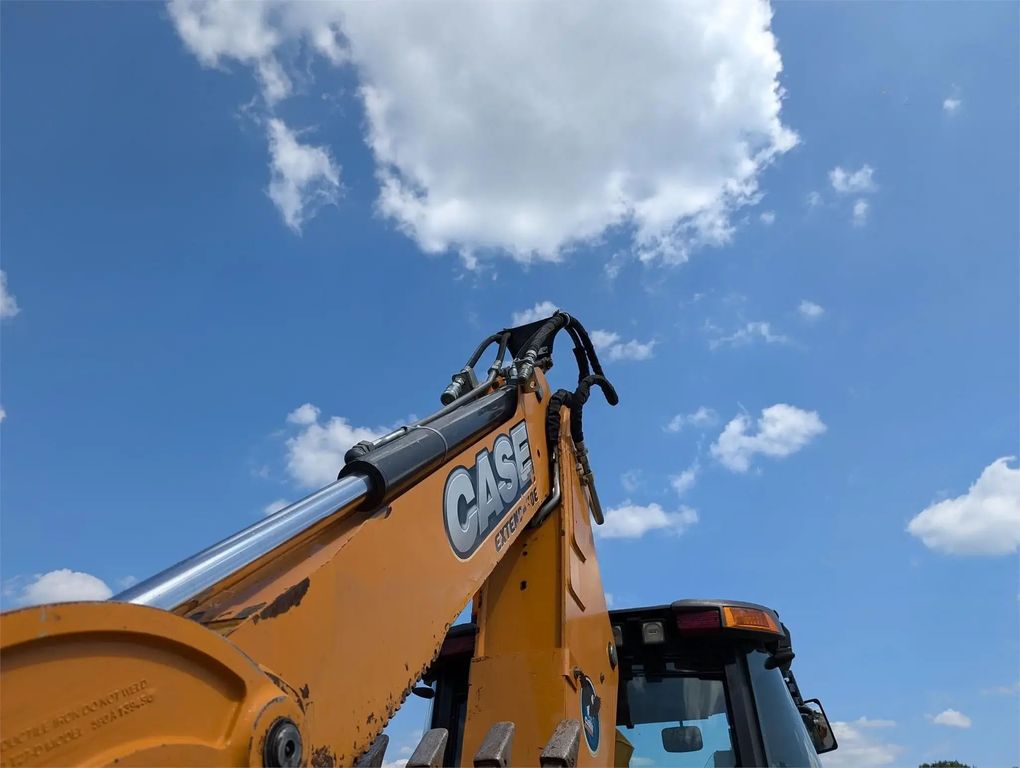

Extendahoe option available
