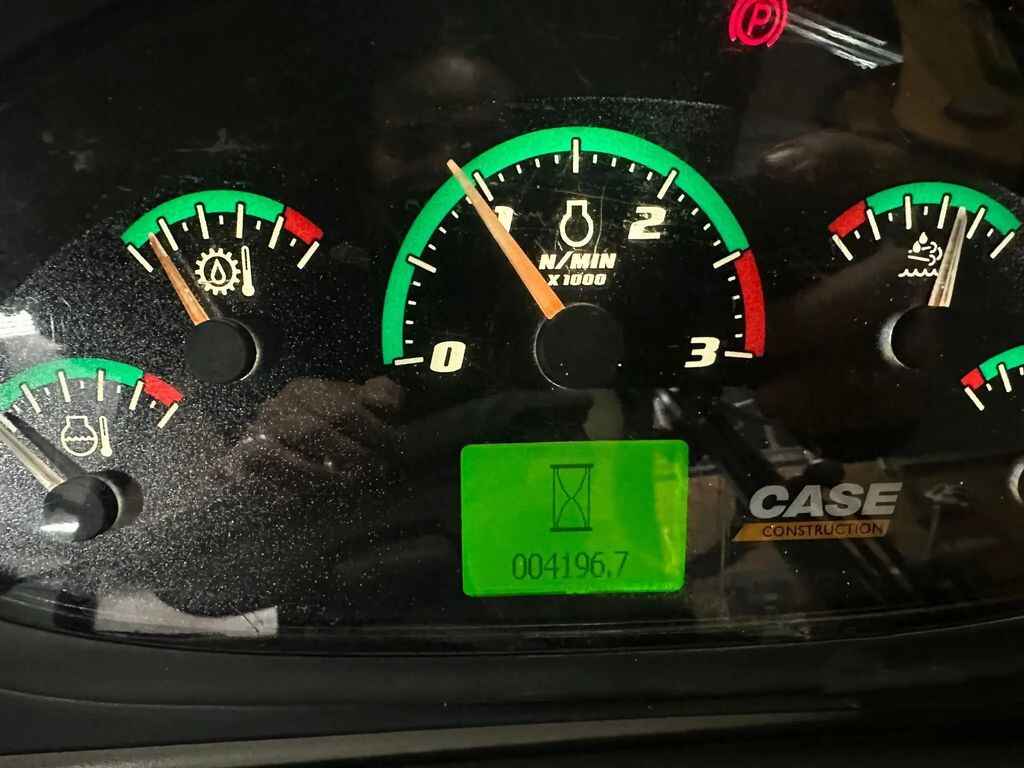

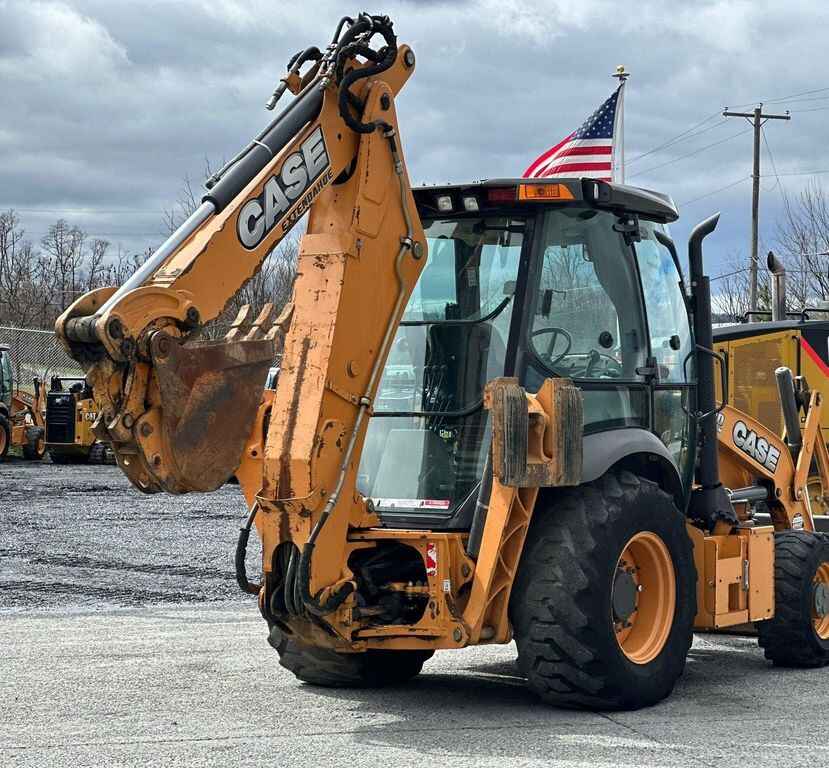

Enclosed Cab, Heat & Air, Runs & Operates Good, New Window, Low Hours, 4 Stick Extend-a-ho, Ride Control, Teir 4 Engine, Hammer Hydraulics, Clean Machine
Exterior
ROPS

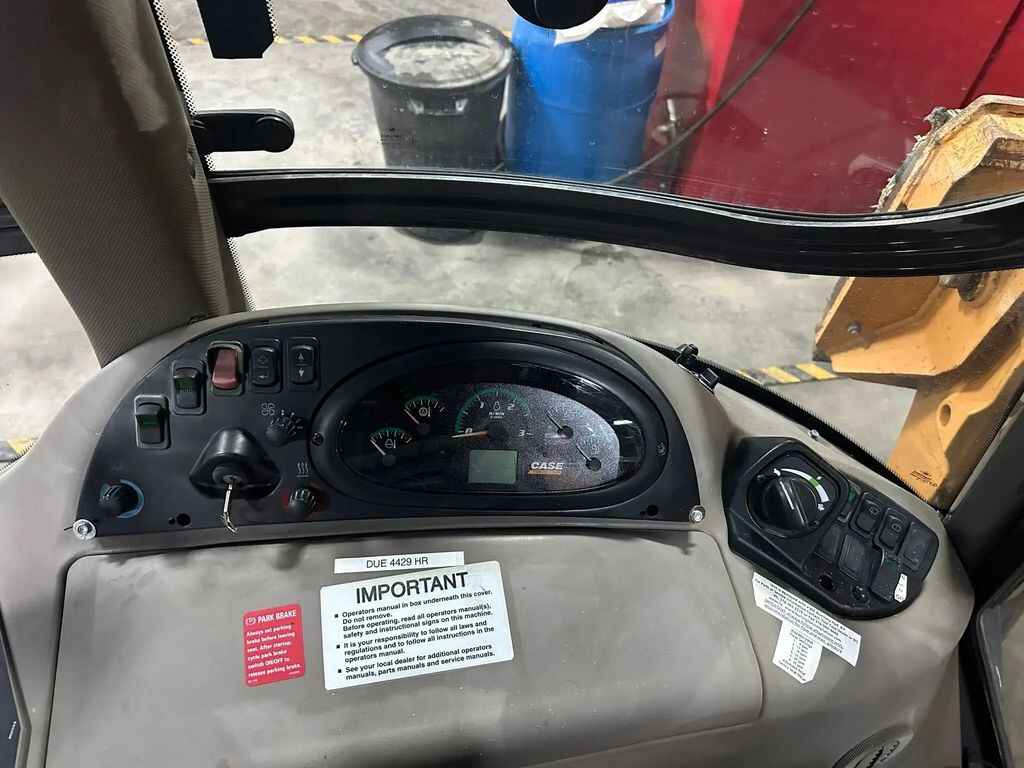

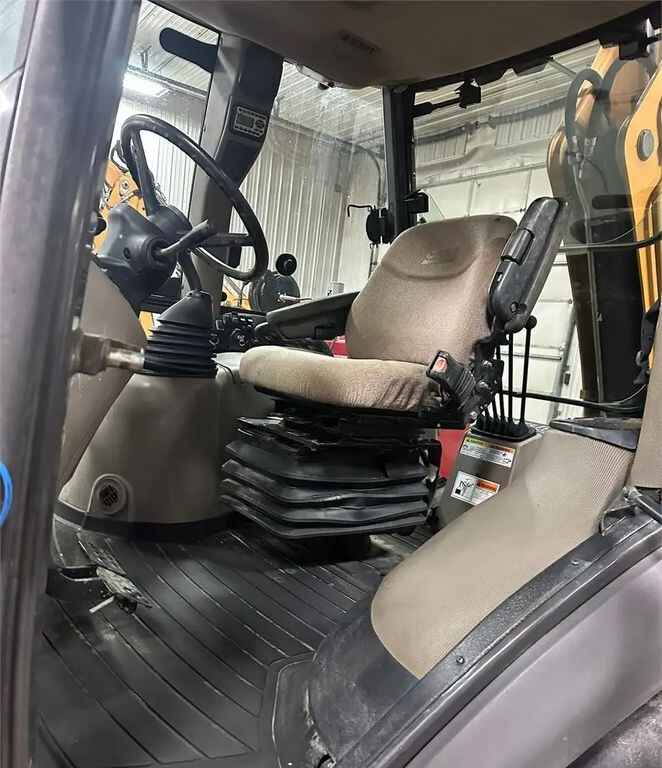

Enclosed
Powertrain
Drive
4WD
General Specifications
-

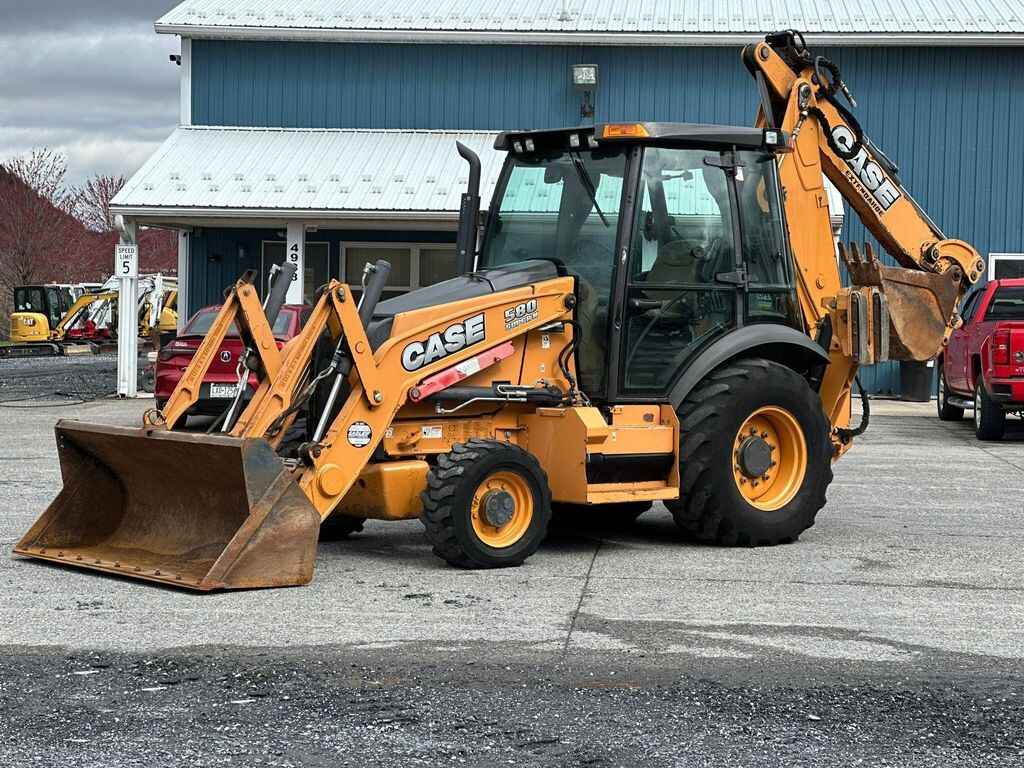

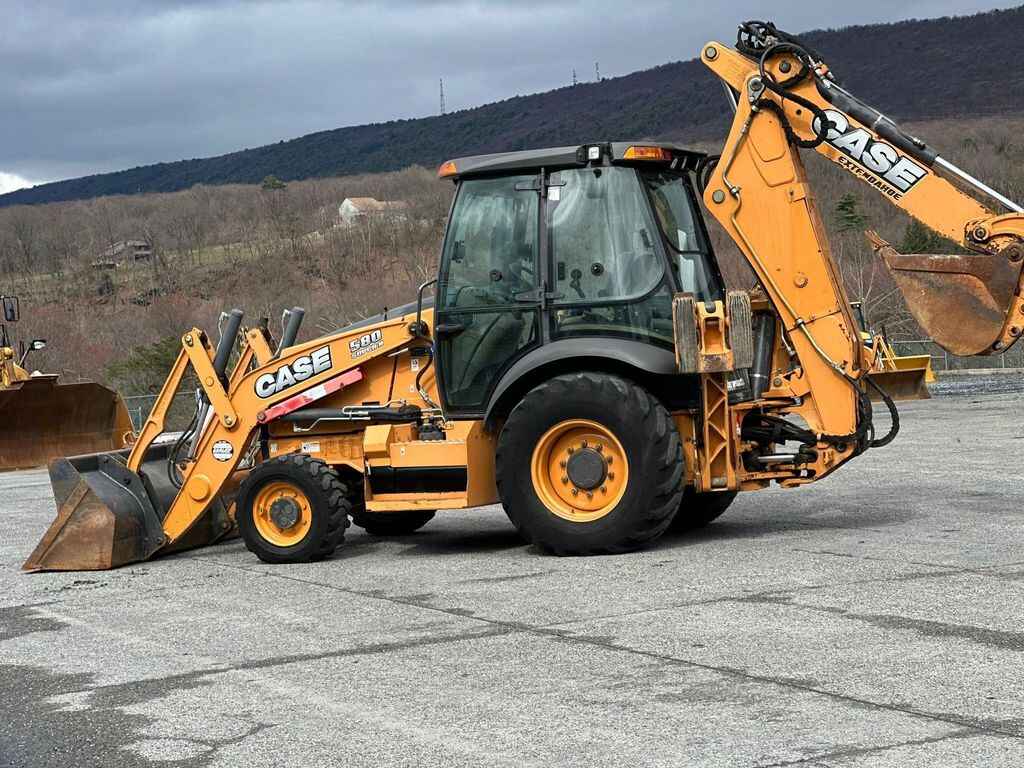

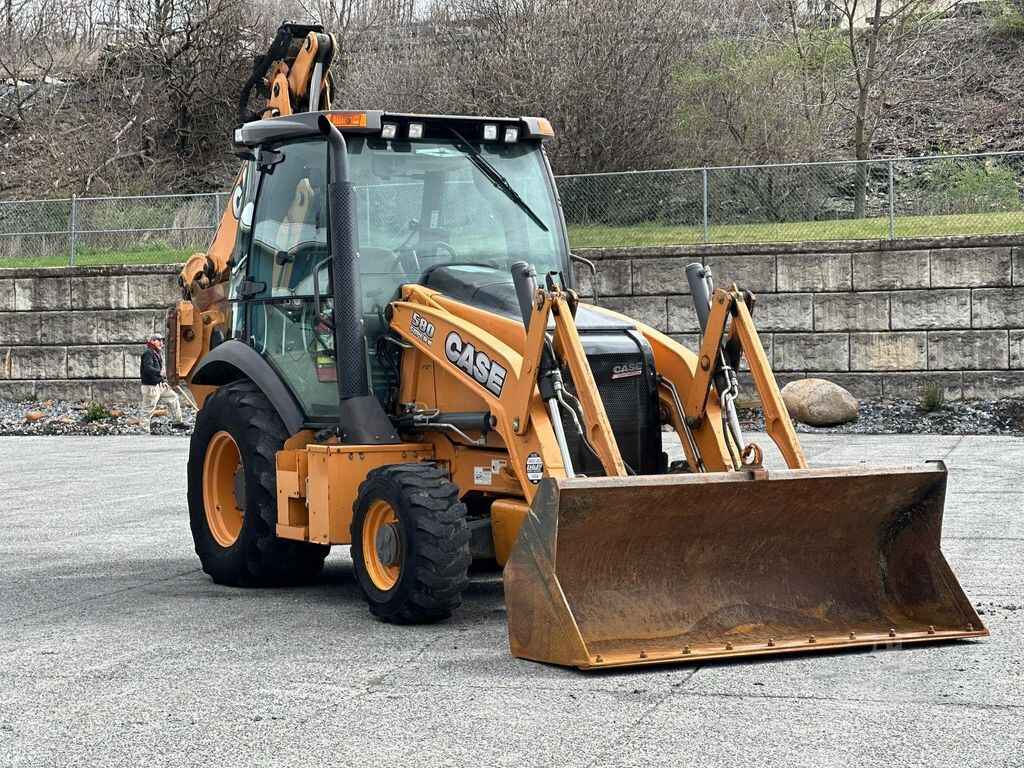

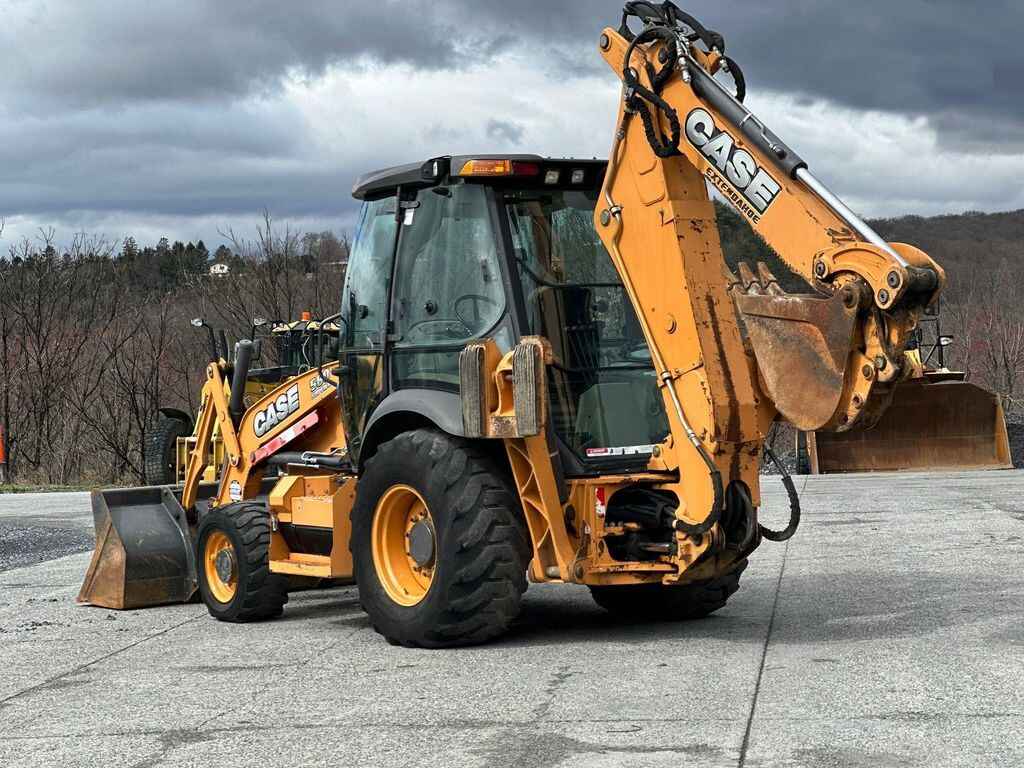

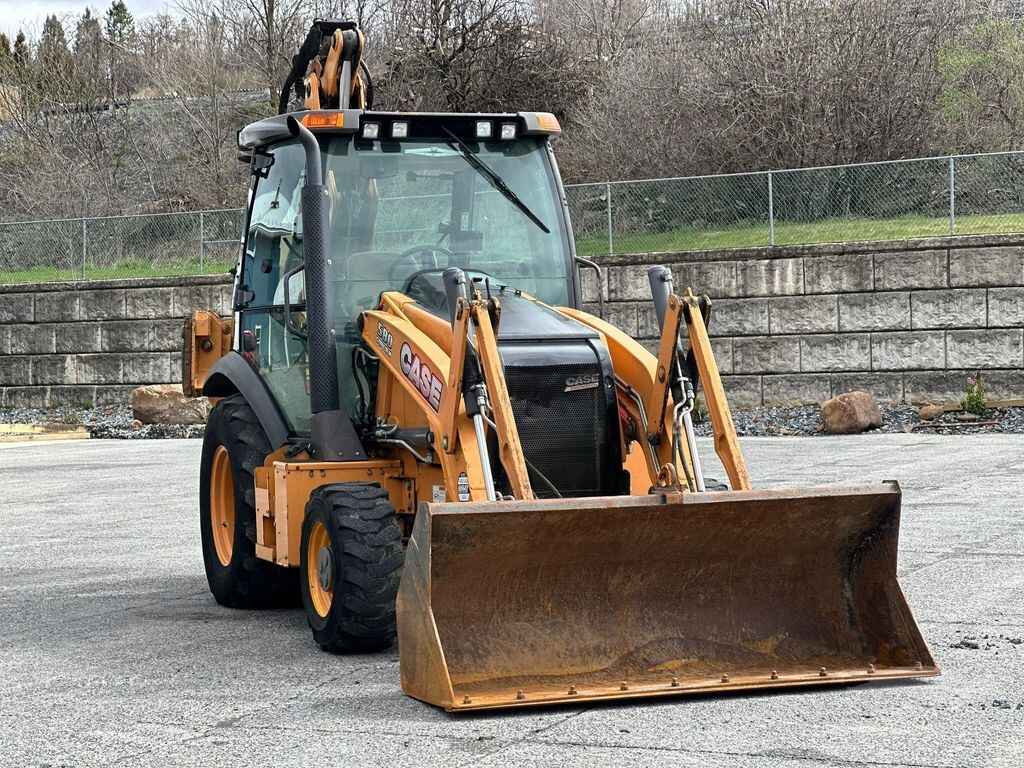

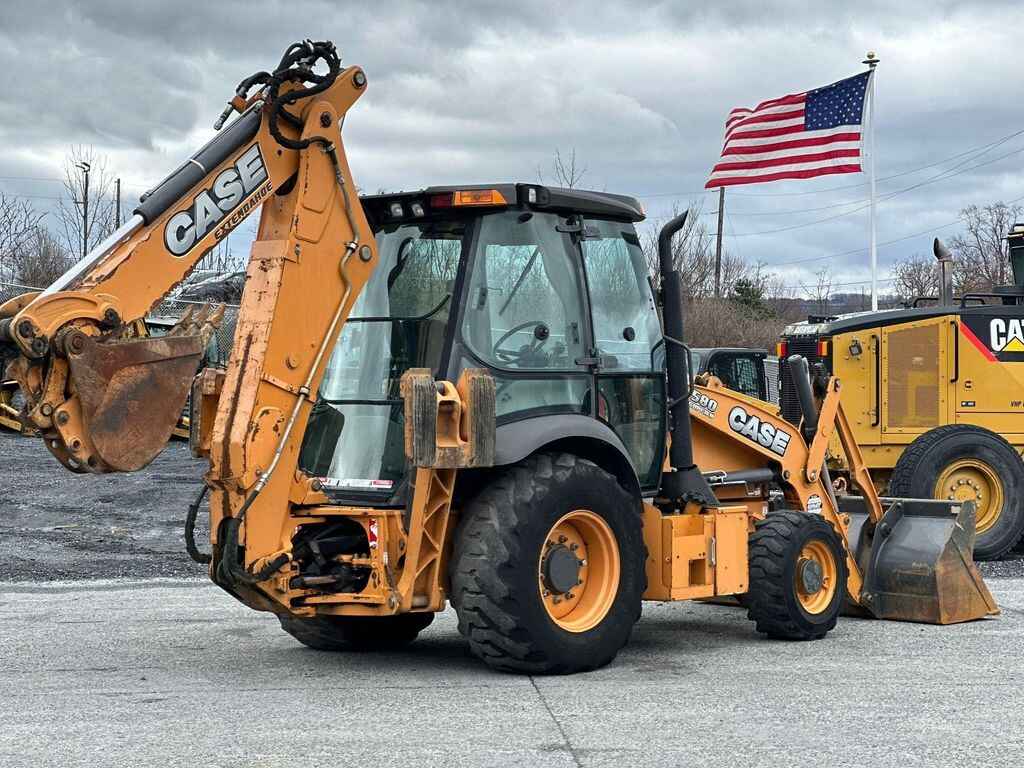

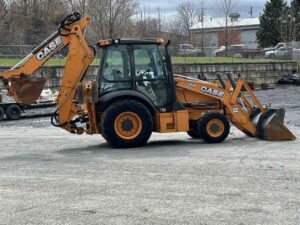

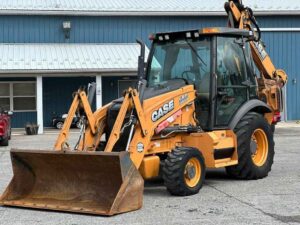

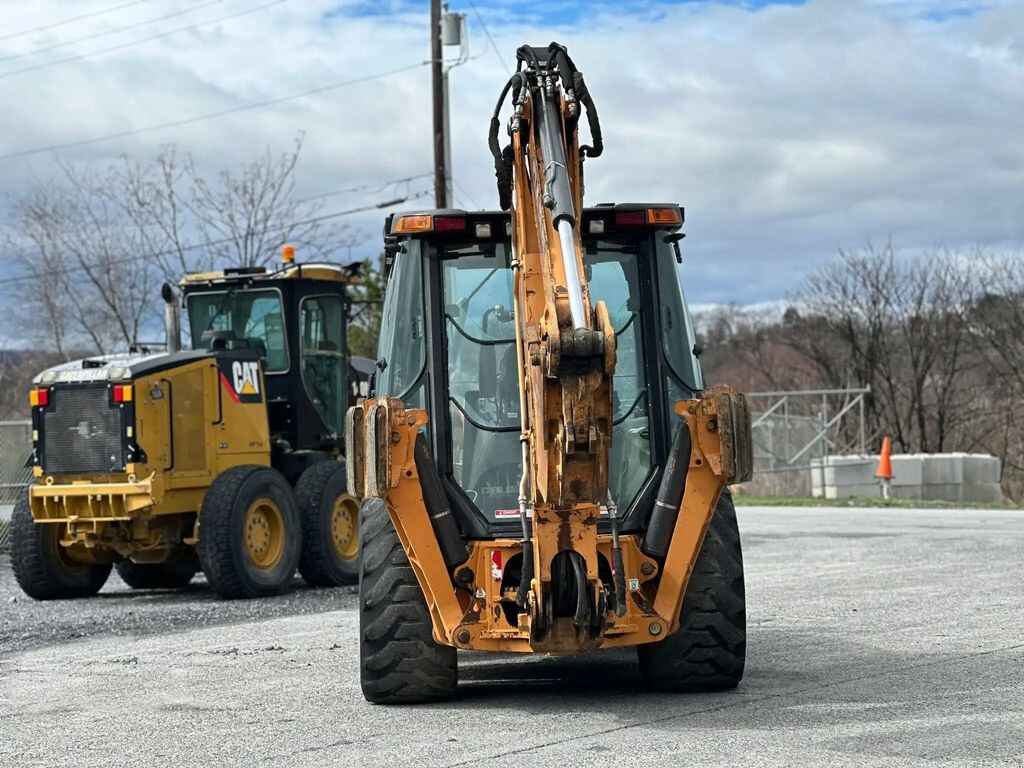

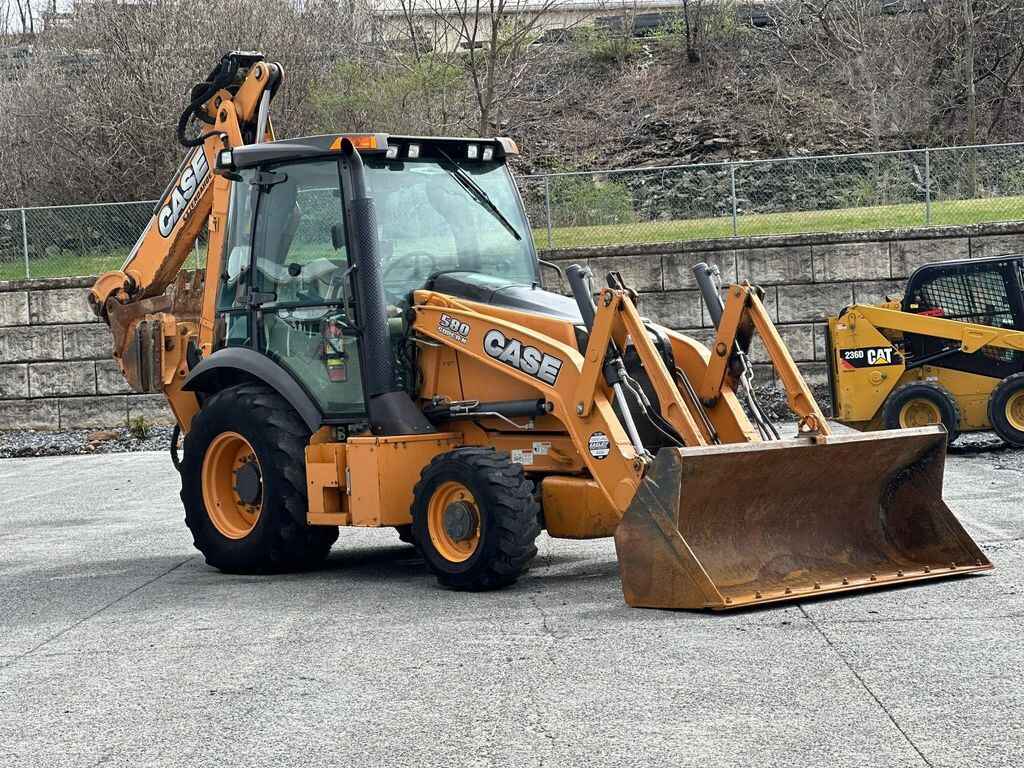

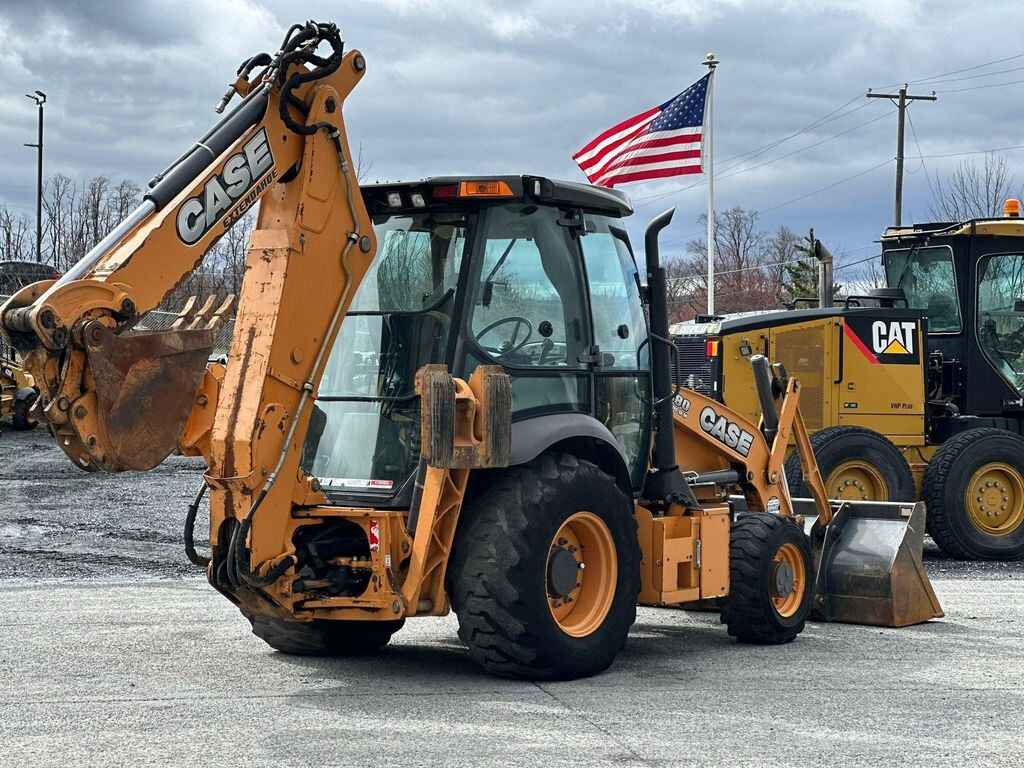

Model: CASE 580 Super N (580SN)
-
Machine Type: Backhoe Loader
-
Year: 2015
-
Operating Weight: 14,250 lbs (6,466 kg)

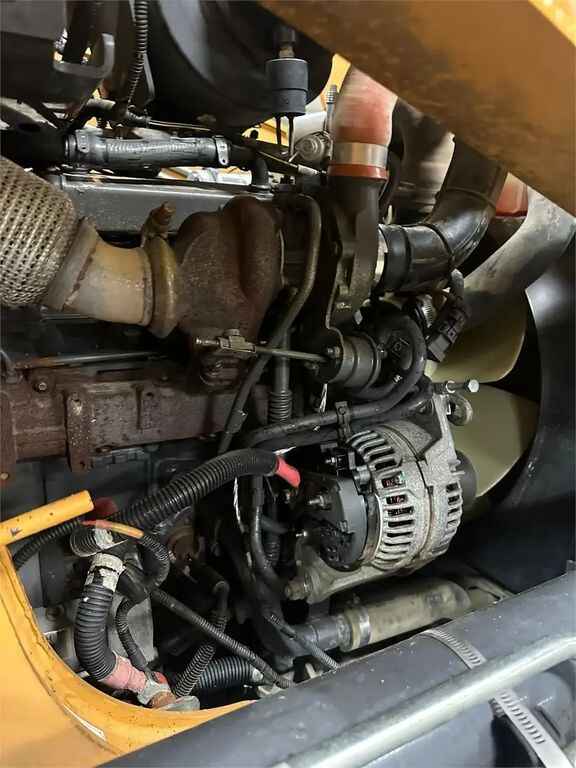

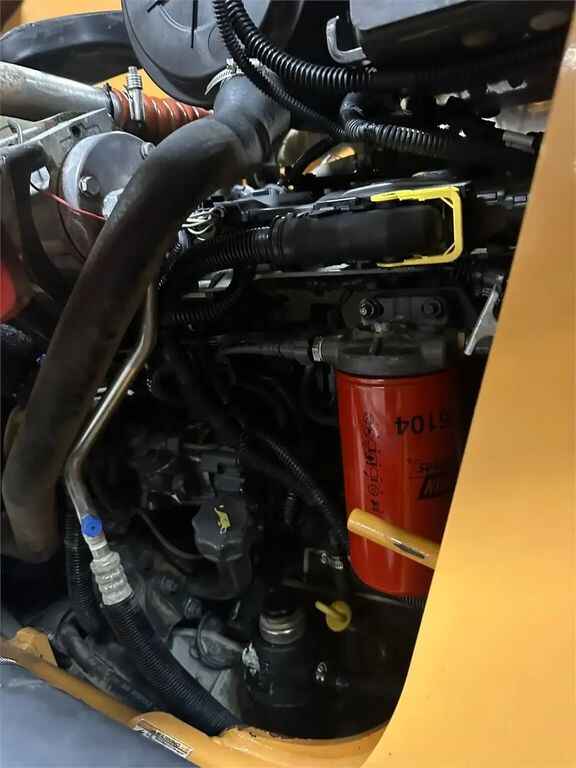

Engine
-
Engine Manufacturer: FPT (Fiat Powertrain Technologies)
-
Model: F5HFL413D
-
Type: 4-cylinder, turbocharged, diesel engine
-
Displacement: 3.4 L (207 cu in)
-
Horsepower: 95 hp (71 kW) @ 2,200 RPM
-
Peak Torque: 289 lb-ft (392 Nm) @ 1,400 RPM
Transmission
-
Transmission Type: Powershift S-Type
-
Speeds: 4 forward / 4 reverse
Dimensions
-
Overall Length: 23.3 ft (7.1 m)
-
Overall Height: 11.2 ft (3.41 m)
-
Width: 7.2 ft (2.2 m)
-
Wheelbase: 7.2 ft (2.2 m)
Backhoe Performance
-
Dig Depth: 14.5 ft (4.4 m) – Extendahoe: 18.2 ft (5.5 m)
-
Bucket Dig Force: 12,821 lbs (5,815 kg)
-
Maximum Reach at Ground Level: 18.6 ft (5.7 m) – Extendahoe: 21.8 ft (6.6 m)
Loader Performance
-
Bucket Capacity: 1.32 yd³ (1.01 m³)
-
Bucket Width: 89 inches (2.26 m)
-
Dump Height: 8.8 ft (2.68 m)
-
Lift Capacity at Full Height: 7,194 lbs (3,263 kg)
Hydraulics
-
System Type: Closed center, load-sensing system
-
Hydraulic Pump Flow: 31.2 gal/min (118 L/min)
Tires
-
Standard Tire Size:
-
Front: 12.5/80-18
-
Rear: 19.5L-24
-
Additional Features
-

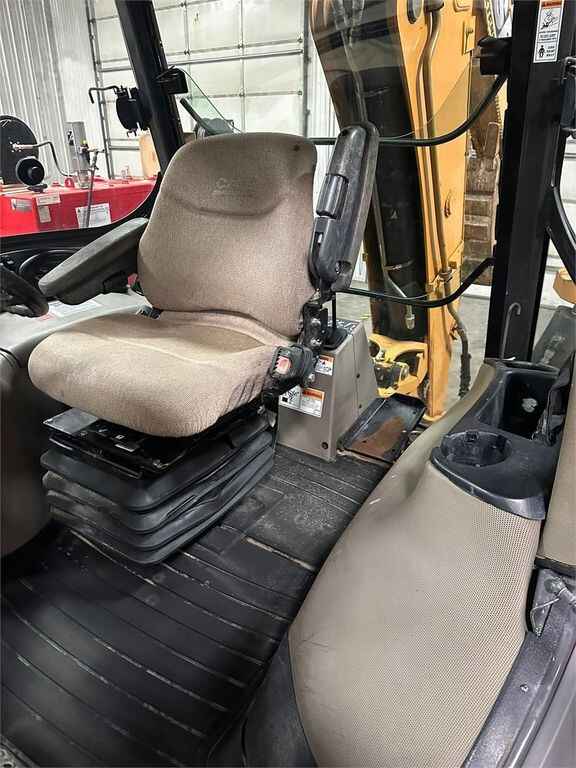

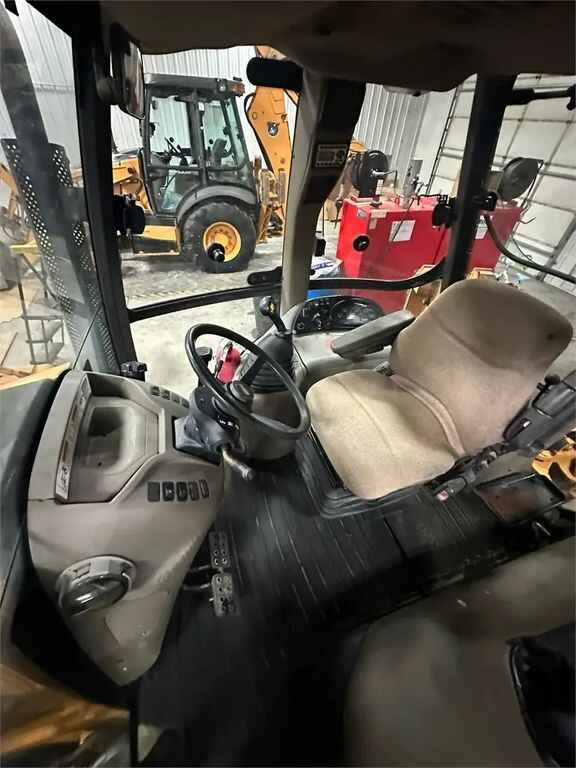

Operator Station: ROPS/FOPS cab with optional climate control
-
Fuel Tank Capacity: 31 gallons (117 L)
-
Optional Attachments:
-
Extendahoe
-
4-in-1 bucket
-
Quick coupler
-
Auxiliary hydraulics
-
